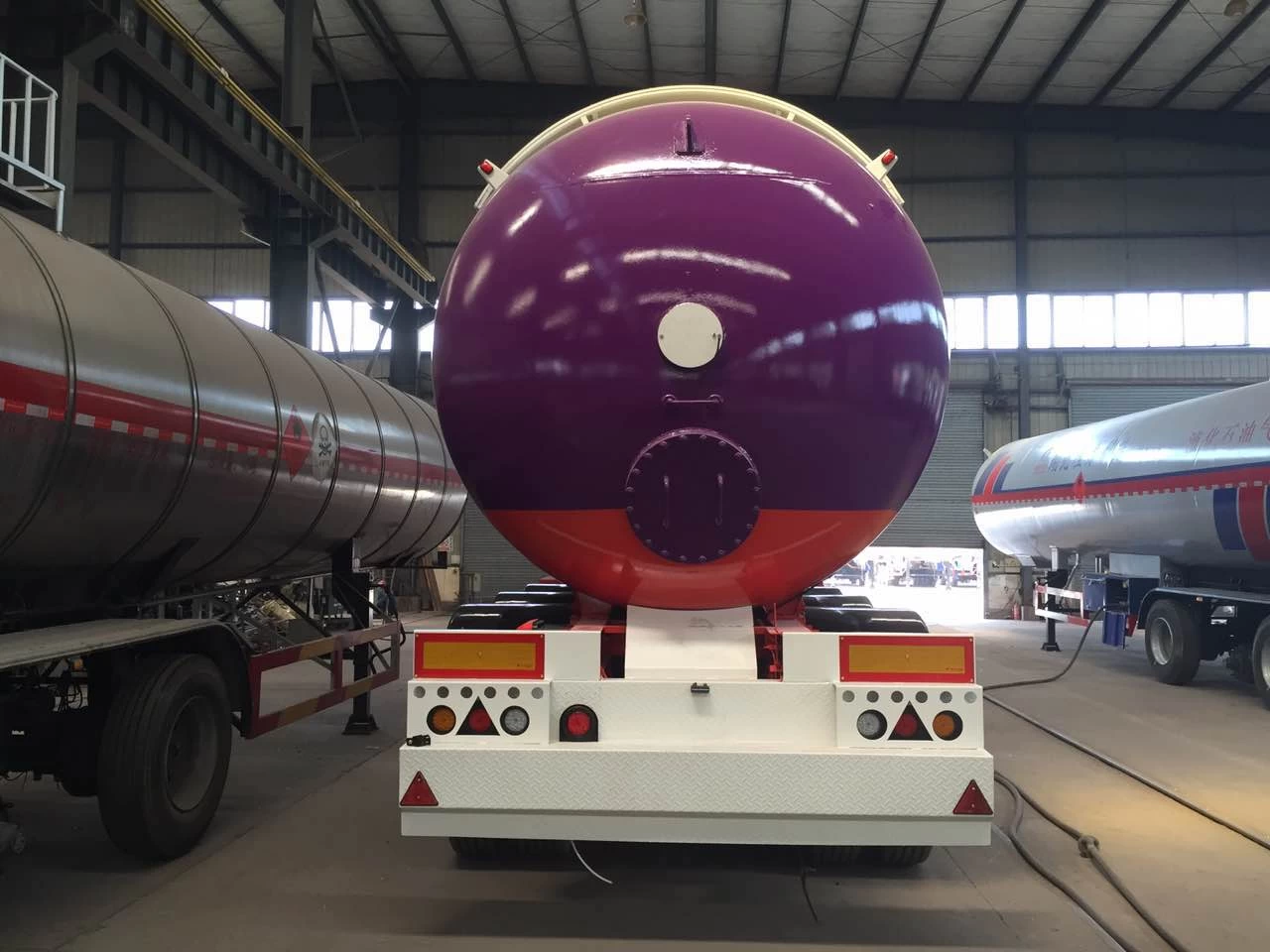

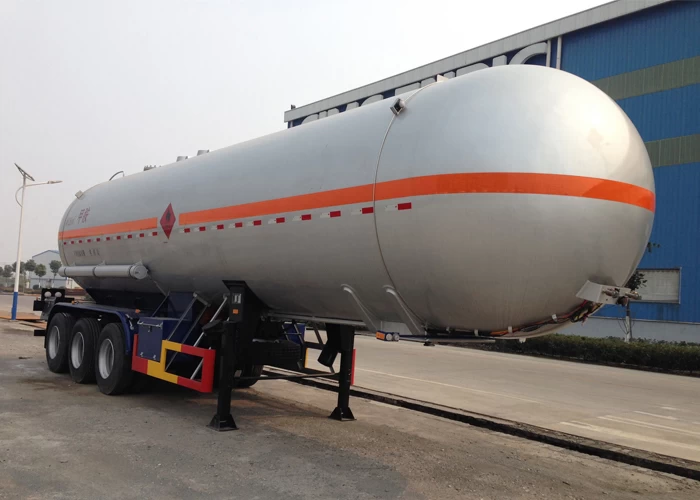

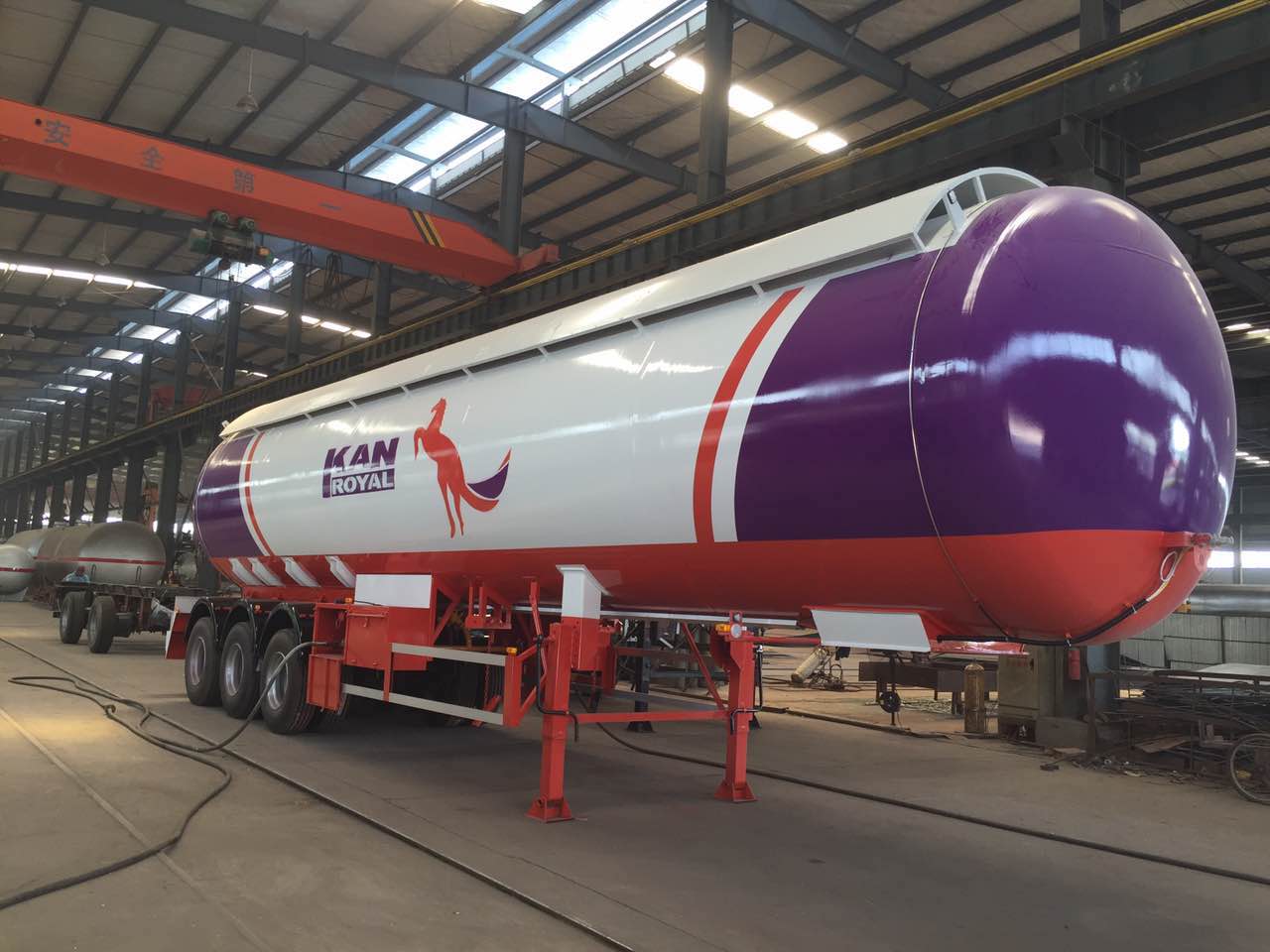

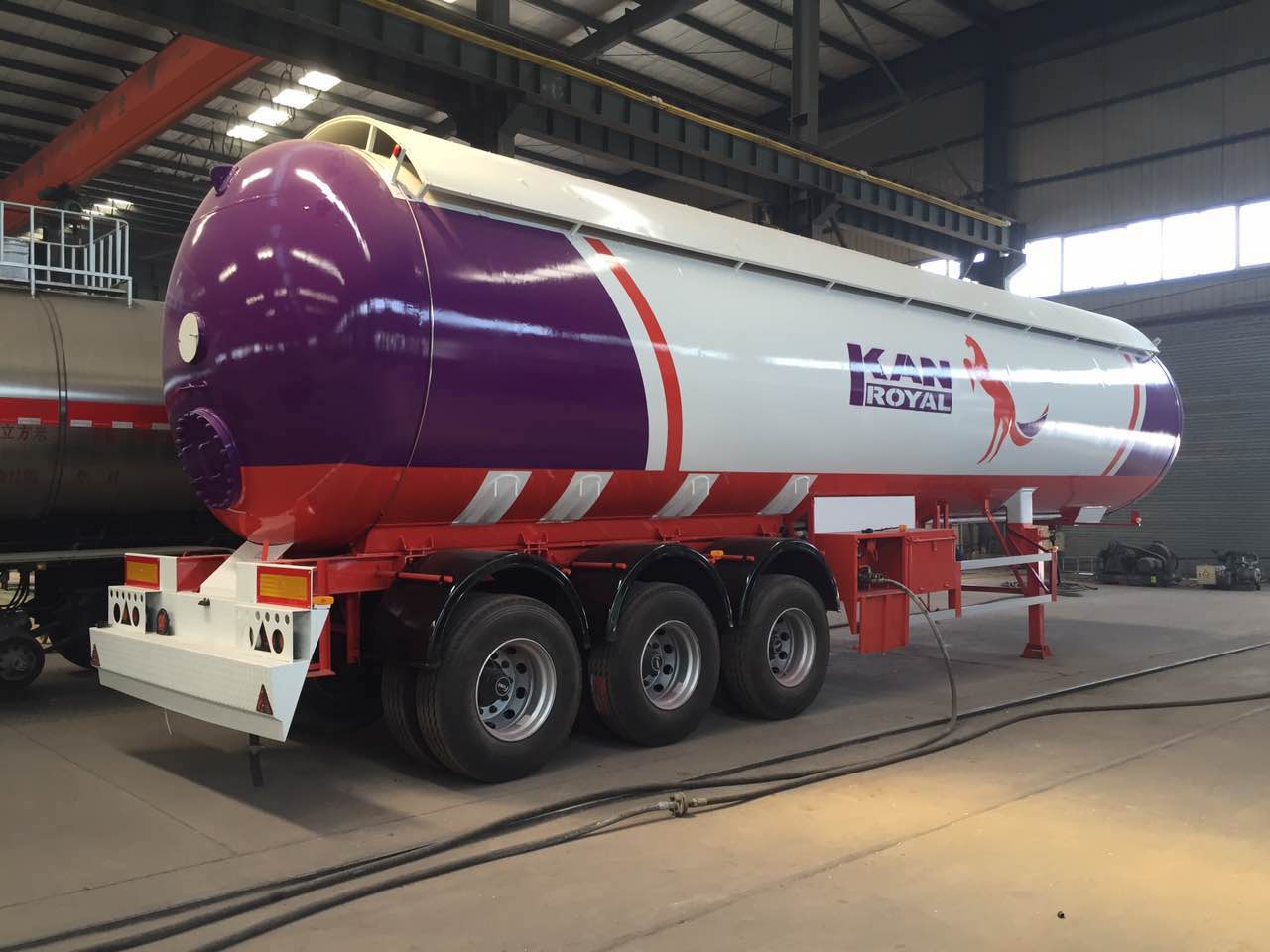

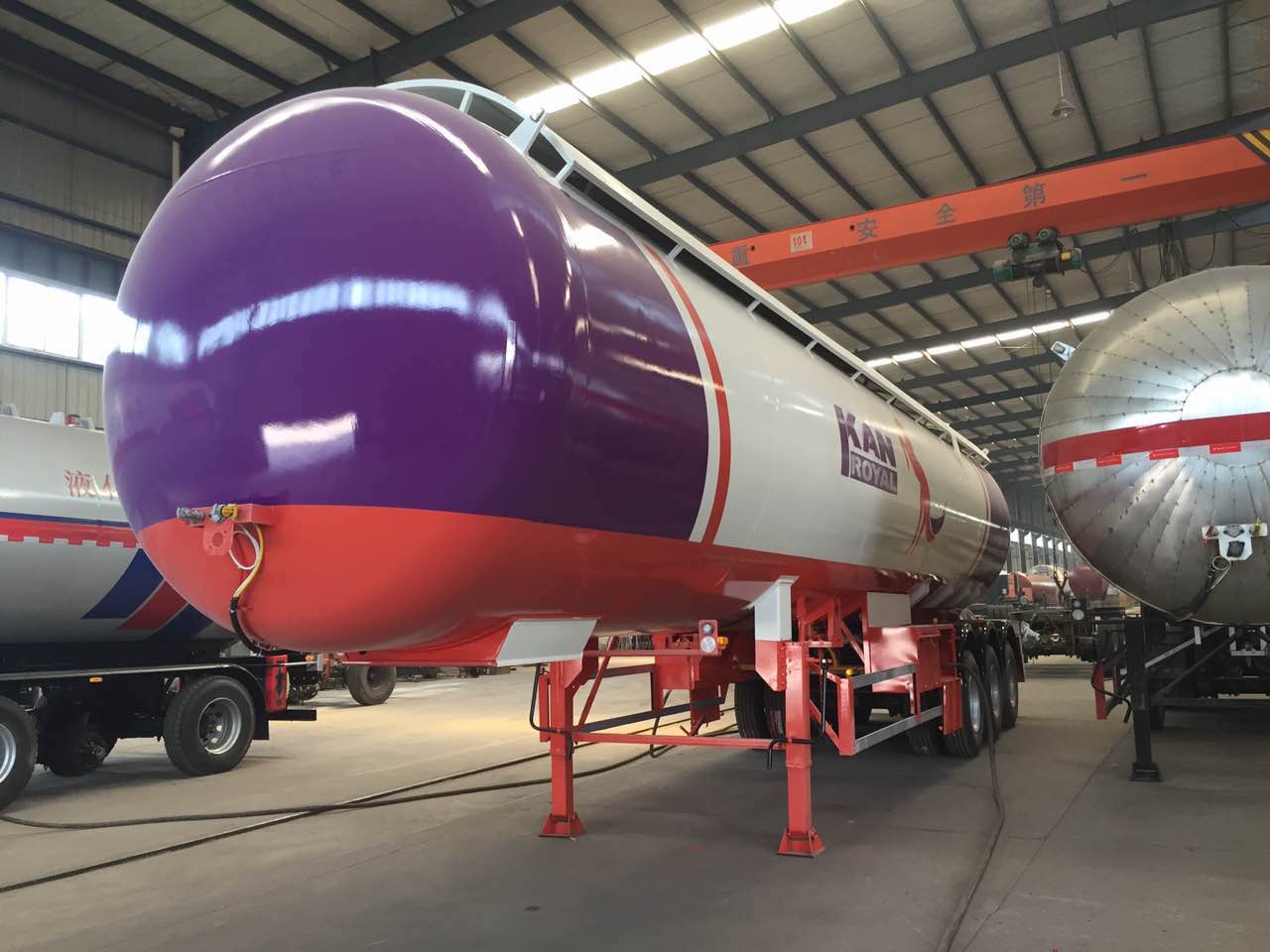

38,000L LPG LORRY tank semi trailer

LPG Tank trailer or tanker Trailer (United States usage) or tanker (United Kingdom usage), is a Trailer designed to carry Liquefied petroleum gas or liquid petroleum gas (LPG or LP gas), which also referred to as simply propane or butane, are flammable mixtures of hydrocarbon gases used as fuel in heating appliances, cooking equipment, and vehicles.

Facebook Twitter Pinterest LinkedIn 分享



38,000L LPG LORRY tank semi trailer



POWERSTAR TRUCKS ISUZU TRUCKS SUPPLIER



 Applications:

Three axle 12 wheeler LPG tank trailer (also called Liquefied petroleum gas transport tanker trailer, Made in china LPG semi trailer, Isobutene lpg gas trailer)  is a Trailer designed to carry Liquefied petroleum gas or liquid petroleum gas (LPG or LP gas), which also referred to as simply propane or butane, are flammable mixtures of hydrocarbon gases used as fuel in heating appliances, cooking equipment, and vehicles. As it burns release less CO2 per unit of energy than does coal or oil, but a higher calorific value (94 MJ/m3 equivalent to 26.1kWh/m3) than natural gas (methane) (38 MJ/m3 equivalent to 10.6 kWh/m3), so it become popular as a Clean energy in these years.




38000L   LPG Lorry Tank Semi Trailer with 3 axles for Liquid Chloroethylene 9383GYQ
overall outside dimensio（mm） Length 10800
Width 2490
Height (unload) 3700
Outside   dimension of tank body（mm） Length 10386
Dia Φ 2216
Height
capacity（L） 38000
GVW（kg） 40000
vehicle   total weight（kg） 10740
rated   payload（kg） 29260
Wheel   base（mm） 5700+1350+1350
Tread（mm） Tread   at front
Tread at rear 1840/1840/1840
Front/Rear   Overhang（mm） /1055
Approach/Departure   angle（°） /27.5
Rated   payload of Vehicle saddle 16000
Axle BPW   12T*3
Axle Capacity kgs 8000/8000/8000
Tyres 11R22.5*12
Tank   Material  Q370R
Transport   Material :  Liquid   Chloroethylene
Insulated   Cover
Suspension Spring   Leaf
Leaf Spring /8/8/8
remark:
Storage Tank volume:38 m3,Liquid   Chloroethylene 770kg/m3, Equip with 6*4 or 6*2   Tractor , WABCO Brake System and ABS, Clerance: 540
    OPTIONAL : Spring Air SUSPENSION AND SUPER   SINGLE TYRE
Tank facility
Design pressure
1.72MPa
     (see technical proposals)
MAWP
1.72 MPa
    (see technical proposals)
Capacity
Code   & Material Q370R
Heads
Spherical heads at both ends
Filling & Discharge   System  Control   method  Mechanical
Liquid discharge  Single   liquid discharge system  Side   of the trailer
Valve box Single   valve boxes  Side   of the trailer
Vales Brand  Model  Qty   (per Semitrailer)
Emergency Valve (Liquid Phase) Rego A3213D300 2
Emergency Valve(Gas Phase) Rego A3212R175 1
PRV  Rego A   8436G 2
Vent Valve Rego TSS3169 4
Liquid Adaptor Rego 5769K    (3”, 3-1/4ACME) 2
Gas Adaptor Rego 5767H   (2”, 2-1/4ACME) 1
Liquid Adapter Cap Rego 3194-90   (3-1/4ACME) 2
Gas Adapter Cap Rego 3184-90   (2-1/4ACME) 1
Pressure Gauge Rego A   8400 1
Angle Valve Fisher J415 1
Thermometer WIKA
1
Liquid Level Gauge Rego 9094TSM60 1
Ball valves (Liquid Phase) Modentic   valve MD-51FS-300   DN 80 2
Ball valves (Gas Phase) Modentic   valve MD-51FS-300   DN 50 1
