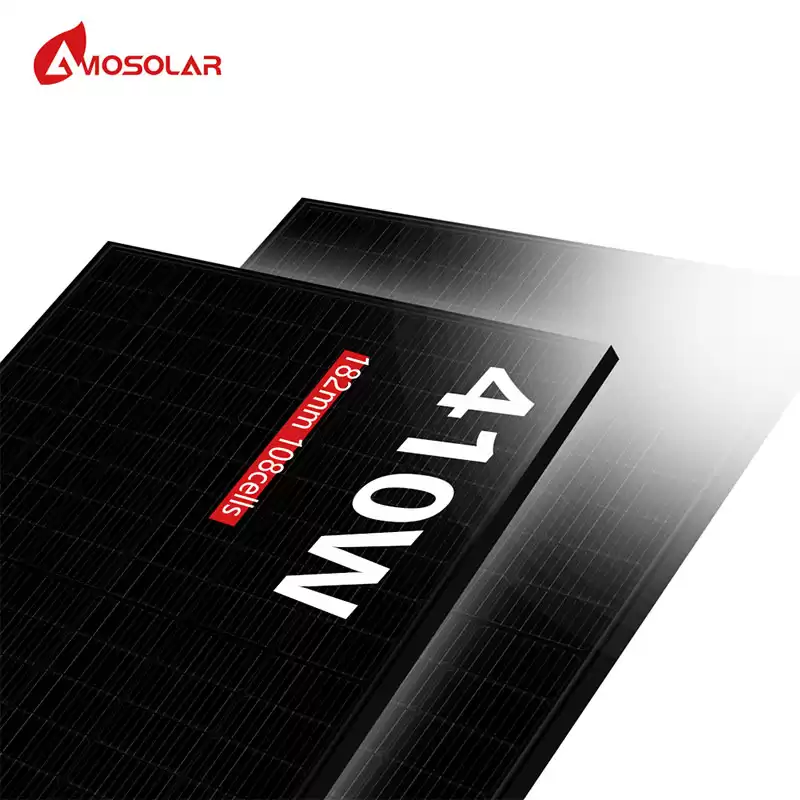

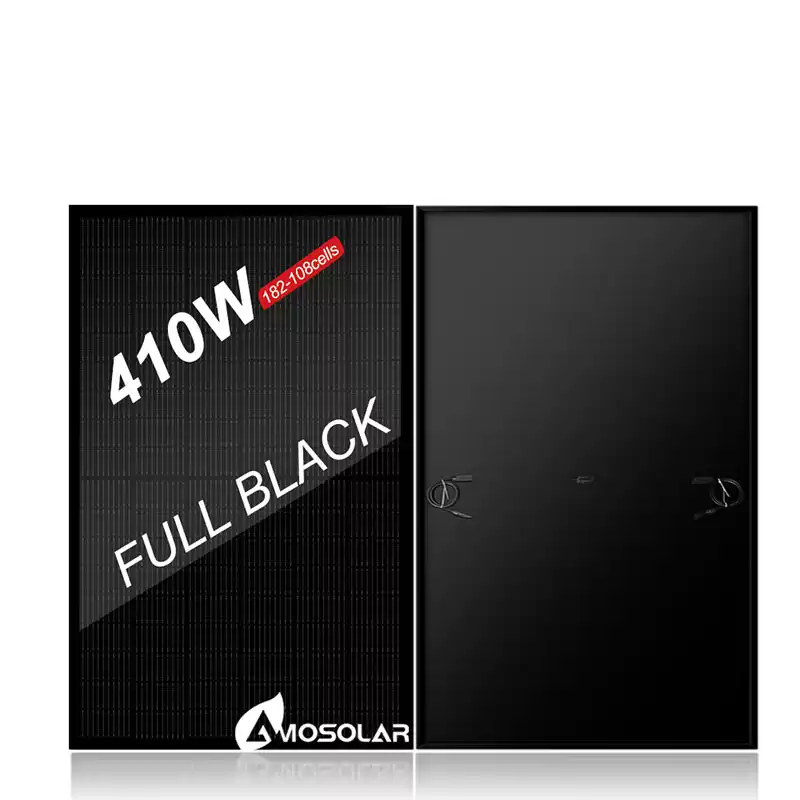

380W-410W All Black Half Cell Mono PV Panel Chinese Manufactory : With latest multi-busbar PERC technology, 182mm half-cell solar panels with bigger power, higher efficiency, longer life, better performance.
Electrical Performance Parameters (STC Test)
Model
|
AS380BM10-108
|
AS385BM10-108
|
AS390BM10-108
|
AS395BM10-108
|
AS400BM10-108
|
AS405BM10-108
|
AS410BM10-108
|
|
Rated Maximum Power at STC
|
380W
|
385W
|
390W
|
395W
|
400W
|
405W
|
410W
|
|
Open Circuit Voltage (Voc)
|
36.31
|
36.46
|
36.61
|
36.76
|
36.91
|
37.06
|
37.21
|
|
Maximum Power Voltage (Vmp)
|
30.56
|
30.72
|
30.88
|
31.04
|
31.20
|
31.36
|
31.52
|
|
Short Circuit Current (Isc)
|
13.40
|
13.47
|
13.54
|
13.61
|
13.68
|
13.75
|
13.82
|
|
Maximum Power Current (Imp)
|
12.43
|
12.53
|
12.63
|
12.73
|
12.82
|
12.91
|
13.01
|
|
PV Module Efficiency (%)
|
19.46
|
19.72
|
19.97
|
20.23
|
20.48
|
20.74
|
21.00
|
|
Standard
|
Inradiance 1000w/m² ， Cell Temperature 25 ℃ ， Air Mass 1.5
|
Mechanical Parameters
Layout : 108( 6 × 18 ）
Junction Box : Split junction box, IP68, 3 diodes
Weight: 21.0KG
Cable Length : 300mm (+) / 300mm（-)
Cable Size : 4mm²（IEC)

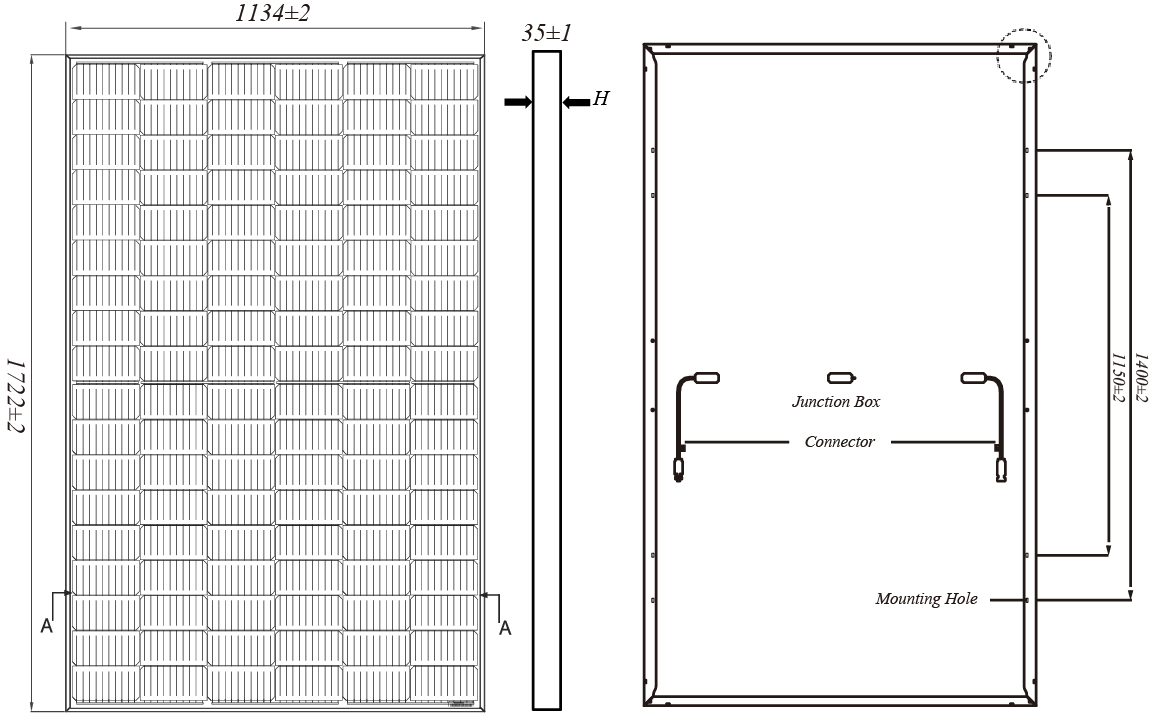

PV Size: 1722×1134×30mm

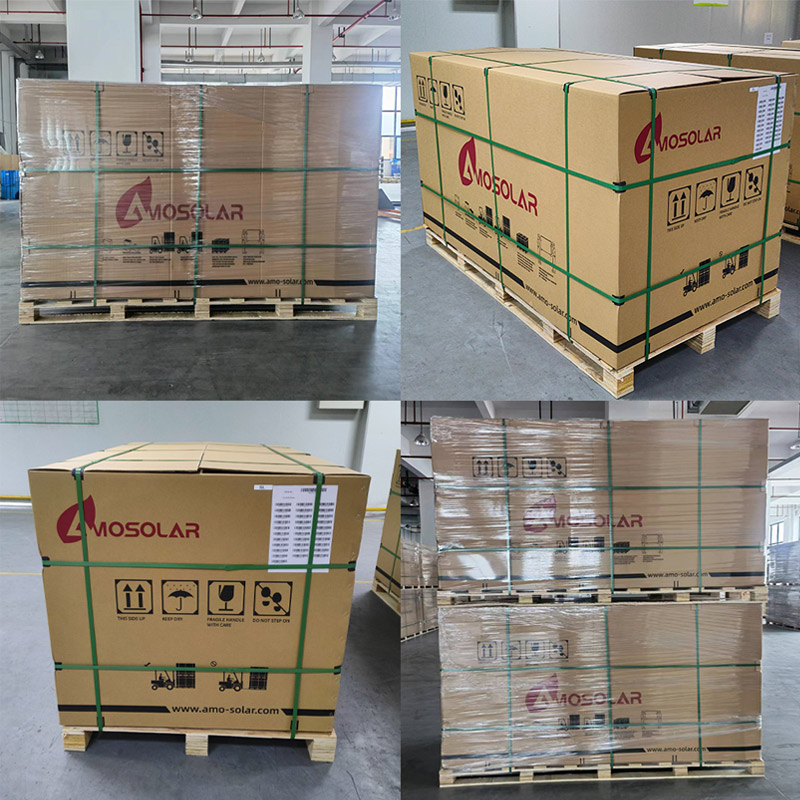

Packaging: 31 pcs / pallet
806 pcs / 40HQ container
