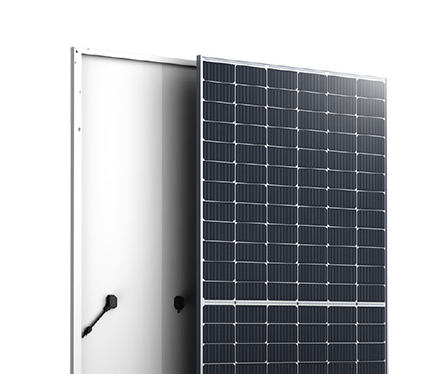

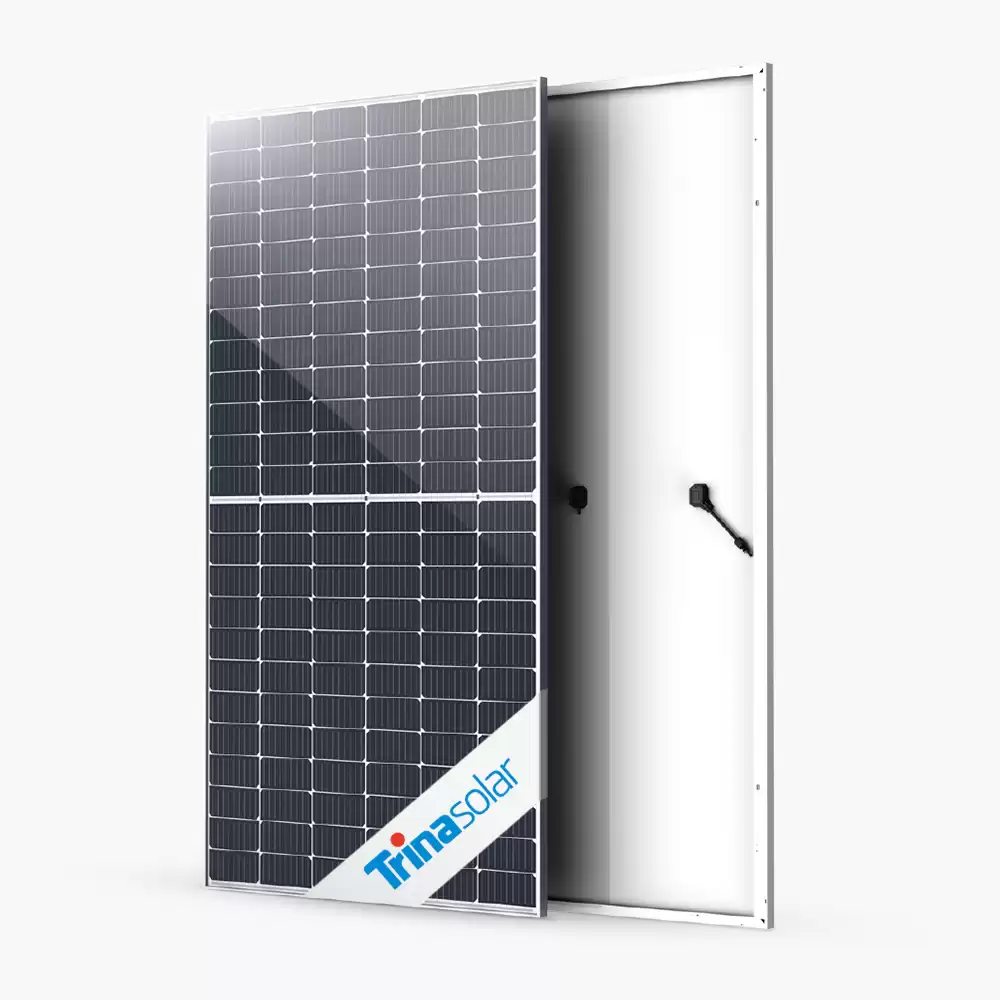

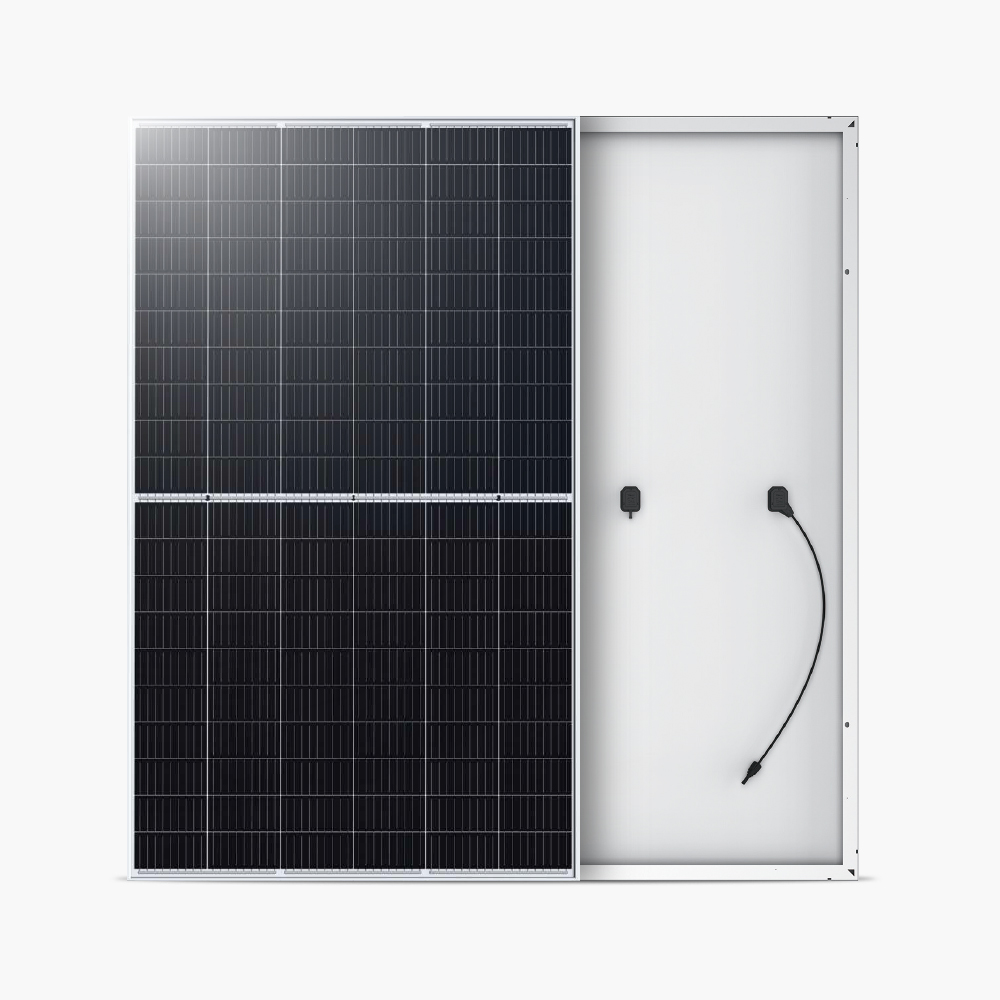

395-420W Trina TallMax High Efficiency MBB Monocrystalline Solar PV Panel

395-420W Trina High Efficiency MBB Monocrystalline Solar Panel, Power Range 395W 400W 405W 410W 415W 420W.


  • PACKAGING31 pieces per box 682 pieces per 40HQ
  • DIMENSION2015 × 996 × 35 mm (79.33× 39.21× 1.38 inches)
  • WEIGHT22.0kg ( 48.5lb)
  • FRAME35 mm (1.38 inches) Anodized Aluminium Alloy
  • GLASS3.2 mm High Transmission, AR Coated Heat Strengthened Glass
  • OUTPUT CABLEPhotovoltaic Technology Cable 4.0mm2
  • CELL ORIENTATION144 cells (6 × 24)
  • JUNCTION BOXIP 68 rated
  • MODELTSM-DE15M(II) 420W



Trina Solar Panel

As a global leading provider for PV module and smart energy solution, Trina Solar delivers PV products, applications and services to promote global sustainable development. As of Dec. 2020, Trina Solar has delivered more than 66 GW of solar modules worldwide.











MBB & Half Cut Technology

On the base of its superior multi-busbar technology, with non-destructive cutting and high-density encapsulation technologies enables high power output.












Trina Authority Certificate

Sunpal has cooperate with Trina Solar for over 15years, we're one of the biggest dealer in China and have authority to export to worldwide.










certifications of solar panel

Trina solar panel meet certifications:

UL 61730 IEC61215/IEC61730/IEC61701/IEC62716

ISO 9001: Quality Management System

ISO 14001: Environmental Management System

ISO14064: Greenhouse Gases Emissions Verification

OHSAS 18001: Occupation Health and Safety Management System




Trina solar panel featureas:

  • Positive power tolerance (0~+5W) guaranteed High module conversion efficiency (up to 20.9%)
  • Slower power degradation enabled by Low LID Mono PERC technology: first year <2%, 0.55% year 2-25
  • Solid PID resistance ensured by solar cell process optimization and careful module BOM selection
  • Reduced resistive loss with lower operating current
  • Higher energy yield with lower operating temperature
  • Reduced hot spot risk with optimized electrical design and lower operating current
