395nm Water Cooled UV LED Curing System Curing UV Paint is photoelectric induction, instant on/off, no preheating required. Also, it is Low energy consumption, just 20% of the ordinary UV lamp.
Product Parameters of 395nm Water Cooling LED UV Curing System:
|
Condition
|
New
|
Type
|
UV curing machine
|
|
Automatic Grade
|
Automatic
|
Place of Origin
|
Guangdong, China (Mainland)
|
|
Brand Name
|
UV-LED CURING
|
Model Number
|
UV-LED CURING-4
|
|
Voltage
|
220V
|
Power(W)
|
10w~2000w
|
|
Dimension(L*W*H)
|
340*240*170mm
|
Weight
|
10kg
|
|
Certification
|
ISO
|
Warranty
|
1 Year
|
|
After-sales Service Provided
|
Engineers Available to Service Machinery Overseas
|
Wavelength
|
365nm~405nm
|
|
Cooling Method
|
Air Cooling or Water Cooling
|
|
|
For more details about Professional UV LED Curing Technology, please contact : 1651063690jennifer@gmail.com (Jennifer)
|

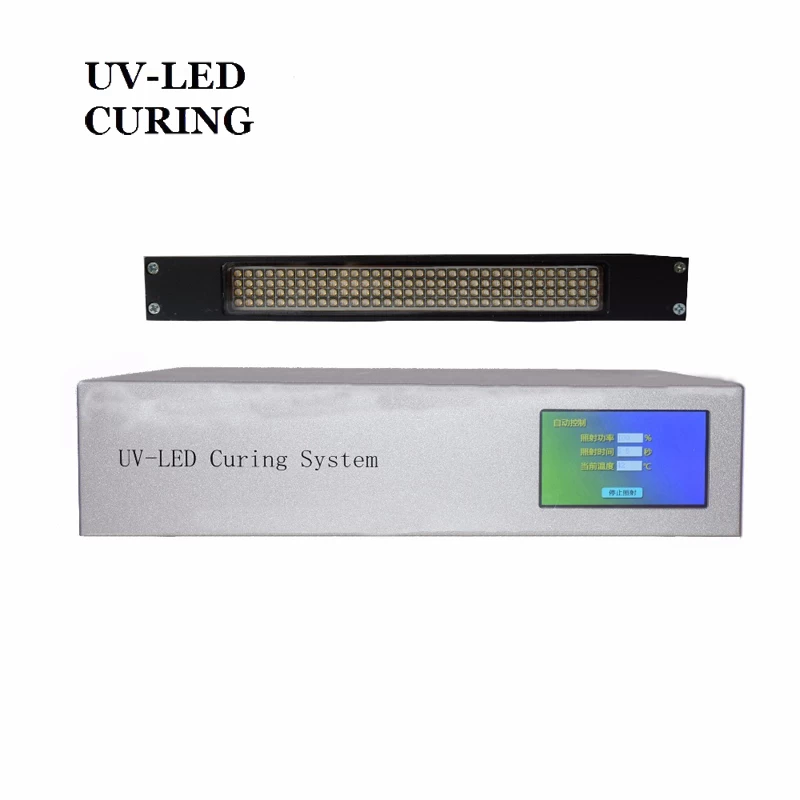

Technical Data of Collimated UV LED Curing Equipment Controller：
|
|
Type
|
XYUV -4Ⅱ
|
|
Channel
|
1
|
|
The size of controller
|
L384*W284*H90mm
|
|
Terminal I/O
|
Input
|
Pedal switch & serial RS-232 communication signals
|
|
Output
|
Serial RS-232 communication signals
|
|
Cooling method of controller
|
Air cooling
|
|
Power supply voltage
|
AC100~240V±10%(50/60HZ)
|
|
Operation mode
|
Touch Panel
|
|
Ambient temperature and humidity
|
Ambient temperature: -10℃—50℃ Relative humidity: 25%—85%RH
|
|
Dimming/Exposure control
|
Digital Debugging, Manual exposure control, Foot control or timing control (0.1~9999s)
|
|
Setting operation
|
Using the operating switch is set, Power key parameter switch, RS-232
|
|
External Control
|
External input
|
Enter irradiation alone Irradiation stop input, Interlocking, All lights illuminated input, Query switch
|
|
External output
|
REDAY signal, Error signal, Warning Output, Busy output (Various skinhead), +5VOutput(indicator used)
|
|

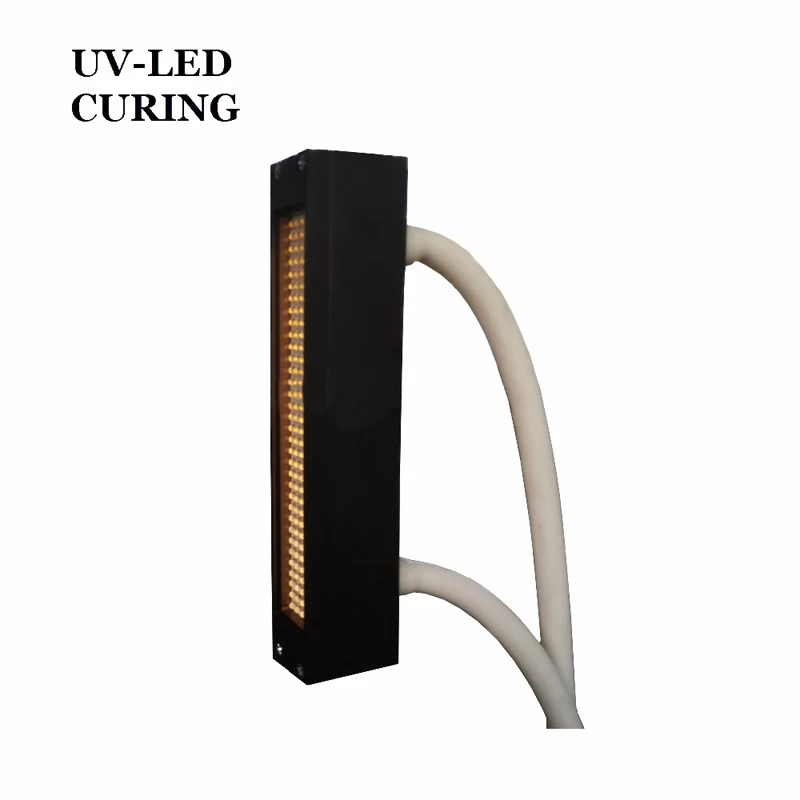

Irradiation Head Specification of Hand-held UV Curing Lamp for 3D printing :
|
|
Model
|
UV-LED CURING S176-20X200-395
|
|
Setting Specification
|
700mA Constant Current
|
|
Electronic Power
|
1500W
|
|
Electric Power
|
Water Cooling
|
|
Control
|
XYUV-4ⅡController, Channel Alone Control
|
|
Curing Area
|
Length 20mm; Width:200mm
|
|
Irradiation Distance
|
10-15mm
|
|

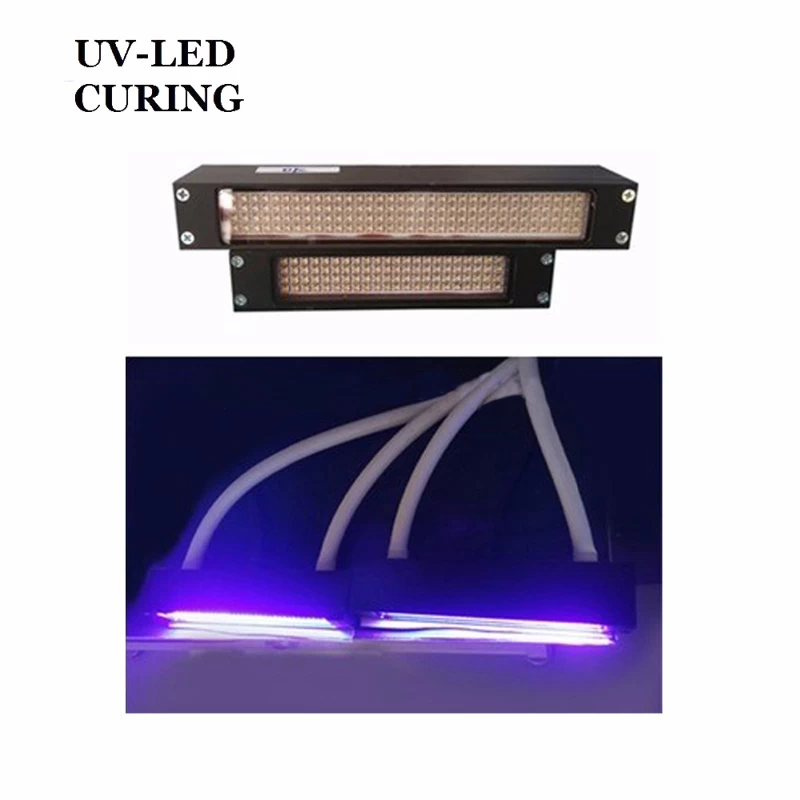

UV LED Curing Head
|
Wavelength
|
395nm
|
|
Peak Irradiance
|
12W/cm2
|
|
Uniformity
|
±5~8%
|
|
Grade
|
No.1,3B Product
|
