If you choose our product, Narrow LED UV Curing Equipment Instant Curing Printing, you will find that it has fast curing speed, high production efficiency. Water Cooling System UV LED Offset for Printing Machine is curing in normal temperature, is suitable for plastic work-piece, and do not produce thermal deformation.
Product Parameters of 395nm UV LED Printing Machine for UV Varnish :
|
Type
|
UV LED
|
Brand Name
|
UV-LED CURING
|
|
Model Number
|
XYUV-4II
|
Place of Origin
|
Guangdong, China (Mainland)
|
|
Chip Material
|
AlGaInP
|
Emitting Color
|
purple
|
|
Luminous Intensity
|
12000MW/CM2
|
Luminous Flux(lm)
|
30-40lm
|
|
Optical Attenuation(%)
|
10
|
Power
|
0.1W
|
|
Power Dissipation
|
1584
|
Viewing Angle(°)
|
120
|
|
Color Rendering Index(Ra)
|
12
|
Color Temperature
|
365nm/395nm
|
|
Operating Temperature(℃)
|
-10 - 50
|
Storage Temperature(℃)
|
-10 - 50
|
|
Certification
|
CE, RoHS
|
Wavelength
|
365nm/375nm/385nm/395nm/405nm/415nm
|
|

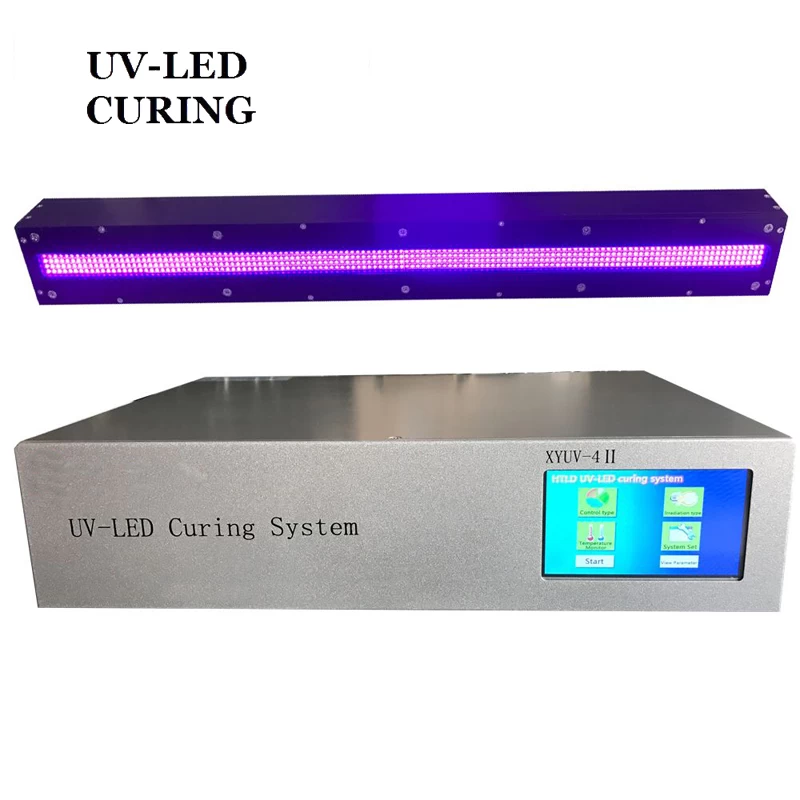

Technical Data of Water Cooling UV Curing Equipment Controller for Floor Coating ：
|
|
Type
|
XYUV - 4Ⅱ
|
|
Channel
|
1
|
|
The size of controller
|
L384*W284*H90mm
|
|
Terminal I/O
|
Input
|
Pedal switch & serial RS-232 communication signals
|
|
Output
|
Serial RS-232 communication signals
|
|
Cooling method of controller
|
Water cooling
|
|
Power supply voltage
|
AC100~240V±10%(50/60HZ)
|
|
Operation mode
|
Touch Panel
|
|
Ambient temperature and humidity
|
Ambient temperature: -10℃—50℃ Relative humidity: 25%—85%RH
|
|
Dimming/Exposure control
|
Digital Debugging, Manual exposure control, Foot control or timing control (0.1~9999s)
|
|
Setting operation
|
Using the operating switch is set, Power key parameter switch, RS-232
|
|
External Control
|
External input
|
Enter irradiation alone Irradiation stop input, Interlocking, All lights illuminated input, Query switch
|
|
External output
|
REDAY signal, Error signal, Warning Output, Busy output (Various skinhead), +5VOutput(indicator used)
|
|

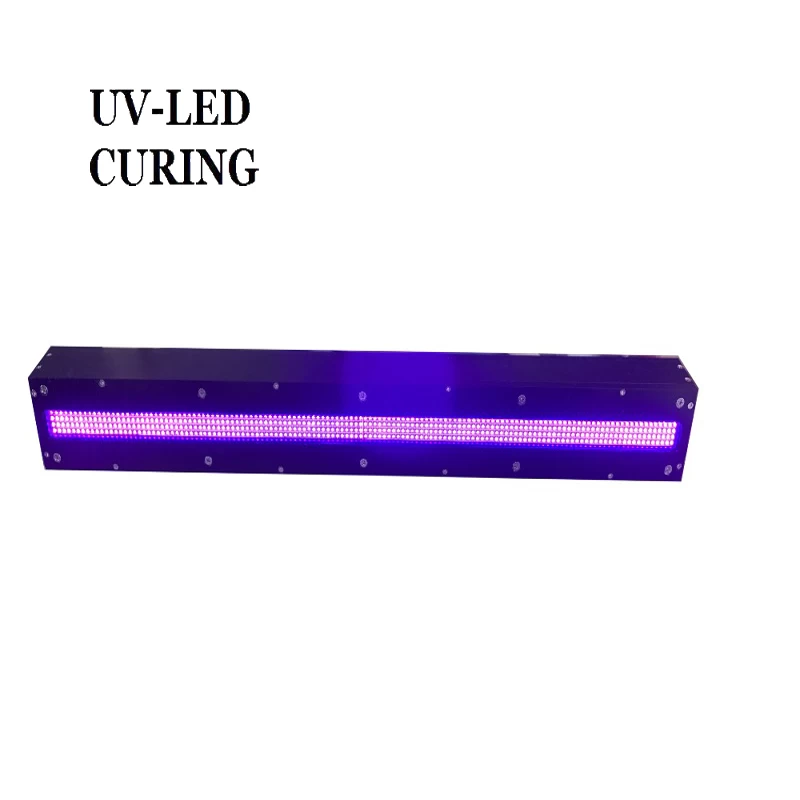

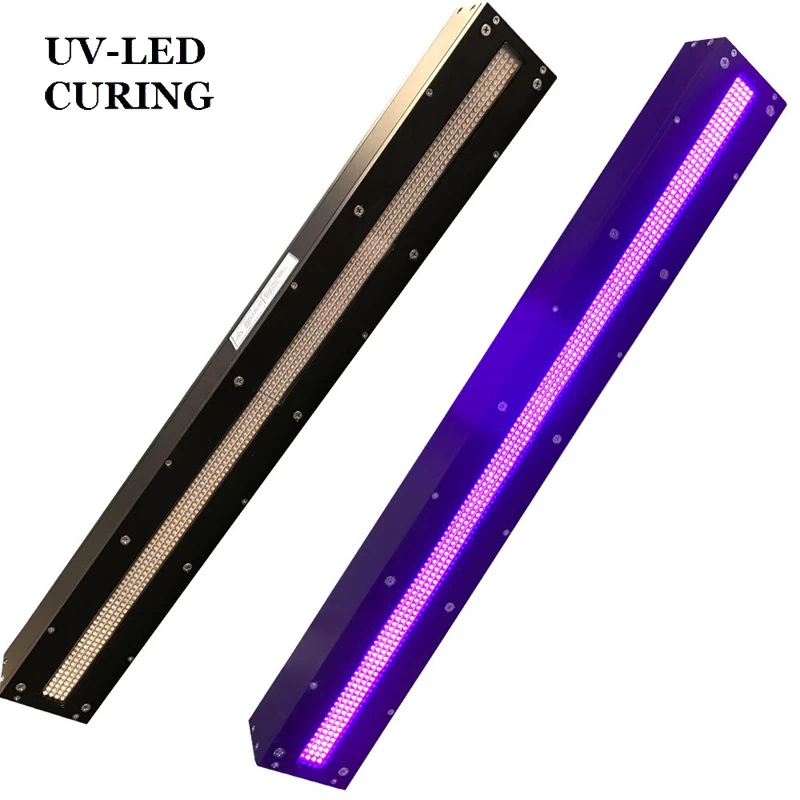

Technical data of 395nm Linear LED UV Curing Light Source :
|
|
Product Model
|
Emitting Window Size
|
Wavelength
|
Cooling Method
|
Peak Irradiation
|
Irradiation Distance
|
|
UV-LED CURING
S528-20*600
|
20*600mm
|
395nm
|
Water Cooling
|
12000mw/cm2
|
10-20mm
|
