ABB 3BUR001454R1
ABB 3BUR001454R1 HOT SELL IN STOCK NEW AND ORIGINAL PACKAGE WITH ONE YEAR WARRANTY
DI814 ABB S800 Digital Input Module 24V Current 16 CH Isolated PLC Spare Parts 3BUR001454R1
Name: ABB Power Module Model: DI814 Package: STANDARD Warranty: 12 Months Gross Weight: 2.2 Lbs / 35.2 Oz / 1kg Packing Size: 7" X 7" X 4" (18 Cm X 18 Cm X 10 Cm) Lead Time: 1~3 Days Quality: 100%Brand Product Name: Programmable Logic Controller Stock: Available High Light: ABB Digital Input Module 24V , DI814 Digital Input Module , PLC Spare Parts 3BUR001454R1 DI814 ABB S800 Digital Input Module 24V Current 16 CH Isolated PLC Spare Parts 3BUR001454R1

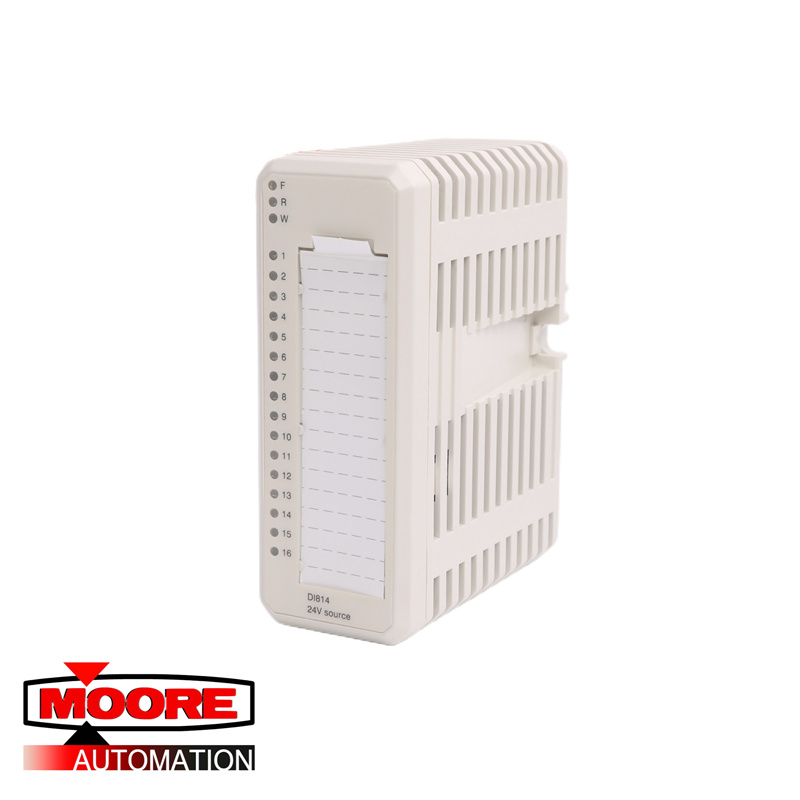

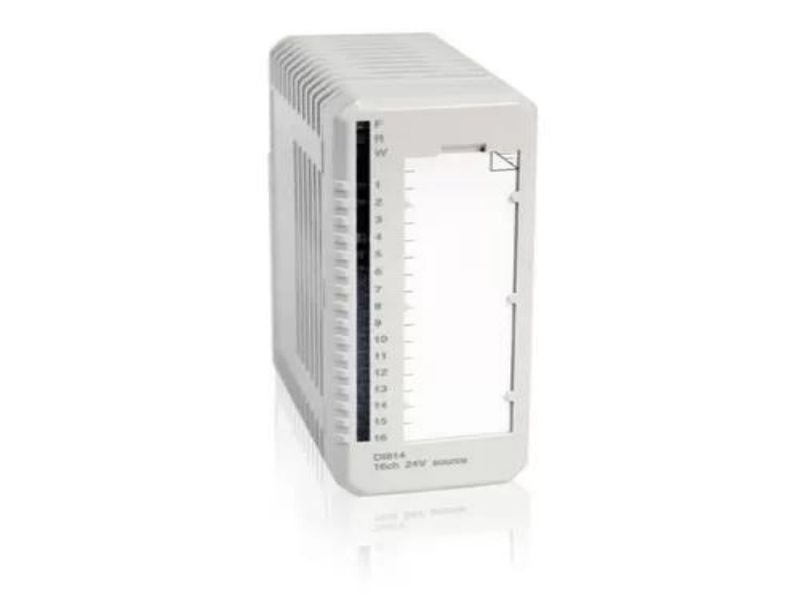

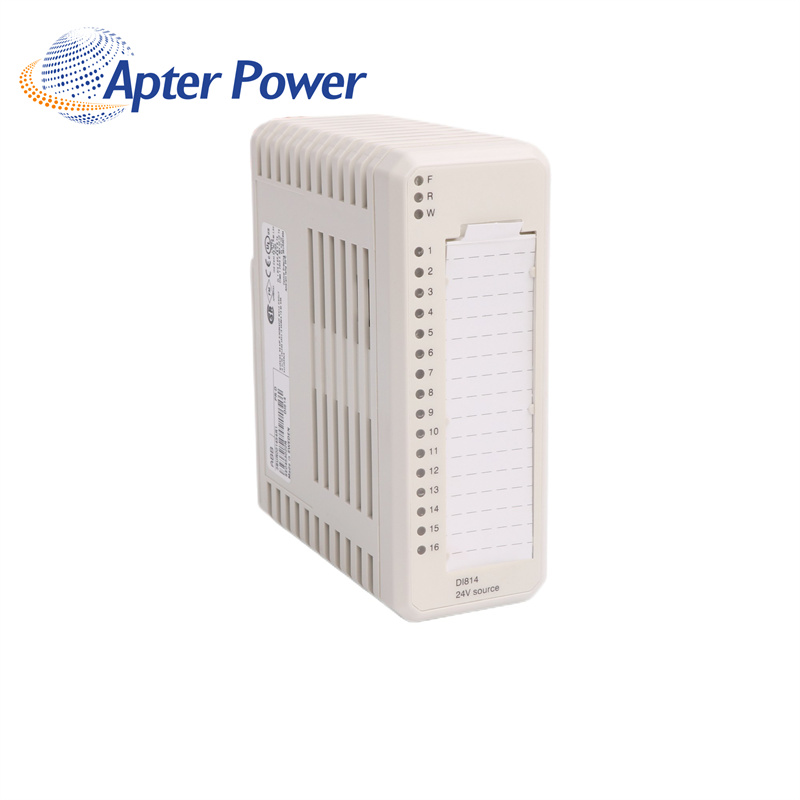

DI814 3BUR001454R1 ABB Advant 800xA S800 Digital I/O Module
DI814 is a digital input module 24V Current 16 ch manufactured by ABB. HS CODE : 8538909200
ABB DI814 3BUR001454R1 16 channels for 24 V d.c. inputs with current sourcing
The input voltage range is 18 to 30 volt dc and the input current source is 6 mA at 24 V. The inputs are divided into two individually isolated groups with eight channels and one voltage supervision input in each group. Every input channel consists of current limiting components, EMC protection components, input state indication LED and optical isolation barrier. The process voltage supervision input give channel error signals if the voltage disappears. The error signal can be read through the ModuleBus. Email:sean@xmbse.cn
ABB DI818 3BSE069052R1 32 channels for 24 V d.c. inputs with current sinking
This module has 32 digital inputs. The input voltage range is 18 to 30 volt d.c. and the input current is 4.3mA at 24 V. The inputs are divided into two individually isolated groups with 16 channels and one voltage supervision input in each group. Every input channel consists of current limiting components, EMC protection components, input state indication LED and optical isolation barrier. The process voltage supervision input give channel error signals if the voltage disappears. The error signal can be read via the ModuleBus. Email:sean@xmbse.cn
ABB DI814 3BUR001454R1 Digital Input Board
Availability: More than 17 in stock
ABB | DI814 3BUR001454R1 | Digital Input Module
No brief introduction
