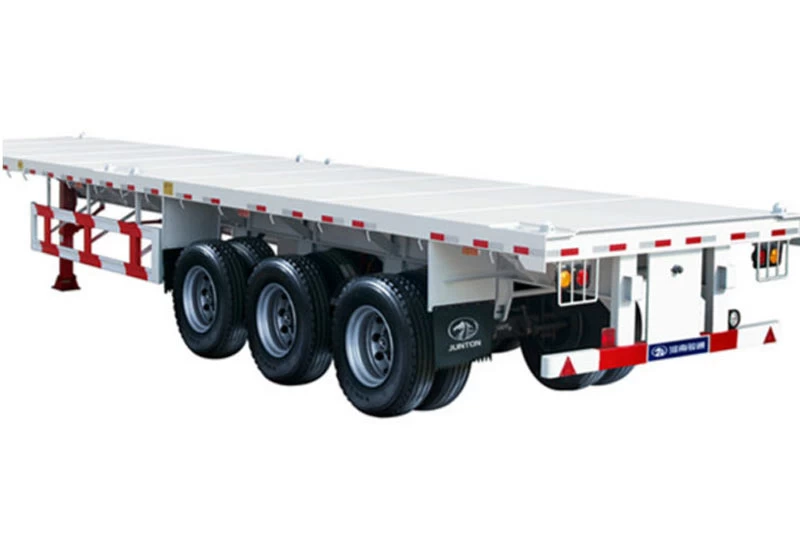

3Axle 40Ft Flatbed Trailer

Type

40ft flatbed semi trailer

Function

Transport 2x 20ft or 1x40ft container or other stuff

Overall dimension

12350x2500x1500mm

Tare weight

6900kg

Loading weight

40000kg

Chassis

Main beam

The height of the beam is 500 mm, upper plate is14mm,down plate is 16mm,middle plate is 8mm.

Side beam

16U shaped steel or I shaped steel

Platform thickness

3mm

Axle

FUWA, 3axle

Suspension type

Normal suspension

Leaf spring

10/10/10

Traction pin

50# or 90#

Land gear

Standard 28ton

Tire

12R22.5   12units

Accessories

Brake

6 big chamber, without ABS

Tool box

1 unit

Spare wheel carrier

2 units

Side marker lamp

LED type
