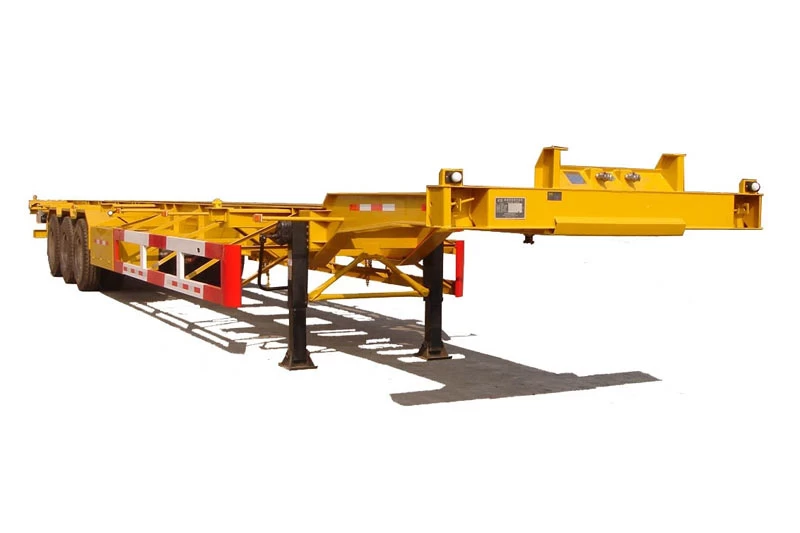

3axle 45ft skeleton semi trailer

Type

45ft skeleton semi trailer

Function

Transport 2x 20ft or 1x45ft container or other stuff

Overall dimension

14000x2500x1500mm

Tare weight

7200kg

Loading weight

45000kg

Chassis

Main beam

The height of the beam is 500 mm,
Upper plate is14mm,
Down plate is 16mm,
Middle plate is 8mm.

Side beam

16# U shaped steel or I shaped steel

Axle

3x13ton Fuwa Axle

Suspension type

Normal suspension

Leaf spring

10/10/10

Traction pin

50# or 90#

Twist lock

10sets

Land gear

Standard 28ton

Tire

12R22.5   12units

Accessories

Brake

6 big chamber, without ABS

Tool box

1 unit

Spare wheel carrier

2 units

Side marker lamp

LED type

Voltage

24V

Receptacle

7ways (7 wire harness)
