ABB 3BSE022460R1

ABB 3BSE022460R1 HOT SELL IN STOCK NEW AND ORIGINAL PACKAGE WITH ONE YEAR WARRANTY

ABB 3BSE022460R1 STOCK

ABB TU846 3BSE022460R1 Warranty With One year

ABB TU846 3BSE022460R1 Warranty With One year 100% Brand New. 365 days warranty.

ABB TU846 3BSE022460R1 Mechanical keying prevents insertion of the wrong module type.DIN rail mounted.

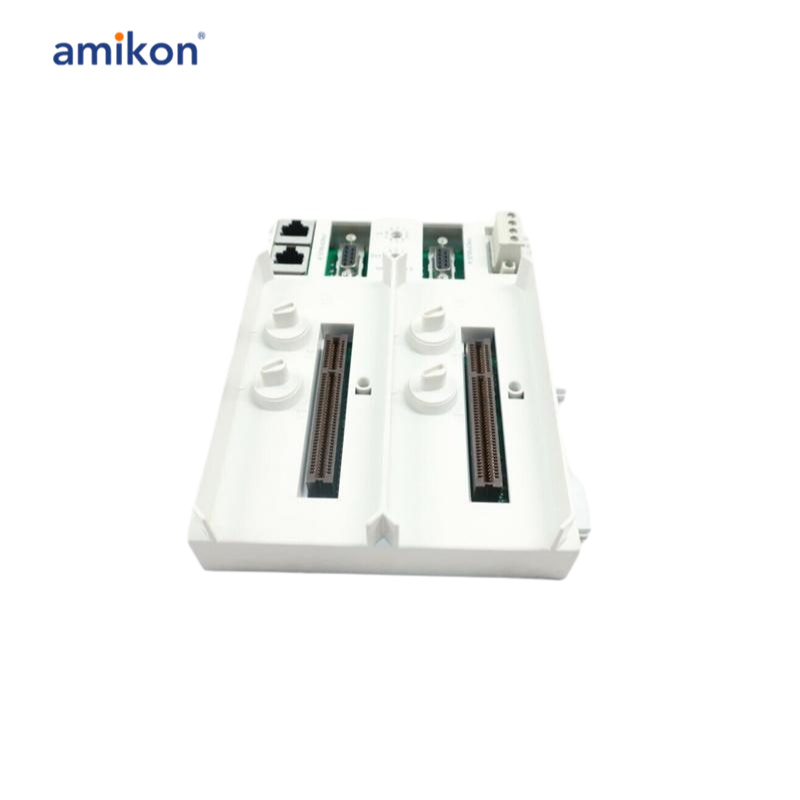

The TU846 is a module termination unit (MTU) for redundant configuration of the field communication interface CI840/CI840A and redundant I/O. The MTU is a passive unit having connections for power supply, two electrical ModuleBuses, two CI840/CI840A and two rotary switches for station address (0 to 99) settings. A ModuleBus Optical Port TB842 can be connected to TU846 via TB846. Four mechanical keys, two for each position, are used to configured the MTU for the right types of modules. Each key has six positions, which gives a total number of 36 different configurations. Module Termination Unit for dual CI840/CI840A, redundant I/O. TU846 are used with redundant I/O modules and TU847 with single I/O modules. The maximum ModuleBus length from the TU846 to the ModuleBus terminator is 2.5 meters. TU846/TU847 needs space to the left in order to be removed. Cannot be replaced with power applied. Email:sean@xmbse.cn

ABB TU847 3BSE022462R1 Mechanical keying prevents insertion of the wrong module type.DIN rail mounted.

The TU847 is a module termination unit (MTU) for redundant configuration of the field communication interface CI840/CI840A. The MTU is a passive unit having connections for power supply, electrical ModuleBus, two CI840/CI840A and two rotary switches for station address (0 to 99) settings. A ModuleBus Optical Port TB842 can be connected to TU847 via TB806. Four mechanical keys, two for each position, are used to configured the MTU for the right types of modules. Each key has six positions, which gives a total number of 36 different configurations. TU846/TU847 needs space to the left in order to be removed. Cannot be replaced with power applied. TU847 is also available in a G3 compliant version (TU847Z). Email:sean@xmbse.cn

ABB TU846 3BSE022460R1 Module Termination Unit

The TU846 is a module termination unit (MTU) for redundant configuration of the field communication interface CI840/CI840A and redundant I/O.
