3D Panel Production Line

This page introduce 3D panel production line include which machines,the production process of EVG EPS 3D panels ,some working video of 3D panel machine, welded wire mesh machine, wire straighten & cutting machine, mesh bending machine and some FAQ ,like transformer power capacity, labor number, workshop etc.

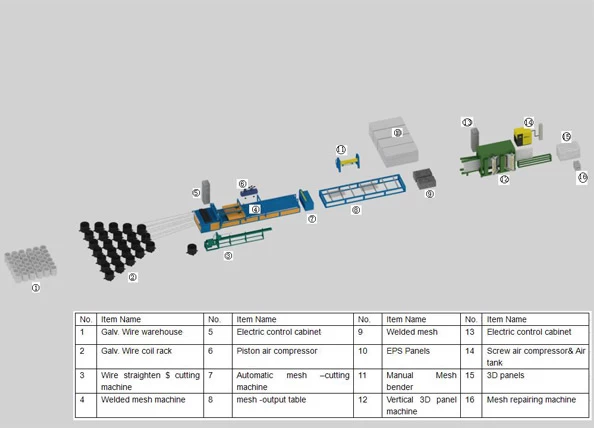

3D panel production line includes:

1.welded mesh machine for making welded mesh

2.3D wire mesh panel machine for inserting and welding the diagonal wire

3.wire straighten machine for straight and cutting the galvanized wire

4.Air compressor and air tank as air source.

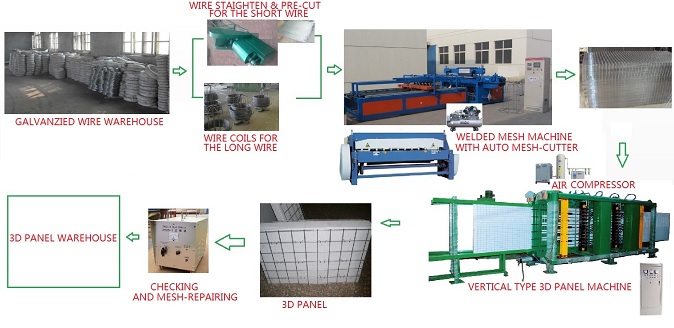

EPS  3D panel production process



Good quality 3D panel production line feature:

1.Lower welding point failure rate

2.Fast working speed

3.Long using life for the machine

4.Easy to learn, easy to maintenance

5.Less labor

6.Perfect 3D panel quality

One set 3D panel production line require how many workers?

1.Welded mesh making machine ------2-3 workers
          2.Steel mesh 3D panel machine ------3 workers

One set 3D panel production line require how much square meter workshop?

1000 square is enough.

What is the power consumption about welding 3D panels?

For the usual size, it is 0.8-1kwh per square meter.

Do you supply turn key project?

Yes.Usually we supply turn-key project, we’ll dispatch engineer to go there for guiding the assembling and training workers until your factory runs normally.

Do you also supply galvanized wire used for making 3D panels?

Yes, for guarantee good quality 3D panels, we also supply quality guaranteed galvanized steel wire.

Do you also supply construction tools used in 3D panel house?

Yes, we supply one-stop service, we can supply raw material, 3D panel machines, and those tools together , to save time and cost for our customers.

How long will it take for manufacturing the full 3D panel production line?

40-50 days. Because in the manufacturing process, we must make heat treatment for the steel to guarantee the high service life.

How much KVA for the power installing capacity of  the 3D panel production line?

It has relation with the maximum wire diameter, usually between 250-350KVA. You may tell us the max steel wire dia that you want to use, then we can work out an effective total power capacity.

I should use which specification cable from the transformer room to EPS welded mesh 3D panel production line?

35 square mm copper core cable.

It has any requirement for the distance between the transformer room to 3D panel production line?

Yes, the distance should not be equal or  less than 50m.

Which brand spare parts are using in your 3D panel production line?


parts for 3D panel machine

To see our wokshop and delivery


Why choose us?

1. 15 years manufacturing experiences!

2. China 3D panel machine specialist! Real Patent owner for vertical type 3D panel machine in China!

3.The earliest developer for vertical 3D panel machine in China! Installed  280  sets  3D panel machine!

4. Awarded “ 3D steel mesh frame sandwich panel   equipment R&D manufacturing base “ by China famous Tsinghua University Architectural Design Institute Co., Ltd.!

5. Direct factory price, turn key project!

6. Origin Design,no copy ! Can meet different special requirement!

7. One step service, guarantee  Quality raw material + quality 3D panel production line + rich experienced after sales engineer = good quality 3D EPS panels!

8. Our rich experience is the base of your success!

Know price and details about EPS 3D Panel production line,contact us !

Working videos:

 EPS 3D panel production line to be installed and run by on line guiding


Quality galvanized wire to guarantee good quality 3D panel


welded mesh machine testing before leaving factory

Galvanized wire straighten and cutting machine


Welded mesh bender for U and L type mesh used in the wall corner reinforcement


3D panel welding machine


welded mesh machine working video

EPS 3D panel machine and EVG 3D panel house
