GPS/GLONASS Part:

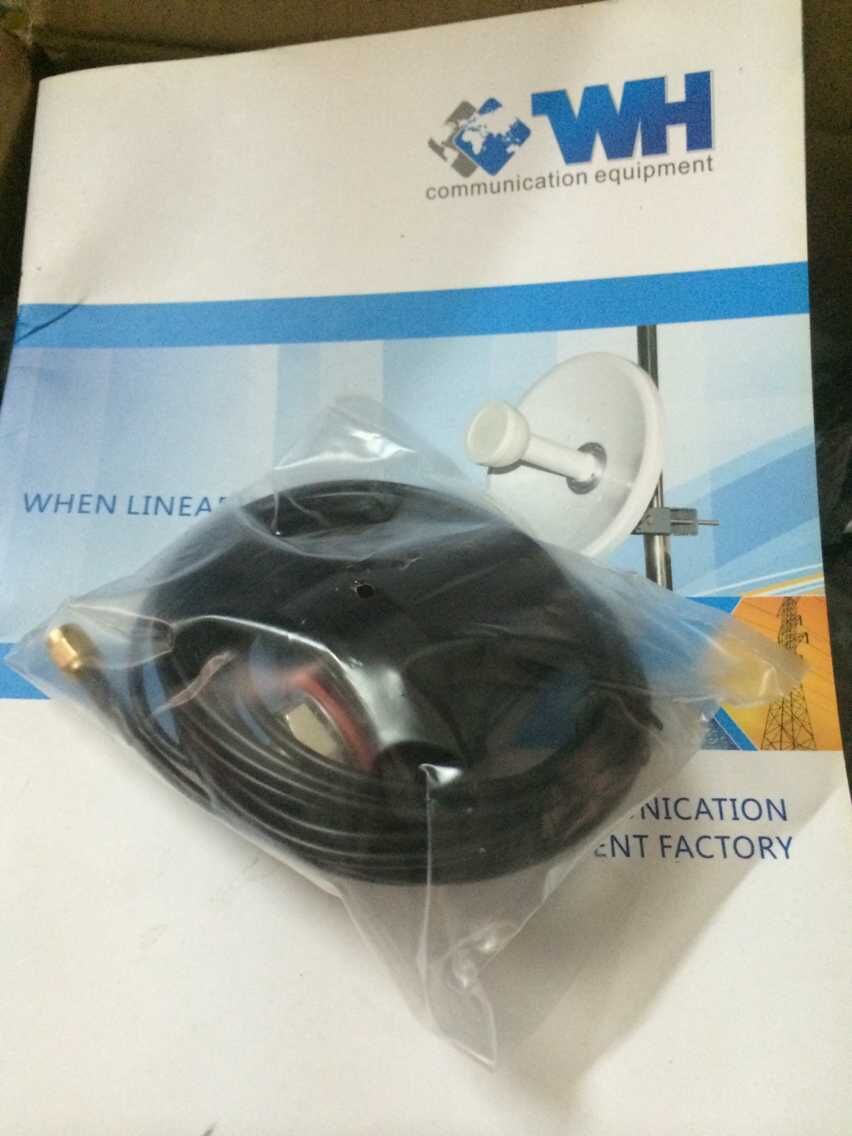

Model; WH-3G-2.4-GPS-D3
Center Frequency;GPS1575.42MHz/GLONASS 1592 MHz
Band width;±5 MHz
V.S.W.R; 2.5
Polarization;RHCP
Impedance; 50Ω
LNA Gain;28±2dB Typical
Noise Figure; 1.5dB
V.S.W.R;＜2.0
DC Voltage;2.2-5.0V
DC current; 5-15mA
3G Part:
Frequency range;824-960/1710-2170MHz
VSWR;2.5
Gain;3dBi
Polarization;Linear
Impedance; 50Ω
WIFI Part:
Frequency range;2.4GHz
VSWR; 2.5
Gain;3dBi
Polarization;Linear
Impedance; 50Ω
