3kw,5KW Wind grid tied power system
Wind power system features
1. Wind turbine is full power output, we will not use fake power to reduce cost.
2. In off grid system Batteries are Gel or Lithuim battery. Quality warranty time is 3 years.
3. In on grid system, we use on grid controller and wind inverter, will not use fake inverter(Some supplier will use solar inverter)
4. Wind controller can choose IGBT design for better performance.

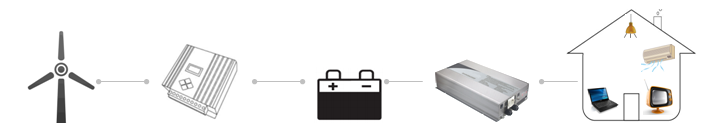

Specification of wind off grid power system(Sample of 3KW)
|
Example of 3KW OFF GRID SOLAR SYSTEM DESIGN
|
|
Item
|
Product
|
Description
|
Quantity
|
|
1
|
3KW wind turbine
|
Horizontal type or vertical type
3kw full output, max reach 4.5KW
48VAC or 96VAC rated output votlage
|
1 piece
|
|
2
|
Wind Charge Controller
|
48VDC or 96VDC 3KW with 4.5KW dump load
|
1set
|
|
3
|
GEL Battery
|
12V 150/200Ah
|
4/8pcs
|
|
4
|
Off Grid Inverter 5kw
|
DC48/96V,AC 110/220/230v
|
1pcs
|
|
5
|
DC Combine Box
|
5 inputs, 1 output
|
1pcs
|
|
6
|
Wind tower and other accessories
|
Customized for 3KW wind turbine
|
1set
|
|
7
|
DC Cables for wind
|
4mm2
|
200m
|

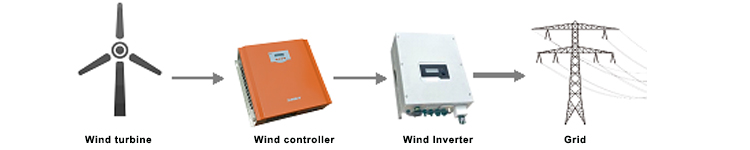

Specification of wind On-grid power system(Sample of 3KW)
|
Example of 3KW On GRID SOLAR SYSTEM DESIGN
|
|
Item
|
Product
|
Description
|
Quantity
|
|
1
|
3KW wind turbine
|
Horizontal type or vertical type
3kw full output, max reach 4.5KW
120VAC or 220VAC rated output votlage
|
1 piece
|
|
2
|
Wind Controller
|
Rated 3KW with 4.5KW dump load
|
1set
|
|
3
|
Wind Inverter 3kw
|
Rated power:3KW
DC
input voltage range, MPPT
|
1pcs
|
|
4
|
Wind tower and other accessories
|
Customized for 3KW wind turbine
|
1set
|
|
5
|
Cables for wind
|
4mm2
|
Package of Home solar power system
Payment of Wind power system
|
|
|
EXW
|
30% T/T in advance, paid the balance before shipment
|
|
FOB
|
|
CFR(C&F)
|
30% T/T in advance, paid the balance against copy of B/L
|
|
CIF
|
|
|
L/C amount above 50,000 usd, we can accept L/C at sight
|
|
|
Amount lower than 5000usd
|
|
|
|
|
7~10days after receiving payment for one container
|
