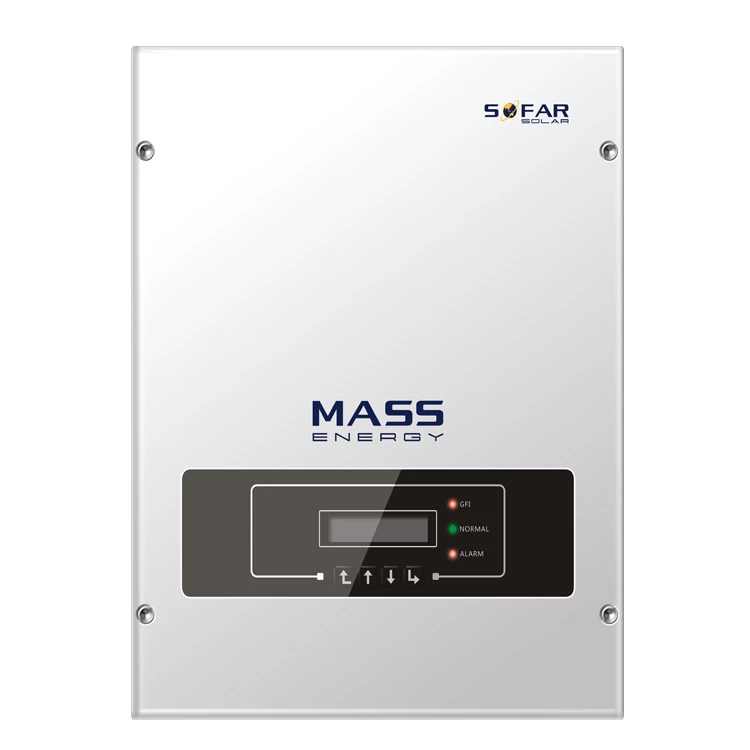

3KW on grid solar inverter with Wifi

3KW on grid solar inverter with Wifi monitor function, single phase 220VAC output


Facebook Twitter Pinterest LinkedIn 分享

3KW on grid solar inverter

2_01

3KW on grid solar inverter features

High-yield

  • Max 97.2% efficiency

  • Real time precise MPPT algorithm for max harvest

  • Wide input voltage operation range

All in one. Flexible and economical system solution

  • Free site selection due to IP65

  • Easy installation and maintenance due to “Plug & Play” connection

  • Interface selection-Wi-Fi / RS485 /GPRS

  • 4” LCD display

Low maintenance cost

  • Detachable cover for easy installation

  • Rust-free aluminum covers

  • Flexible monitoring solution

  • Multi function relay can be configured to show various inverter information

Intelligent grid management

  • Reactive power capability

  • Self power reducer when over frequency

  • Remote active/reactive power limit control


Single Phase On grid 3KW 5KW 6KW Smart Inverter for Solar System

Datasheet
3KTLM-G2
5KTLM-G2
6KTLM-G2
Input(DC)
Max.Input power
3500W
5500W
6600W
Max DC power for single MPPT
2000W(160V-520V)
3500W(300V-520V)
Number of independent MPPT
2
Number of DC inputs
1/1
Max.input voltage
600V
Start-up input voltage
120V
Rated input voltage
360V
Mppt voltage range
90V-580V
Full load DC voltage range
200V-520V
250V-520V
300V-520V
Max.input current per MPPT
11A/11A
Output(AC)
Rated power
3000W
5000W
6000W
Max.AC power
3000VA
5000VA
6000VA
Max.output current
13.7A
22.8A
27.3A
Nominal Grid Voltage
L/N/PE,220,230,240
Grid Voltage Range
180~276V(According to local standard)
Nominal Frequency range
50/60Hz
Grid frequency range
47~55/54~66Hz(According to local standard)
Active power adjustable range
0~100%
THDi
<3%
Power factor
1(adjustable+/-0.8)
Power Limit export
Zero export or adjustable power limit export
Performance
Max.efficiency
98%
Weighted eff.(EU/CEC)
97.5%
Self-consumption at night
<1W
Feed-in start power
50W
Mppt efficiency
>99.9%
Protection
DC reverse polarity protection
Yes
DC switch
optional
Protection class/overvoltage category
I/III
Input/output MOV(III)
Yes
Safety protection
Anti islanding,RCMU,Ground fault monitoring
Certification
NB/T32004-2013,AS4777,VDE0126-1-1,G83/2,G59/3,C10/11,
RD1699/UTEC15-712-1,EN50438,VDE-AR-N4105
IEC 62116,IEC 61727,IEC 61683,IEC 60068(1,2,14,30),IEC 62109-1/2
SPD
MOV:Type III standard
Comunication
Power management unit
According to certification and request
Standard Communication Mode
RS485,Wifi/GPRS(optional),SD card
Operation Data Storage
25 years
General data
Ambient temperature range
-25°C~+60°C
Topology
Transformerless
Degree of protection
IP65
Allowable relative humidity range
0...100% no condensing
Max.operating altitude
4000m
Noise
<25dB
Weight
11.5kg
Cooling
Natural convection
Dimension
405*315*135mm
Display
LCD display
Warranty
5 years / 7 years / 10 years

Produce of on grid solar inverter for solar systems


Main project of on grid solar inverter for solar systems



Payment of o

n grid solar inverter



Payment Term



T/T
EXW

30% T/T in advance, paid the balance before shipment
FOB
CFR(C&F)

30% T/T in advance, paid the balance against copy of B/L
CIF
L/C
L/C amount above 50,000 usd, we can accept L/C at sight
West Union

Amount lower than 5000usd
West Union
Delivery Time
7~10days after receiving payment for one container
