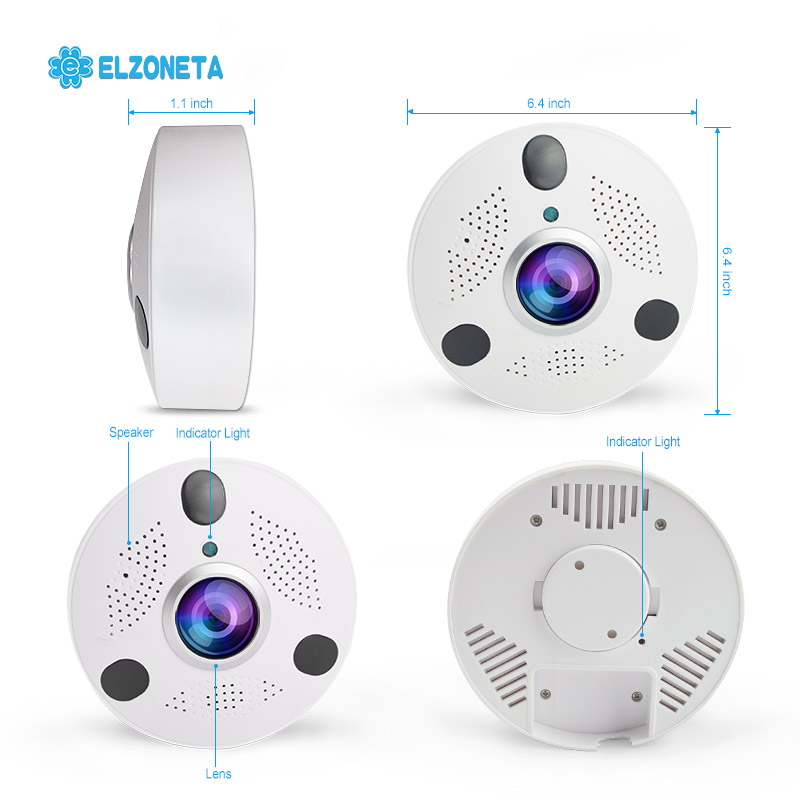

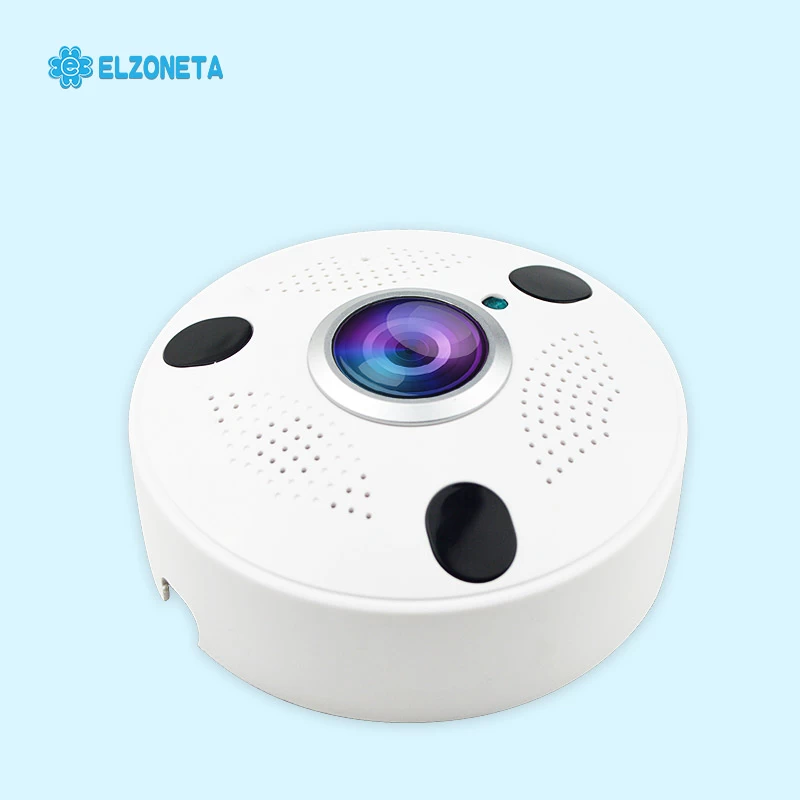

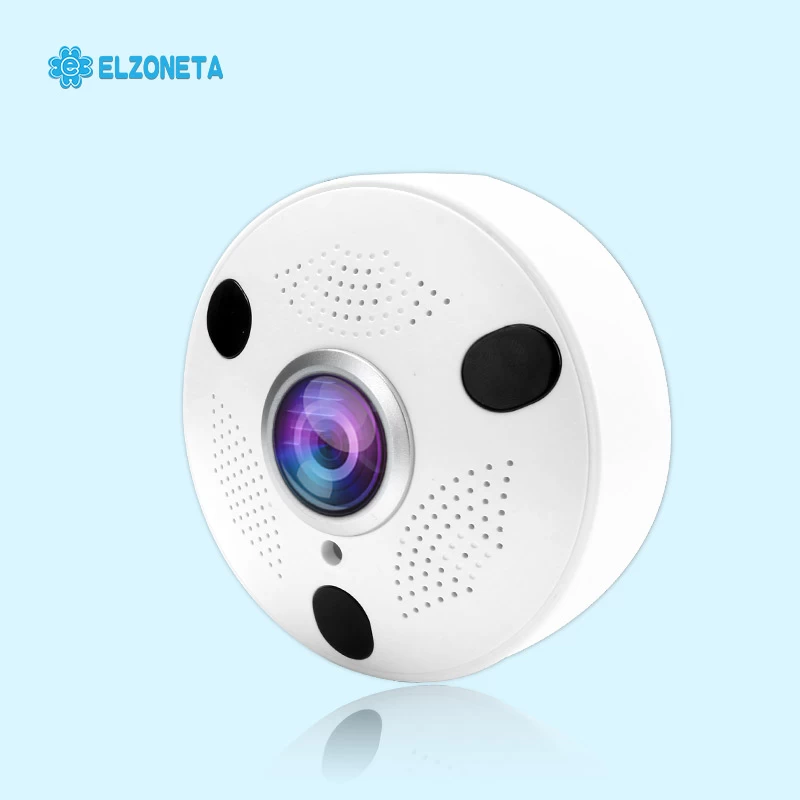

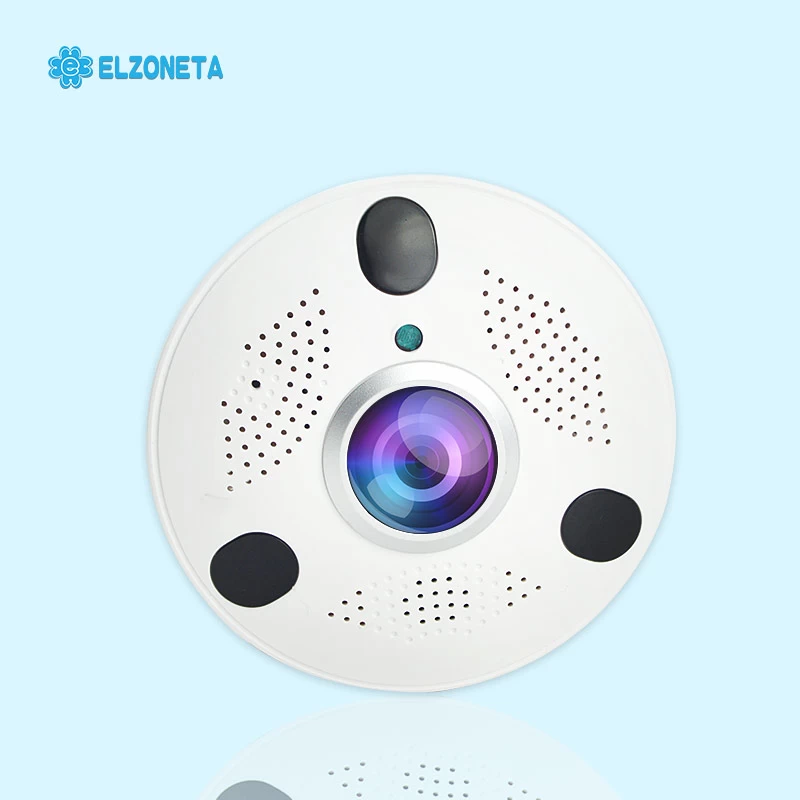

EC-F01T Wifi Panoramic Camera
EC-F01T Fish eye Camera,Wifi IP Camera support to switch the ICR automatically according to it array LED no matter in the daytime or at night.
Features:
3D perspective
360° Panoramic Fish Eye Lens, No Blind Spot
H.265/H.264/MJPEG, Mobile phone, UPNP
Support TF card/Wireless
Motion detection
Support two-way voice intercom
P2P Cloud Services
Plug and play
Remote control
Infrared night vision
Inter Audio Inter WIFI
Support Multi-user online access
Power Supply:5V 2A
Specification:
|
Video
|
|
|
Video
Compression
|
H.265/H.264/MJPEG
|
|
Day /
Night Mode
|
Color
during day, switches to B&W at night
|
|
Maximum
Frame Rate
|
25fps@2048*1536
|
|
Maximum
Streams
|
3
Simultaneous Streams
|
|
Camera
|
|
|
Sensor
|
1/3"3.0 Mega Pixel Color CMOS sensor
|
|
Max.
Resolution
|
2048*1536(3 Megapixels)
|
|
Lens
|
360°
fish-eye Lens
|
|
ICR
Control
|
Yes
|
|
Viewing
Angle
|
360°
|
|
Min.
Illumination
|
0.08Lux
|
|
PTZ
|
|
Pan/Tilt
Range
|
N/A
|
|
Night Vision
|
|
Night
Vision Distance
|
up to
10M/33ft
|
|
Illumination
|
Array LED
|
|
Audio
|
|
|
Audio
Input
|
1 Built-in
Microphone
|
|
Audio
Output
|
1 Built-in
Speaker
|
|
Compression
|
G.711
|
|
Network
|
|
|
Network
Type
|
TCP/IP,
ICMP, HTTP, HTTPS, DHCP, DNS, DDNS,
RTP, RTSP, PPPoE, NTP, UPnP, SMTP, P2P
|
|
WIFI
|
IEEE
802.11b/g/n, 2.4GHz band
|
|
ONVIF Support
|
ONVIF
Profile S
|
|
P2P
|
Yes,
|
|
Maximun
Online Visitor
|
3 visitors
simultaneously
|
|
Alarm
|
|
|
Motion
Detection
|
Yes
|
|
Alarm I/O
|
optional
|
|
General
|
|
|
External
Storage
|
Micro TF Card (Capacity supports up to
64G)
|
|
Indoor /
Outdoor
|
Indoor
|
|
Operating
Temperature
|
0°C ~ 50°C
|
|
Power
Consumption
|
DC 5V/2A
|
|
Dimension
(LxWxH)
|
110 x 112
x 122mm
|
|
Weight
|
500g
|
|
mobile phone
|
|
Operating
System
|
IOS & android
|
|
Package Content
|
|
contains
|
H308D 360°Panoramic camera
Type-C Cable(optional)
Quick
Installation Guide
Power
Adapter
Screw Kit
|
