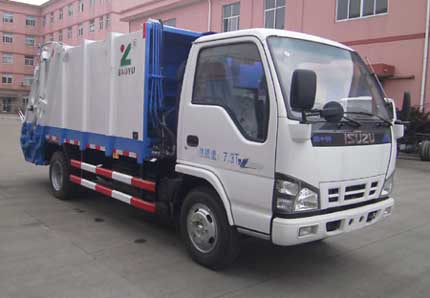

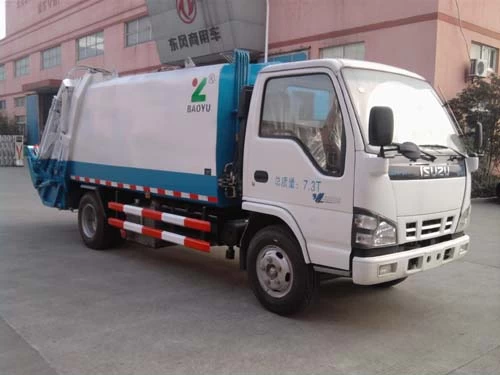

3ton 5ton Isuzu Compressed waste Garbage Compactor Truck For Sale
Japanese Isuzu rubbish compression truck
l The whole truck adopts the isuzu chassis equipped with the isuzu 4KH1 engine, which makes it elegant in shape, safe and reliable in performance and comfortable to drive.
l The overall circular-arc outline of the truck hopper is eye-pleasing and elegant.
l The truck is well-known for its bidirectional compression mode, big compression proportion and large loading capacity.
l Equipped with both remote-control and manual control systems, the truck is easy to drive, which guarantees and greatly improves safety at work.
l The chemically and antiseptically treated steel plates together with the high-strength welding technology ensure a long service life.
l The well-designed hydraulic system adopts whole sets of imported hydraulic parts, which ensures quick response, short work cycle, high work efficiency, easy operation and reliable performance.
l The filling device has combined the functions of a skip bucket and a sealing device, which ensures easy operation and better appearance.
main technical parameter
|
Name of Parameters
|
unit
|
PT5120ZYS(5ton)
|
Main technical parameter of the chassis
|
Model of Chassis
|
/
|
NKR77
|
Model of Engine
|
/
|
4KH 1
|
Rating power
|
Kw
|
88
|
Wheel base
|
mm
|
3360
|
Min. turning radius
|
m
|
14
|
Max. truck speed
|
Km/h
|
90
|
Departure angle
|
°
|
≥14
|
Oil consumption
|
L/100Km
|
≤19
|
Parameters of the complete truck
|
Complete truck(L×W×H)
|
mm
|
7400×2485×2900
|
Truck bucket dischargeable volume
|
M3
|
10.5
|
Volume of Jam Device
|
M3
|
1.5
|
Max. total weight(Kg)
|
|
12950
|
Volume of sewage tank
|
L
|
402+52
|
Discharge time(s)
|
|
‹38
|
Filling-mouth size
|
mm
|
1830×1000
|
Filling-mouth height
|
mm
|
900
|
Hydraulic pressure system
|
System pressure
|
Mpa
|
16
|
Filling device one -time working cycle time
|
s
|
‹24
|
One-time discharge time
|
s
|
‹35
|
