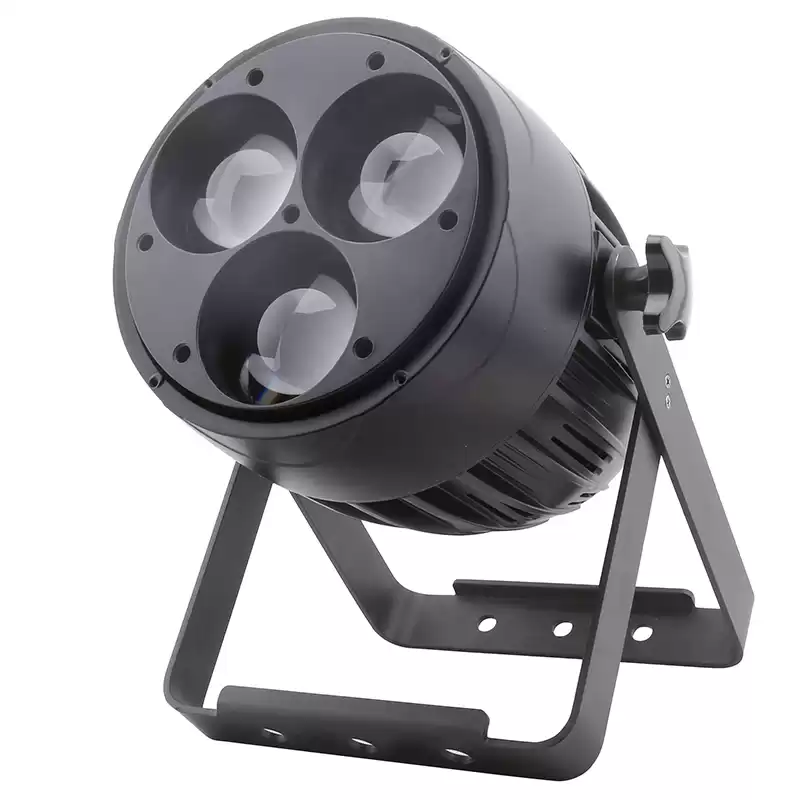

It has aluminium alloy structure.Its look design is very good such as light and handy,fashion,ventilated,generous, delicate beauty and easy installation.The equipment uses 3pcs 60W RGBW high powerful LED as light source.And it use a combination of a diameter of 84mm high efficiency lens ,4°-60°huge zoom angle and high efficiency brightness.It has reasonable LED layout so that it has homogeneous the bright , purer mixing colour and further light distance.LED is with electrically neutral thermal path technology and special heat pipe cooling system.
● Optics
. LED qty：3x60W RGBW 4 in 1 LED,uniform and delicate color mixing effect
. Lens：84mm high intensity PMMA lens
. Beam angle：4-60°Zoom
. Zoom ratio：12:1
. Lifetime：50000H，low power consumption, energy conservation
. and environmental protection
● Colors
. Uniform RGBW mixing color system and rainbow effect
. Manually adjustable White balance
. LED ring can create more colorful chasing effect.
. Static color set up
● Specification
. 5 DMX channel modes：3CH/5CH/8CH/9CH/11CH international standard DMX-512 channel
. 3 control modes:DMX512、Sound、Master-Salve
. Beam angle：4-60°Zoom
. DMX function：dimmer、color jumping change、color gradual change、Sound、RGBW、Strobe、zoom、Zoom speed、Auto-program selection、dimmer curve selection
. Stand-alone mode：color jumping change、color gradual change、Auto-program,Sound、slave、Macro color、static color setting
. Strobe effect：0-20HZ strobe、Pulse strobe、Ramp up strobe、Ramp down strobe、Random strobe、 Strobe Break Effekt, 5s…..1s、Strobe0-20Hz。
. Dimmer:0-100% linear dimming which can control brightness change and closing of 4 colors at the same time
● Display
. LCD screen
. High anti-interference four buttons
. Display screen can be reversed 180° and fit for different places installation
● Software
. Software upgrade：quick software upgrade via DMX cable
. Display the use time of the light, so that customers can know the use details of the light in time
. LED refresh rate：3000Hz
. 4kinds of dimming curve：linear dimmer、Sqaure dimmer、I. Sqaure dimmer、S-Curve dimmer
● Other functions
. Setting and addressing：RDM
. Fan cooling(the fan change the speed with the temperature changes）
. Fan running mode：Auto mode and high speed mode
. LEDs temperature detection system to protect the LEDs

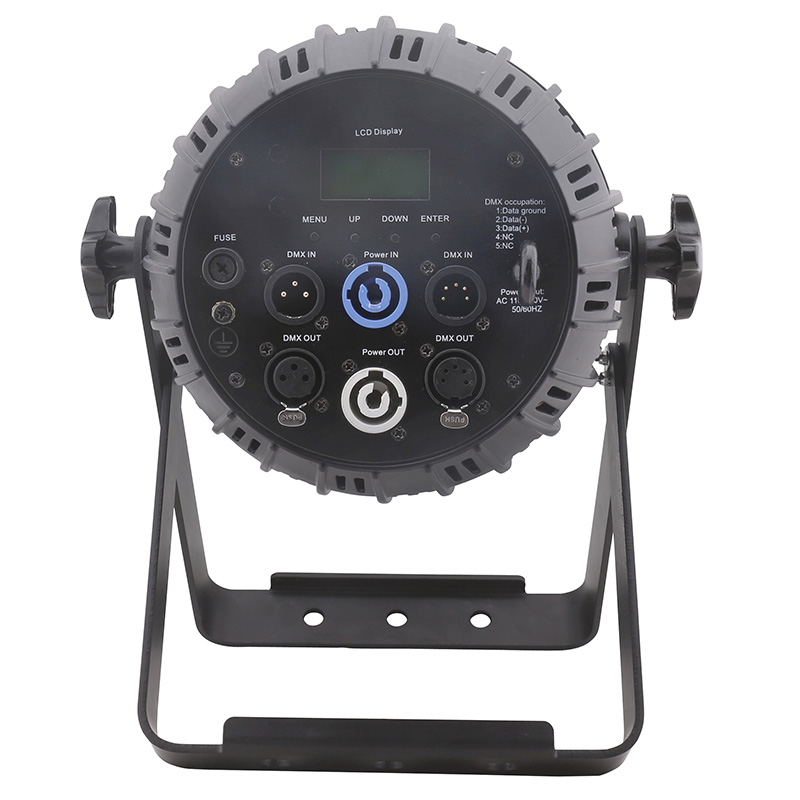

● Power/Signal connection
. Power connection：PowerCON input/output
. DMX XLR：3 Pin&5 Pin XLR input/output
● Power
. AC100-240V 50/60HZ
. Power consumption：250W
● Protection class
. Housing：Die-cast aluminium
. IP class：IP20
● Operation environment
. Indoor operation temperature：-20°C～+40°C
● Size/weight
. Packaging size：275x275x460mm
. Net weight：6.1KG
. Gross weight：7.2KG
● Certification：
. CE,ROHS
