Product Name

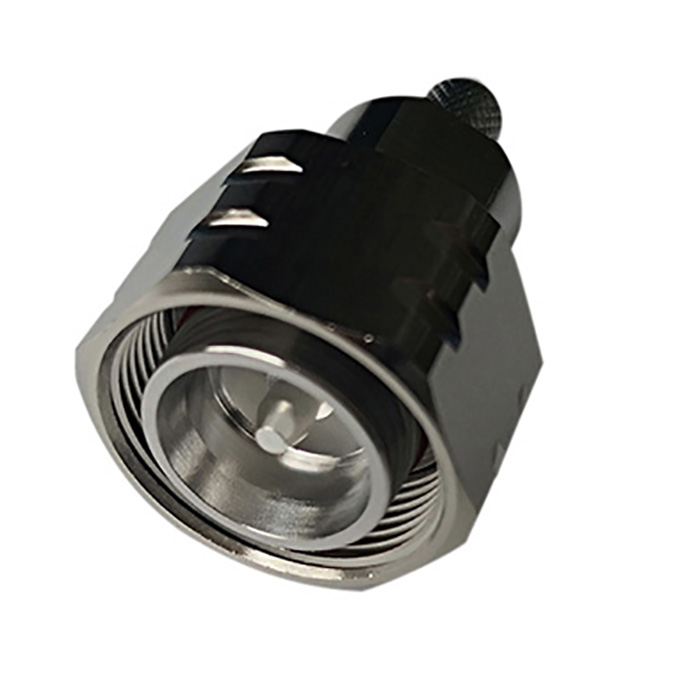

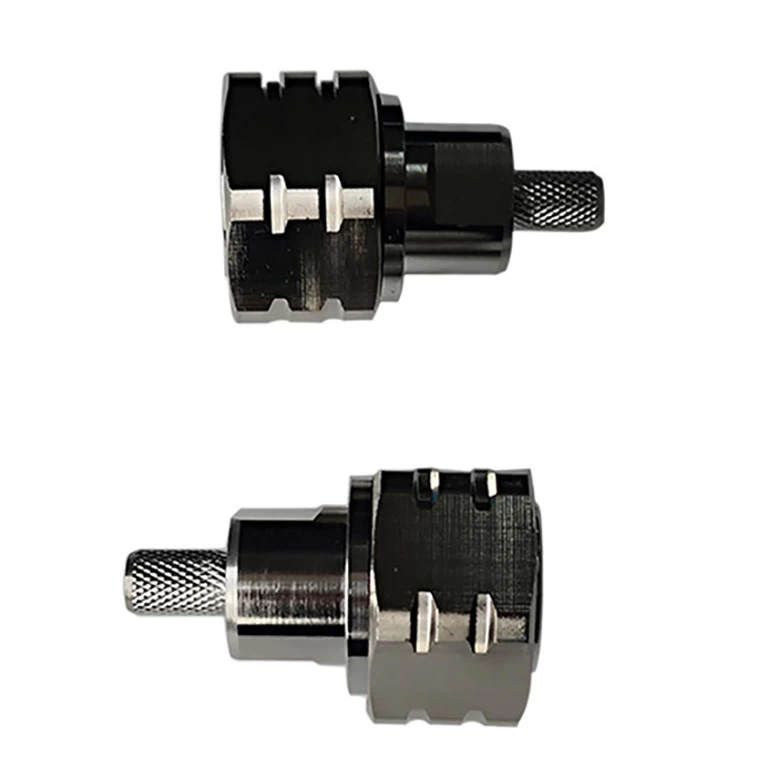

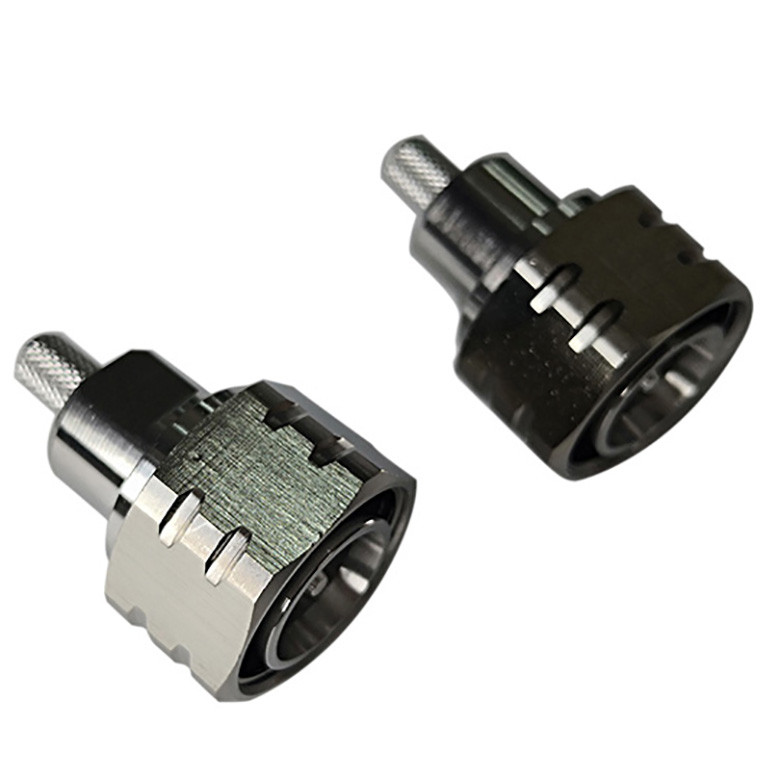

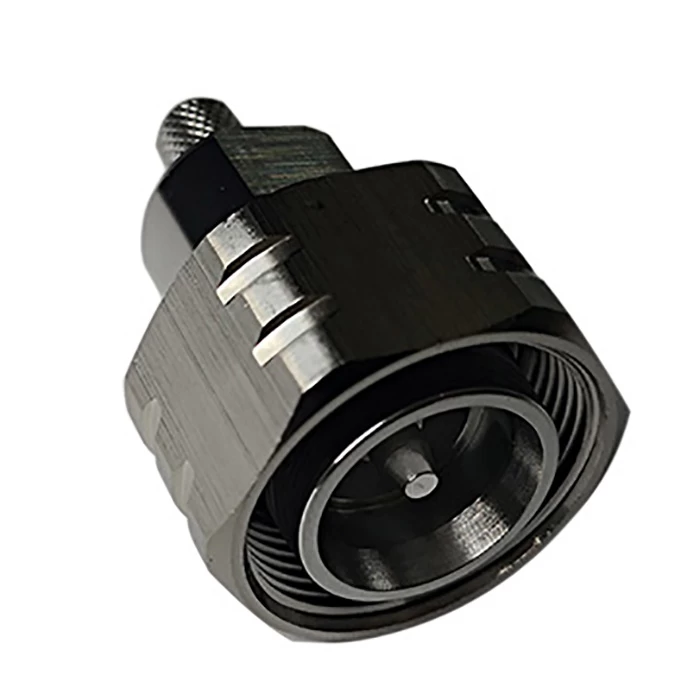

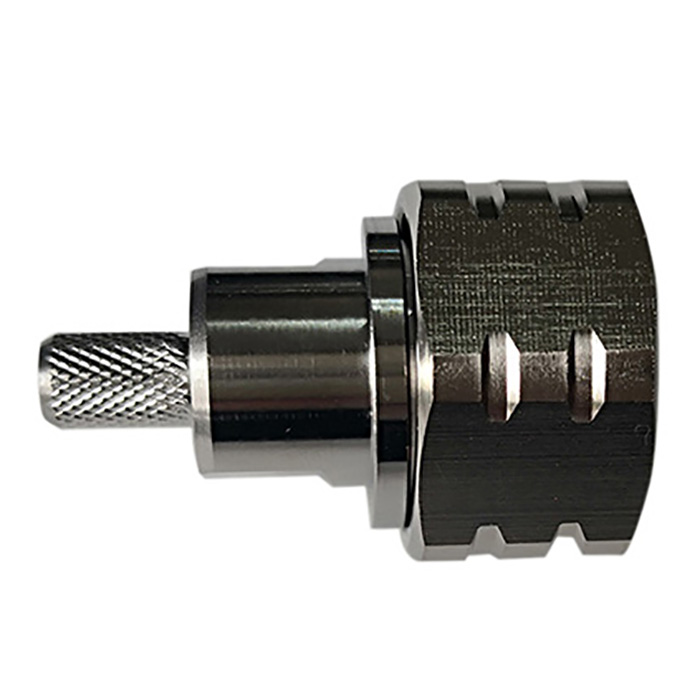

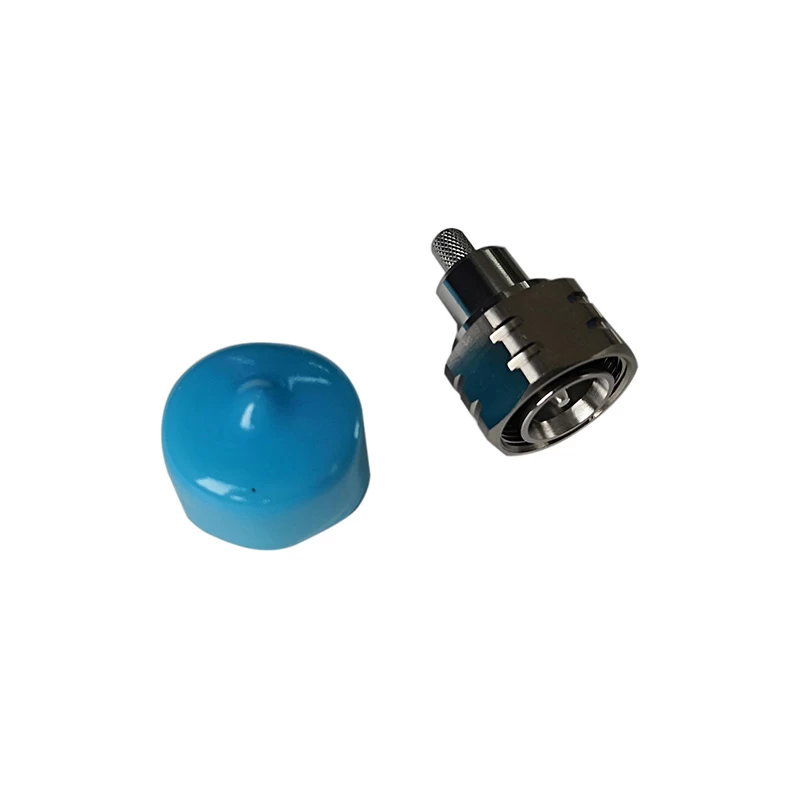

4.3-10-Male Connector series is designed to meet the rising performance needs of mobile network equipment e.g. to connect the RRU to the antenna.The small size and low weight of these connectors do justice to the miniaturization of mobile radio network components.Three different coupling mechanisms of the plug connectors screw,quick-lock/push-pull and hand-screw types are mateable with all jack connectors.
Product Features
RF coaxial connector, 4.3-10 male connector is Low VSWR and excellent impedance matching
Technical &Mechanical Specifications
|
Model No.
|
MNC-43/10M-J240
|
|
Interface
|
According to IEC 61169-54
|
|
Electrical
|
Characteristic Impedance
|
50 ohm
|
|
Frequency Range
|
DC-3GHz
|
|
Dielectric Withstanding Voltage
|
≥2500V RMS,50Hz,at sea level
|
|
Dielectric Resistance
|
≥5000M ohms
|
|
Contact Resistance
|
Center Contact≤1.0M ohms
Outer Contact≤1.0M ohms
|
|
VSWR
|
≤1.12
|
|
PIM
|
≤-160dBc
|
|
Insertion Loss
|
≤0.1dB
|
|
Mechanical
|
Durability
|
Mating cycles≥100
|
|
Material and plating
|
Body
|
Brass Ni or Tri-Alloy
|
|
Insulator
|
PTFE
|
|
Center Conductor
|
Phosphor Bronze or Ag
|
|
Coupling Nut
|
Brassi Ni
|
|
Temp
|
-40~+85
|
Mechanical Drawing (mm)
