Product Name
4.3-10 Mini (DIN) coaxial connectors-high-quality coaxial connectors with low attenuation and inter-modulation.Transmission of medium to high power with radio transmitters and low PIM transmission of received signals such as in mobile phone base stations are typical applications due to their high mechanical stability and best possible weather resistance.
Product Features

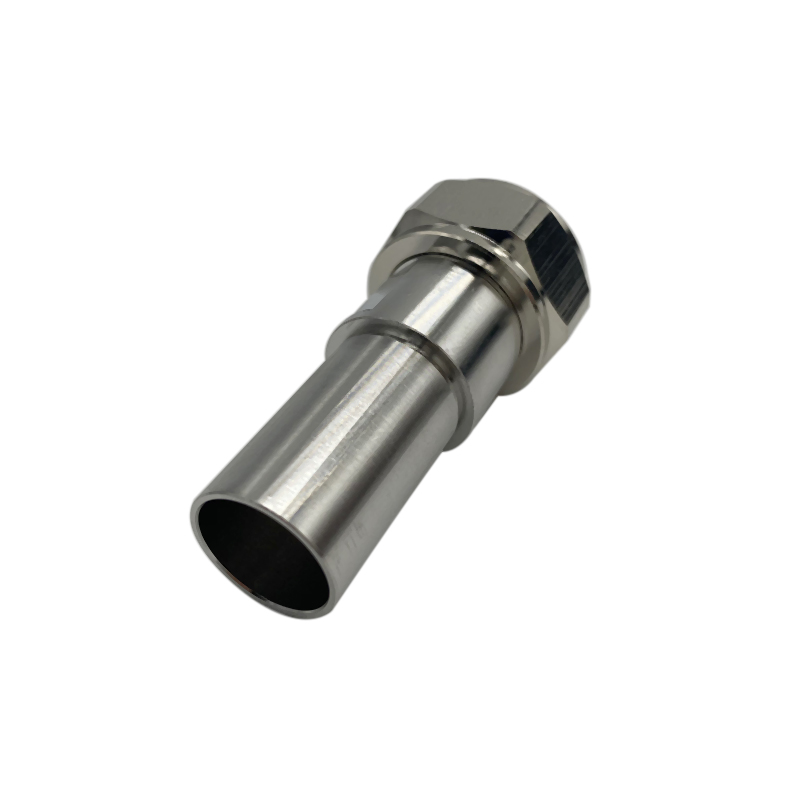

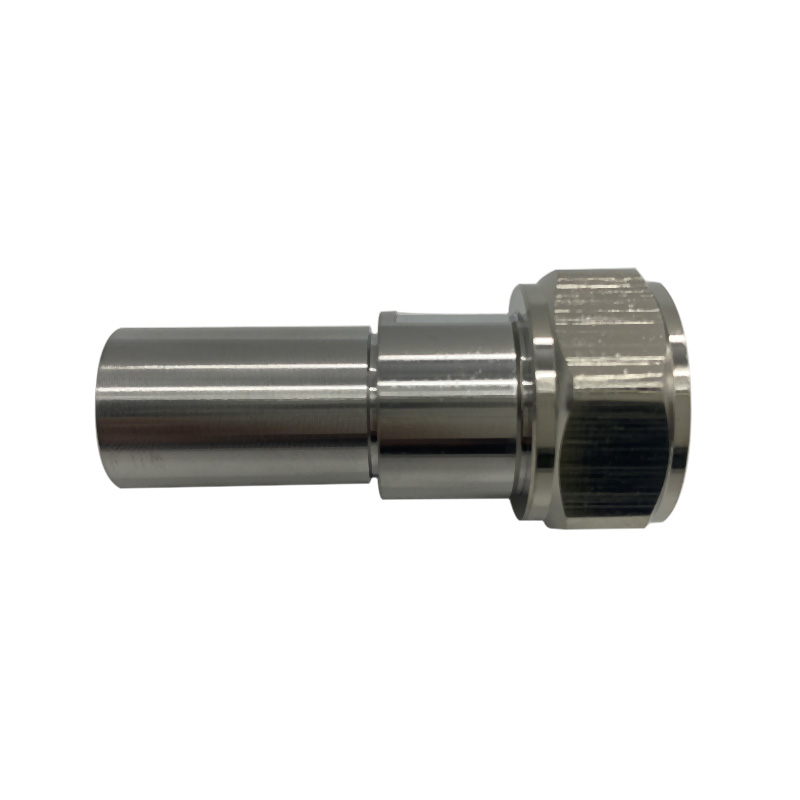

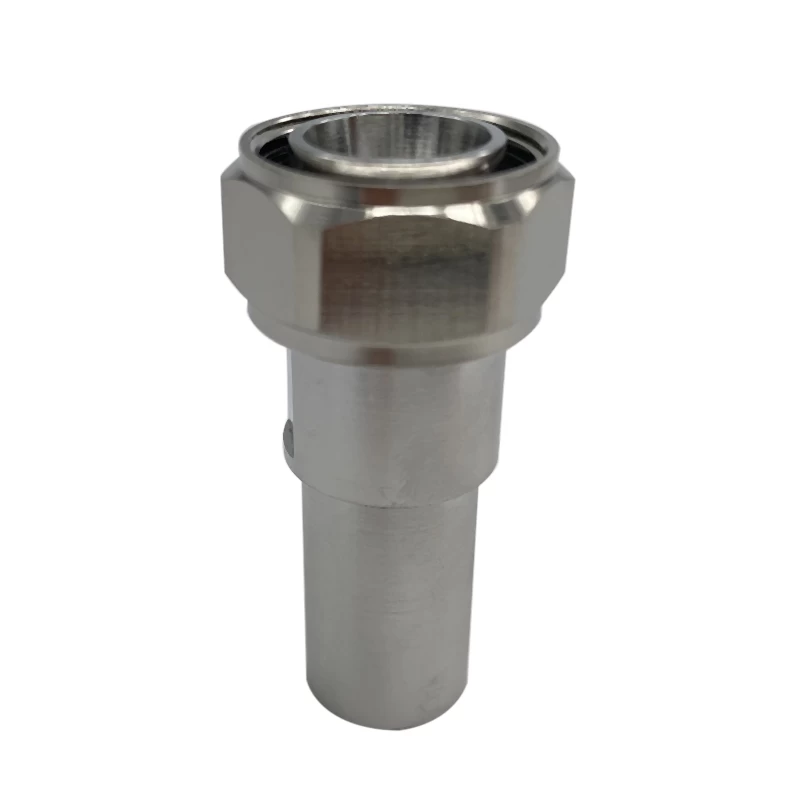

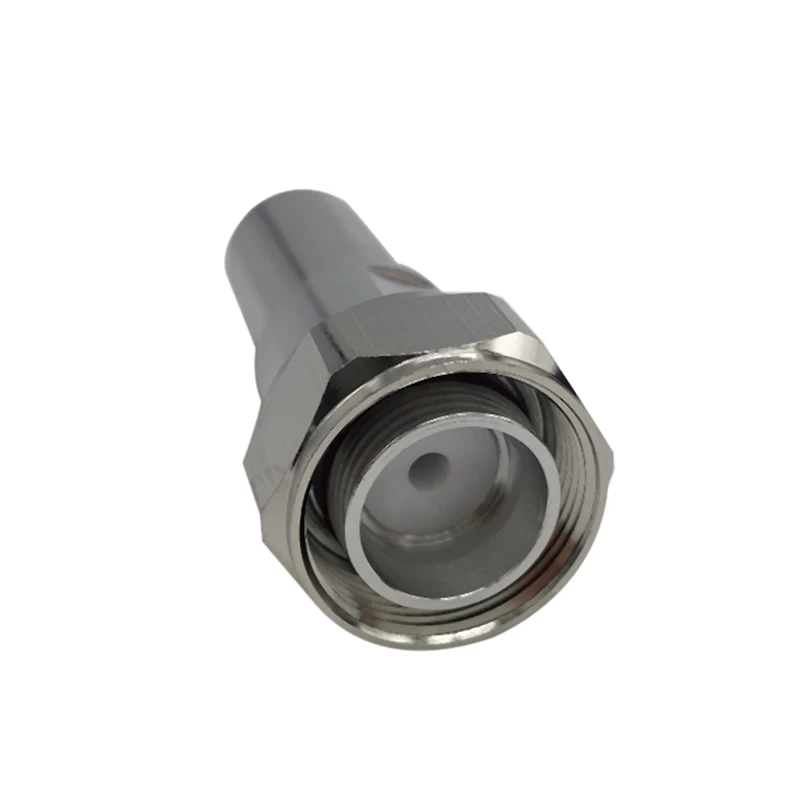

4.3-10 MINI DIN Plug RF Coaxial Cable Connector RF Adapter is Low VSWR and excellent impedance matching,supports-105/-120/-150dBc PIM Rating.
Technical &Mechanical Specifications
|
Model No.
|
MN-C-41M
|
|
Interface
|
According to IEC 60169-4
|
|
Electrical
|
Characteristic Impedance
|
50 ohm
|
|
Frequency Range
|
DC-6GHz
|
|
Working Voltage
|
2700V Max
|
|
Average Power
|
3KW Max
|
|
Contact Resistance
|
Center Contact≤0.4M ohms
Outer Contact≤1.5M ohms
|
|
VSWR
|
≤1.10
|
|
Mechanical
|
Durability
|
Mating cycles≥500
|
|
Material and plating
|
Body
|
Brass Ni or Tri-Alloy
|
|
Insulator
|
PTFE
|
|
Center Conductor
|
Phosphor Bronze or Ag
|
|
Coupling Nut
|
Brassi Ni
|
|
Temp
|
-40~+85
|
Mechanical Drawing (mm)
