4.3 inch CTP touch LCD Display with 480(RGB)×272 resolution 24bit RGB interface ST7701 IC

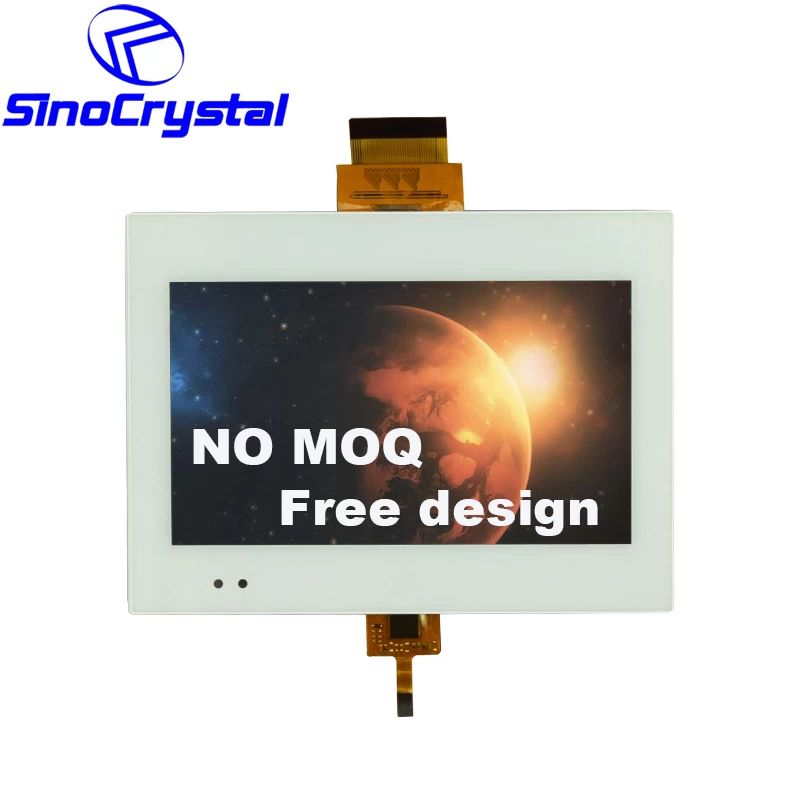

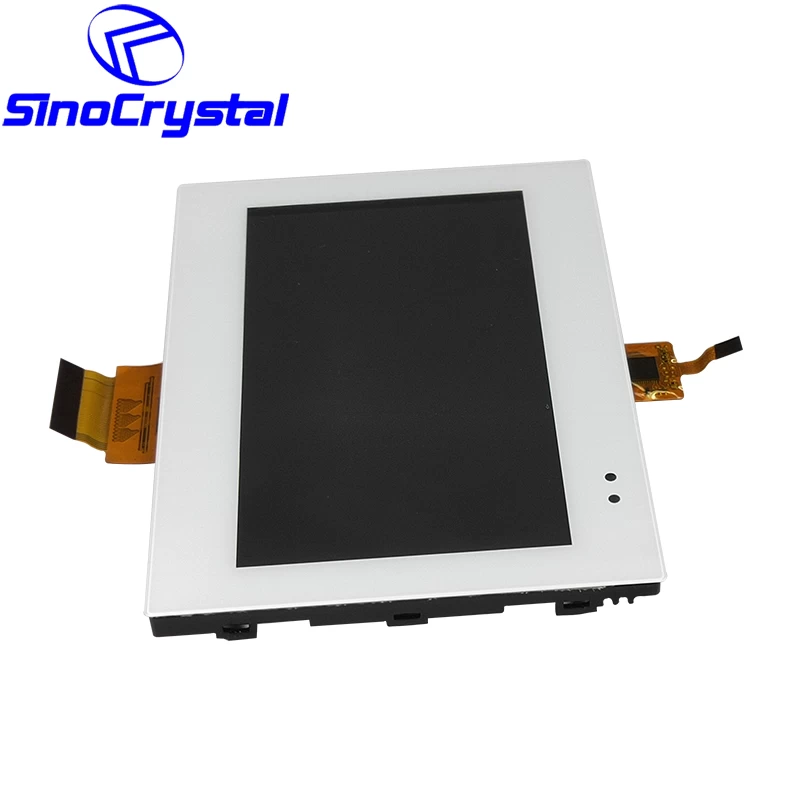

SCT043006-V02 is a 4.3 inch ctp touch screen TFT LCD Display with 480(RGB)×272 resolution, it built in with ST7282 IC, and it supports 24bit RGB interface, 25 PIN

  • Brightness (cd/m²)300
  • InterfaceRGB
  • IC Part No.ST7282
  • View Direction6
  • Active Area (mm)95.040*53.856
  • Viewing Area (mm)-
  • Outline Dimension (mm)105.5*67.2*4.45
  • Resolution480*272
  • Touch ScreenCTP
  • Temperature (℃)-20°C~70°C
Facebook Twitter Pinterest LinkedIn 分享

Basic Information


Resolution:                    480RGB*272

Outline Dimension:       105.5×67.2×4.45

Active Area:                  95.040×53.86

View area:                     96.04*54.86

Interface:                      RGB

Driver IC:                       ST7282

View Direction:              6 o'clock

PIN:                                40

Backlight:                      White LED

Touch Screen:              Capacitive Touch Screen

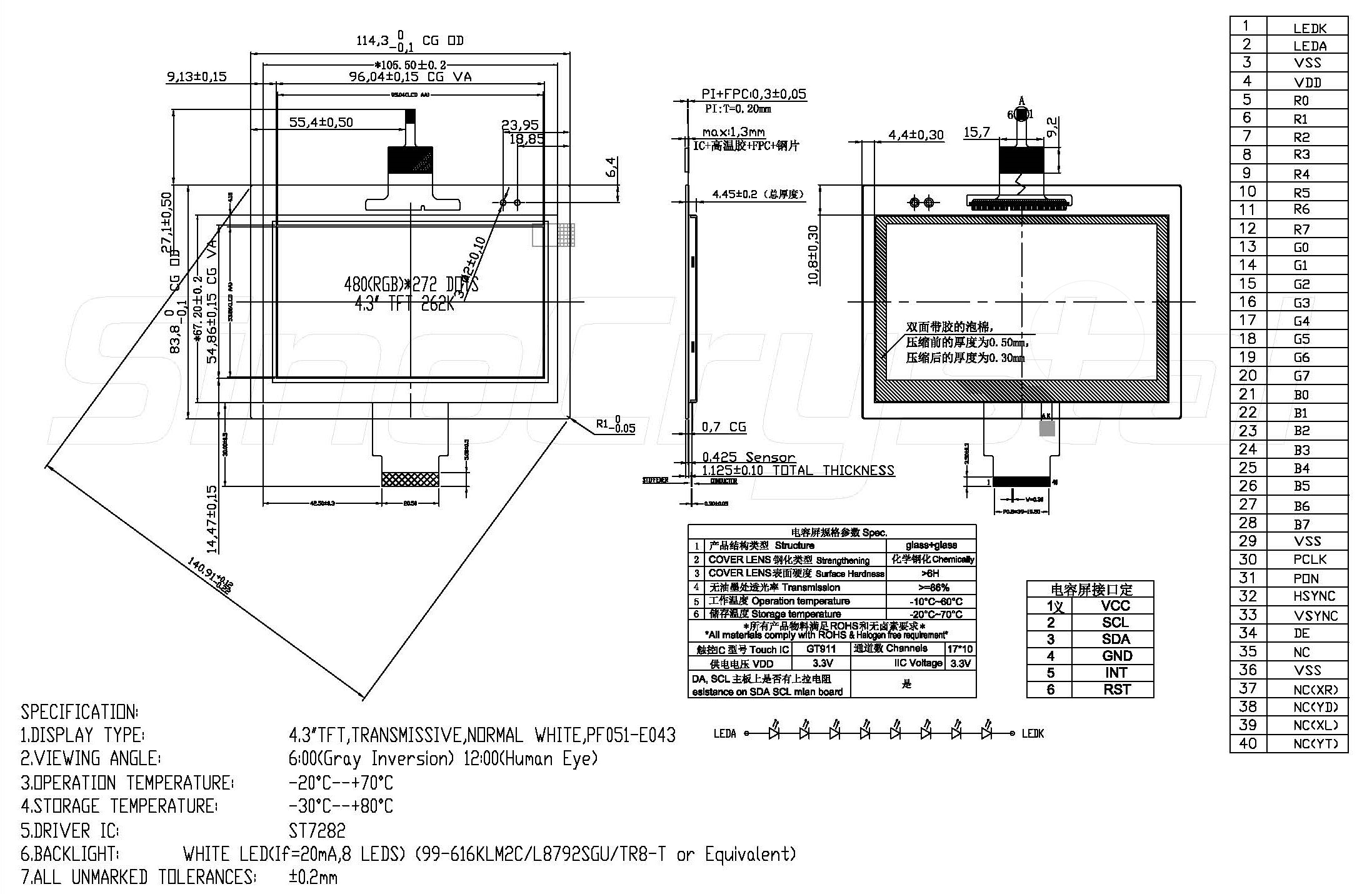

Drawing




General Specification


ITEM STANDARD VALUE UNIT
 NUMBER OF GRAPHIC 480(RGB)×272 Mm
 MODULE DIMENSION 114.3×83.8×4.45 Mm
 EFFECTIVE DISPLAY AREA 95.040×53.856 Mm
 DOT SIZE - Mm
 DOT PITCH 0.198×0.198 Mm
 LCD TYPE TFT , Transmissive, Normal White, INNOLUX Panel F043A11
 DUTY -
 VIEWING DIRECTION 6 o'clock
 BACK LIGHT TYPE SIDE-LIT LED
 BACK LIGHT COLOR WHITE
 APPROX. WEIGHT - G


Interface Definition


NO SYMBOL LEVEL FUNCTION
1 LEDK - LED light,cathode
2 LEDA - LED light,anode
3 GND - Ground
4 VCC - Power supply
5 R0 H/L Graphic Data Input Pins. Internal pull low.
- R [7:0]: Red Data - 8-bits
- G [7:0]: Green Data -8-bits
- B [7:0]: Blue Data - 8-bits
6 R1 H/L
7 R2 H/L
8 R3 H/L
9 R4 H/L
10 R5 H/L
11 R6 H/L
12 R7 H/L
13 G0 H/L
14 G1 H/L
15 G2 H/L
16 G3 H/L
17 G4 H/L
18 G5 H/L
19 G6 H/L
20 G7 H/L
21 B0 H/L
22 B1 H/L
23 B2 H/L
24 B3 H/L
25 B4 H/L
26 B5 H/L
27 B6 H/L
28 B7 H/L
29 GND H/L Ground
30 CLK H/L Clock signal
31 DISP H/L Display on/off
32 HS H/L Horizontal sync input in RGB mode
33 VS H/L Vertical sync input in RGB mode
34 DE H/L Data enable
35 NC - No used
36 GND - Ground
37 NC(XR) - No used (Touch panel right)
38 NC(YD) - No used (Touch panel bottom)
39 NC(XL) - No used (Touch panel left)
40 NC(YT) - No used (Touch panel top)
