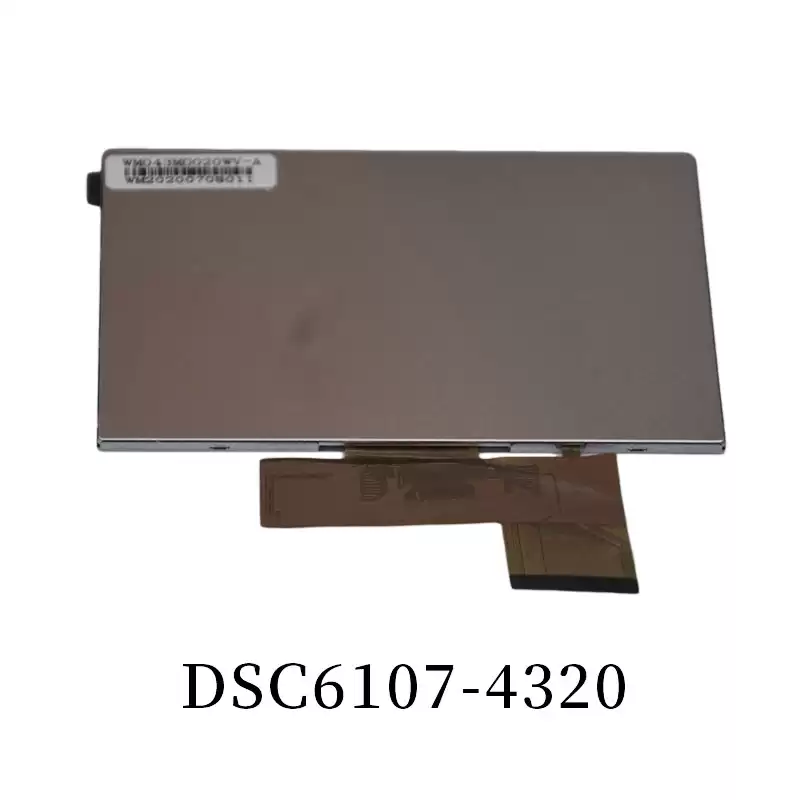

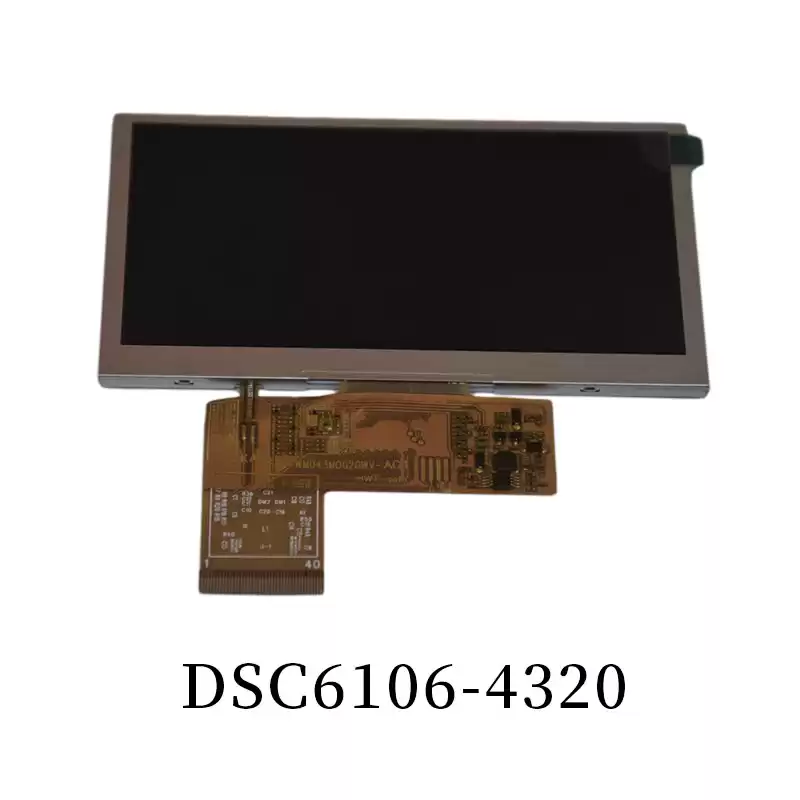

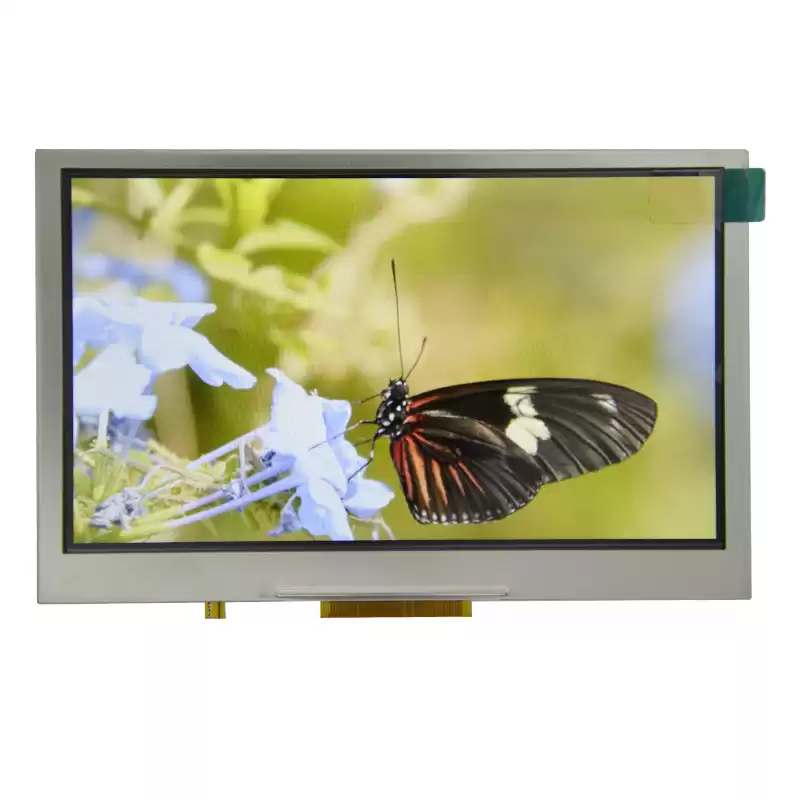

4.3 Inch ips 800(RGB)*480 wide temperature lcd module with a PCAP

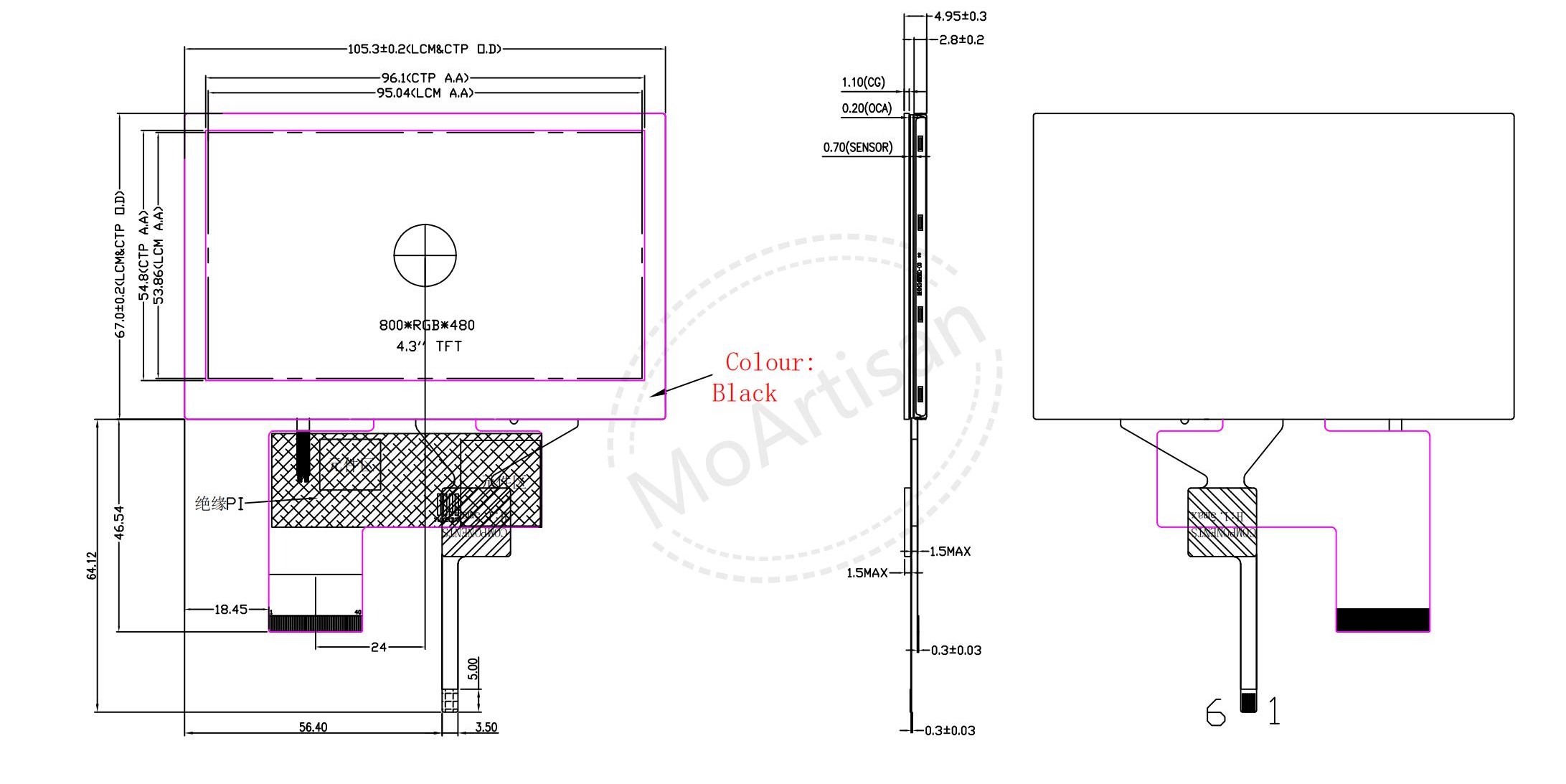

Production drawings
WM043MC020WV-A Introduction
-
4.3 inch diagonally measured active display area.
-
WVGA (800 horizontal by 480 vertical pixel) resolution.
-
This ips module's surface brightness is 900 nits.
-
operating survival for 240 hours at 85 degrees Celsius and 85 percent humidity.
-
40 PIN FPC, 24-bit RGB/CPU interface.
|
|
About Part Number
WM020MO001QV-A: WM---Brand Abbreviation; 020---Display Inch; MO---Module;
MR---Module+RTP; MC---Module+PCAP; MP---Module+PCB; CP---Moudule+PCAP+PCB…;
001---Serial Number; QV/WV/WX/XG…---Format Solution; A/B/C...---Versions
|
|
|
Size
|
Description
|
LCM Outline
mm
|
LED L/T
(Hrs)
|
Interface
|
Brightness/CR
|
Temperature
Range (°C)
|
Viewing Angle
U/D/L/R
|
LCM P/N
|
|
4.3
|
WVGA, 800*RGB*480, IPS, landscape view LCD screen, high reliabilty
|
105.45*67.1*4.95
|
3*6
LED
(50K)
|
40 PIN FPC, 24-Bit, RGB/CPU
|
900 nits/800
|
Topa: -30~+80 Tstg: -30~+80
|
80/80/80/80
|
WM043MC020WV-A
|
Production Applications
Automobile, Personal Navigation Device, Multimedia applications and Others AV system.
Production Customized
This kind of production can be customized.
Lead time for samples: 3~4 weeks.
FAQ:
What are the advantages of PCAP and LCM full bonding?
ANSWER:
Compared with the frame bonding, the full bonding of PCAP and LCM has many obvious advantages.
First of all, full fit is good visual effect, whether indoor or outdoor, display images or characters more clear.
Secondly, the fastness is better, the upper and lower parts are not easy to dislocation.
Although the cost of full lamination is higher than that of frame lamination, many users is still to choose full lamination.
