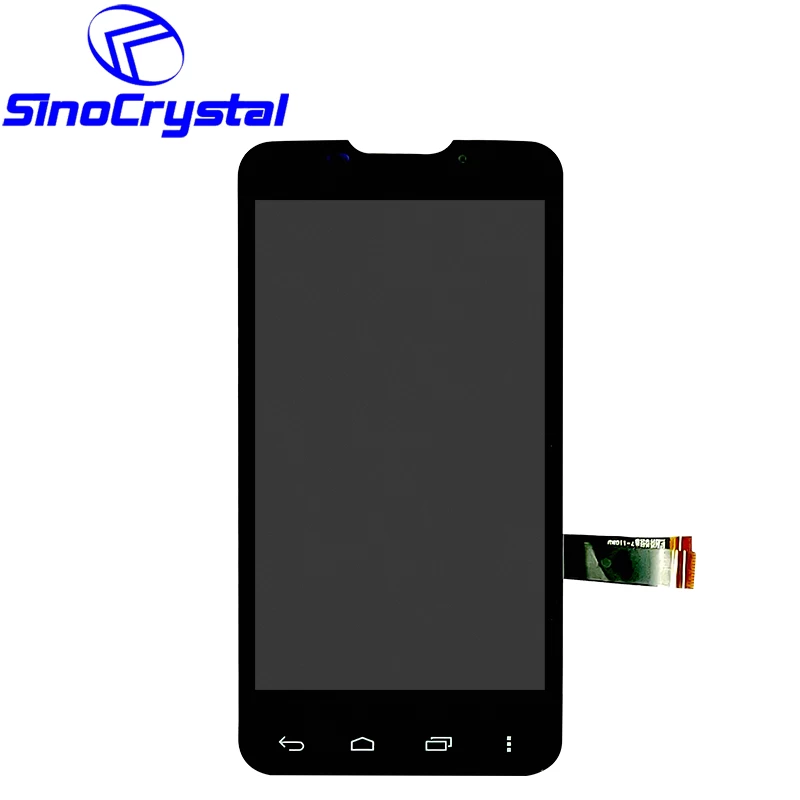

4.3 inch IPS CTP touch LCD Display with 480RGB*800 Full View Mipi-2CH interface ST7701 IC

SCT043005-V01 is a 4.3 inch IPS touch screen TFT LCD Display with 480RGB*800 resolution, it built in with ST7701 IC, and it supports Mipi-2CH interface, 25 PIN



  • Touch ScreenCTP
  • Brightness (cd/mÂČ)300
  • IC Part No.ST7701
  • InterfaceMipi-2CH
  • View DirectionIPS
  • Temperature (℃)-20°C~70°C
  • Active Area (mm)90.60x56.16
  • Viewing Area (mm)94.80x57.36
  • Outline Dimension (mm)69.06x104.5x0.1.7
  • Resolution480RGB*800


Description



SCT043005-V01 is a 4.3 inch IPS TFT LCD display with comprising a 1440-channel source driver, a 32 Gate control signals, 480 x 800 dots graphic, and power supply circuit. The 16M color can be display., it is built in with Mipi-2CH interface and this TFT-LCD has 4.3 inch diagonally measured active display area with WSVGA resolution.


This display LCD can be operating at temperatures from -20℃ to +70℃; its storage temperatures range from -30℃ to +80℃, the standard display with CTP screen, and we can also provide this display with RTP or w/o touch screen solutions.

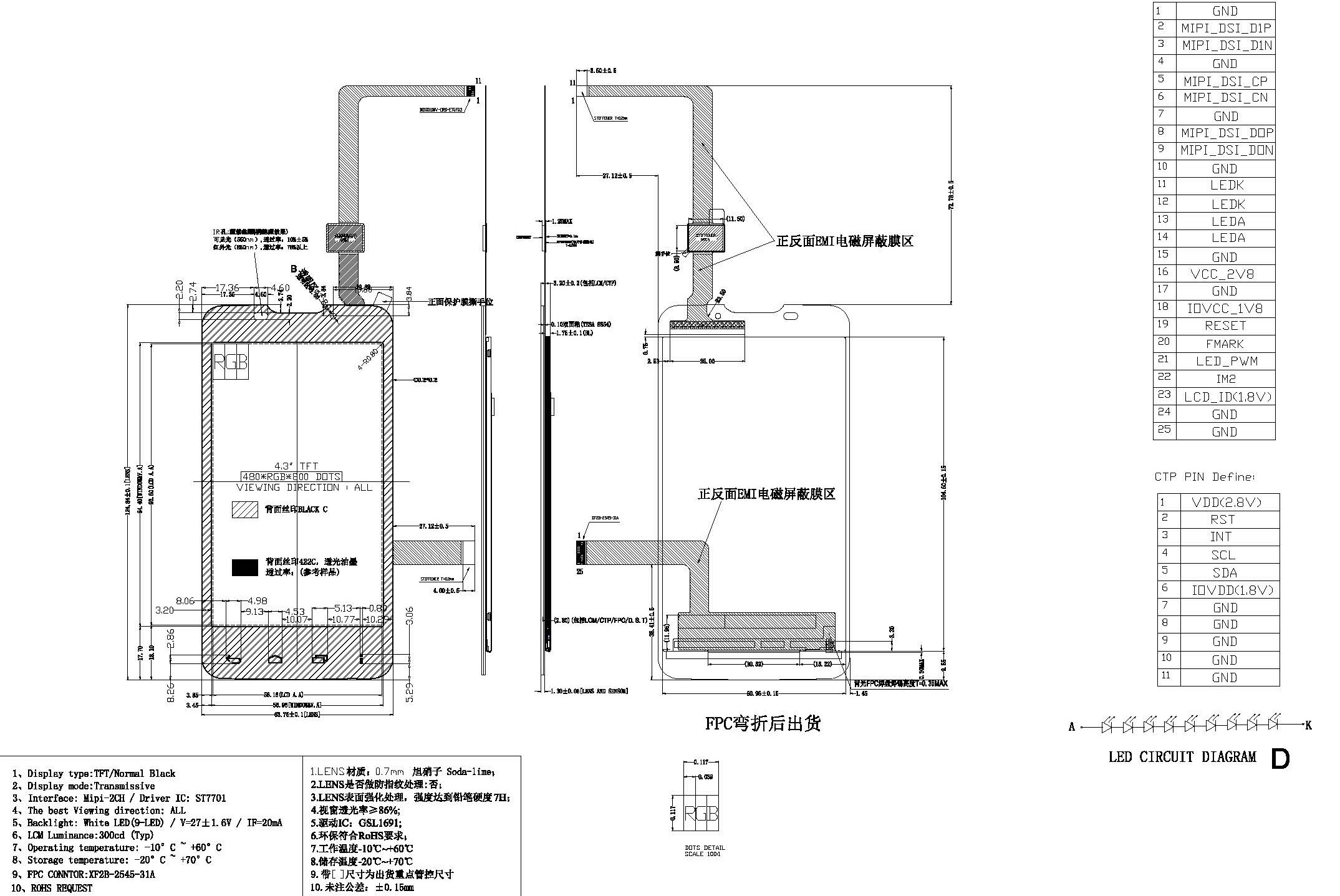

Drawing


IPS tft lcd display



General Specification


Item Nominal Dimension Unit
  Dot Matrix 480 x RGB x 800 Dots
  Module Size ( W×H×T ) 63.76 x 124.84 x 3.2 mm.
  Active Area ( W×H ) 56.16 x 93.6 mm.
  Pixel arrangement RGB Stripe mm.
  Dot Pitch ( W×H ) 0.117 x 0.117 mm.
  Color depth 16.7M colors
  Interface MIPI DSI -
  Driving IC Package COG -
  Operating temperature -20 ~70 ÂșC
  Storage temperature -30~80 ÂșC
  LCD Type IPS -
  LCD Mode Normal Black -
  Backlight Type LED x 9 PCS



Interface Definition


Pin No Pin Symbol Level Description
1 GND 0V Ground
2 MIPI_D1_P

3 MIPI_D1_N
These pins are DSI-D1+/- differential data signals if MIPI interface
4 GND 0V Ground
5 MIPI_CLK_P

6 MIPI_CLK_N
These pins are DSI-CLK+/- differential clock signals if MIPI interface
7 GND 0V Ground
8 MIPI_D0_P

9 MIPI_D0_N
These pins are DSI-D0+/- differential data signals if MIPI interface
10 GND 0V Ground
11 LEDK - LED light, cathode.
12 LEDK - LED light, cathode.
13 LEDA - LED light, anode
14 LEDA - LED light, anode
15 GND 0V Ground
16 VCC 2.5-4.8V Power supply
17 GND 0V Ground
18 IOVCC 1.65-3.3V Power supply for logic
19 RESET H/L Reset signal
20 FMARK H/L Tearing effect output
21 LED_PWM - The PWM frequency output for LCD driver control
22 IM2 - Interface Mode, have been connected to IOVCC with 1K resistance in FPC.
23 LCD_ID - LCD ID, have been connected to IOVCC with 1K resistance in FPC.
24 GND 0V Ground
25 GND 0V Ground

CTP Interface Definition

Pin No Pin Symbol Level Description
1 VCC 2.8V Power supply for CTP system
2 RST H/L Reset signal
3 INT H/L Interrupt output
4 SCL H/L I2C clock
5 SDA H/L I2C data
6 IOVDD 1.8V Power supply for CTP IO
43657 GND 0V Ground
