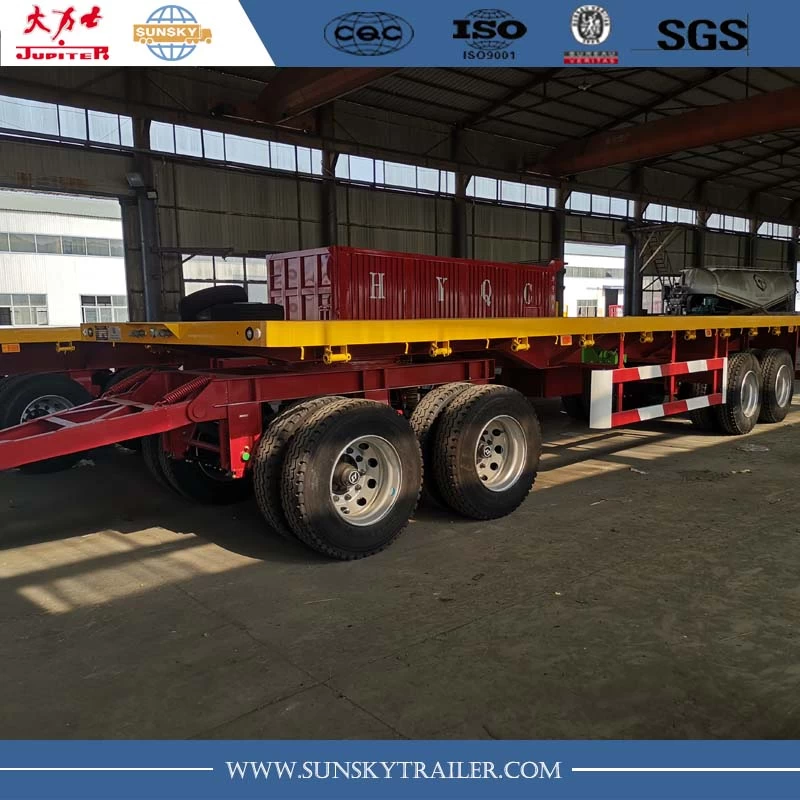

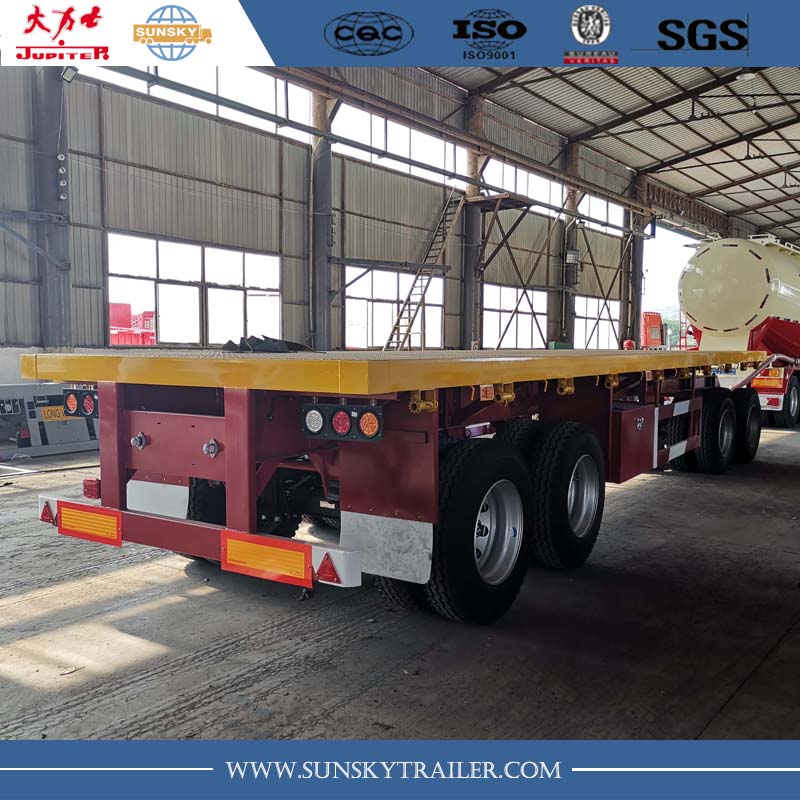

Item: 4 Axle Flatbed Drawbar Pulling Trailer
Feature
1. The frame of the side wall drawbar trailer adopts the space frame structure of welding the longitudinal beam and the integral through type cross beam. It is outstanding in strength, rigidity, toughness and bearing capacity. Meanwhile, the frame won’t come out with permanent deformation.
2. The axle, tyre and other accessories are the well-known products which supplied by the domestic and foreign professional manufacturers.
3. Drawbar Flat bed trailer with side wall adopts excellent brake effects.the axles are equipped with WABCO emergency brake valve also dual-brake chambers also widen brake pads.
4. High strength and impact resistance new type suspension is adopted with patented rod connecting design. It can ensure better performance in rough road condition and keep longer service life.
Specification
|
20FT Drawbar Flatbed trailer
|
|
Dimension(L*W*H):
|
10000×2500×1500 mm
|
|
Main frame:
|
Heavy duty and extra durability design; Opting for high tensible low carbon alloy Q345B steel; I beam welded by automotive arc-submerge process
|
|
No. of axle:
|
4
|
|
Payload(kgs):
|
32000
|
|
Tare weight(kgs):
|
7000
|
|
Landing gear:
|
Two-speed manual operation 19”
|
|
Tire size:
|
12R22.5
|
|
Rim size:
|
9.00*22.5
|
|
Axle:
|
American type Fuwa brand 13 tons
|
|
Suspension
|
Steel suspension with 8pcs of leafs spring
|
|
Brake system:
|
Dual line with WABCO brand Re-6 emergency relay valve, MBA brand T30/30 air chamber, 46L air tank
|
|
Electric system:
|
One unit of 24V 7-pin ISO standard socket; with brake light, turn light, reverse light, side light, reflector, fog light; one set of 6-pin standard cable
|
|
Container locks
|
4
|
|
Painting:
|
S.A.2.5 standard sandblasting; Two coat of anti-corrosion prime; one coat of finish painting
|
|
Accessory:
|
One tool box; one set of standard tool, 1500 L fuel tank(optional)
|
Quality Guarantee
1. More than 30 years experience in manufacturing
semi-trailers since 1984.
2. One year warranty on the chassis of semi-trailer.
3. Spare parts support service.
4. The best brand-Wabco brand of braking system to
ensure the brake performance and keep the driver safe.
5. Heavy duty design especially for the bad road
condition in Africa.
