4 axles heavy duty dumper semi trailer

The 4-axle dumper semi-trailer, with its 50-70 ton load capacity and 12000mm×2500mm×3200mm body size, has become a powerful assistant for construction sites and logistics transportation. It is equipped with 16 12.00R20 tires and 13T FUWA/BPW axles to ensure stable driving. The cargo box is made of high-strength materials and has strong load-bearing capacity and durability.



Product Description

The 4-axle dumper semi-trailer is a heavy-duty vehicle designed for efficient transportation and unloading. It has a load capacity of 50 to 70 tons, and can easily handle construction materials, ore or other heavy goods. This powerful load capacity not only improves transportation efficiency, but also reduces transportation costs.





This dumper semi-trailer has a length of 12000mm, a width of 2500mm and a height of 3200mm. Such a body size not only adapts to various transportation environments, but also ensures that there is enough space inside the vehicle to load goods. It has 4 axles, each of which uses the 13T FUWA/BPW brand, ensuring the stability and safety of the vehicle's driving. At the same time, the vehicle is equipped with 16 tires with a specification of 12.00R20, which provides good grip and driving stability.

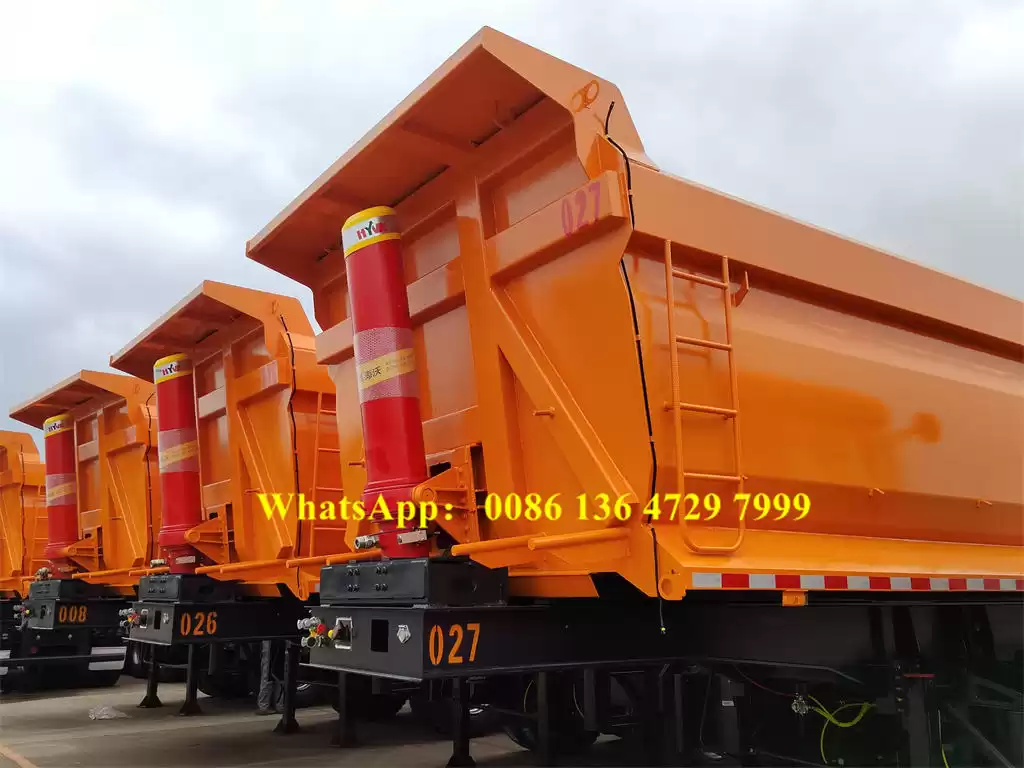

In terms of body structure, this tipper semi-trailer has a main beam and chassis made of high-strength materials to ensure the vehicle's carrying capacity and stability. The bottom of the cargo box uses 8mm thick steel plates, and the sides use 6mm thick steel plates to ensure the durability and carrying capacity of the cargo box. At the same time, the vehicle is also equipped with HYVA brand hydraulic cylinders, which provide powerful power support for the lifting and lowering of the cargo box.





Product Specifications

Loading Capacity

50-70 tons

Axle

4 pieces, 13T FUWA/BPW axle

Tyre

16 pieces, 12.00R20

Dimensions(LxWxH)

12000mm x 2500 x 3200mm

Tare weight

10 tons to 12 tons

Axle spacing

1310mm

Rims

8.5-20, 9.0-20

Suspension System

Leaf spring suspension / air suspension

Brake System

Dual line pneumatic brake system with WABCO emergency relay valve

Main Beam

Height 500mm Q345

Chassis

upper 14mm, lower 16mm. Mid web 12mm

Dump Box Thickness

Bottom 8mmSide 6mm

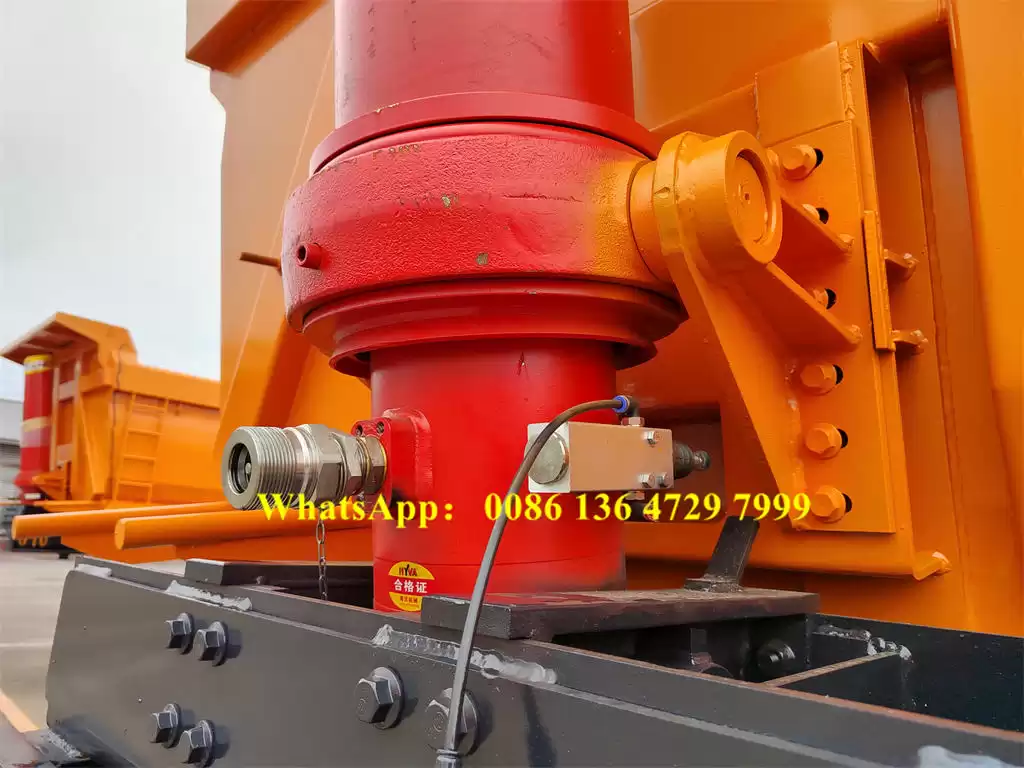

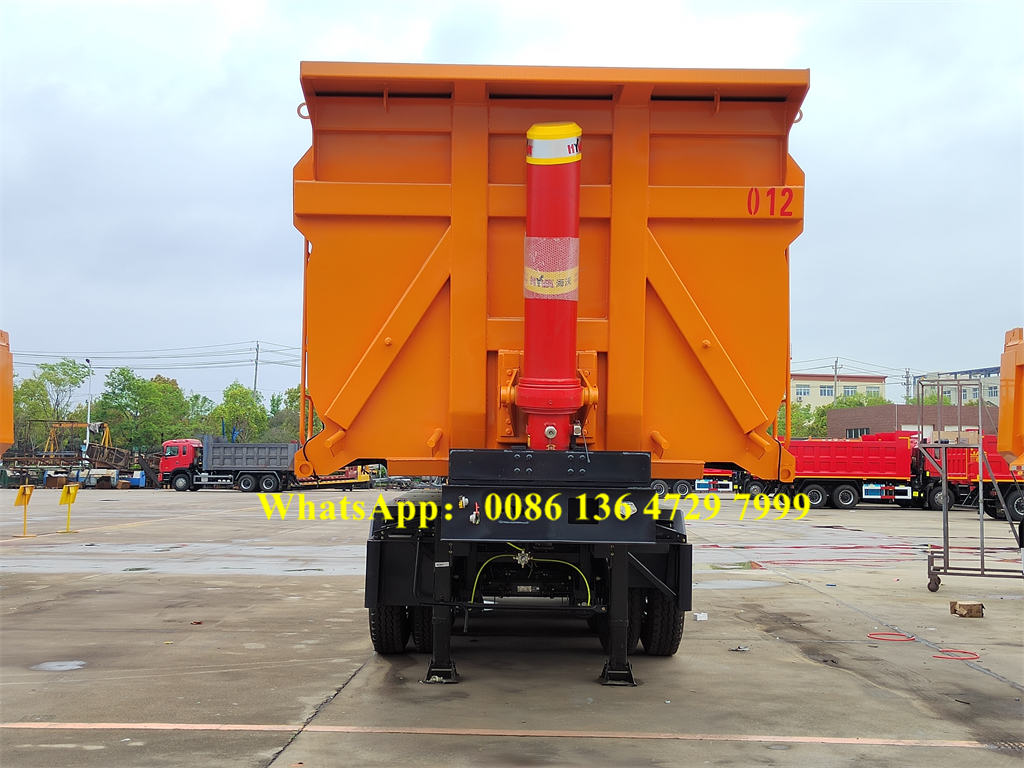

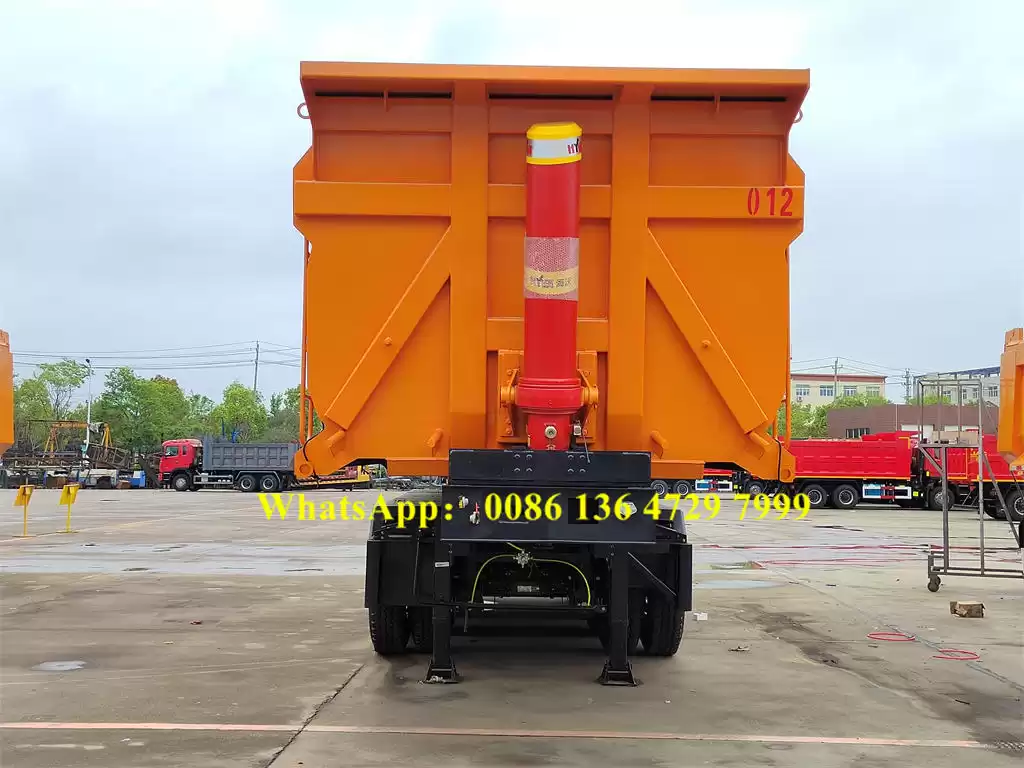

Hydraulic Cylinder

HYVA

Kingpin

2' or 3.5' interchangeable

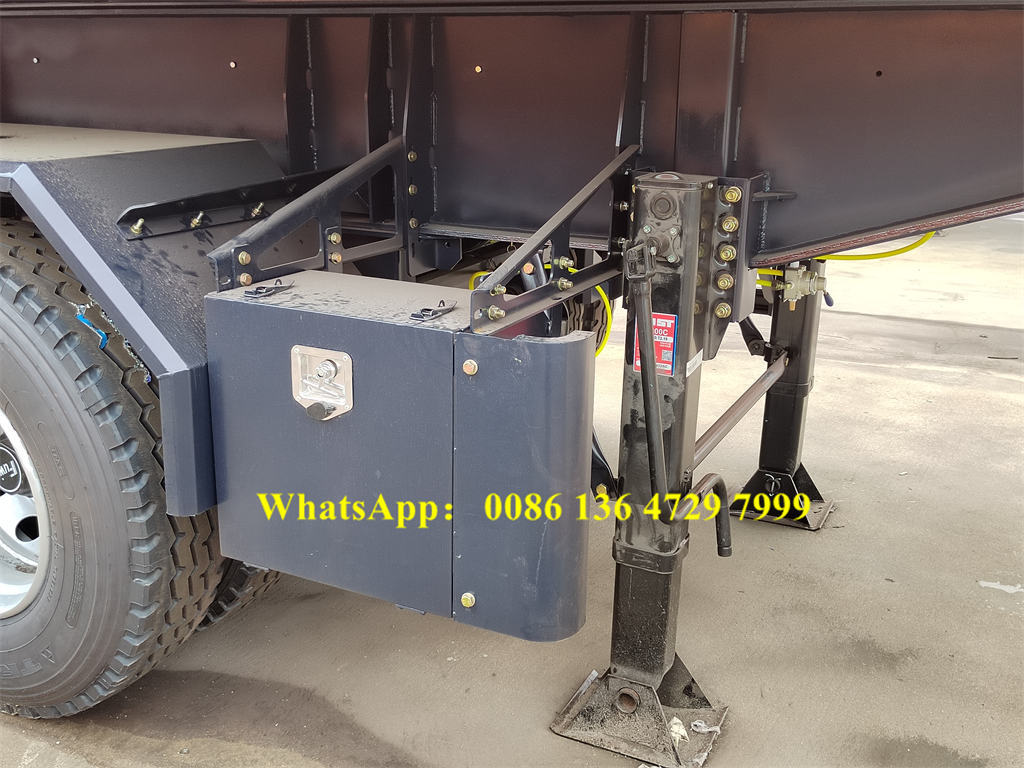

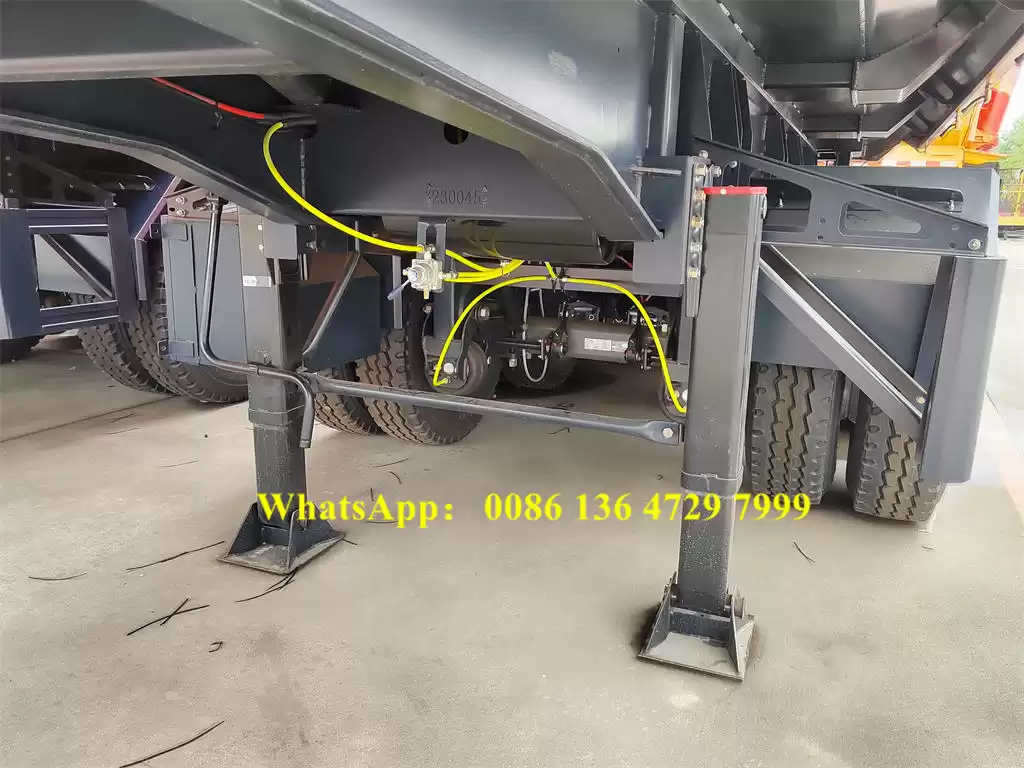

Landing Gear

28 Tons, Two speed manual operation

Electrical System

1.Voltage: 24v  2. Receptacle: 7 ways (7 wire harness) German standard

Lights and Reflectors

Rear light, rear reflector, turn indicative light, side reflector, fog lamp, number plate light

Painting

Shot blast to SA 2.5 Standard prior to application of primer, polyurethane top coat. Total DFT not less than 100μm;Any color will be available

Tool Box

One tool box with a set of standard trailer tools

Spare Tyre Carrier

One piece or two pieces

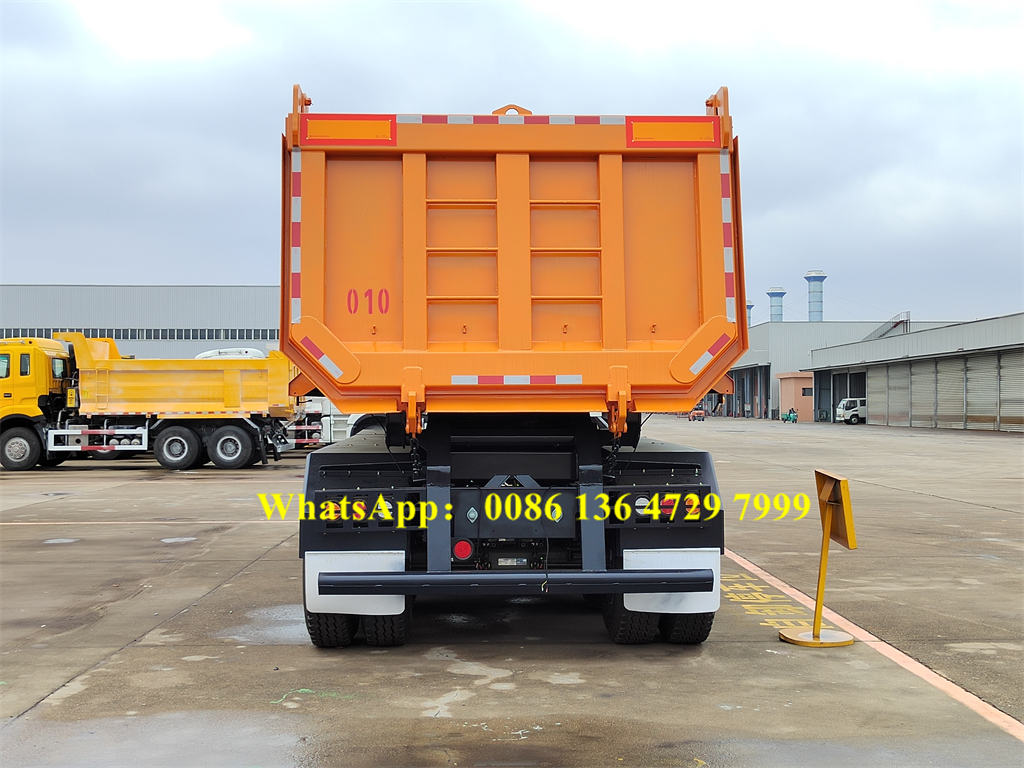

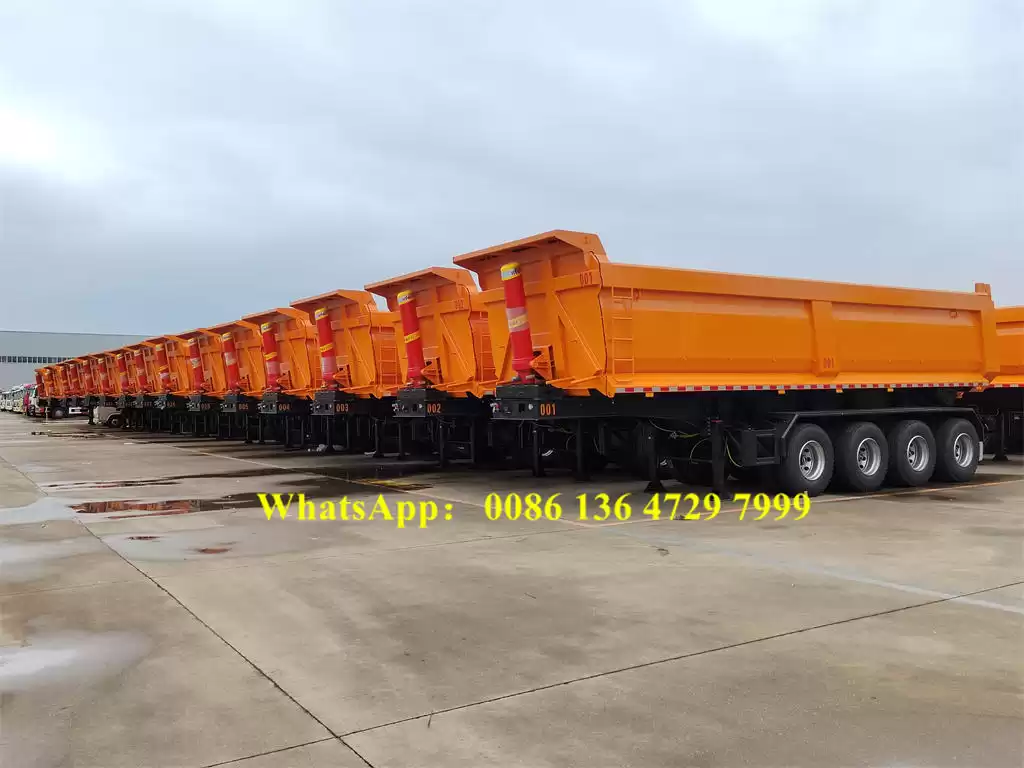

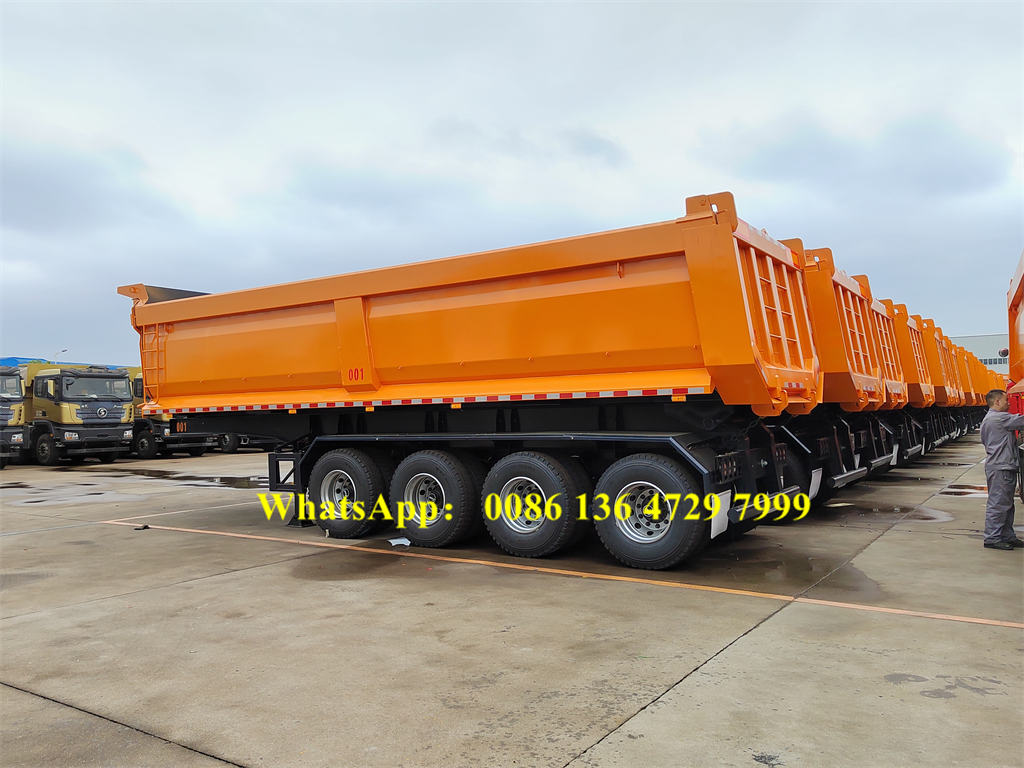

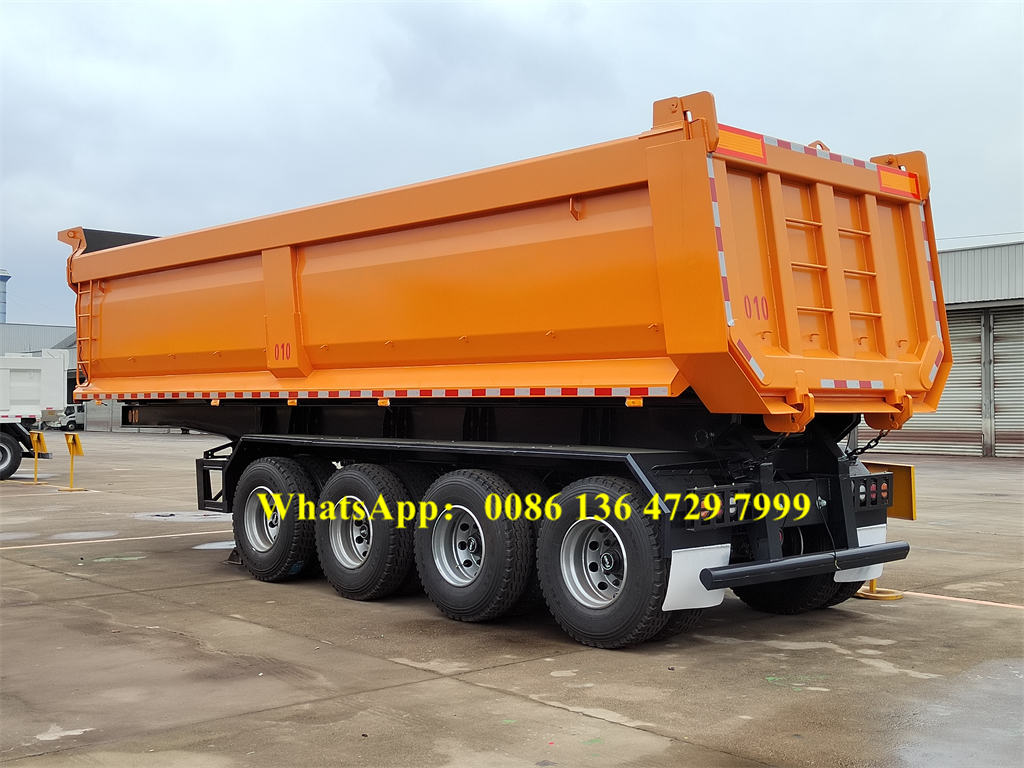

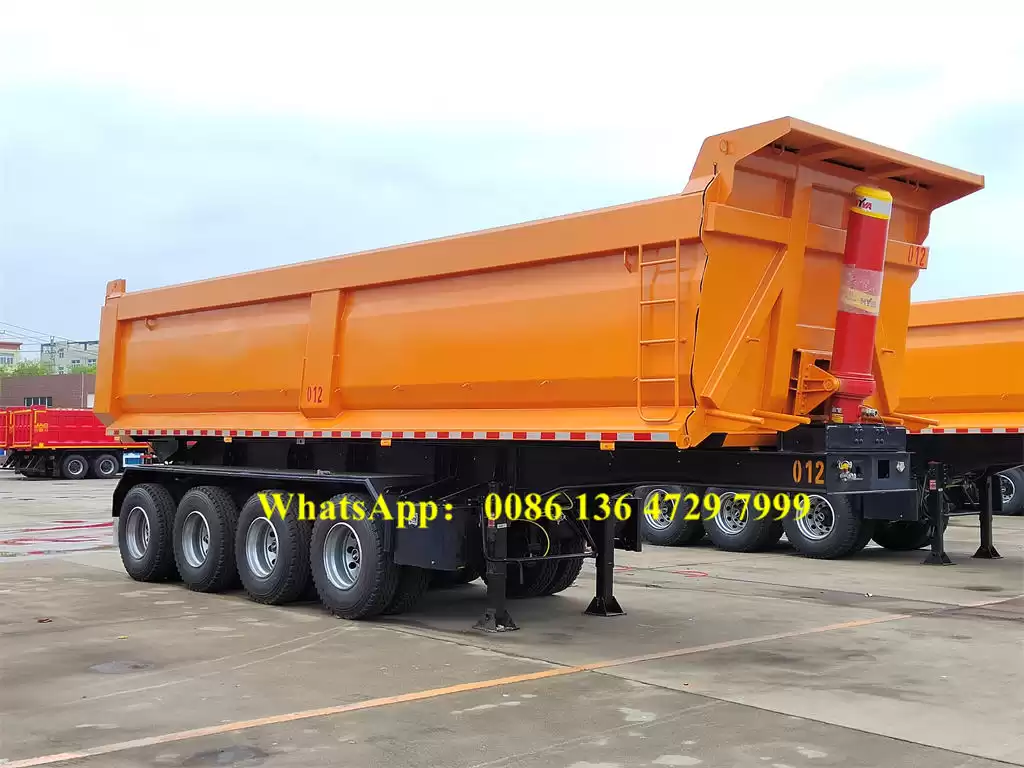

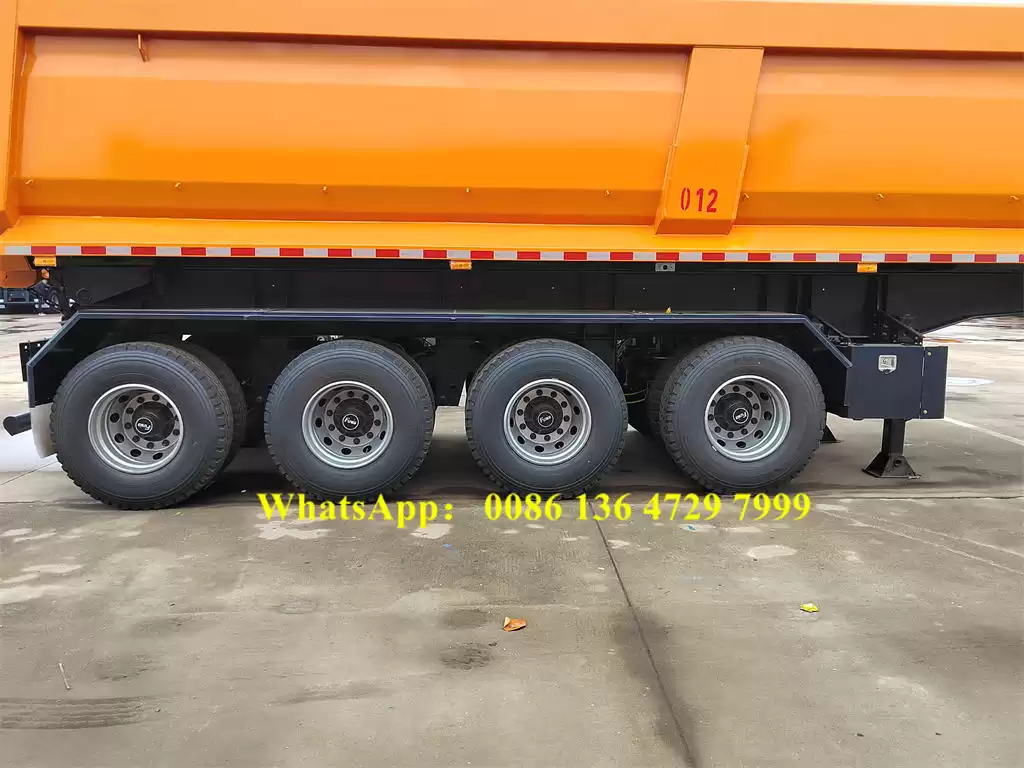

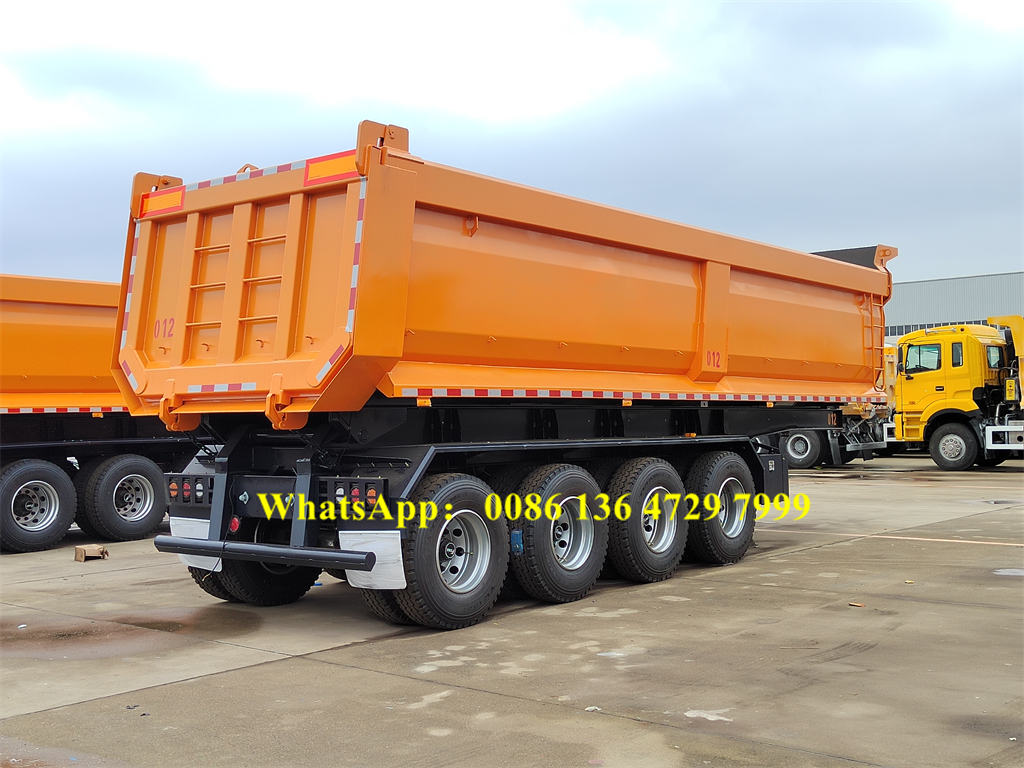

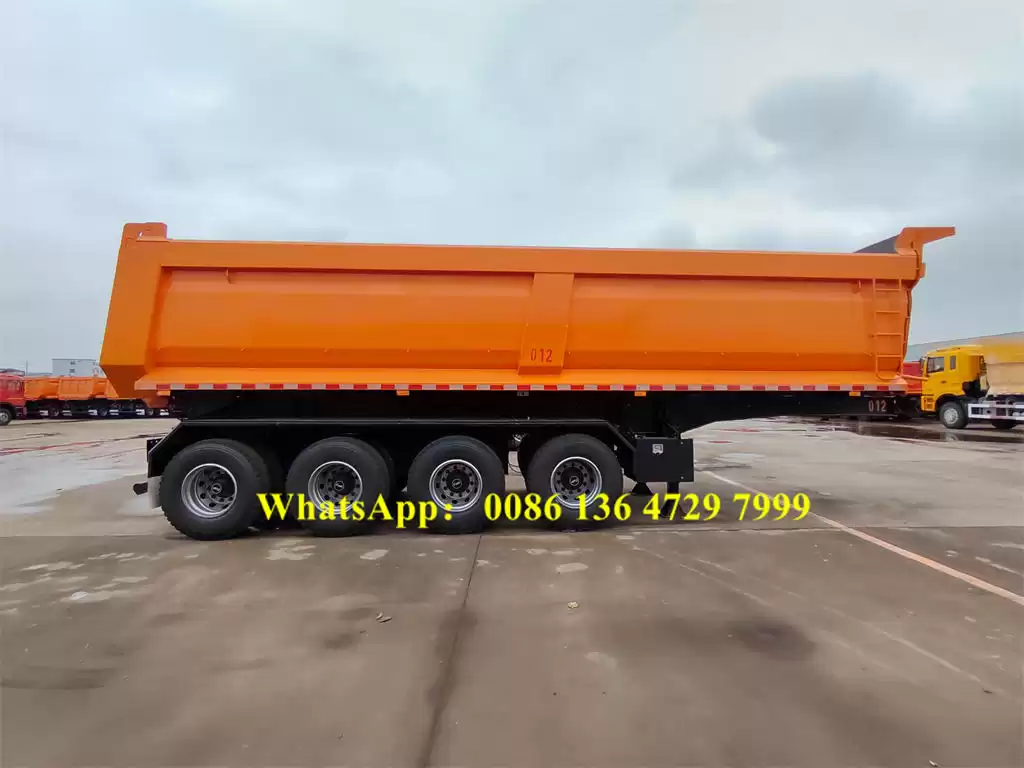

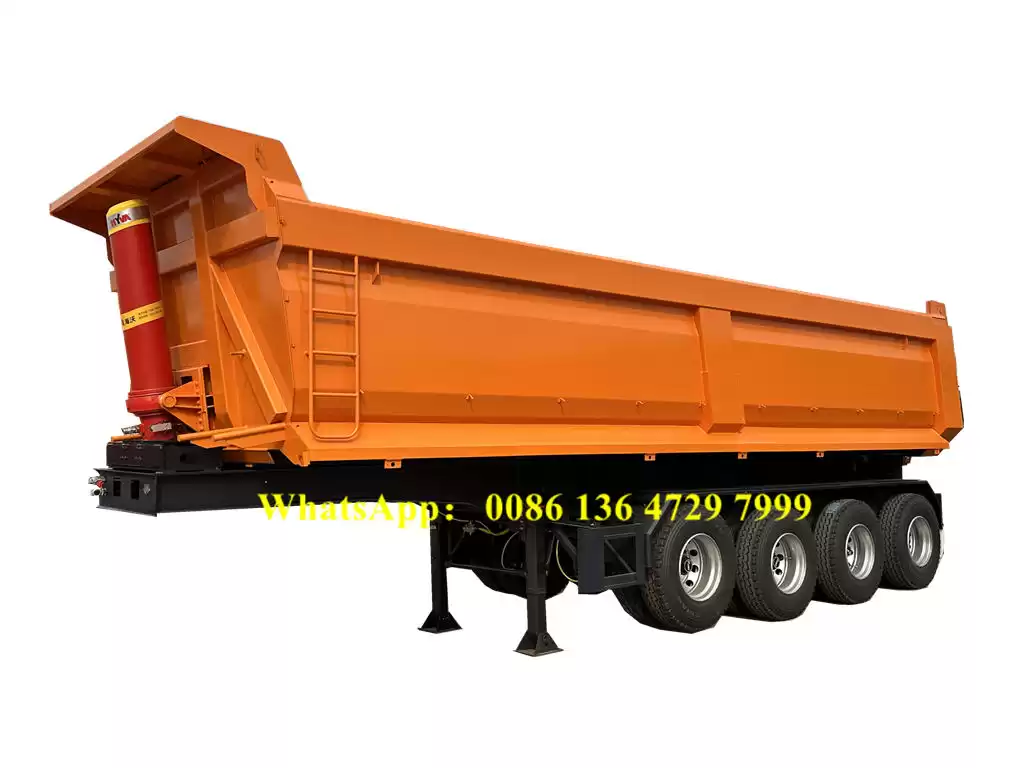

Product Pictures
