Unit No.
|
Shaft Dia
|

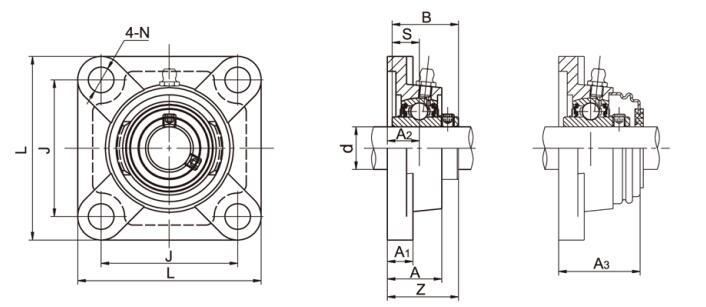

Dimensions(mm)
|
Bolt Size (mm)
|
Weight (kg)
|
|
d
|
L
|
J
|
A2
|
A1
|
A
|
N
|
B
|
S
|
Z
|
A3
|
|
(in)
|
(mm)
|
|
UCWF201
|
|
12
|
76
|
54
|
15
|
11
|
25.5
|
12
|
27.4
|
11.5
|
30.9
|
|
M10
|
0.72
|
|
UCWF202
|
|
15
|
76
|
54
|
15
|
11
|
25.5
|
12
|
27.4
|
11.5
|
30.9
|
|
M10
|
0.62
|
|
UCWF203
|
|
17
|
76
|
54
|
15
|
11
|
25.5
|
12
|
27.4
|
11.5
|
30.9
|
|
M10
|
0.61
|
|
UCF201
|
|
12
|
86
|
64
|
15
|
12
|
25.5
|
12
|
31
|
12.7
|
33.3
|
|
M10
|
0.61
|
|
UCF201-8
|
1/2
|
|
86
|
64
|
15
|
12
|
25.5
|
12
|
31
|
12.7
|
33.3
|
|
M10
|
0.61
|
|
UCF202
|
|
15
|
86
|
64
|
15
|
12
|
25.5
|
12
|
31
|
12.7
|
33.3
|
|
M10
|
0.61
|
|
UCF202-9
|
9/16
|
|
86
|
64
|
15
|
12
|
25.5
|
12
|
31
|
12.7
|
33.3
|
|
M10
|
0.61
|
|
UCF202-10
|
5/8
|
|
86
|
64
|
15
|
12
|
25.5
|
12
|
31
|
12.7
|
33.3
|
|
M10
|
0.61
|
|
UCF203
|
|
17
|
86
|
64
|
15
|
12
|
25.5
|
12
|
31
|
12.7
|
33.3
|
|
M10
|
0.61
|
|
UCF203-11
|
11/16
|
|
86
|
64
|
15
|
12
|
25.5
|
12
|
31
|
12.7
|
33.3
|
|
M10
|
0.61
|
|
UCF204
|
|
20
|
86
|
64
|
15
|
12
|
25.5
|
12
|
31
|
12.7
|
33.3
|
38.2
|
M10
|
0.61
|
|
UCF204-12
|
3/4
|
|
86
|
64
|
15
|
12
|
25.5
|
12
|
31
|
12.7
|
33.3
|
38.2
|
M10
|
0.61
|
|
UCF205
|
|
25
|
95
|
70
|
16
|
14
|
27
|
12
|
34.1
|
14.3
|
35.8
|
40
|
M10
|
0.80
|
|
UCF205-14
|
7/8
|
|
95
|
70
|
16
|
14
|
27
|
12
|
34.1
|
14.3
|
35.8
|
40
|
M10
|
0.80
|
|
UCF205-15
|
15/16
|
|
95
|
70
|
16
|
14
|
27
|
12
|
34.1
|
14.3
|
35.8
|
40
|
M10
|
0.80
|
|
UCF205-16
|
1
|
|
95
|
70
|
16
|
14
|
27
|
12
|
34.1
|
14.3
|
35.8
|
40
|
M10
|
0.80
|
|
UCF206
|
|
30
|
108
|
83
|
18
|
14
|
31
|
12
|
38.
|
15.9
|
40.2
|
44
|
M10
|
1.00
|
|
UCF206-17
|
1-1/16
|
|
108
|
83
|
18
|
14
|
31
|
12
|
38.
|
15.9
|
40.2
|
44
|
M10
|
1.00
|
|
UCF206-18
|
1-1/8
|
|
108
|
83
|
18
|
14
|
31
|
12
|
38.
|
15.9
|
40.2
|
44
|
M10
|
1.00
|
|
UCF206-19
|
1-3/16
|
|
108
|
83
|
18
|
14
|
31
|
12
|
38.
|
15.9
|
40.2
|
44
|
M10
|
1.00
|
|
UCF206-20
|
1-1/4
|
|
108
|
83
|
18
|
14
|
31
|
12
|
38.
|
15.9
|
40.2
|
44
|
M10
|
1.00
|
|
UCF207
|
|
35
|
117
|
92
|
19
|
16
|
34
|
14
|
42.9
|
17.5
|
44.4
|
48.5
|
M12
|
1.40
|
|
UCF207-20
|
1-1/4
|
|
117
|
92
|
19
|
16
|
34
|
14
|
42.9
|
17.5
|
44.4
|
48.5
|
M12
|
1.40
|
|
UCF207-21
|
1-5/16
|
|
117
|
92
|
19
|
16
|
34
|
14
|
42.9
|
17.5
|
44.4
|
48.5
|
M12
|
1.40
|
|
UCF207-22
|
1-3/8
|
|
117
|
92
|
19
|
16
|
34
|
14
|
42.9
|
17.5
|
44.4
|
48.5
|
M12
|
1.40
|
|
UCF207-23
|
1-7/16
|
|
117
|
92
|
19
|
16
|
34
|
14
|
42.9
|
17.5
|
44.4
|
48.5
|
M12
|
1.40
|
|
UCF208
|
|
40
|
130
|
102
|
21
|
16
|
36
|
16
|
49.2
|
19
|
51.2
|
55.1
|
M14
|
1.80
|
|
UCF208-24
|
1-1/2
|
|
130
|
102
|
21
|
16
|
36
|
16
|
49.2
|
19
|
51.2
|
55.1
|
M14
|
1.80
|
|
UCF208-25
|
1-9/16
|
|
130
|
102
|
21
|
16
|
36
|
16
|
49.2
|
19
|
51.2
|
55.1
|
M14
|
1.80
|
|
UCF209
|
|
45
|
137
|
105
|
22
|
18
|
38
|
16
|
49.2
|
19
|
52.2
|
57
|
M14
|
2.20
|
|
UCF209-26
|
1-5/8
|
|
137
|
105
|
22
|
18
|
38
|
16
|
49.2
|
19
|
52.2
|
57
|
M14
|
2.20
|
|
UCF209-27
|
1-11/16
|
|
137
|
105
|
22
|
18
|
38
|
16
|
49.2
|
19
|
52.2
|
57
|
M14
|
2.20
|
|
UCF209-28
|
1-3/4
|
|
137
|
105
|
22
|
18
|
38
|
16
|
49.2
|
19
|
52.2
|
57
|
M14
|
2.20
|
|
UCF210
|
|
50
|
143
|
111
|
22
|
18
|
40
|
16
|
51.6
|
19
|
54.6
|
60
|
M14
|
2.40
|
|
UCF210-30
|
1-7/8
|
|
143
|
111
|
22
|
18
|
40
|
16
|
51.6
|
19
|
54.6
|
60
|
M14
|
2.40
|
|
UCF210-31
|
1-15/16
|
|
143
|
111
|
22
|
18
|
40
|
16
|
51.6
|
19
|
54.6
|
60
|
M14
|
2.40
|
|
UCF210-32
|
2
|
|
143
|
111
|
22
|
18
|
40
|
16
|
51.6
|
19
|
54.6
|
60
|
M14
|
2.40
|
|
UCF211
|
|
55
|
162
|
130
|
25
|
20
|
43
|
19
|
55.6
|
22.2
|
58.4
|
63
|
M16
|
3.50
|
|
UCF211-32
|
2
|
|
162
|
130
|
25
|
20
|
43
|
19
|
55.6
|
22.2
|
58.4
|
63
|
M16
|
3.50
|
|
UCF211-34
|
2-1/8
|
|
162
|
130
|
25
|
20
|
43
|
19
|
55.6
|
22.2
|
58.4
|
63
|
M16
|
3.50
|
|
UCF211-35
|
2-3/16
|
|
162
|
130
|
25
|
20
|
43
|
19
|
55.6
|
22.2
|
58.4
|
63
|
M16
|
3.50
|
|
UCF212
|
|
60
|
175
|
143
|
29
|
20
|
48
|
19
|
65.1
|
25.4
|
68.7
|
73.5
|
M16
|
4.20
|
|
UCF212-36
|
2-1/4
|
|
175
|
143
|
29
|
20
|
48
|
19
|
65.1
|
25.4
|
68.7
|
73.5
|
M16
|
4.20
|
|
UCF212-38
|
2-3/8
|
|
175
|
143
|
29
|
20
|
48
|
19
|
65.1
|
25.4
|
68.7
|
73.5
|
M16
|
4.20
|
|
UCF212-39
|
2-7/16
|
|
175
|
143
|
29
|
20
|
48
|
19
|
65.1
|
25.4
|
68.7
|
73.5
|
M16
|
4.20
|
|
UCF213
|
|
65
|
187
|
149
|
30
|
22
|
50
|
19
|
65.1
|
25.4
|
69.7
|
74.5
|
M16
|
5.30
|
|
UCF213-40
|
2-1/2
|
|
187
|
149
|
30
|
22
|
50
|
19
|
65.1
|
25.4
|
69.7
|
74.5
|
M16
|
5.30
|
|
UCF214
|
|
70
|
193
|
152
|
31
|
22
|
54
|
19
|
74.6
|
30.2
|
75.4
|
80
|
M16
|
5.90
|
|
UCF214-44
|
2-3/4
|
|
193
|
152
|
31
|
22
|
54
|
19
|
74.6
|
30.2
|
75.4
|
80
|
M16
|
5.90
|
|
UCF215
|
|
75
|
200
|
159
|
34
|
22
|
56
|
19
|
77.8
|
33.3
|
78.5
|
82.5
|
M16
|
6.30
|
|
UCF215-47
|
2-15/16
|
|
200
|
159
|
34
|
22
|
56
|
19
|
77.8
|
33.3
|
78.5
|
82.5
|
M16
|
6.30
|
|
UCF215-48
|
3
|
|
200
|
159
|
34
|
22
|
56
|
19
|
77.8
|
33.3
|
78.5
|
82.5
|
M16
|
6.30
|
|
UCF216
|
|
80
|
208
|
165
|
34
|
22
|
58
|
23
|
82.6
|
33.3
|
83.3
|
89
|
M20
|
7.30
|
|
UCF217
|
|
85
|
220
|
175
|
36
|
24
|
63
|
23
|
85.7
|
34.1
|
87.6
|
92.1
|
M20
|
8.90
|
|
UCF217-52
|
3-1/4
|
|
220
|
175
|
36
|
24
|
63
|
23
|
85.7
|
34.1
|
87.6
|
92.1
|
M20
|
8.90
|
|
UCF218
|
|
90
|
235
|
187
|
40
|
25
|
68
|
23
|
96
|
39.7
|
96.3
|
102
|
M20
|
11.60
|
|
UCF218-56
|
3-1/2
|
|
235
|
187
|
40
|
25
|
68
|
23
|
96
|
39.7
|
96.3
|
102
|
M20
|
11.60
|

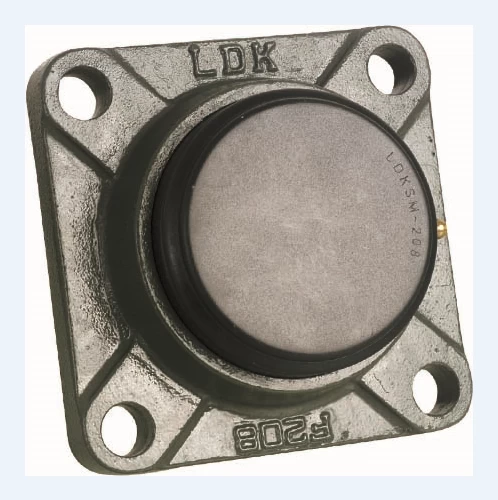

Notes:1. Pressed steel covers available at one end.S=Open cap,SM=Close cap. Ordering example:UCF205+SM.
2. Bearing housing solid base optional,add suffix SB as designation.
