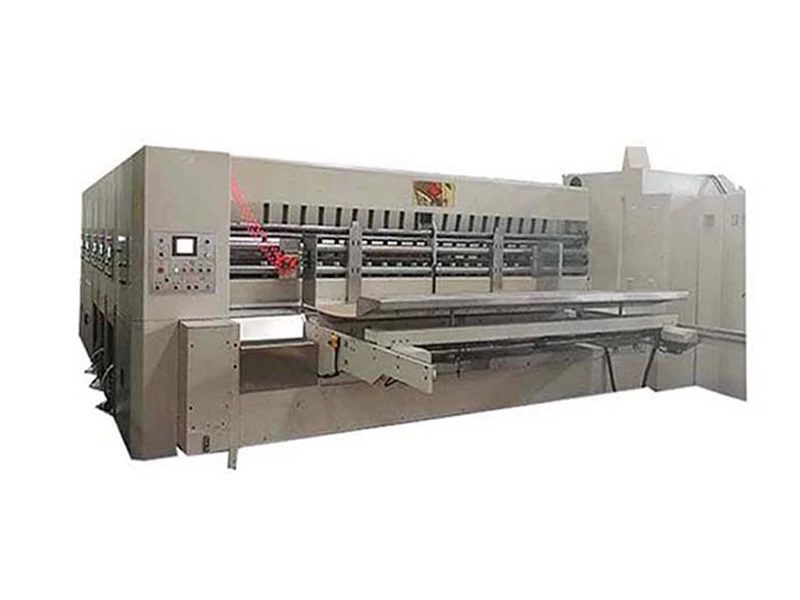

4 Color Printer Slotter Die Cutter
Corrugated Carton Printer Slotter Features：
·This corrugated pizza box printer rotary is designed and made to high quality and safety standard,with the advantages of high speed, auto control and quick order shift.
·Auto high quality materials and parts.
·Well hardened and ground transmission gears, hardness more than 60(HRC).
·Auto zero return and auto reset.
·Use expansion sets tight link to reduce abrasion of the shaft,keep precision of the machine for long years.
·All cylinders and rollers are chromed plated for ideal hardness.
·PLC control system with touch screen control.
·Able to save order,speed up the order shift.
·All electronic and pneumatic components are with European standards.
·Lead edge feeder or kick feeder is for choice.
Edge High Speed Printer Slotter Die Cutter Machine Specification：
|
Data/Model
|
1600*3600
|
2200*3600
|
2200*4000
|
2200*4600
|
2200*5300
|
2600*3600
|
2600*4000
|
2600*4600
|
2600*5300
|
|
Printing Speed(m/min)
|
160
|
160
|
160
|
160
|
160
|
160
|
160
|
160
|
160
|
|
Max.Machine Speed(pcs/min)
|
120
|
100
|
100
|
100
|
80
|
80
|
80
|
80
|
80
|
|
Max.Feeding Size(mm)
|
1570x3600
|
2100x3600
|
2100x4000
|
2100x4600
|
2100x5300
|
2500x3600
|
2500x4000
|
2500x4600
|
2500x5300
|
|
Min.Feeding Size(mm)
|
450x760
|
550x900
|
550x900
|
550x900
|
550x900
|
650x900
|
650x900
|
650x900
|
650x900
|
|
Max. Printing Area(mm)
|
1540x3600
|
2080x3600
|
2080x4000
|
2080x4600
|
2080x5300
|
2480x3600
|
2480x4000
|
2480x4600
|
2480x5300
|
|
Thickness of Printing Plate(mm)
|
7.2
|
7.2
|
7.2
|
7.2
|
7.2
|
7.2
|
7.2
|
7.2
|
7.2
|
|
Min. Panel(mm) Slot Type L.
|
280x100x280x100
|
330x110x330x110
|
330x110x330x110
|
330x110x330x110
|
330x110x330x110
|
360x110x360x110
|
360x110x360x110
|
360x110x360x110
|
360x110x360x110
|
|
Max. Slotting Depth(mm)
|
560
|
750
|
750
|
750
|
750
|
850
|
850
|
850
|
850
|
|
Max. Thickness of Sheet(mm)
|
15
|
15
|
15
|
15
|
15
|
15
|
15
|
15
|
15
|
|
Dimension(LxWxH)
T
|
19852x6670x2700
|
21173x6670x2800
|
21173x7070x2800
|
21173x7670x2800
|
21173x8370x2800
|
22495x6670x3000
|
22495x7070x3000
|
22495x7670x3000
|
22495x8370x3000
|
Flexo Printer Slotter and Auto Sheet Stacker Advantages:
1.CNC control system (Intelligent Control)
2.Environmental Protection and Energy Saving, use washable ink;
3.Apply to box for big household appliances such as refrigerator, air-conditioner, and heavy industrial box, such as motorbike, auto spare parts.
4.Able to print and make honeycomb box.
Our Service
Pre-Sales Service
* Inquiry and consulting support.
* View our Factory.
After-Sales Service
* Installation, training how to use the machine and technical support.
* Engineers available to service machinery overseas.
