This product is suitable and designed for power transmission and distribution system of rated voltage 0.6/1kv.In terms of the main feature of anti-flaming cable,the cable is not liable to ignite or continued ignition is only limited to a certain scope applicable to power station ,subway ,tunnel ,high-rise building,large industrial and mining enterprise,oil field,coal mine and other places of intensive distributed electric cables.

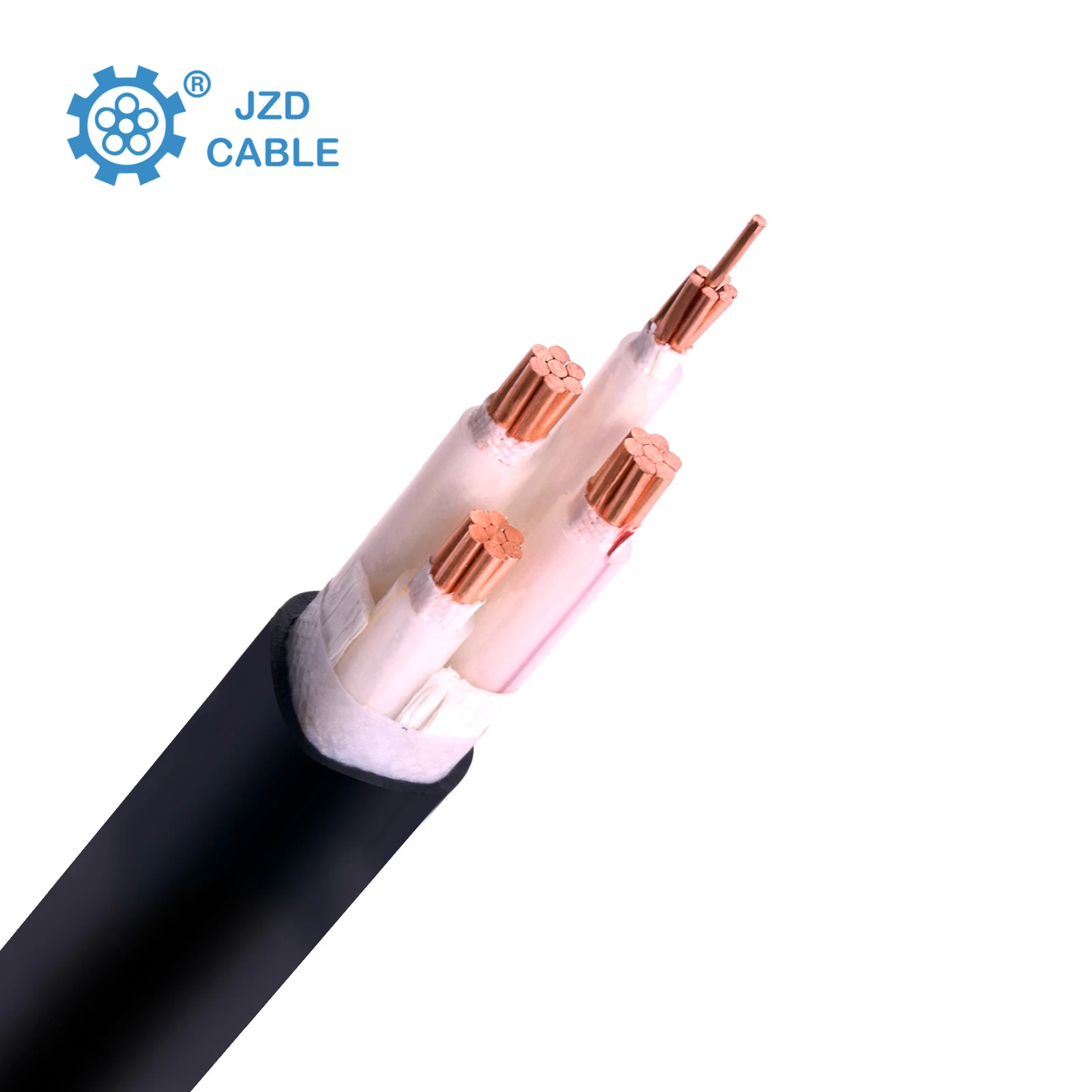

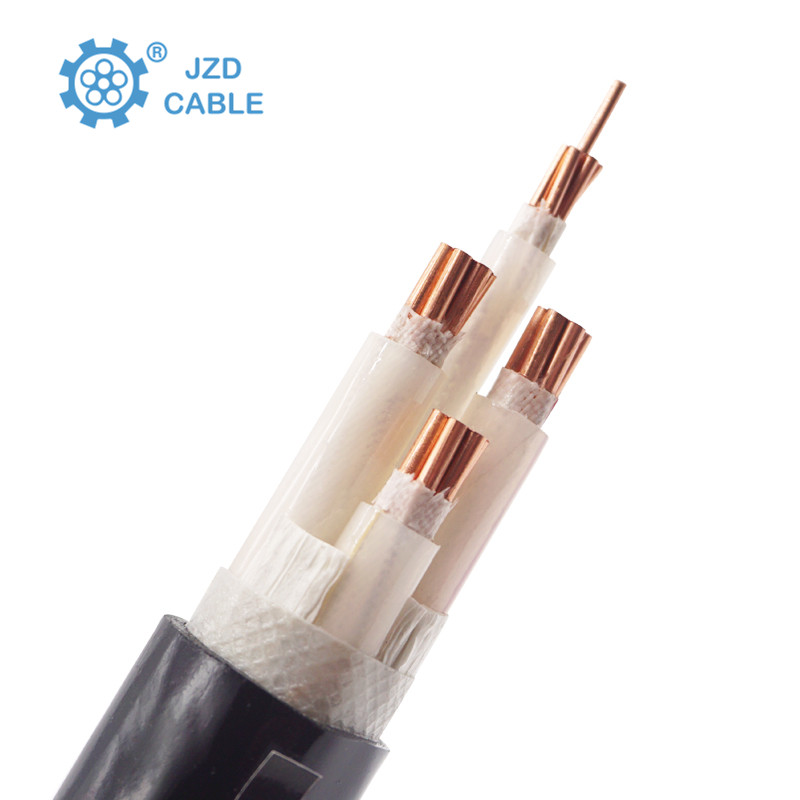

4 Core 600/1000V Power Cable Cross-linked Polyethylene Insulated Cable
Operative standard:
GB/T 12706,IEC 60502 and relevant domestic and international standard.For example,BS,VDE,JIS,AEIC,and so on.
Operational performance:
The maximum allowable operating temperature of the cable conductor:90 C in normal condition and 250 C in case of short circuit (maximum duration of short circuit is 5s).
The lowest temperature for cable is distribution is 0°C , and the minimum bending radius is
Single -core cable 20（D+d）±5%
Mutil -core cable 15（D+d）±5%
5 core
