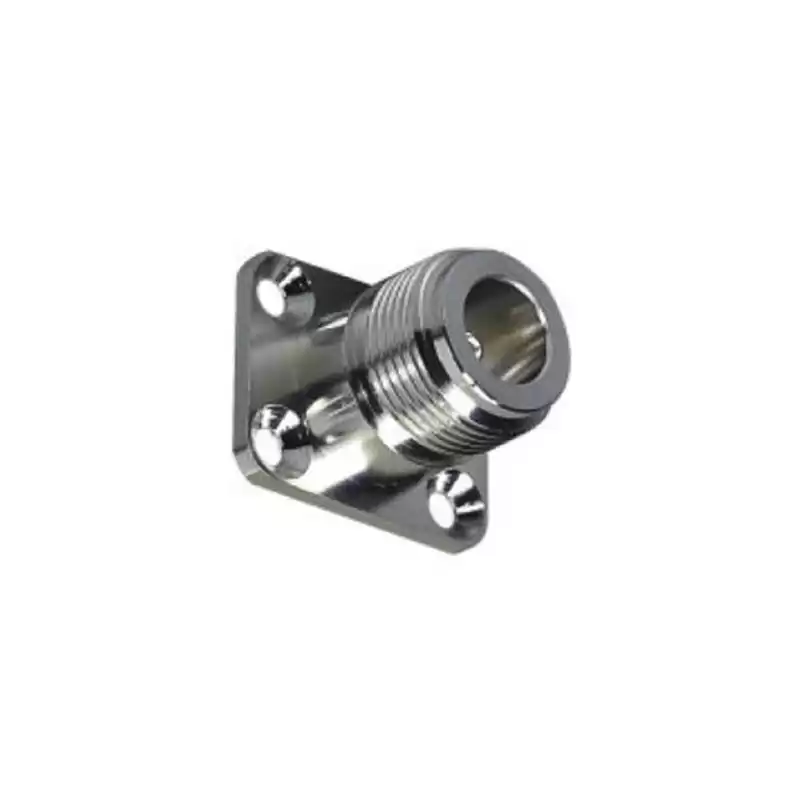

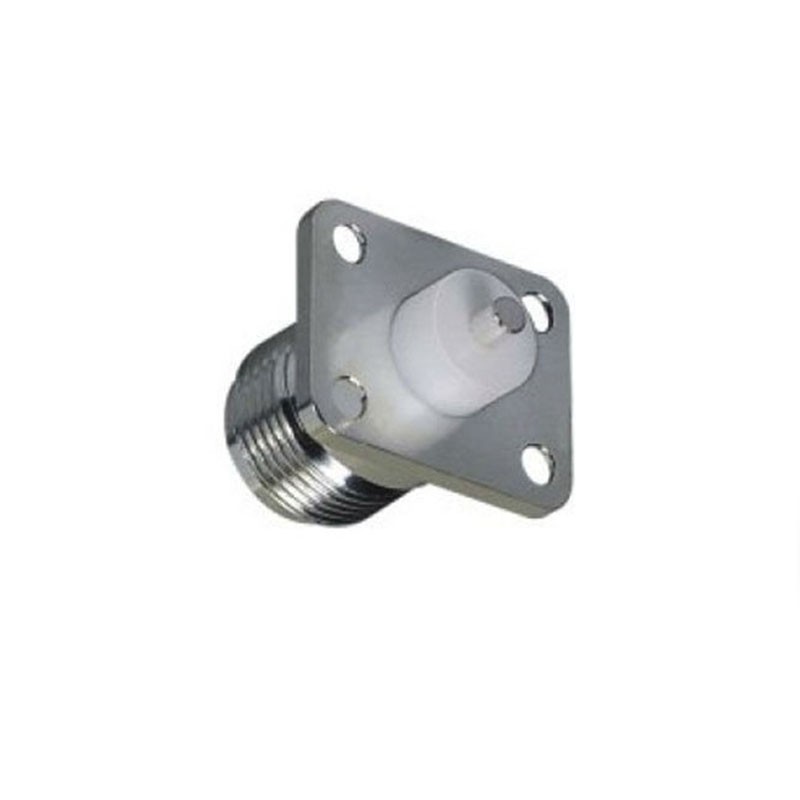

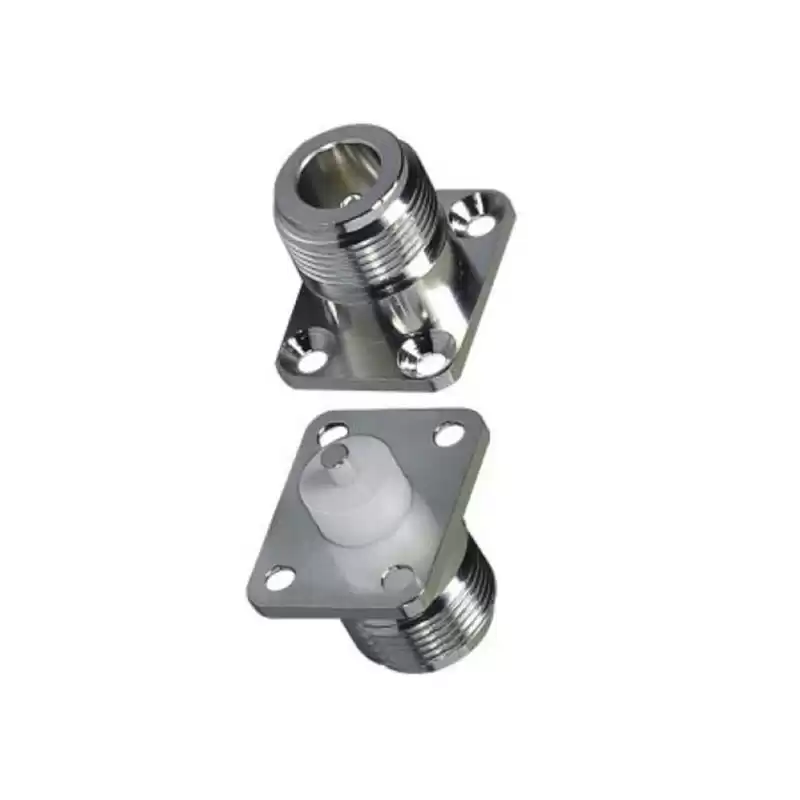

4 Hole Flange N Type Female RF Coaxial Connector for Cable

Features

  • Can be Customized for unique material or performance requirement;
  • Excellent RF performance from DC to 11 GHz, and DC to 18 GHz on extended range designs;
  • Broad line of military, industrial and commercial grade products available;
  • OEM & ODM available for special design with competitive Factory price;
  • Threaded coupling mechanism ideal for vibration resistance;
  • Accommodates a wide range of coaxial cables including low loss types.



4 Hole Flange N Type Female RF Coaxial Connector for Cable



The N connectors are designed to satisfy the need for a durable, weatherproof, medium-size RF connector with consistent performance which includes models that support up to 18 GHz;It features a threaded coupling mechanism , These coaxial connectors are used in all systems where excellent RF and mechanical performance is critical.



Specifications

ELECTRICAL DATA
Impedance                                                                  50Ω
Frequency Range Flexible cables DC 11GHz, semi-rigd cables DC18GHz
Withstand Voltage  2500V,50Hz
Working Voltage 1000V,50Hz (sea level)
Insulation Resistance 5000mΩ
Contact Resistance Inner conductor: 1.0mΩ
Outer conductor: 0.2mΩ
RF leakage(2-3GHz) Flexible: 90dB
3rd order  intermodulation 140dBc
MECHANICAL DATA
Coupling nut torque Recommended: 68Ncm--123Ncm / 6.0 in. lbs--10 in.lbs
Proof torque: 170 Ncm / 15.0 in.lbs
Proof torque 170Ncm / 15.0 in.lbs
Durability (matings) 500
ENVIRONMENTAL DATA
Temperature range -65°C  to +165°C
MATERIAL DATA
Bodies Brass--Nickel plating
Pin contacts Brass--Au/Ag plating
Socket contacts Copper beryllium alloy--Au plating
Crimp ferrules Brass--Ternary alloy plating
Insulator PTFE
Gaskets Silicone rubber



Applications

  • WLAN
  • Base Stations
  • Instrumentation
  • Satellite Systems
  • Antennas
  • Radar Systems
  • Broadcast
  • Surge Protection
