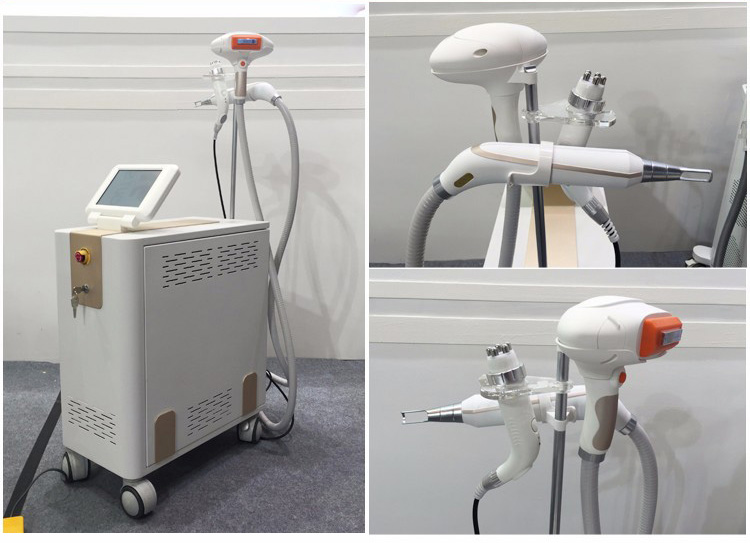

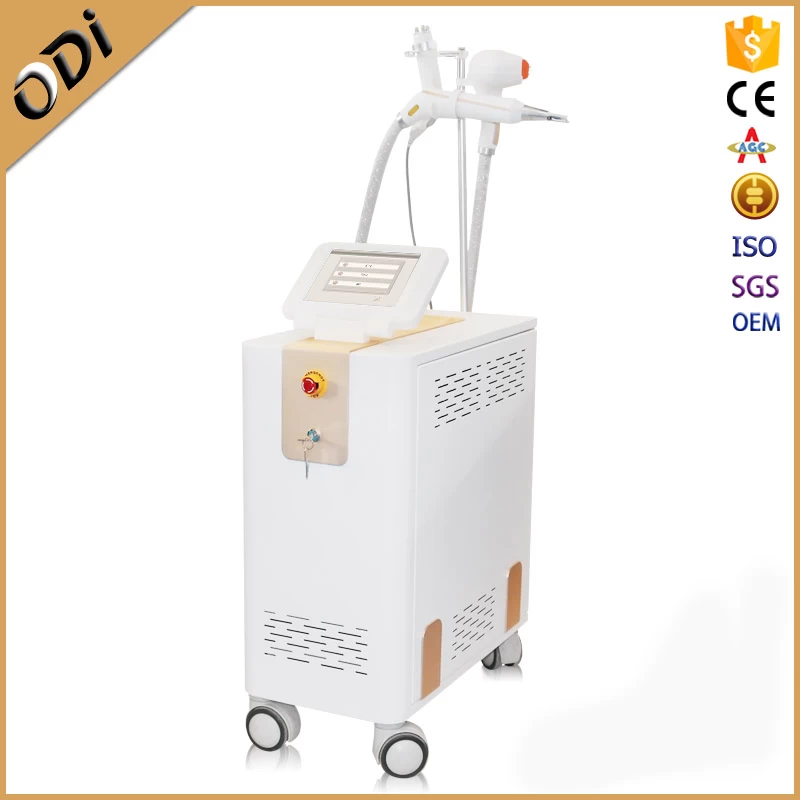

4 in 1 multifunctional shr ipl laser machine for hair and tattoo removal
Shr Ipl Laser Machine Product Advantages
-
Multifunctional machine with different options to solve different problems which is convenient and profitable.
-
OPT handle with large spot size which combine the newest light technologies from USA and Israel.
-
Laser handle use the white china material with stronger energy and high accuracy.
-
Self detecting system to protect the machine all the time.
-
Machine is easy to operate with no complex training so this is the best choice when opening a beauty salon with different functions.
-
OPT IPL

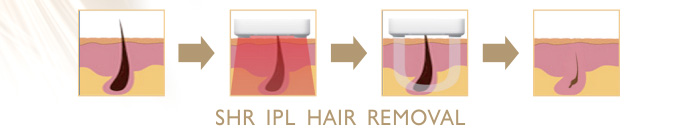

SHR IPL is safe and painless permanent hair removal machine for wide range of client base which is clinical proven. It delivers low energy light via rapid "pulses" - (5 per second) to gently,effectively and efficiently traumatises the hair stem cells thus preventing re-growth.The wavelength of SSR headpiece range from 420 to 950nm, supported with integrated software system allows for a wide range of treatment areas: acne, wrinkles, pigmentation, vascular lesions, and skin rejuvenation.OPT technology is using the intense pulse light to work on the skin and then photobiological reaction is working on the skin too, it can on the one hand to have the collagen fiber growing again and reshaping, so the skin will regain the elasticity and it can also improve the microcirculation of the face to eliminate the fine lines, while on the other, the intense pulse light can penetrate the skin layer and was absorbed by the pigment and blood capillary and the heat will have the blood become solid and the pigment exploded without hurting the normal skin tissue so to cure the tiny vessel expansion, remove the pigment and unwanted hair.
-
Nd Yag Laser

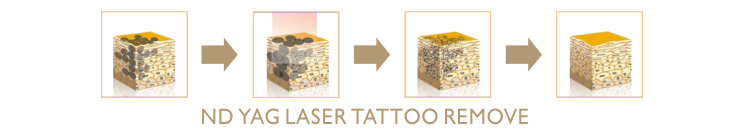

1. The laser delivers high energy to penetrate the skin epidermis causing an instantaneous explosion on the targeted tattoo or pigment particles.Pigment removal treatment is using the instant high energy releases from laser to have the treatment pigment absorbing energy and then explode into smaller particles which will be eliminated from the body and some of the pigment particles will also be consumed by the lymphatic system so as to remove the pigment. As for the skin tissue will absorb a few or not absorb the 1064 and 532nm laser so it will not hurt the normal skin tissue and in this way cell can maintain the structure in tact and cause no wounds which is promising the safety and no negative reactions after the operation of the patients so it is competitive in safety while making comparisons with other ways of treatment. 2. The melanin will be fragmented so small that they can be metabolized by the lymphatic system or excreted out of body, which makes the targeted pigment disappear or lighter. The laser selectively targets and destroys tattoo pigments with no harm to surround normal tissues as the normal skin absorbs low energy induced by laser at the wavelength of 1064nm and 532nm.
-
Radio Frequency

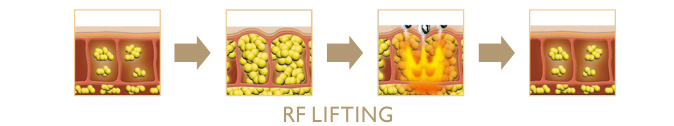

RF energy acts on the dermis directly, activates dermal cells to make water molecule shock in high-speed generating friction energy, when part of the tissue reaches about 60 ℃ (Feel fitful warm from subcutaneous). The collagen in dermal tightens immediately and is activated to achieve long-term growing and to enhance the skin tightening and anti-aging.RF energy can work directly on the dermal layer and then it will have the water in cells to work together and to create frictions so to produce energy and the temperature will reach around 60 ℃（there will be a warm feeling in the dermal skin layer）then the collagen will be contracted, stimulated and activated so the result of skin tightening and lifting will be achieved.
Technical Parameters of multi-functional Beauty Machine
|
E-Light & SHR IPL
|
Wavelength
|
530-1200nm & 640-1200nm
|
|
Spot Size
|
10*50mm²
|
|
E-light Energy Density
|
1-50J/cm²
|
|
OPT Pulse Width
|
1-40ms
|
|
OPT Pulse Type
|
Single Pulse
|
|
OPT Frequency
|
1-10Hz
|
|
Spot size
|
10*50mm
|
|
RF
|
Source
|
Radio frequency
|
|
Energy Density
|
Max 25J/cm2
|
|
Polar
|
Bi-polar RF
|
|
Frequency
|
5MHZ
|
|
Working duration
|
50ms—2500ms
|
|
Working interval
|
1—4ms
|
|
Nd yag Laser
|
Laser type
|
ND:YAG Solid-state laser
|
|
Pulse Width
|
8-20ns
|
|
Laser Robs
|
Yellow crystal rods
|
|
Wavelength
|
1064nm, 532nm
|
|
Frequency
|
1—10Hz
|
|
Diameter of light spot
|
1—8mm adjustable
|
|
Energy Density
|
20-1500mj
|
|
Cooling system
|
Semi-conductor cooling + embedded circle water cooling + air cooling system
|
|
Power supply
|
AC220V±10%V, 50HZ±1HZ (AC110V±10%V, 60HZ±1HZ)
|
Functions
Treatment Before and After

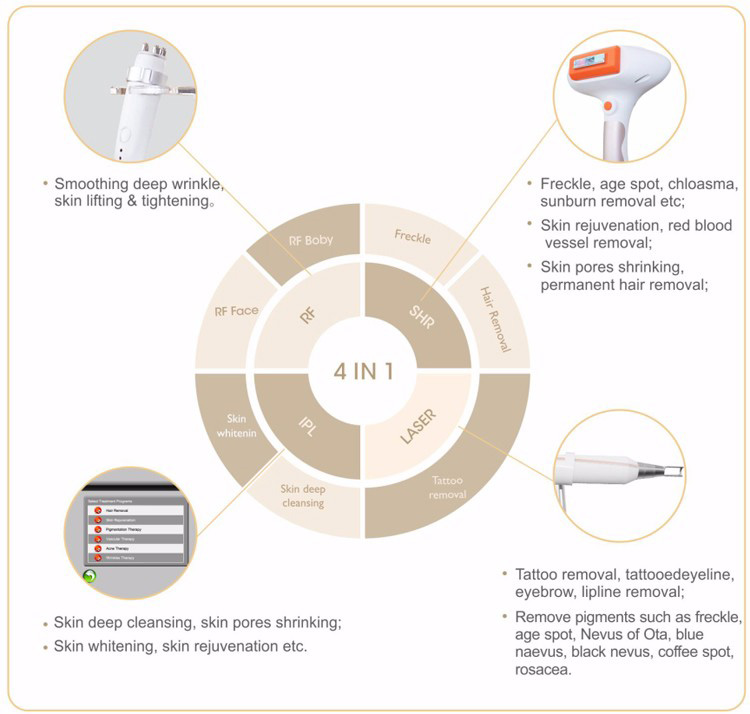

Treatment Scope
Fast and painless hair removal and facial treatment : Freckle, age pigment, acne removal, skin rejuvenation and improve skin conditions and to remove tiny vessel, to shrink pores and permanent hair removal.
Natural pigment: Nevus of Ota(birth mark) coffee spot,age pigment, freckle and so on.
Artificial pigment: Tattoo, eyebrow, eyeline and lip line removal.
Black dull: Using the laser carbon cream as a medium to explode the carbon by C tip and one can achieve the deep skin cleansing, skin whitening and pore shrinking and skin improvement.
Deep wrinkle removal,skin lifting and retrieve the smoothness of the skin.
