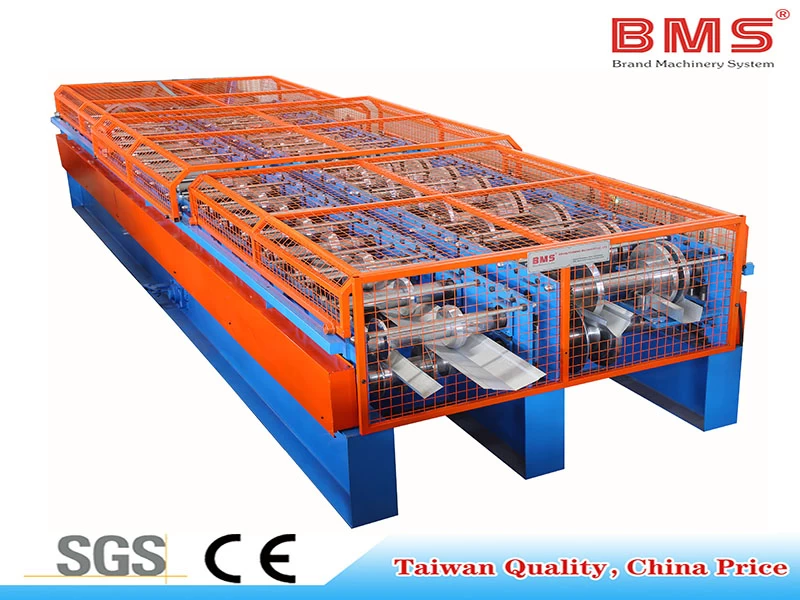

4 In 1 Ridge Cap Roll Forming Machine

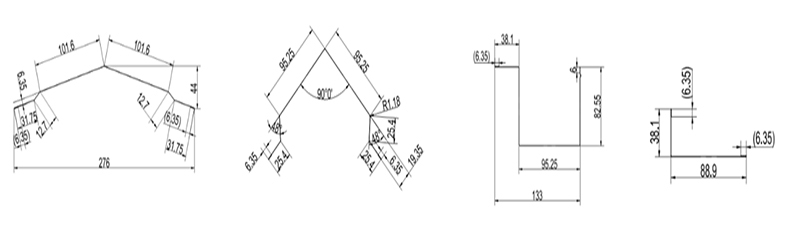

Profile
Material
Material Thickness:0.35mm
Applicable material:Galvanized Steel(GI)
With yield strength:550Mpa

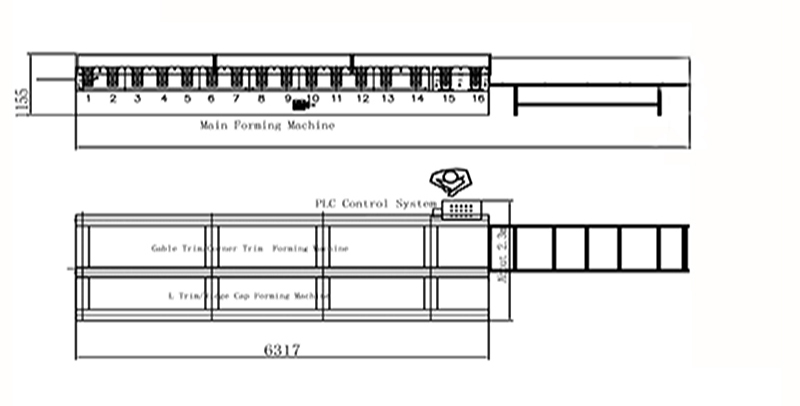

Work Follow
Feeding Guide Device→Main Forming Machine→Exit Rack
Machine Components
1) Feed Guide Device
The guiding position can be adjusted for suitable material feeding

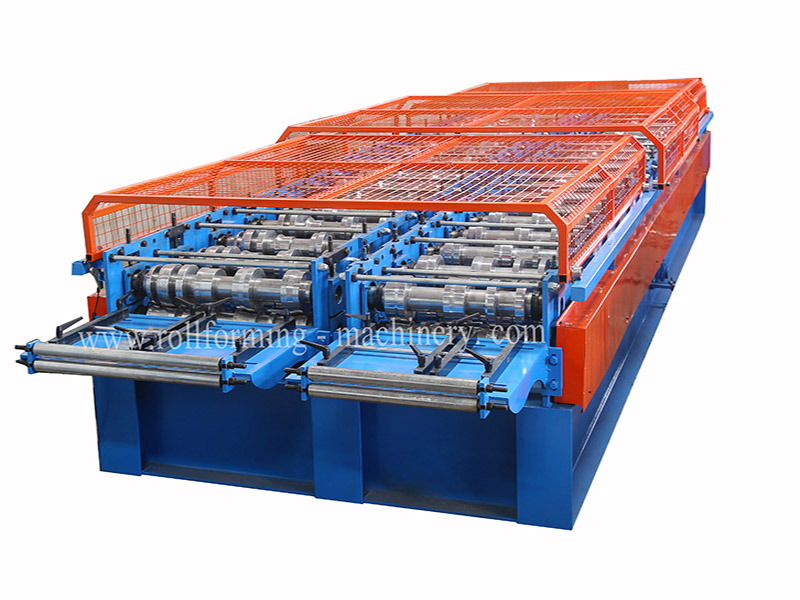

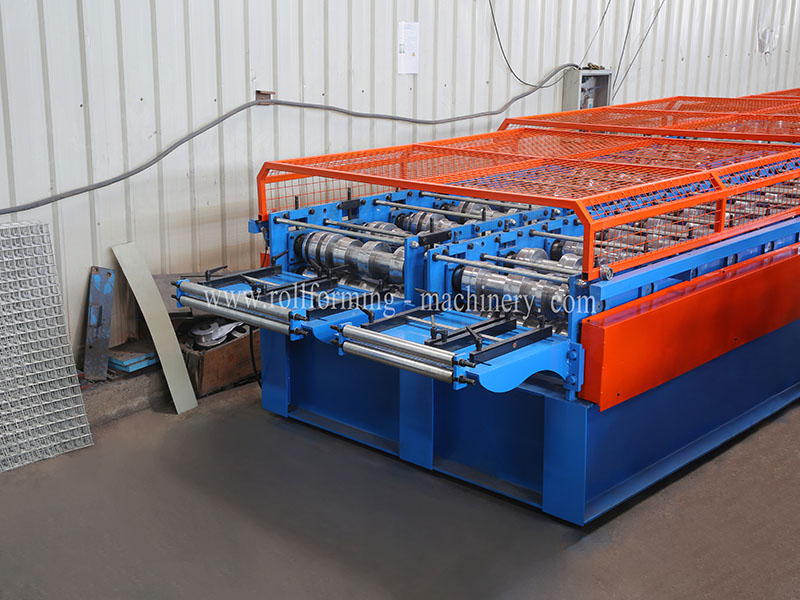

2) Main Machine
Body frame made from H450 type steel by welding
Side wall thickness: Q235 t18mm

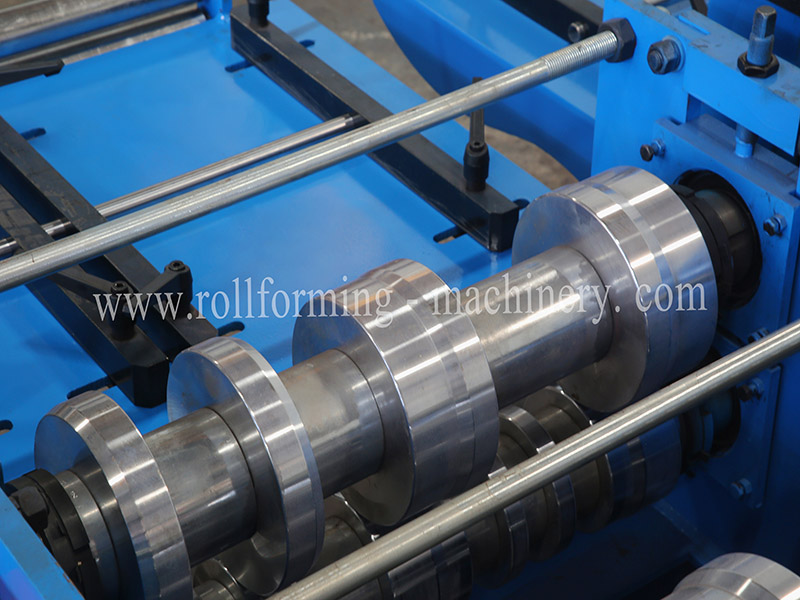

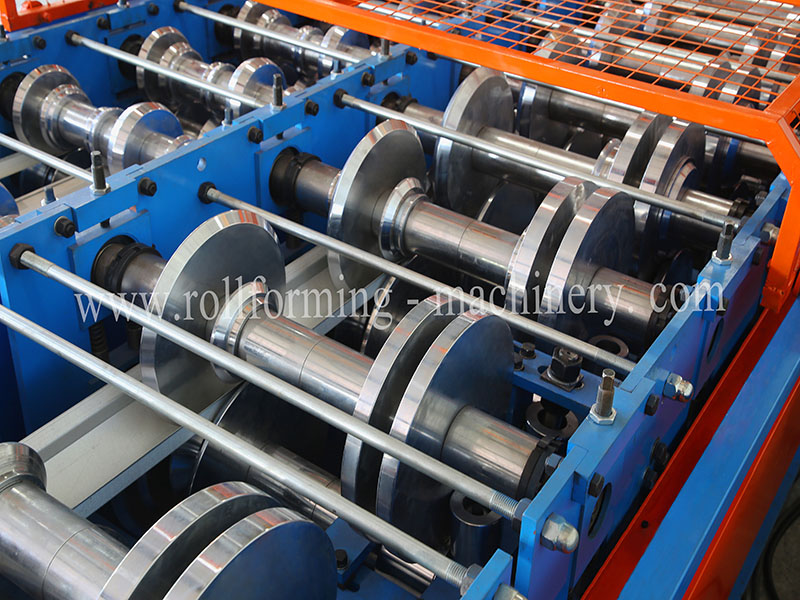

Rollers manufactured from 45# Steel,CNC lathes,Heat Treatment
Shafts Diameter=ф80mm,precision machined
Gear/Sprocket driving,about 16-step to form
Main Motor(Polaroid brand)=7.5KW,Frequency speed control
Real forming speed 20m/min
3)Exit Rack
Un-powered, Two units,with rollers on it for easy movement.

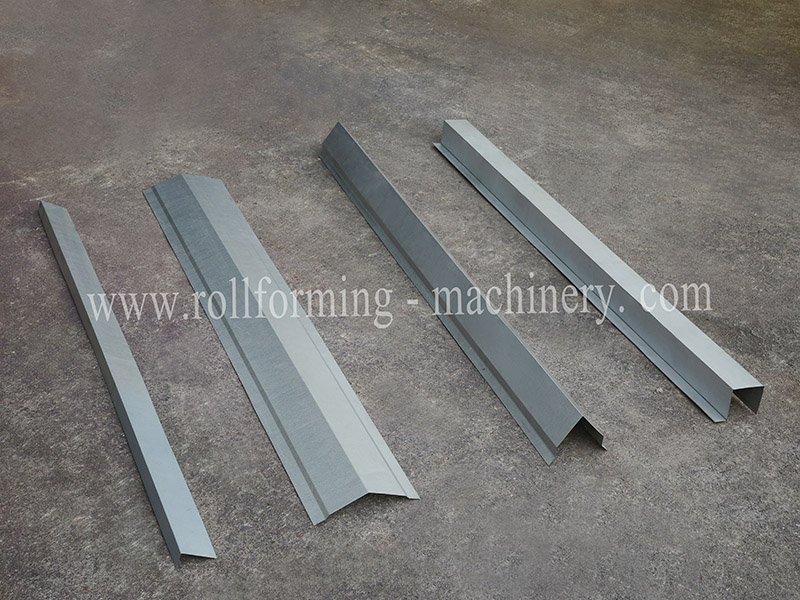

4)Product Show
After-Sale Service
1. The warranty is 24 months after the client receives the machine.
Within the 24 months, we will courier the replacement parts to the client free of charge.
2. We offer technical support for the entire life of our machines.
3. We can send our technicians to install and train the workers in the clients' factories with
extra cost.
Terms Of Trade
1.Minimum order quantity (MOQ): 1 Set
2.Delivery time: about 45 workdays
3.Port of loading: port of Xiamen
4.Type of payment: by T/T or by L/C
5.Export:to more than 50 countries and regions, including Taiwan, UK, France, Singapore,
Greece, Australia, USA, Mexico, Brazil, Chile, Bolivia, Trinidad, Israel, Saudi Arabia, etc
Packing Style
Packing method: Main body of machine is naked and covered by plastic film(to protect of dust and corrosion),loaded into container and steadily fixed in container suitable by steel rope and lock, suitable for long-distance transportation.
