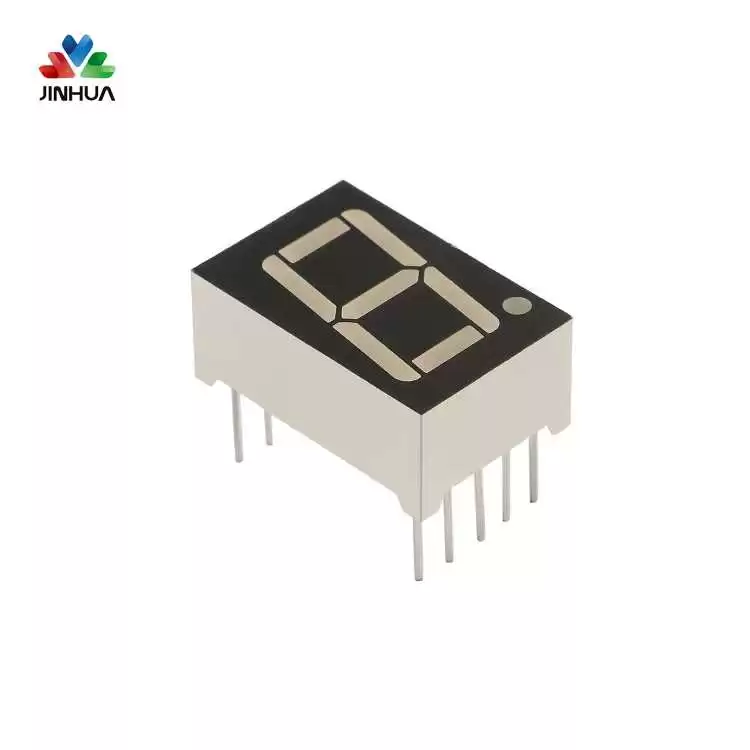

4 Inch Pins Common Cathode 7 Segment Display LED Module Custom

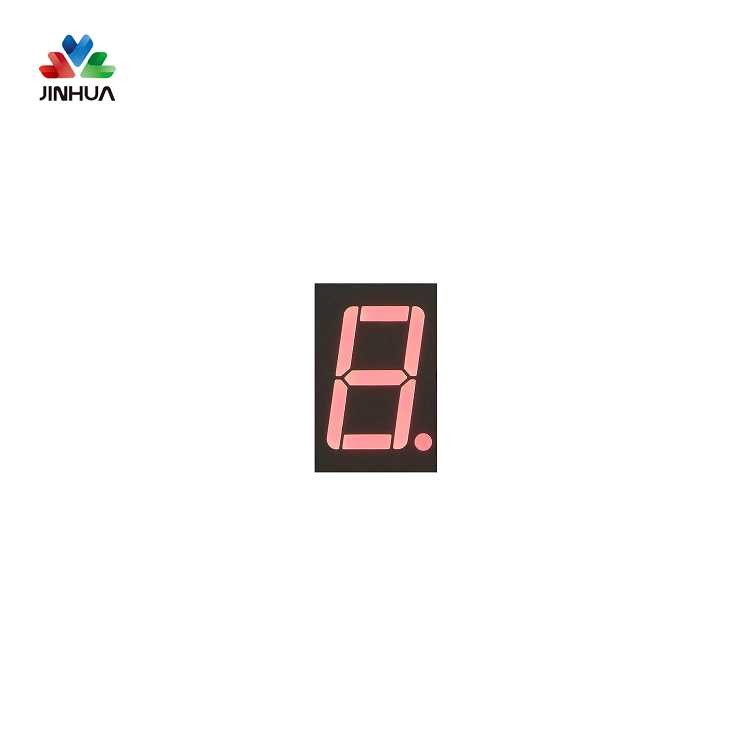

It is a 4 inch common cathode 7 segment display with black surface and white segment to display all kinds of number timely according to programm.

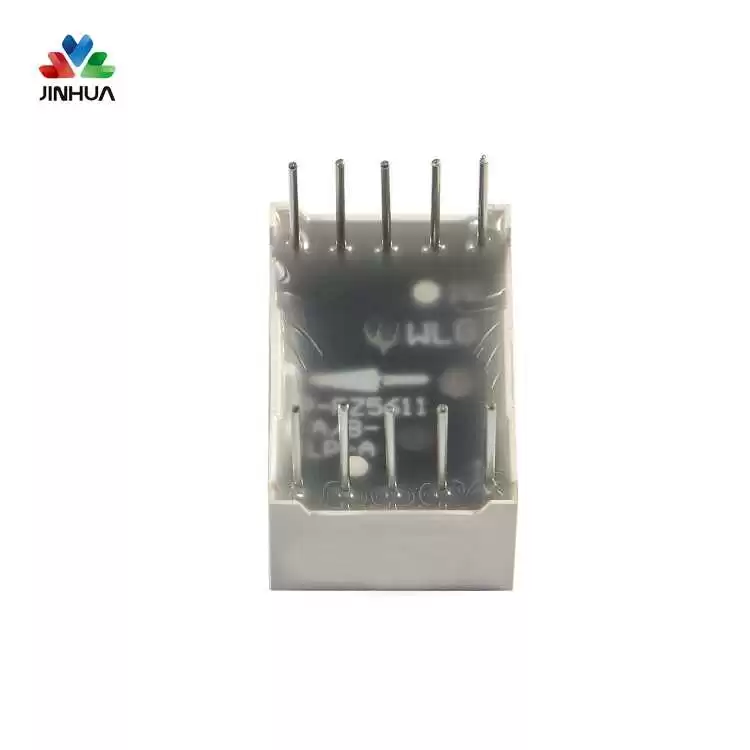

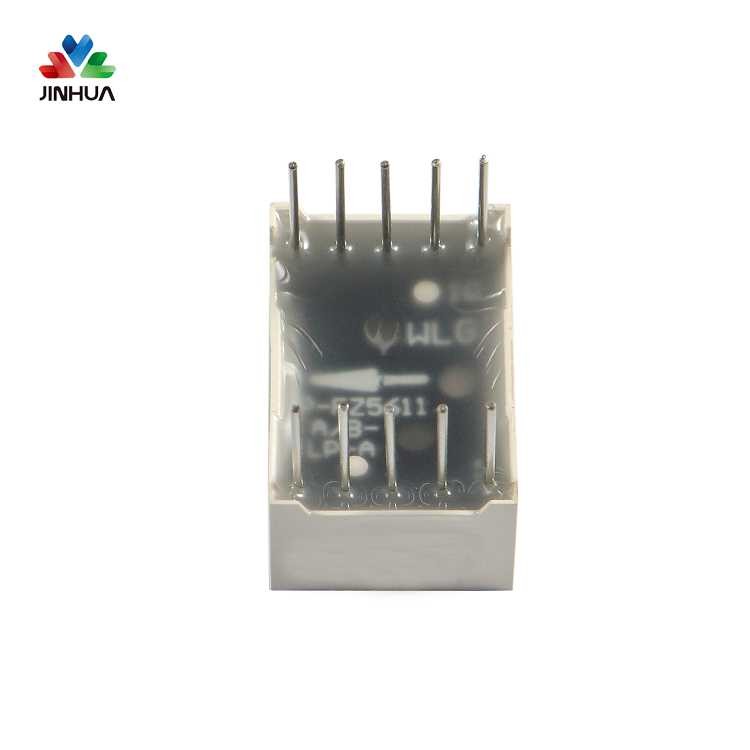

The display is connected with the display control board by metal pins. And each pin controls the digital signal of one segment or the dot.
Small Size Seven Segment LED
Product Parameters
| Digit height |
4 inch (0.28 inch ~ 4 inch available) |
| Dimensions |
122 x 90 x 15mm |
| Digit quantity |
1 Digit |
| Available Emitting Color |
Red/Yellow Green/Yellow/Amber/Blue/White/Pure Green |
| Surface Color |
Black/Gray (white epoxy) |
| Epoxy Colors |
Red, Milky, Blue, Green and more |
| Polarity |
Common Anode/Common Cathode |
| Connector |
Pin |
| Operating Temperature |
-20-80°C |
| Requirements On Environmental Protection |
ROHS HSF |

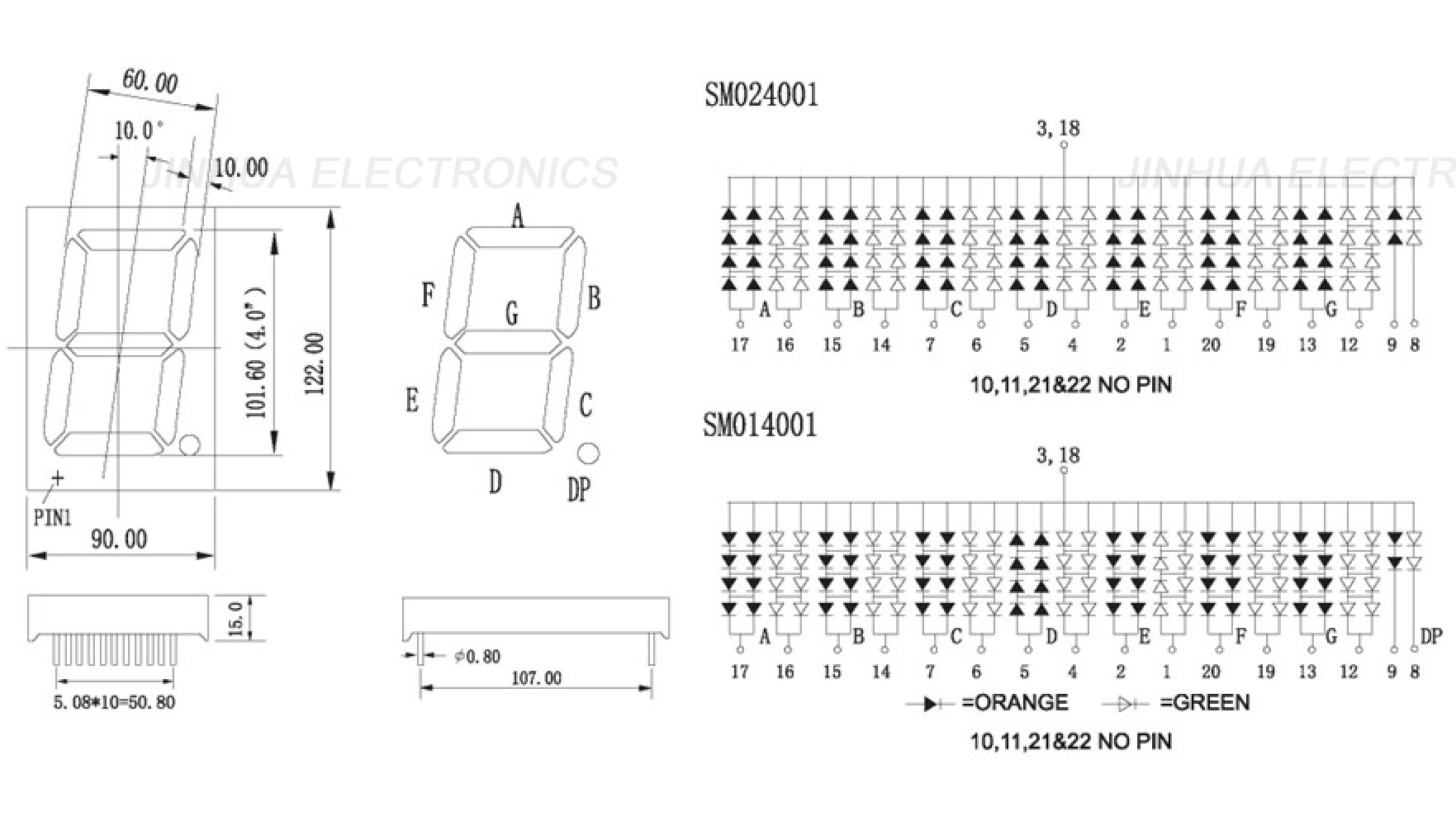

Detailed Picture
Features
Δ Wide Viewing Angle
Δ All Kinds Of Emitted Colors And Size
Δ I.C. Compatible
Δ Low Power Consumption
Δ Long Lifespan
Δ RoHS Compliant
Δ High Luminance
Δ Wide Range Working Temperature
Application
Production Line And Equipment
