Features
|
●Dual-motor gear driven design
● 127 mm (5”) inches per second print speed
● 300 meter (984’) ribbon supply on a
25.4 mm (1”) core (coated side out)

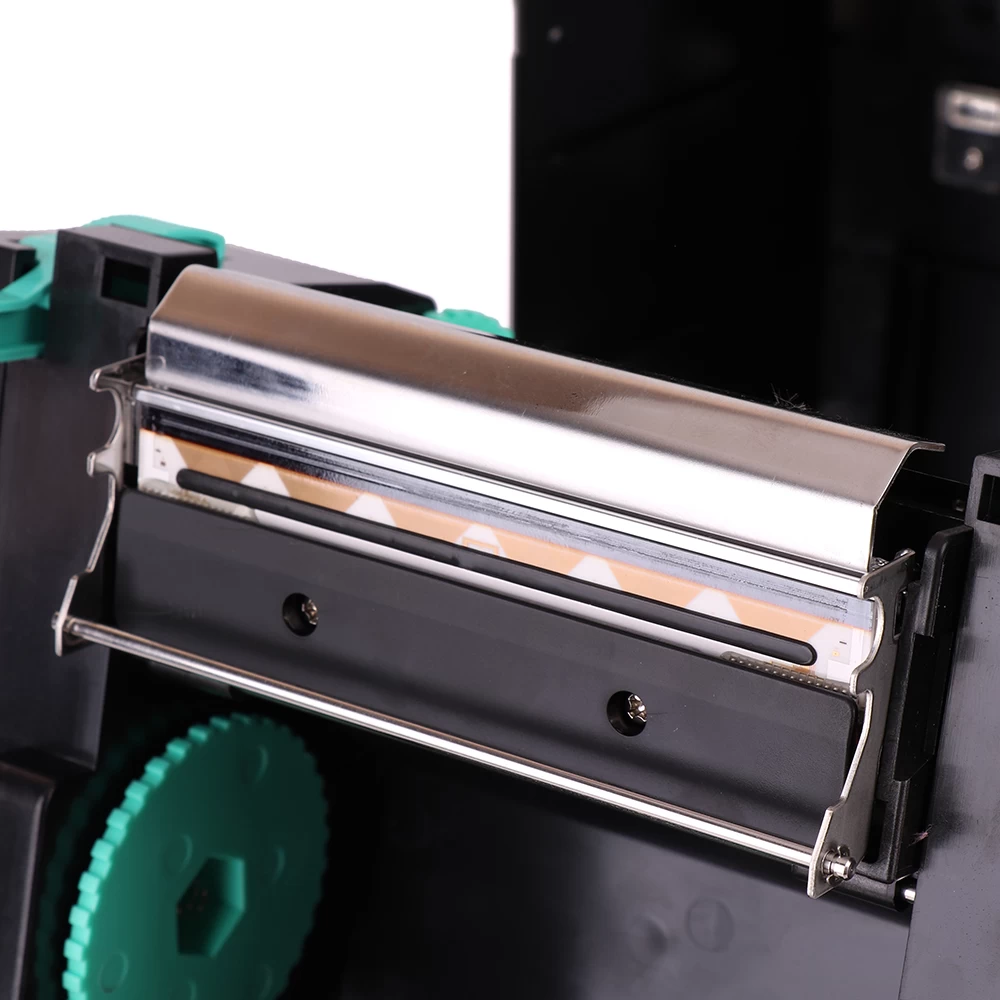

● Print mechanism for kiosk application
● 200 MHz 32-bit RISC processor with 8 MB SDRAM, 4 MB Flash memory
● TSPL-EZ™ firmware emulates TPLE and
TPLZ languages out of the box
● Free bundled labeling software and Windows drivers
|
|
Performance Parameter
|
|
Specifications
|
|
Printer model
|
203DPI
|
300 DPI
|
|
Resolution
|
8 dots/mm(203DPI)
|
12 dots/mm(300 DPI)
|
|
Printing method
|
Thermal Transfer / Direct Thermal
|
|
Max.print speed(Max.)
|
127 mm (5”) / s
|
101.6 mm (4”) / s
|
|
Max.print width(Max.)
|
108 mm (4.25”)
|
104 mm (4.09”)
|
|
Max.print length(Max.)
|
2794 mm (110”)
|
1016 mm (40”)
|
|
Media type
|
Continuous, gap, black mark, fan-fold and punched hole
|
|
Media width
|
25.4-118mm (1.0”-4.6”)
|
|
Media thickness
|
0.06~0.254 mm (2.36~10mil)
|
|
Label length
|
10 ~ 2,794 mm (0.39” ~ 110“)
|
10 ~ 1,016 mm (0.39” ~ 40“)
|
|
Label roll capacity
|
127 mm (5”) external diameter
|
|
Ribbon & Ribbon width
|
300m，Max roll diameter 67mm，Core Diameter: 1” , 40mm-110mm (1”-4.3”)
|
|
Weight
|
3.1kg
|
|
Dimension
|
302.5 mm (D) x 234 mm (W) x 194.8 mm (H)
|
|
Processor
|
32-bit RISC CPU
|
|
Memory
|
4MB Flash Memory, 8MB SDRAM, SD card reader for
Flash memory expansion, up to 4 GB
|
|
Interface
|
USB 2.0
|
|
Internal fonts
|
8 alpha-numeric bitmap fonts, Windows fonts are
downloadable from software.
|
|
Barcode
|
1D bar code：Code 39, Code 93,
Code 128UCC, Code 128 subsets A, B, C,
Codabar, Interleaved 2 of 5, EAN-8,EAN-13,
|
|
EAN-128, UPC-A, UPC-E, EAN and UPC 2(5) digits add-on, MSI, PLESSEY, POSTNET, China POST
|
|
2D bar code：PDF-417, Maxicode, DataMatrix, QR code
|
|
Font and barcode rotation
|
0°、90°、180°、270°
|
|
Environment condition
|
Operation: 5 ~ 40°C, 25 ~ 85% non-condensing, Storage: -40 ~ 60°C, 10 ~ 90% non-condensing
|
