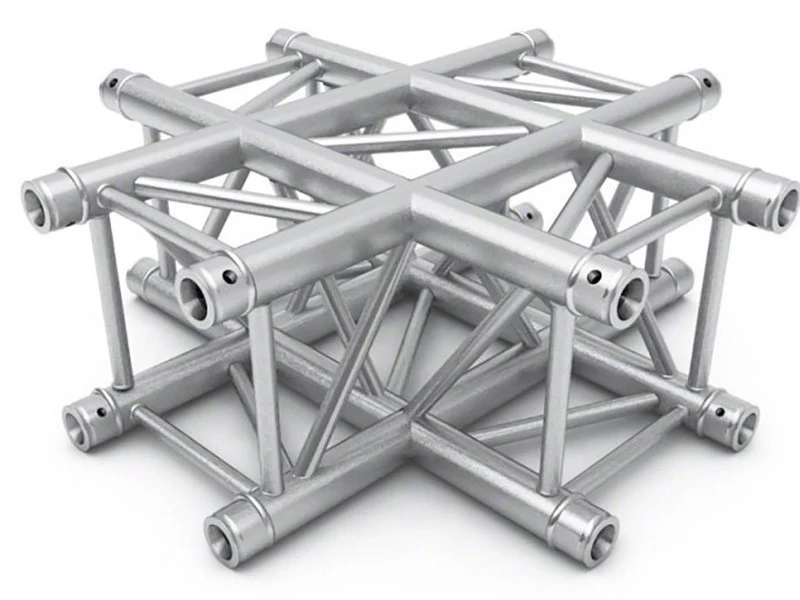

4 Way Square truss Corner Completely Cross 90 degrees

4 Way Square Truss Corner is complete " Cross" in the middle, and it is widely used in to connect the Beams for Roof Trusses Setup.



4 Way Square truss Corner Completely Cross:

The 4 Way Square Truss Corner is one of the Standard Truss Corners for the ITSC-CS29.  With standard 90 Degrees, tt offers optimum flexibility  to complete your special truss structures requirements. Its Curved Angle offers your architecture featurs for truss displays.

Features:

  1. Light weight and quick to install
  2. Modular and fotproof assembly
  3. Powder coating or anodizing to be any color on request
  4. Special design for architecture structure

Specification:

Material Aluminum Alloy 6061-T 6 / 6082-T 6
Types Square Truss corner
Main tubes 50 x 3 mm
Braces 25 x 2 mm
Connection type Conical couple system
Dimensions 290 x 500 x 500mm
Selfweight 8.7kg
Transporation  volume 0.08m3
