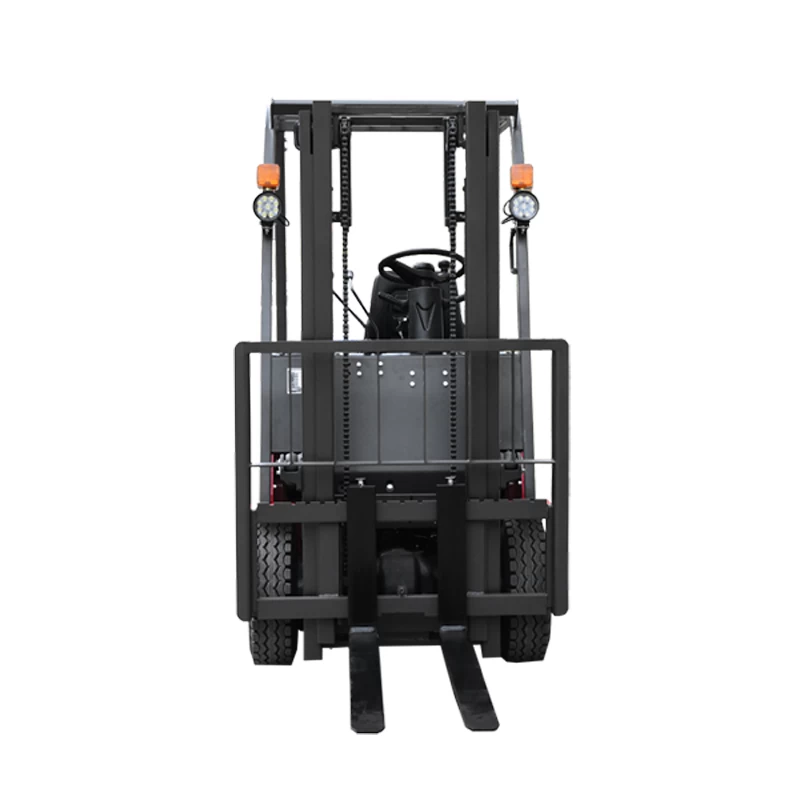

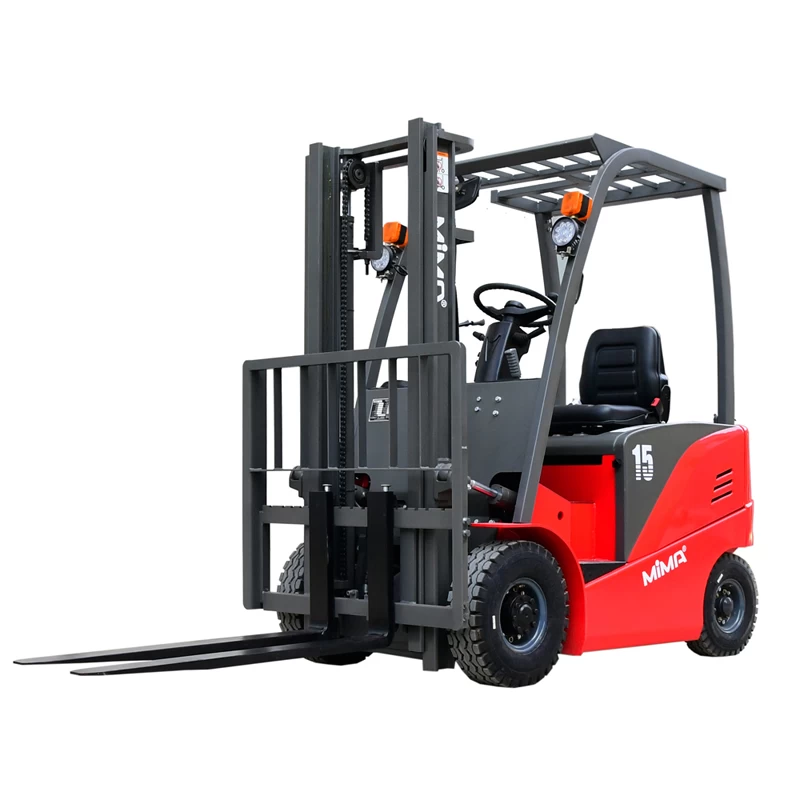

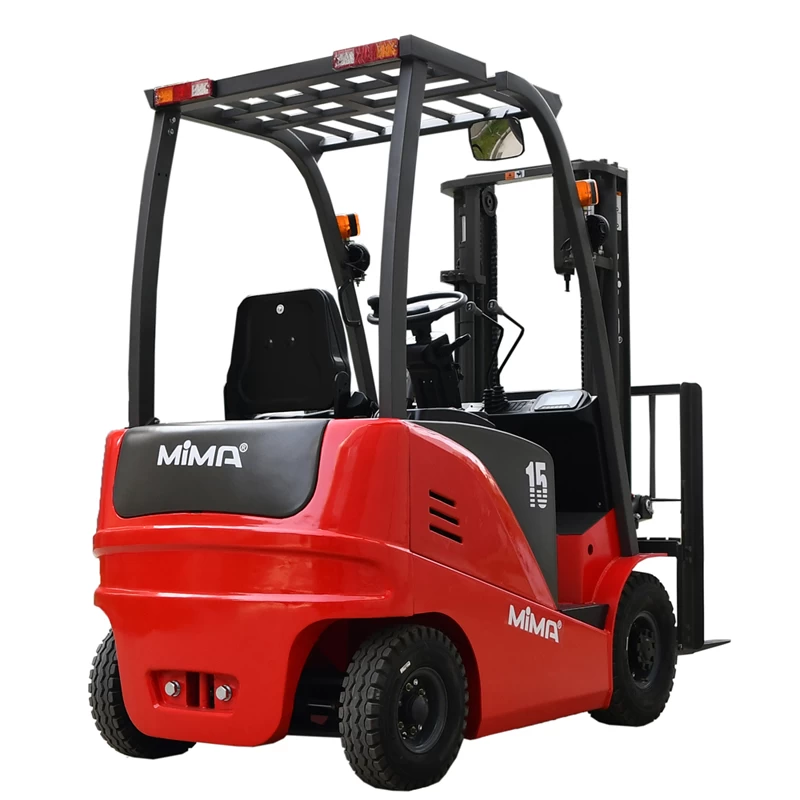

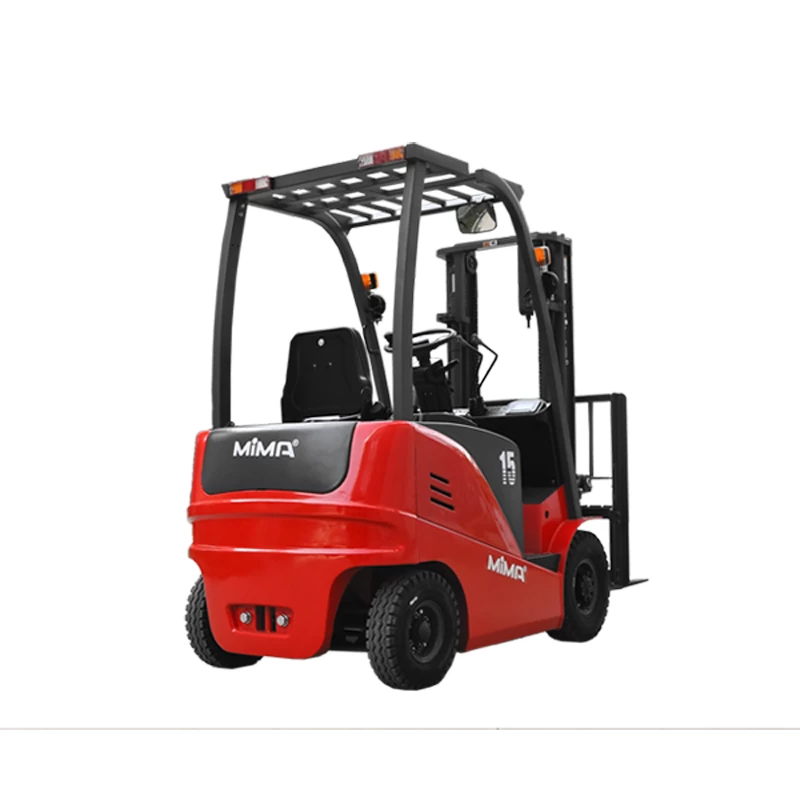

Counterbalance 1.5-3.0 ton Electric Forklift
Main Features:
1.1.5 ton electric forklift use Advanced Curtis controller, more stable and safer.
2.Maintenance-free AC drive system makes the vehicle react more quickly and accurately. It is equipped with a full AC system.
3.Wide-view gantry design to improve work efficiency.
4.The whole vehicle layout is more reasonable, with low center of gravity, small size and low self-weight.
Specification:
|
Brand
|
|
MiMA
|
MiMA
|
MiMA
|
MiMA
|
|
Model
|
|
MK15
|
MK20
|
MK25
|
MK30
|
|
Power Type
|
|
Battery
|
Battery
|
Battery
|
Battery
|
|
Operation Type
|
|
Seated
|
Seated
|
Seated
|
Seated
|
|
Service weight(incl. battery)
|
kg
|
2900
|
3380
|
3820
|
4370
|
|
Rated Capacity
|
Q(kg)
|
1500
|
2000
|
2500
|
3000
|
|
Load Center
|
C(mm)
|
500
|
500
|
500
|
500
|
|
Lifting height
|
h3(mm)
|
3000
|
3000
|
3000
|
3000
|
|
Forks size
|
l/e/s(mm)
|
1070/100/35
|
1070/100/40
|
1070/100/45
|
1070/125/45
|
|
Front Overhang
|
x(mm)
|
380
|
420
|
425
|
433
|
|
Turning radius
|
Wa(mm)
|
2000
|
2100
|
2100
|
2300
|
|
Max. climbing ability
|
%(tanθ )
|
14/15
|
14/15
|
14/15
|
14/15
|
|
Driving speed(load/unload)
|
km/h
|
10/12
|
10/12
|
10/12
|
10/12
|
|
Lifting speed(load/unload)
|
mm/s
|
300/480
|
230/400
|
230/440
|
200/340
|
|
Lowering speed(load/unload)
|
mm/s
|
380/360
|
420/480
|
360/480
|
300/460
|
Products Features:
Safety
● Three sets of brake systems provide safety protection for the forklift and operator regardless of whether the forklift is in operation or not.
● Ramp auxiliary brake system. When the forklift starts on the ramp, the system immediately applies a reverse force to the tire to prevent the forklift from moving backwards.
● The battery sinking design performs excellent stability and more load capacity with .
Energy saving
●Applications of LED headlights/warning lights, low-resistance tires, steering automatic dormancy, and electronically controlled automatic temperature control systems make the forklift endurance strong.
Comfortable
● When the gantry is lowered to the bottom, the buffer technology greatly reduces the impact of the mast and reduces the damage of the cargo. Combined with the vehicle noise reduction technology, the operator works easily and comfortably.
● The ergonomic design of the wide legroom provides the operator with a comfortable, safe and efficient operating environment.
Company Exhibition:
MiMA can offer you electric pallet truck, pallet stacker, counterbalance stacker,reach truck, stand-on reach truck, seated reach truck, reach stacker, electric counterbalance forklift truck, counter balance forklift, tow tractor, order picker, narrow aisle forklift, 4-direction reach truck, 3-way pallet stacker(VNA), multi-direction forklift, special forklift, AGV and other customized types for options, which can provide our customers with logistics handling solutions from 500kg to 100,000kg. Due to product serialization and standardization, all MiMA products are widely used in medicine, food, chemical, household electrical appliances, wool cotton textile, tobacco, electronics, machinery, furniture and many other industries.
Certification:
Our electric forklift trucks are a quiet, environmentally friendly way to move a variety of unit loads, including pallets, pallet cases and racks, giving you comprehensive options for any application. electric forklift truck is perfect for any material handling operation, from moving loads in and out of racks, to moving loads on the ground around a yard.
FAQ:
Q1: Are you electric forklift factory?
A1: Yes, we are the professional manufacturer of electric forklift for more than 20 years.
Q2: How about the delivery time?
A2: About 20-30 days based on different model. For some standard products, we may have stock and could delivery immediately.
Q3: Is customized solution available?
A3: Yes, we can provide different customized solution.
Q4: Can you provide OEM service?
A4: Yes.
