40,000 Litre Fuel Tank Trailer
PT9402GYY fuel tanker semi trailer manufactured from carbon steel Q235, is available with standard tank volume of 40m3 and wheelbase of 5800mm+1310mm+1310mm. Stainless steel or aluminum alloy semi trailers can be made for your choice as well. The liquid tanker semi trailer applies 3 FUWA13T axles, JOST90mm or 50mm towing pin. As required, we can mount bottom valve, bottom loading system, or other additional configurations to the fuel tanker semi trailer. Applicable chemical liquids include oil products, ethyl alcohol, and so on.
Basic drawing of 40,000L Fuel Tank Trailer:
Parameters
|
Overall Dimensions
|
Total length (mm)
|
11000
|
Mass Parameters
|
Max. total mass (Kg)
|
40000
|
|
|
Total width (mm)
|
2500
|
|
|
Total height (mm)
|
3650
|
Rated load (Kg)
|
29000
|
|
|
Wheelbase (mm)
|
5800+1310+1310
|
|
|
Kerb Mass (Kg)
|
11000
|
|
|
Tread (mm)
|
1830
|
|
|
Ground clearance of towing
pin bottom plate (mm)
|
1250
|
|
|
Through-put Capacity
|
Front turning radius (mm)
|
1400
|
Rear overhang (mm)
|
1520
|
|
|
Clearance radius
|
2300
|
Angle of departure (º)
|
24
|
|
|
Min. turning diameter(m)
|
22
|
Min. ground clearance (mm)
|
360
|
|
|
Main Configuration
Parameters
|
Item
|
Standard configuration
|
Optional
|
|
|

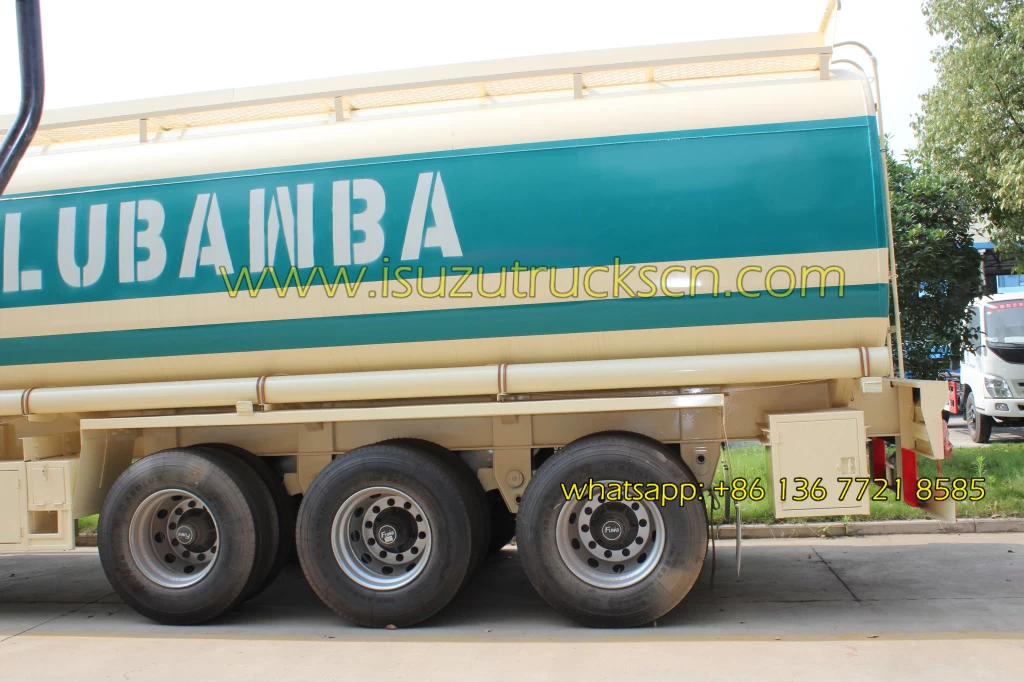

Axle
|
FUWA 13T, 3 sets
|
FUWA 16T
|
|
|
Towing pin
|
JOST 90#
|
50#
|
|
|

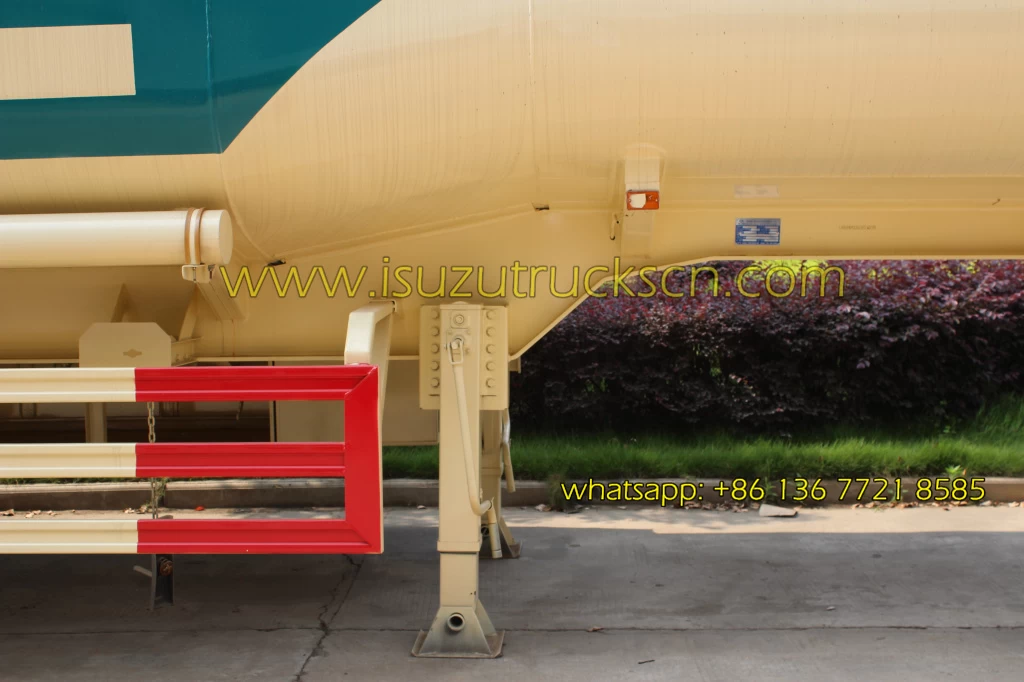

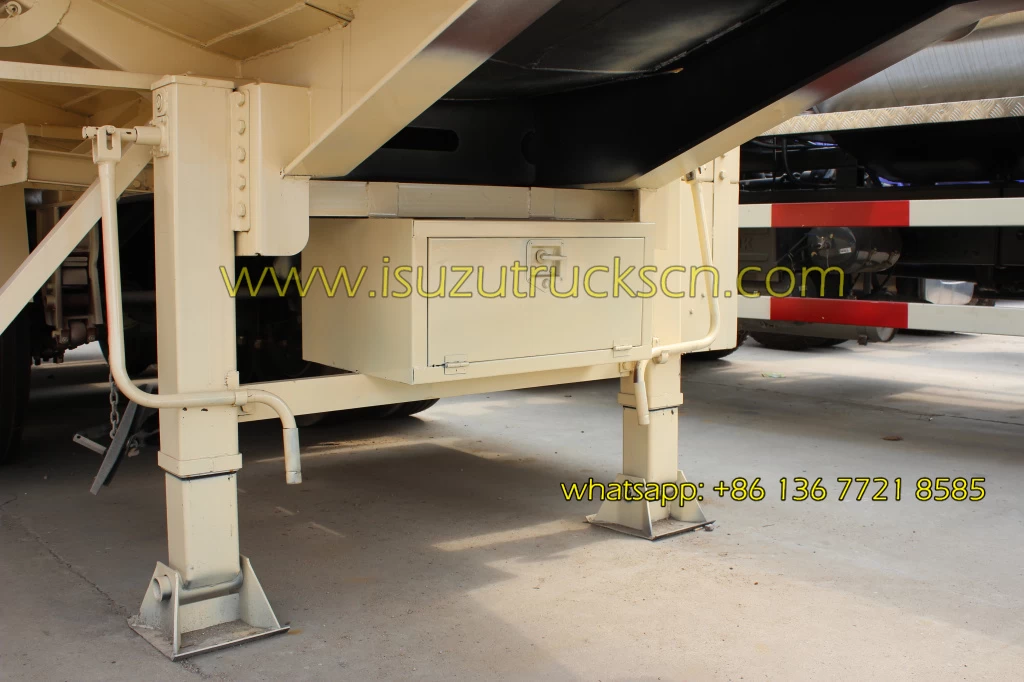

Support leg
|
FUWA brand, linkage legs
|
JOST
|
|
|
Suspension
|
Baohua brand triple
suspension
|
|
|
|
Leaf spring
|
7pcs
|
8, 10pcs
|
|
|

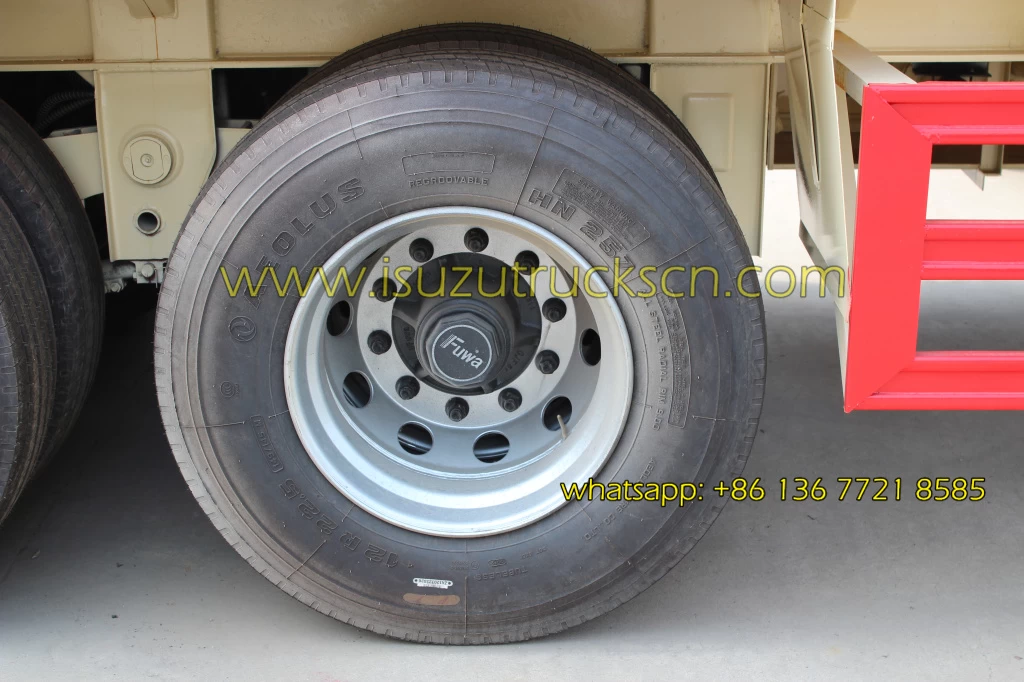

Rim
|
Zhengxing (Fujian) brand
Wheel rim: 8.00-20
|
|
|
|
Tyre
|
Double Coin 11.00R20 tyre,
12+1 sets
|
11.00-20
|
|
|
Brake system
|
Dual circuit air brake,
service brake, parking brake, emergency brake (air-cut brake)
|
|
|
|
Electric system
|
24V, minus earth (connect
with tractor)
|
|
|
|
ABS
|
Homemade brand 4S/2M
|
Xi'anzhengchang,Hande
|
|
|
Tank Body Parameters
|
Item
|
Standard configuration
|
Optional
|
|
|
Volume (m3)
|
40
|
|
|
|
Size (mm)
|
10600×2496×1810
|
|
|
|
Tank materials
|
Carbon steel Q235
|
Stainless steel 304
|
|
|
Discharge ball valve
|
Aluminum alloy DN80
|
Stainless steel DN80, DN100
|
|
|
Bottom valve
|
None
|
Stainless steel or aluminum
alloy, DN100
|
|
|
Manhole
|
Amount: 2 sets; Material:
carbon steel; Diameter: Φ500
|
Stainless steel, aluminum
alloy
|
|
|

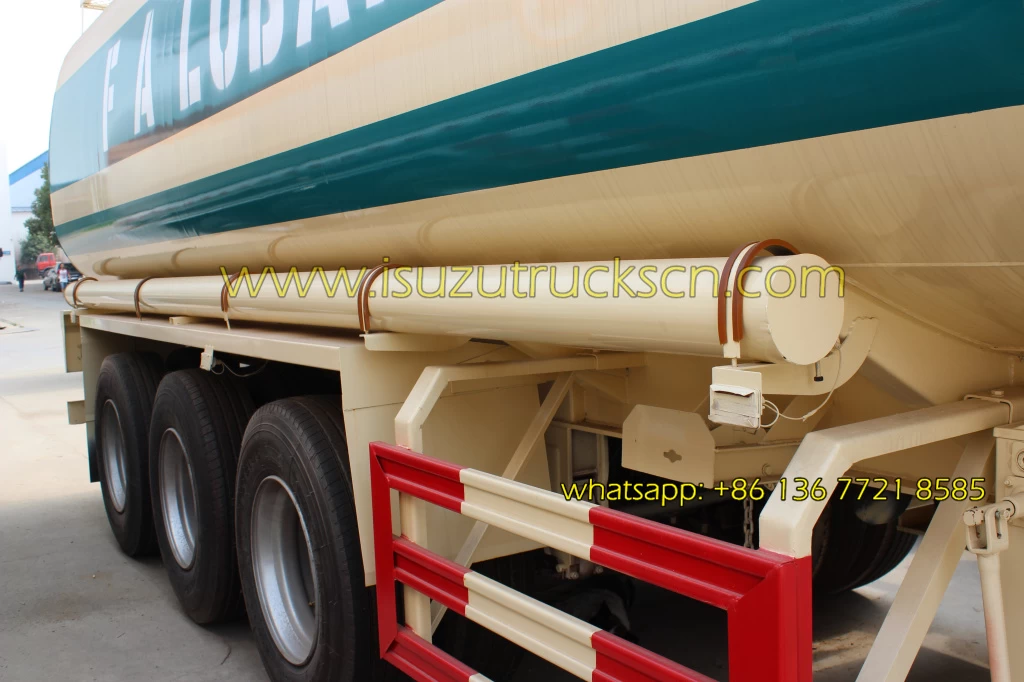

Discharge rubber hose
|
Amount: 2 sets; Length:
4m;ball valve accord with drift diameter
|
|
|

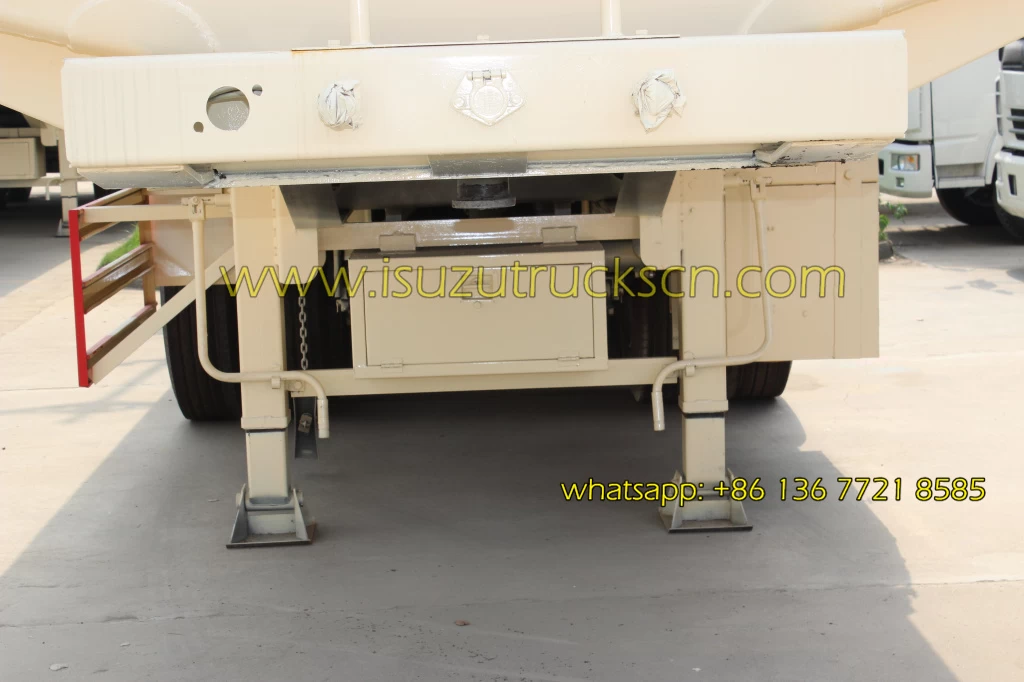

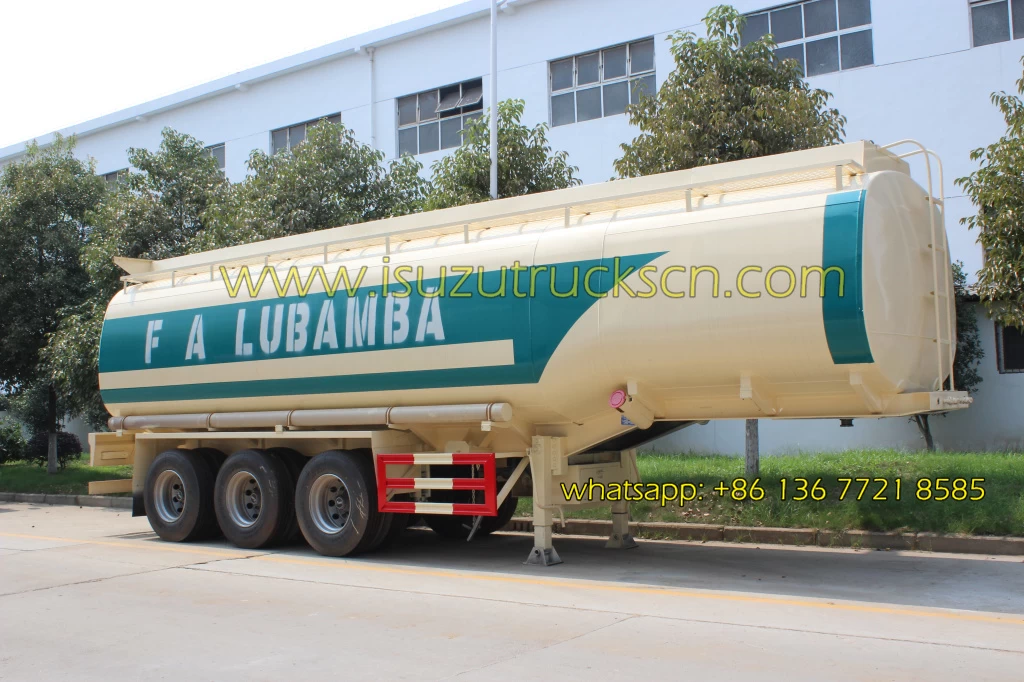

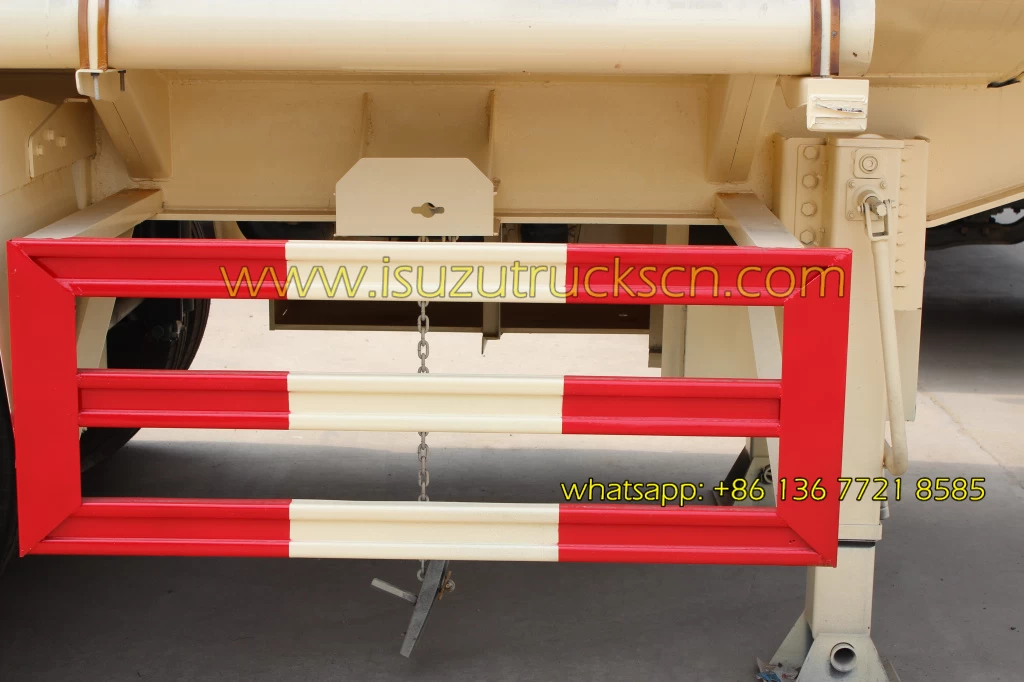

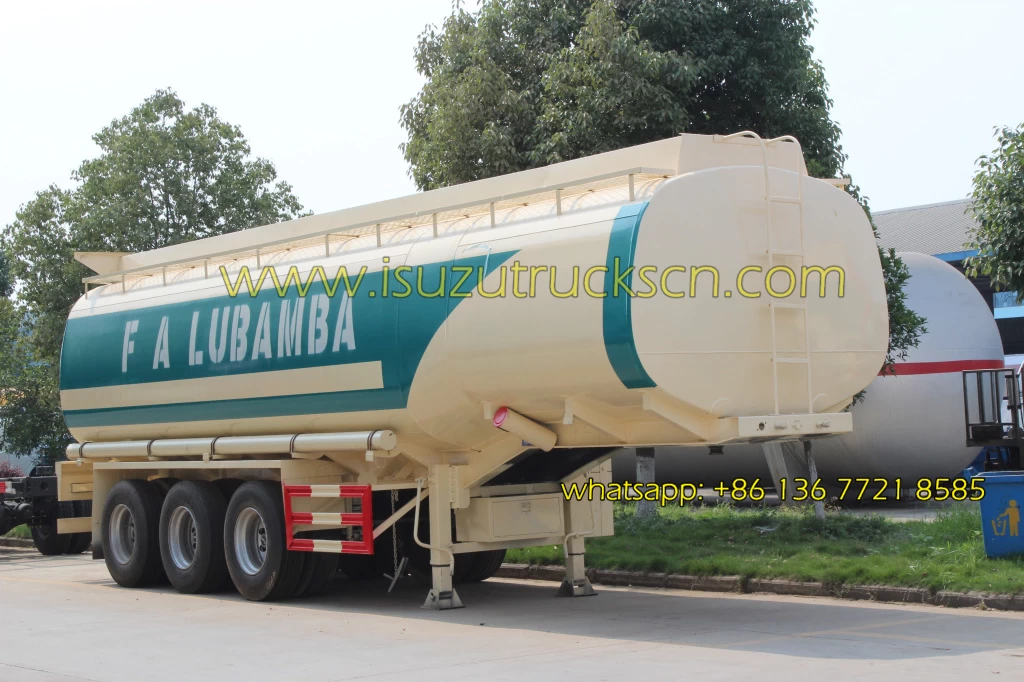

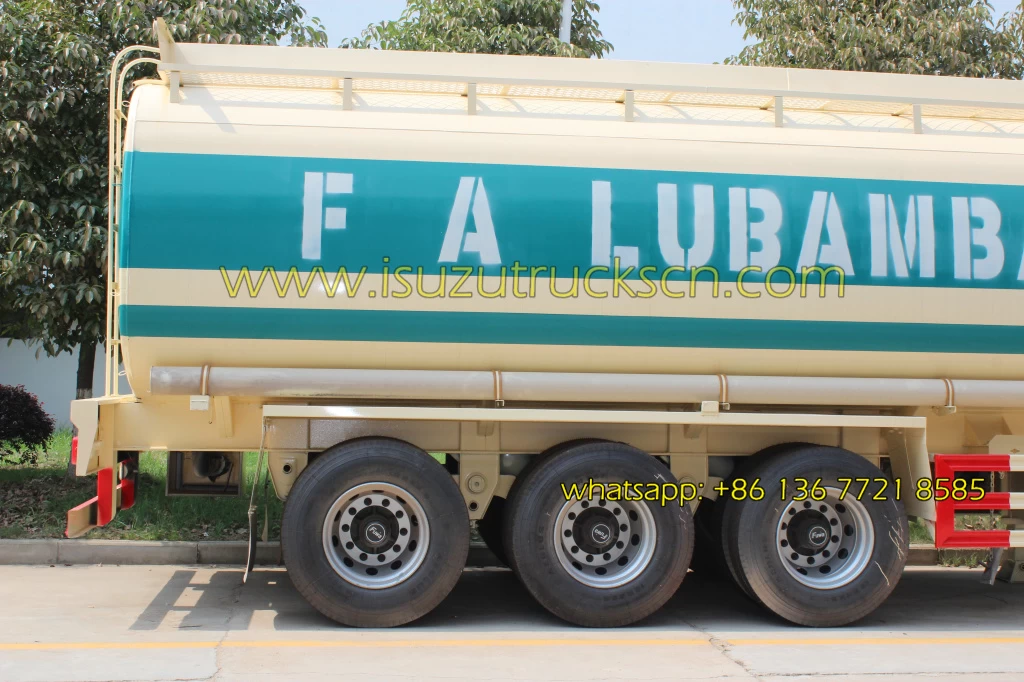

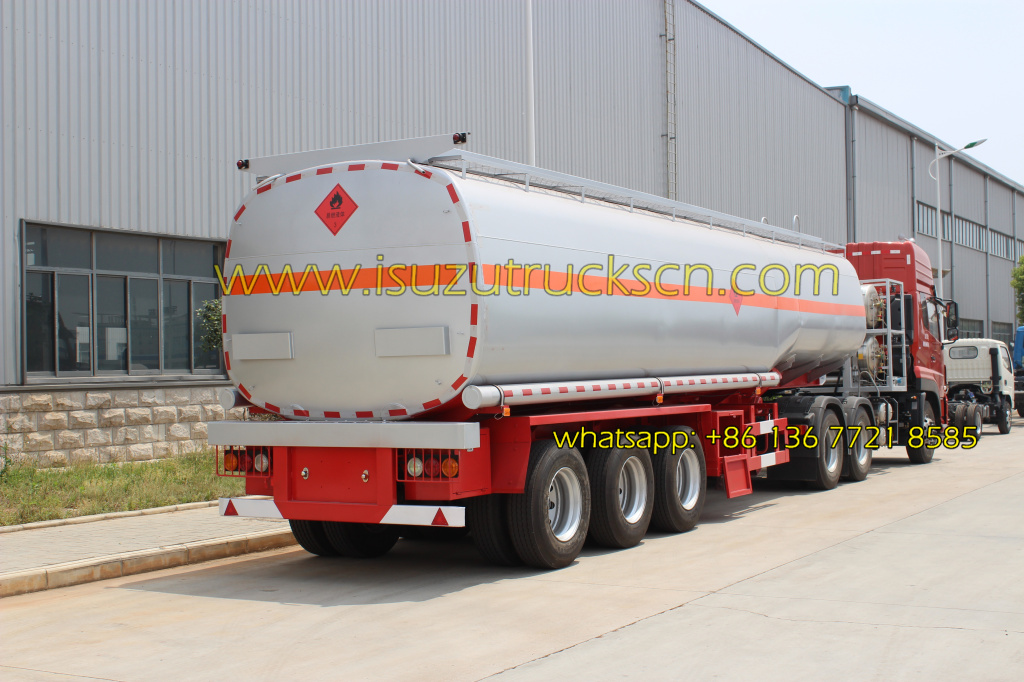

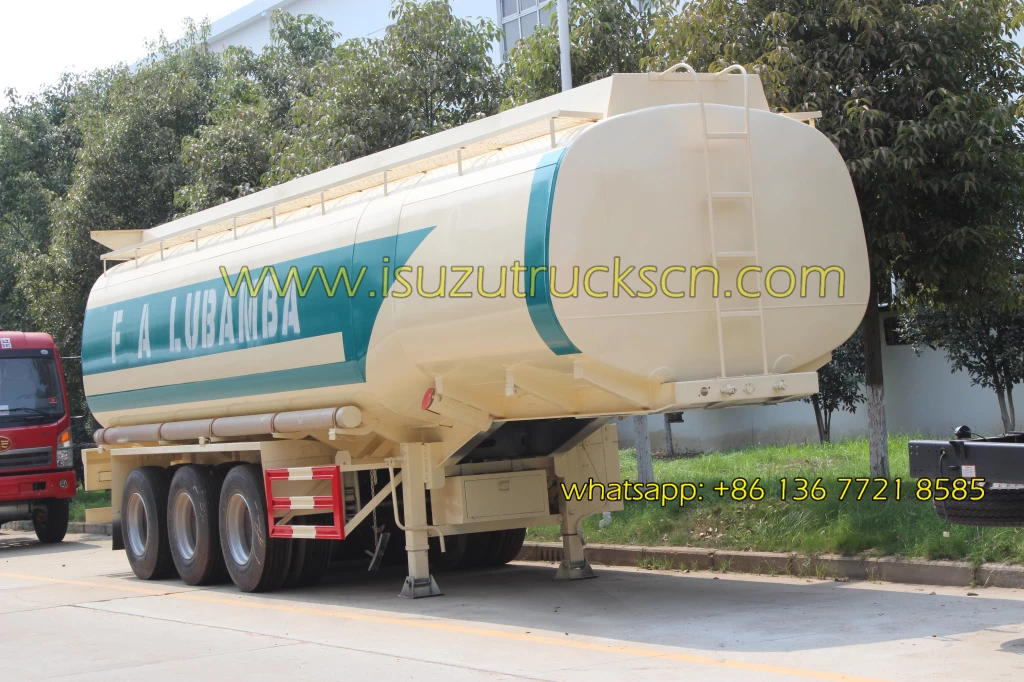

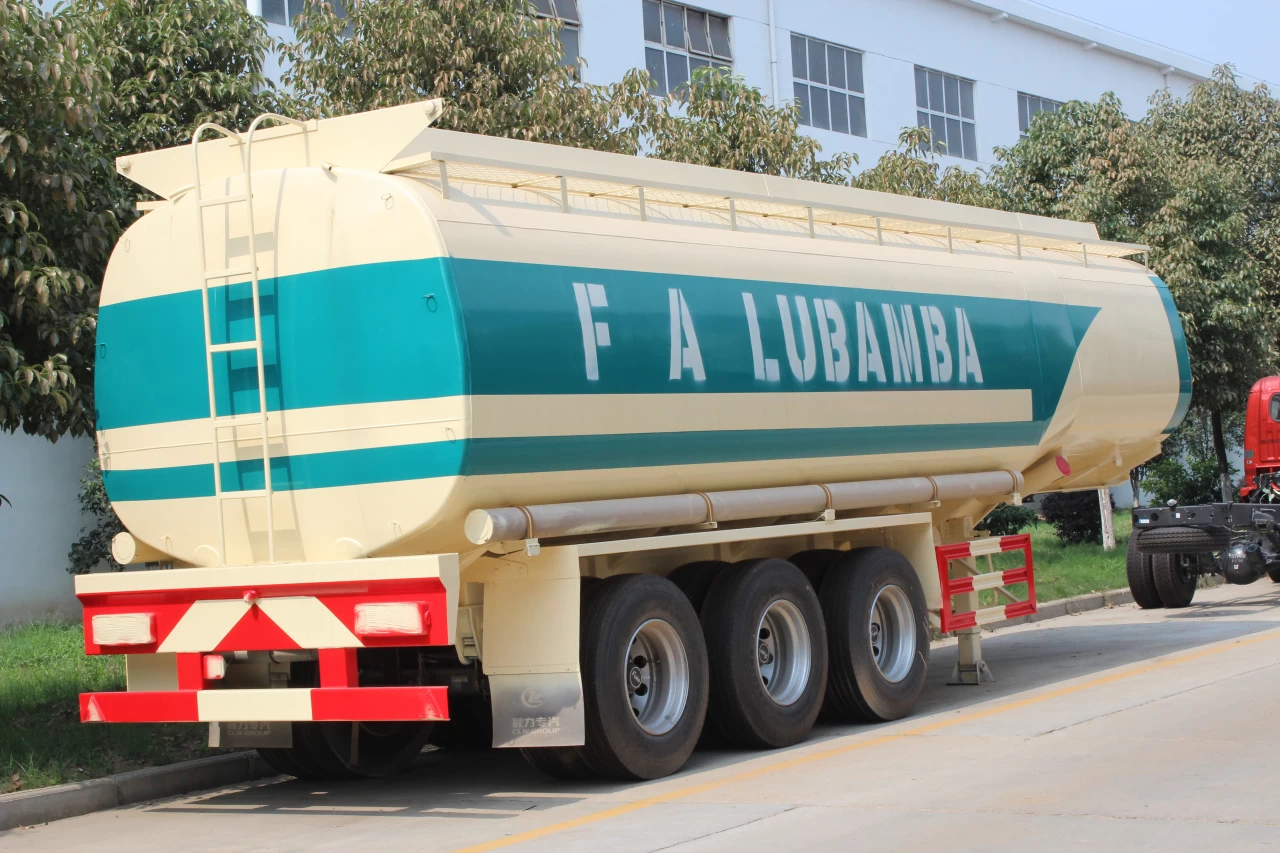

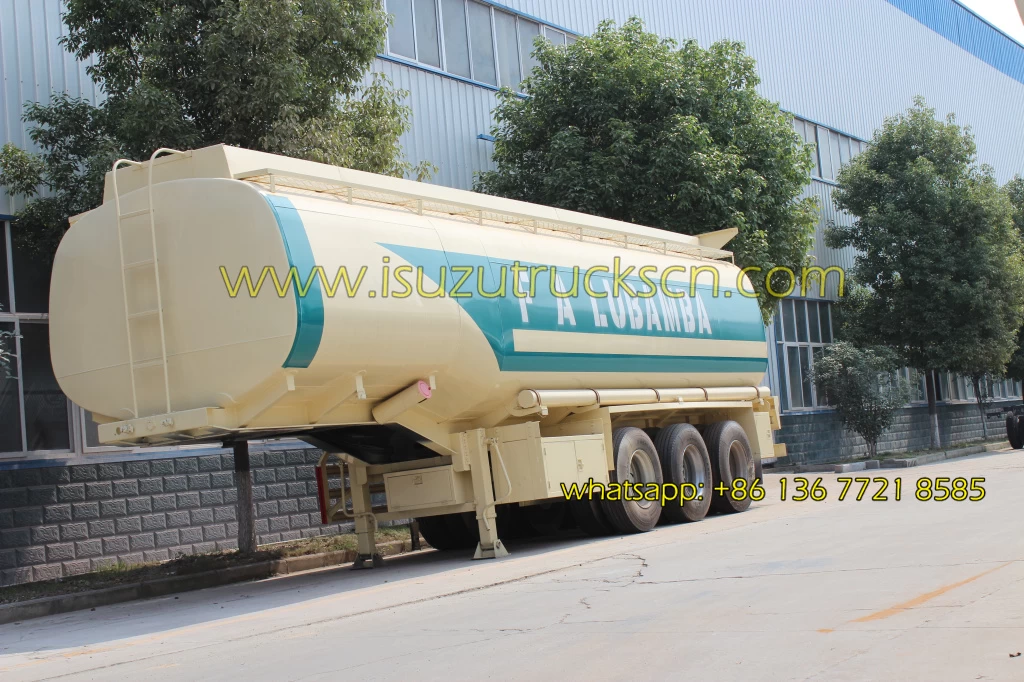

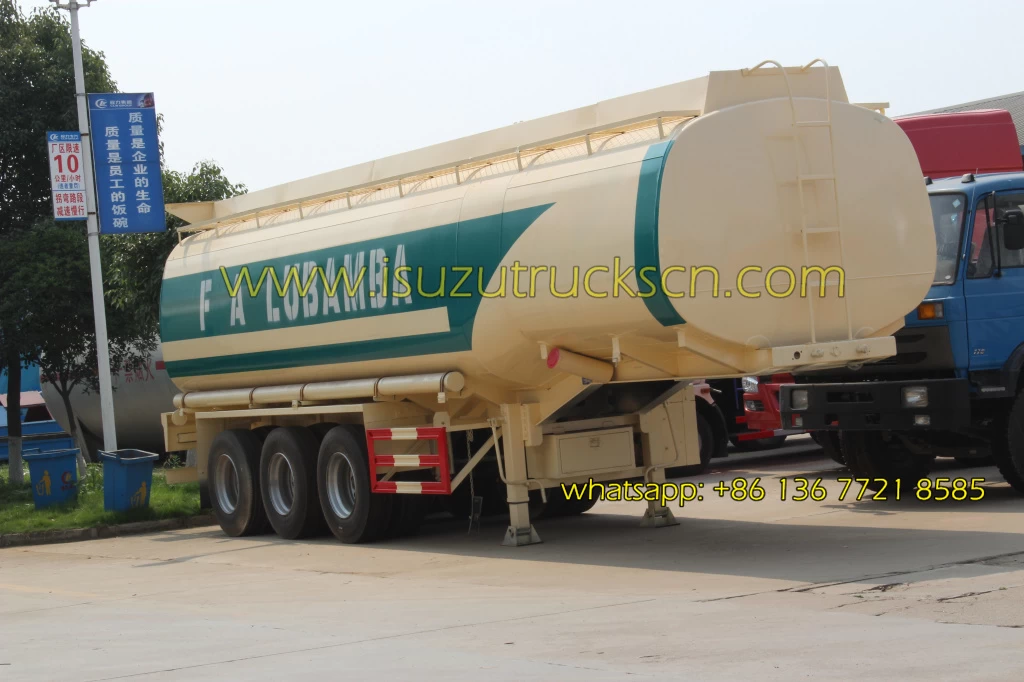

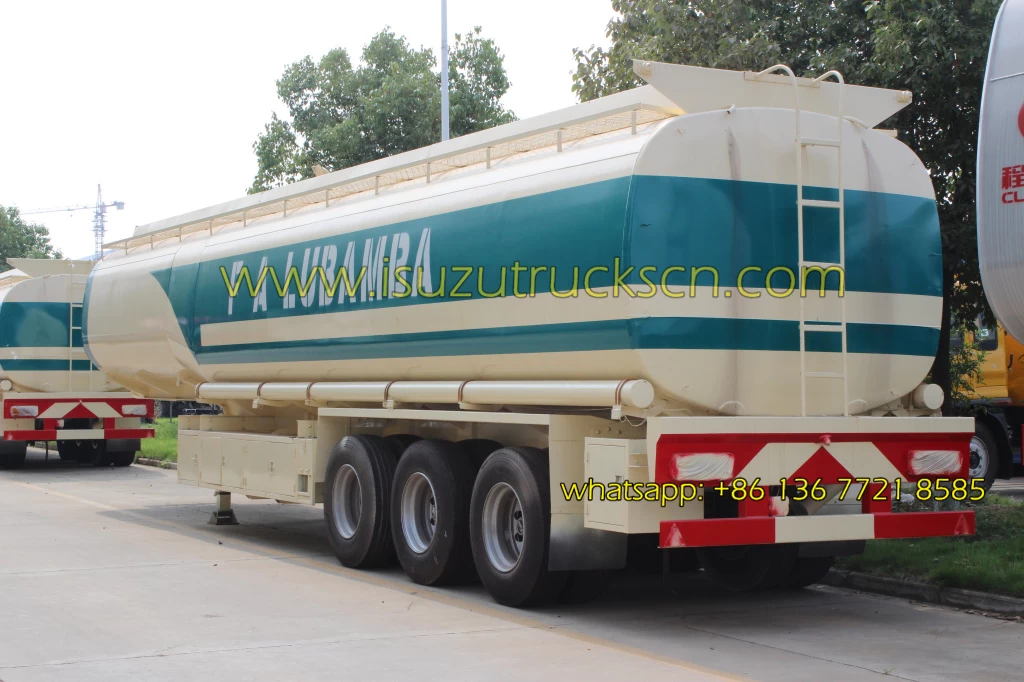

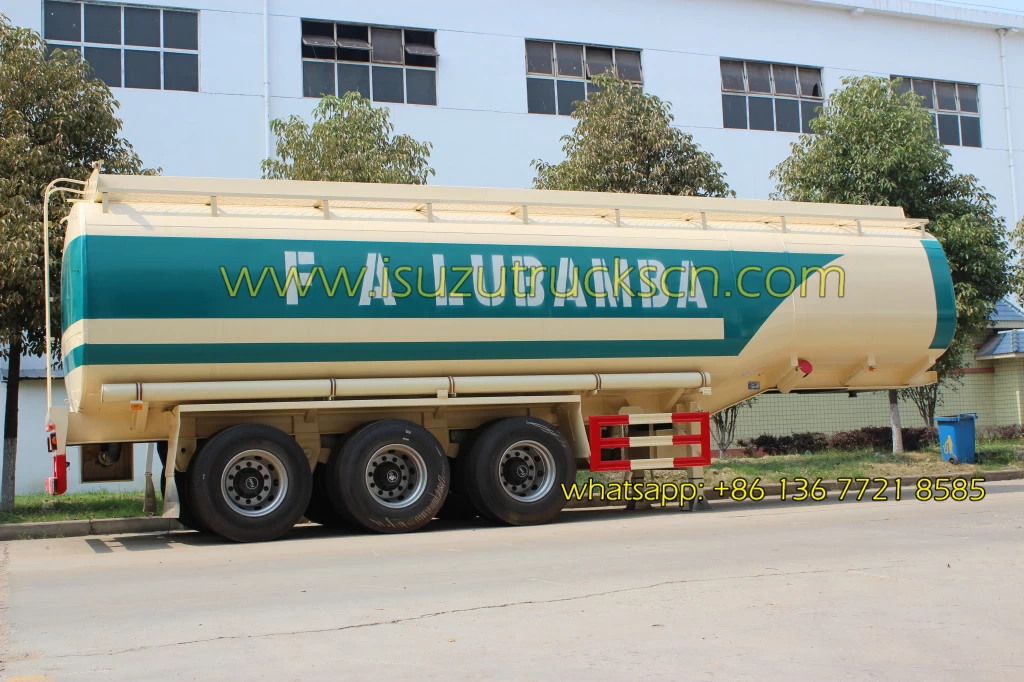

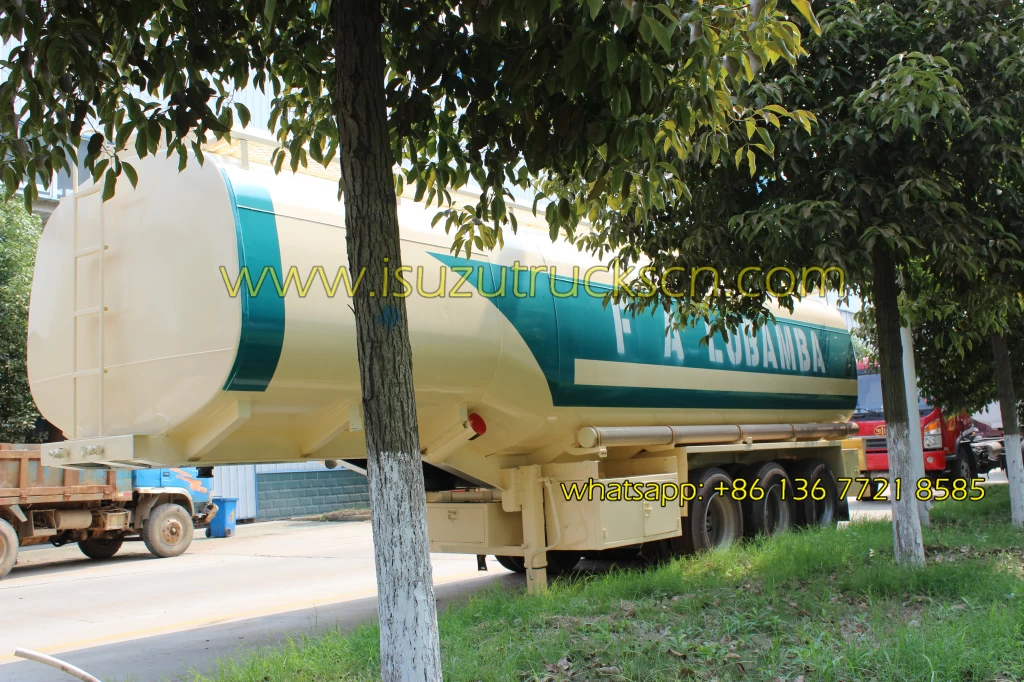

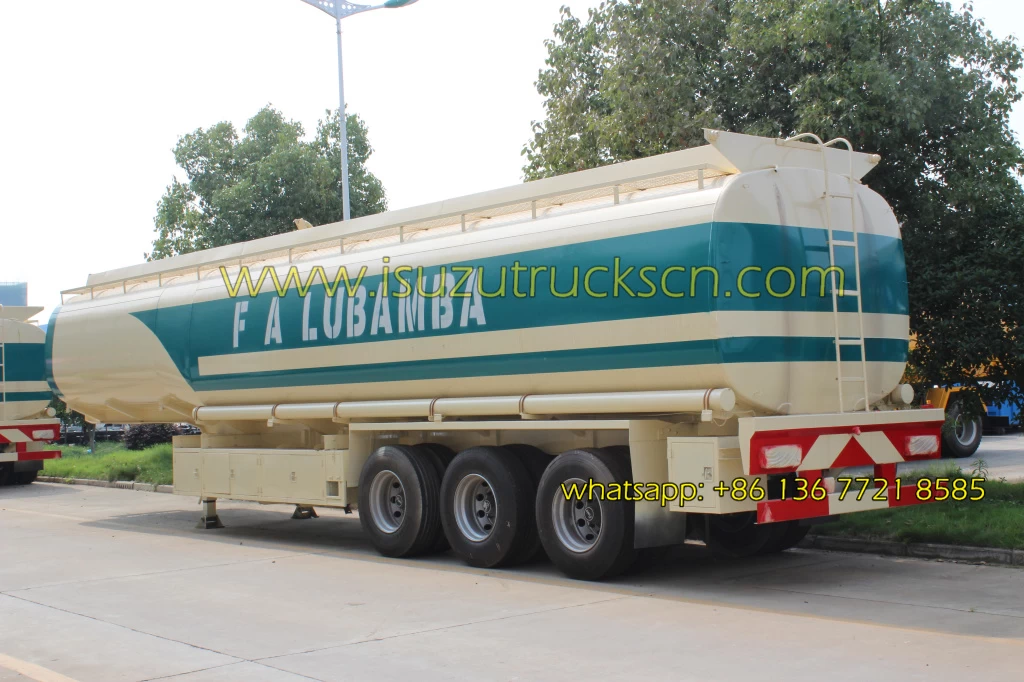

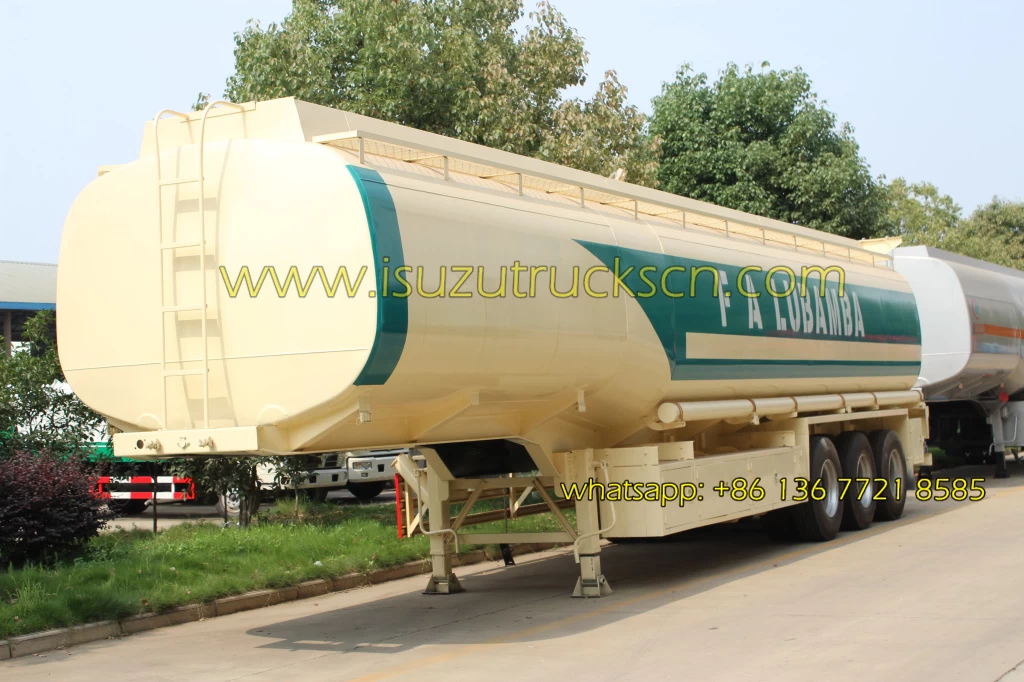

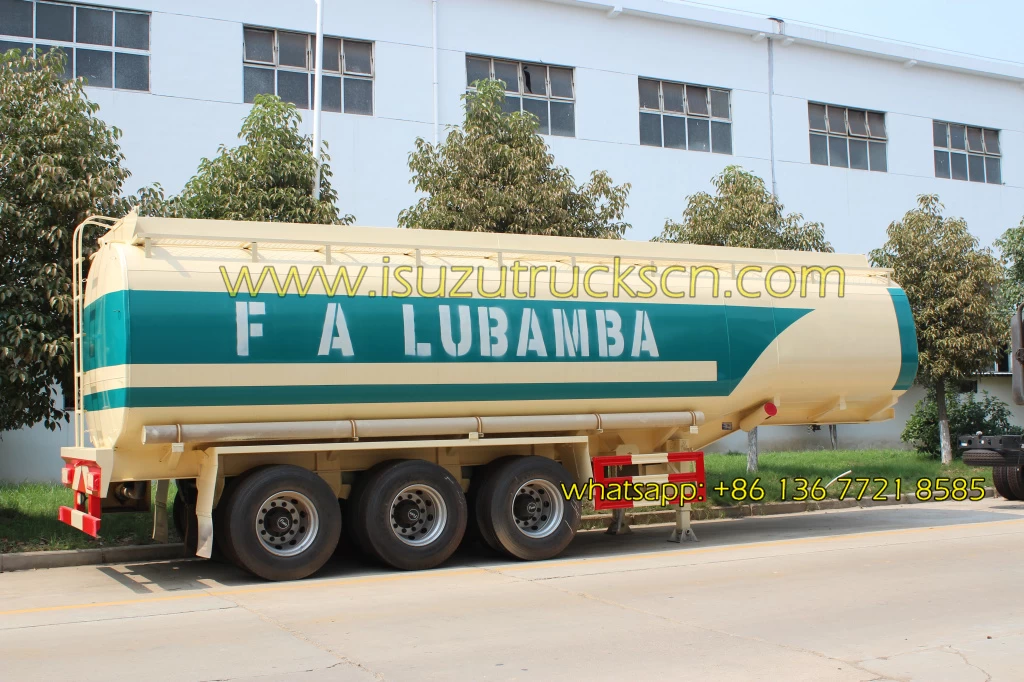

Customer build example
