Applications:
Aluminum Alloy Oil tanker semitrailer (also called oil tanker semitrailer, fuel tank semitrailer, oil tanker
trailer, oil semitrailer, fuel semitrailer, fuel tanker trailer, oil
trailer, semi tanker trailer, stainless steel oil tanker trailer, carbon
steel fuel trailer) is used to transport oil, diesel, gasoline, kerosene, etc.
CEEC TRUCKS fuel tanker semitrailer can be divided into many compartments to load
and transport different types of fuels, lubricant, crude oil, alcohol….
Key Features:
---- Nice shape, rational
structure.
---- High class skeleton and tank material
---- High-intensity kingpin and landing gears
---- Axles are of top Chinese brand FUWA or German brand BPW
---- Massive, durable, long service life.
Specifications:
|

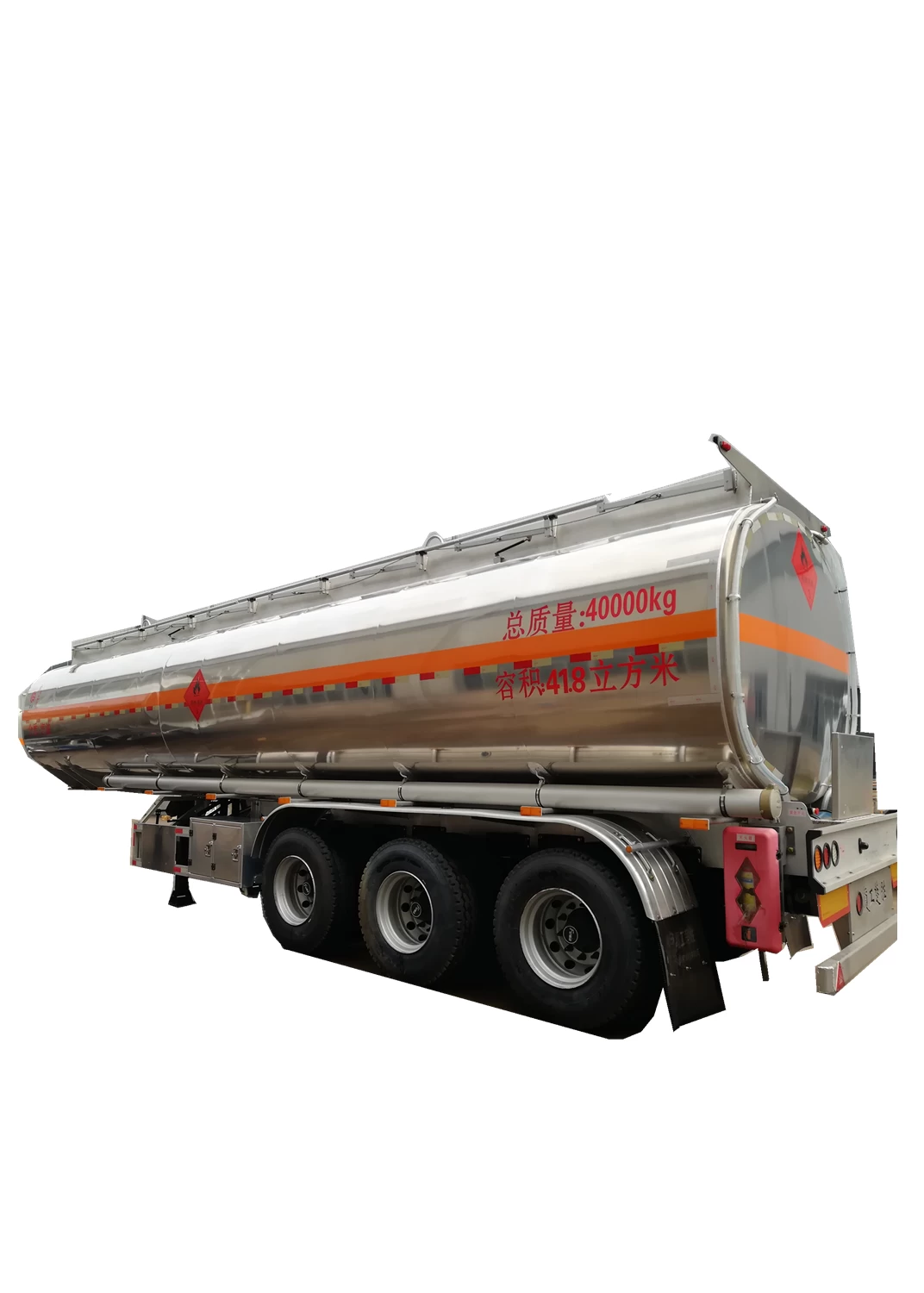

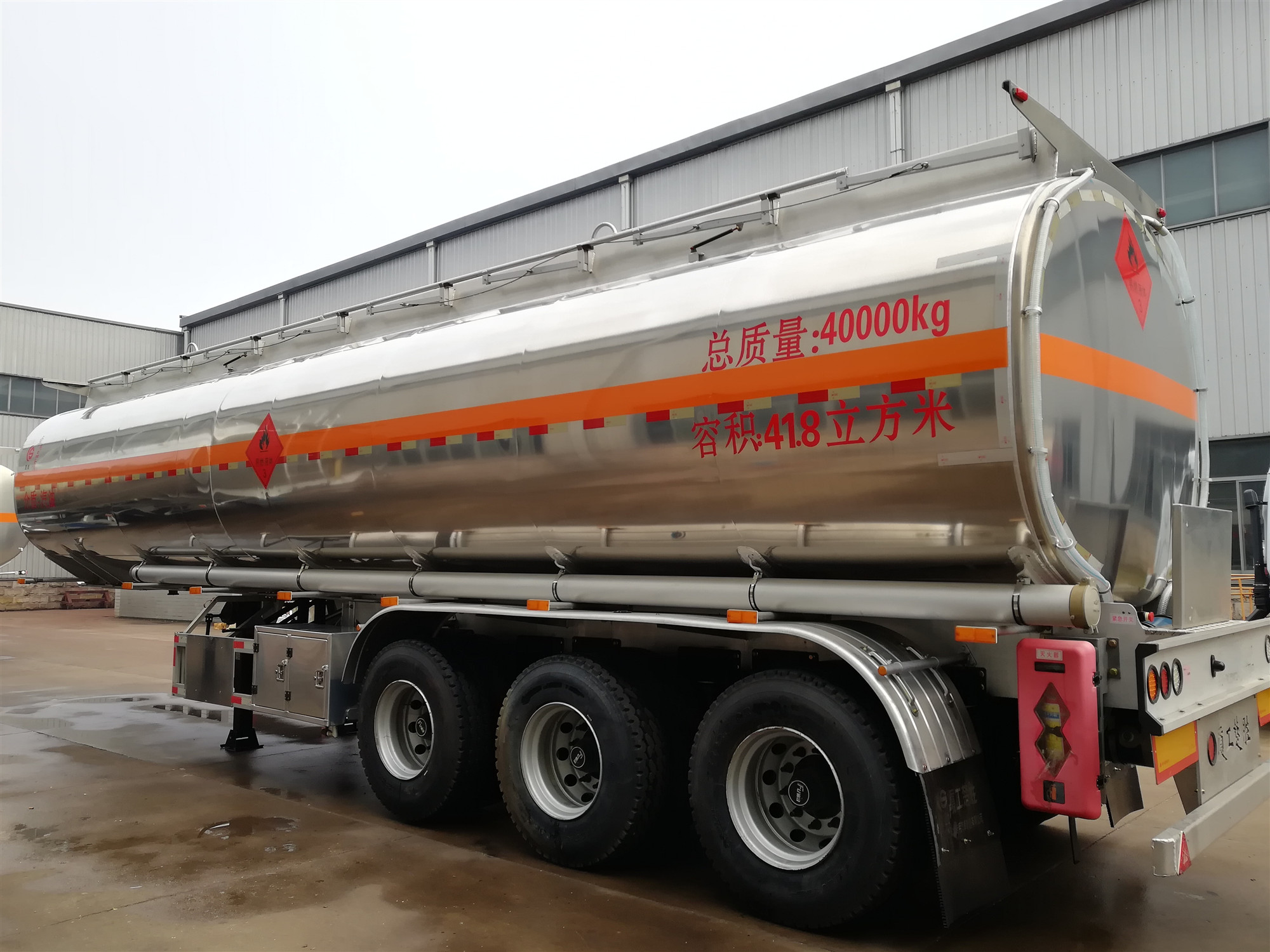

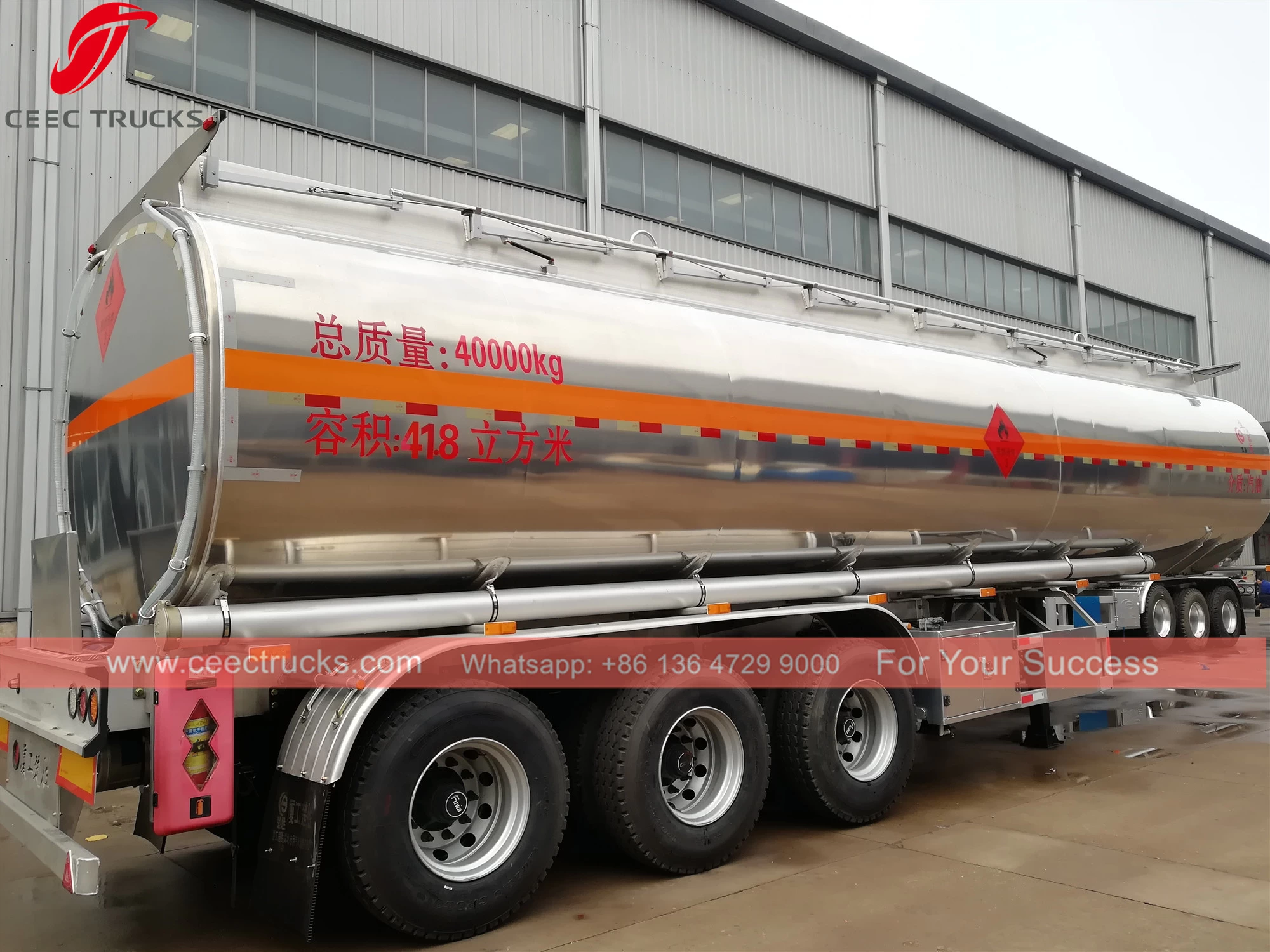

Fuel Tank Semi-trailer (40,000 Litres)
|
|
General
|
Vehicle Brand
|
CEEC
|
|
Overall
Dimension
|
12000*2500*3950
mm
|
|
GVW / Kerb
Weight
|
40,000kg / 6,900kg
|
|
Superstructure
|
Tank Capacity
|
40,000 Litres
(10,800 gallons)
|
|
Tank
|
Aluminum alloy
material, with inner baffles to prevent fuel surge during moving
|
|
Kingpin
|
2” or 3.5”
|
|

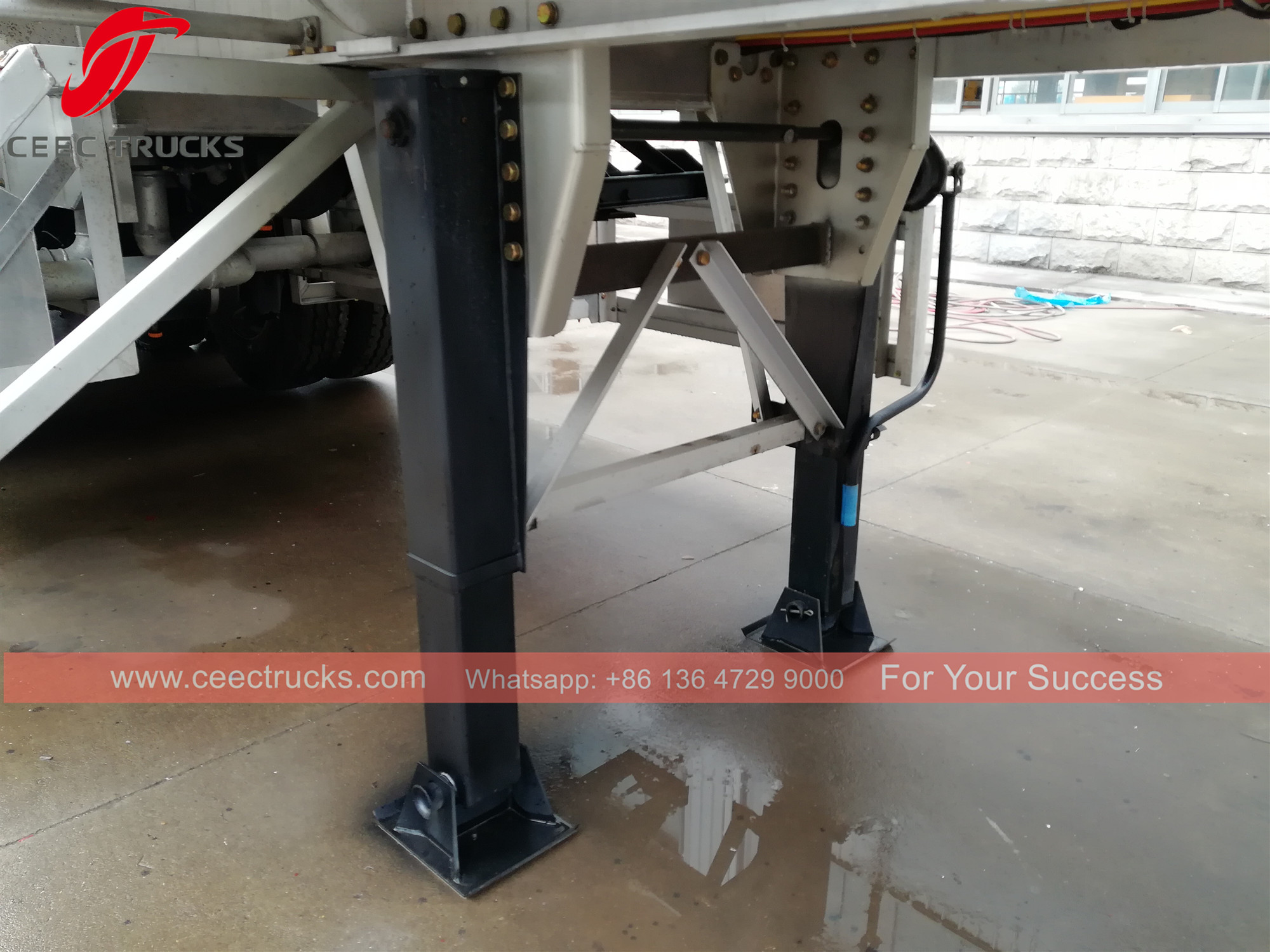

Landing Gear
|
28Ton
|
|

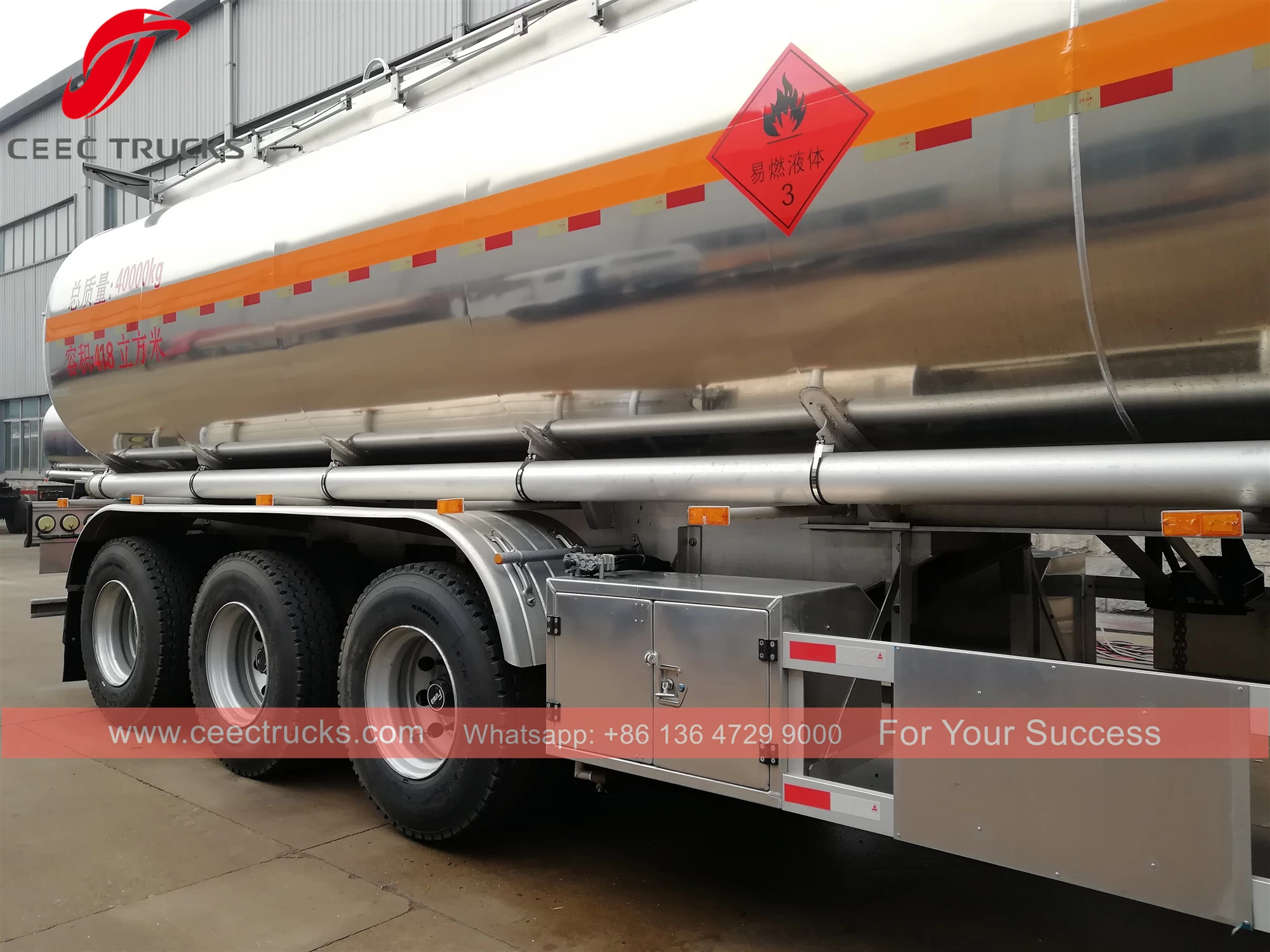

Axles
|
3 axles, 13Ton,
BPW or FUWA optional
|
|
Tyre
|
11.00-20 or
11.00R20
|
|
Paint
|
Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint
|
|

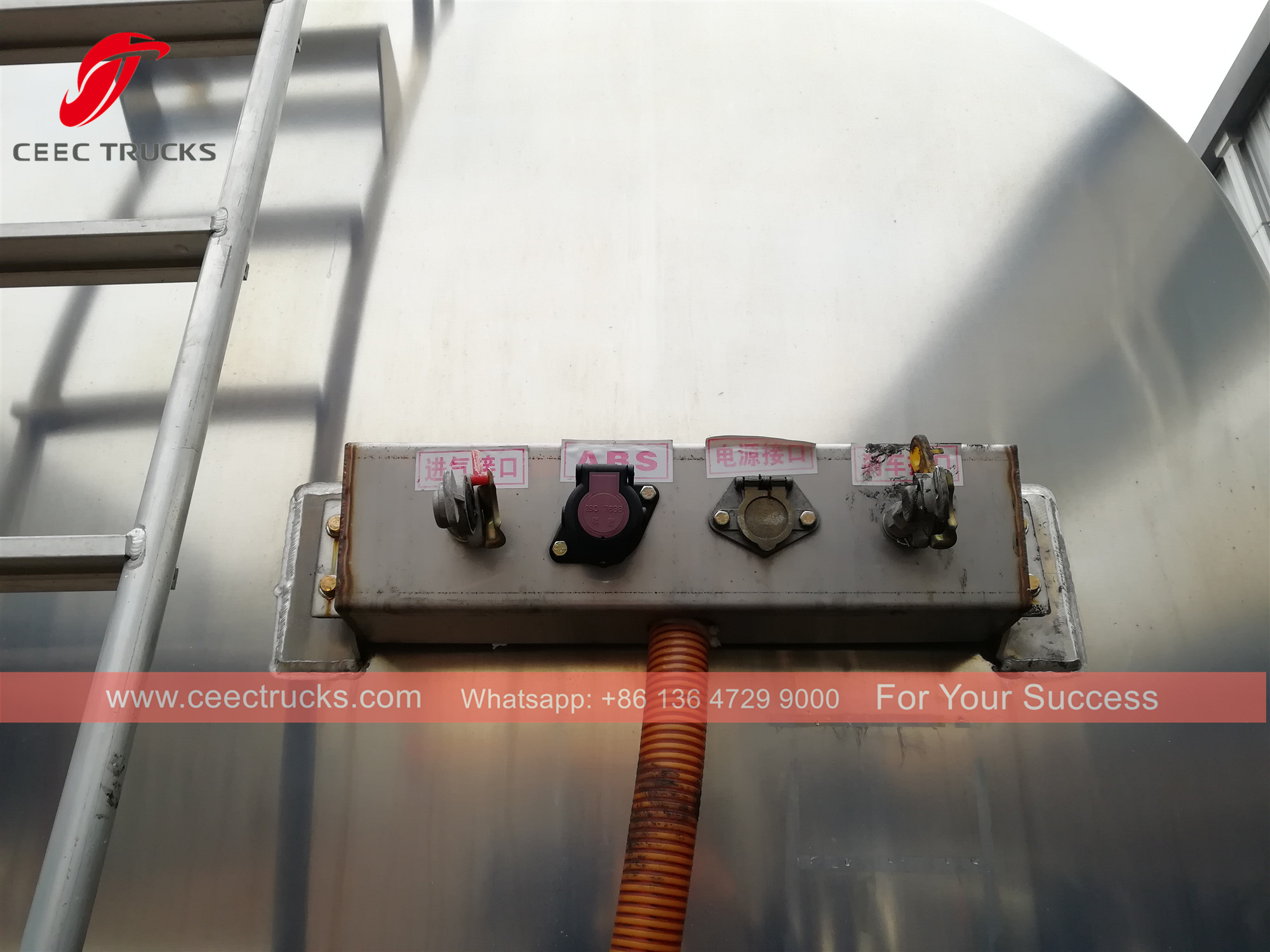

Control panel
|
English or Your language
|
|
All standard

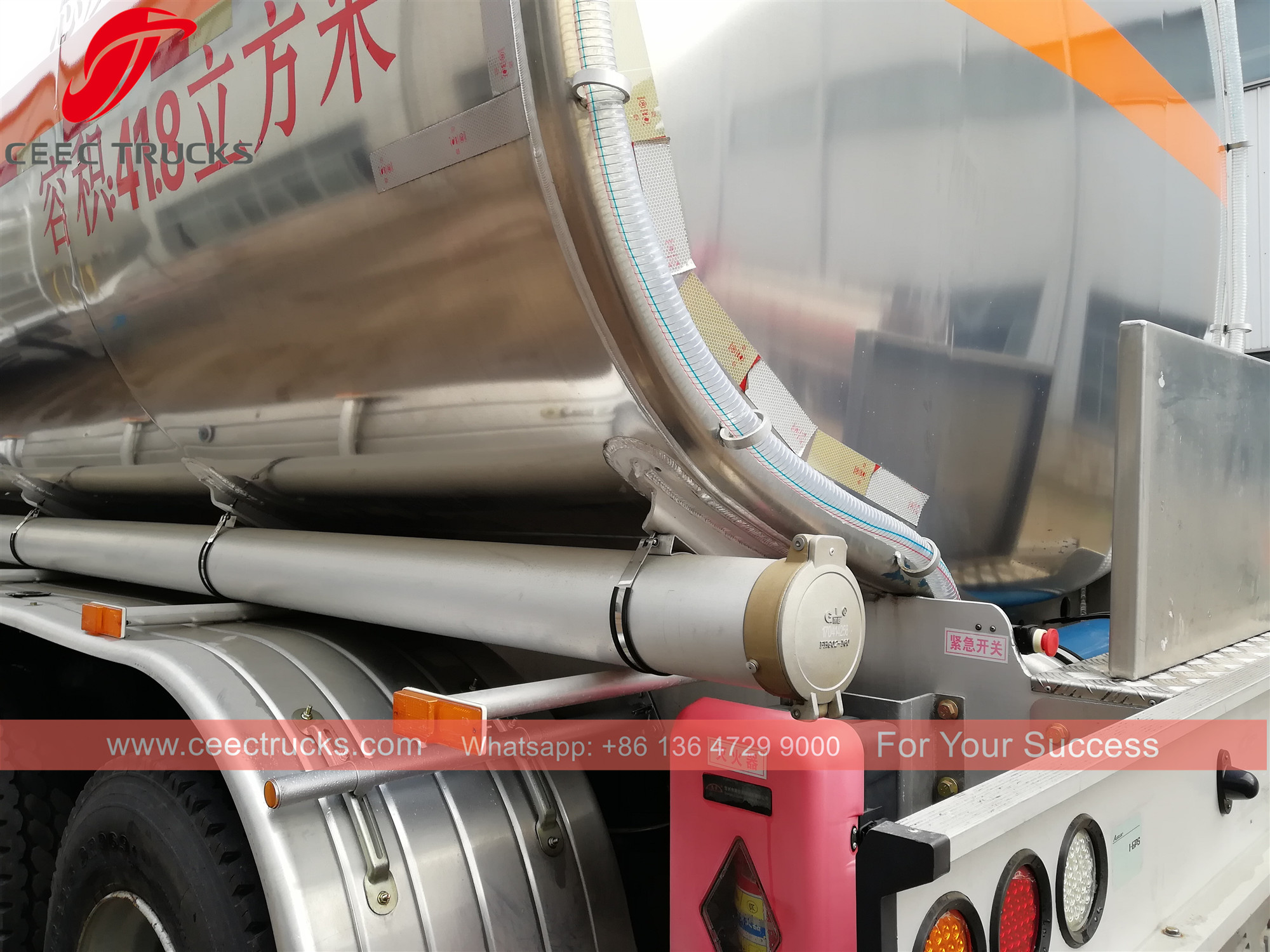

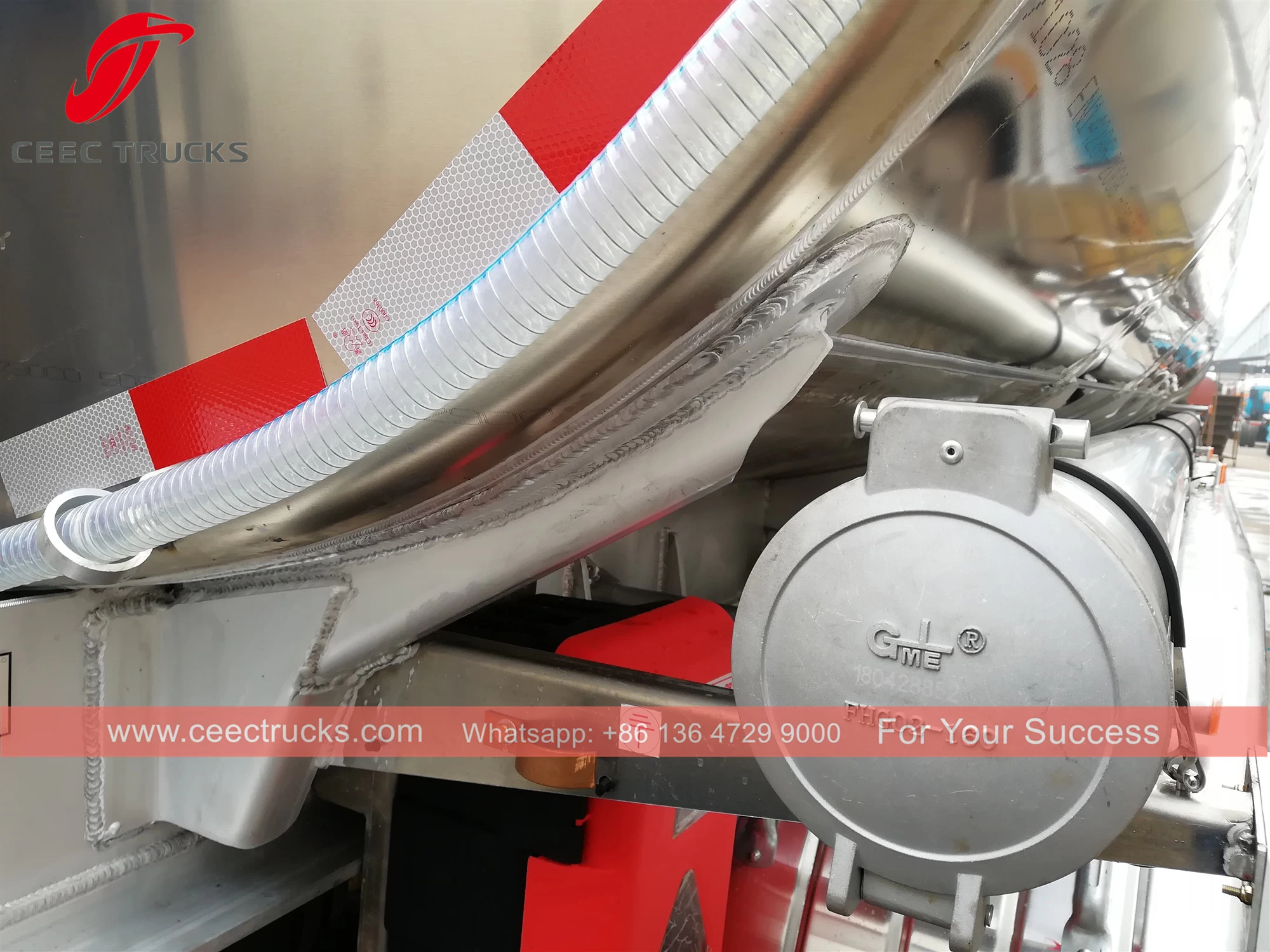

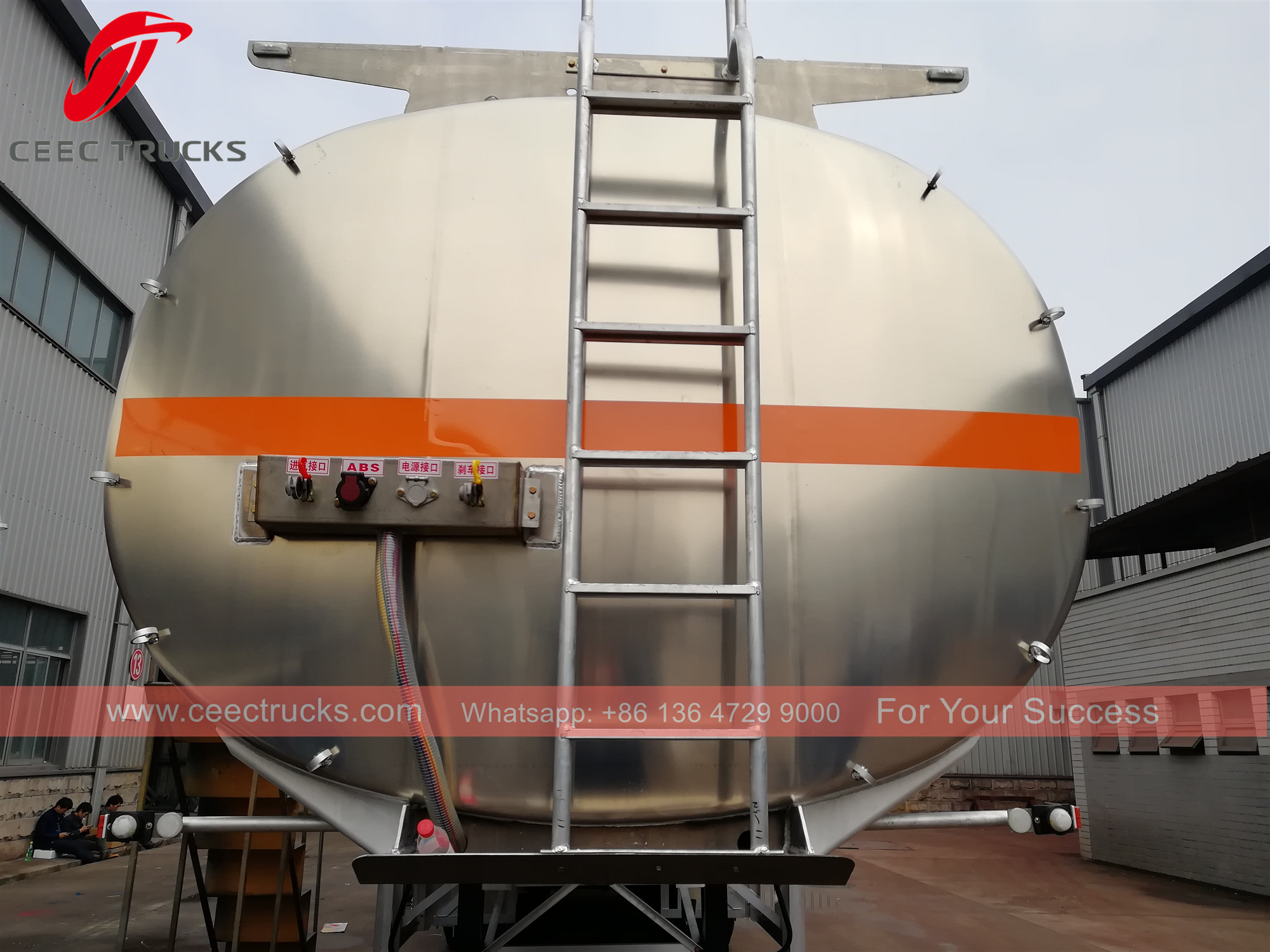

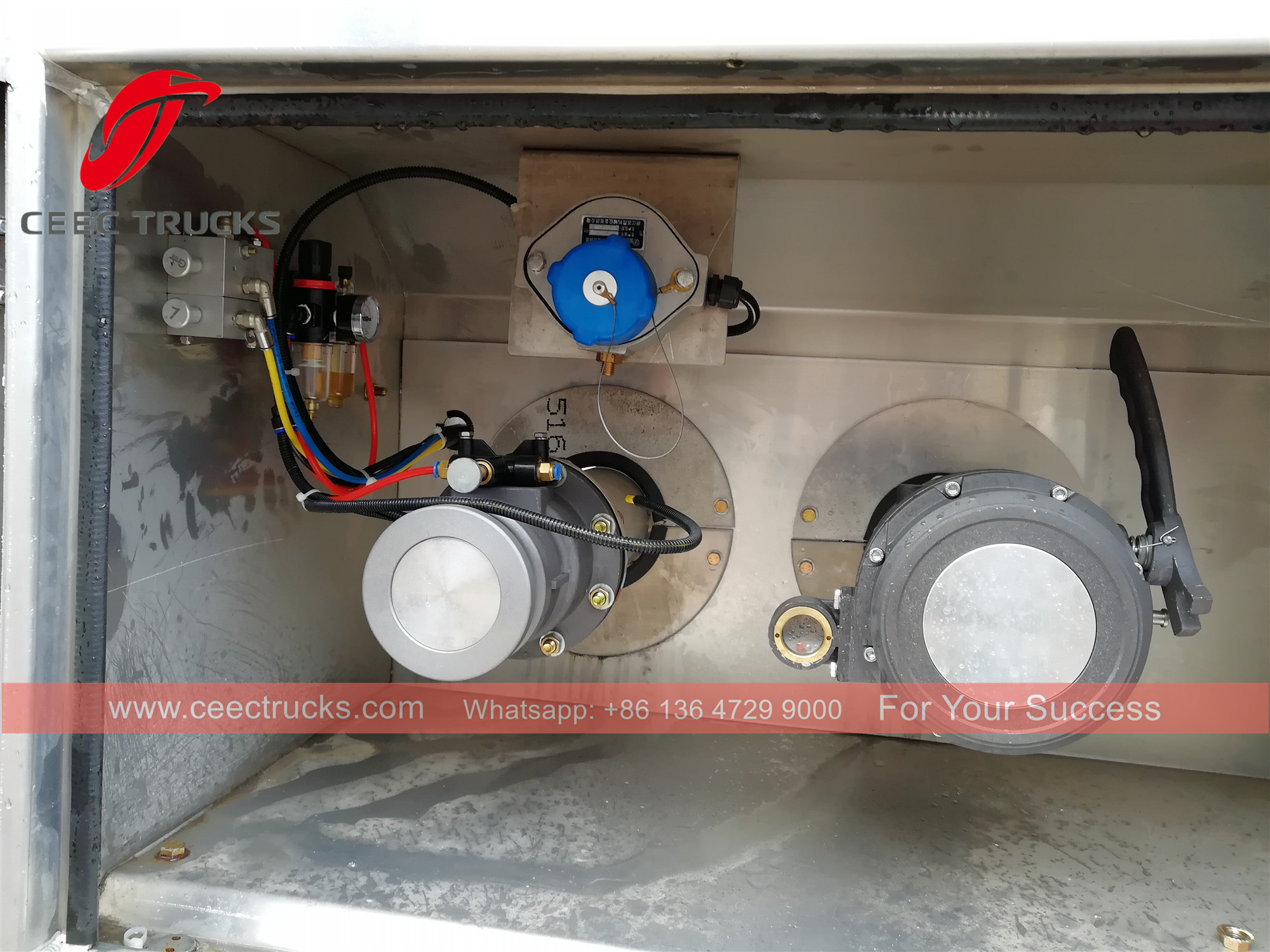

accessories: manhole, ladder, inlet, discharge, anti-slip walkway, hose,

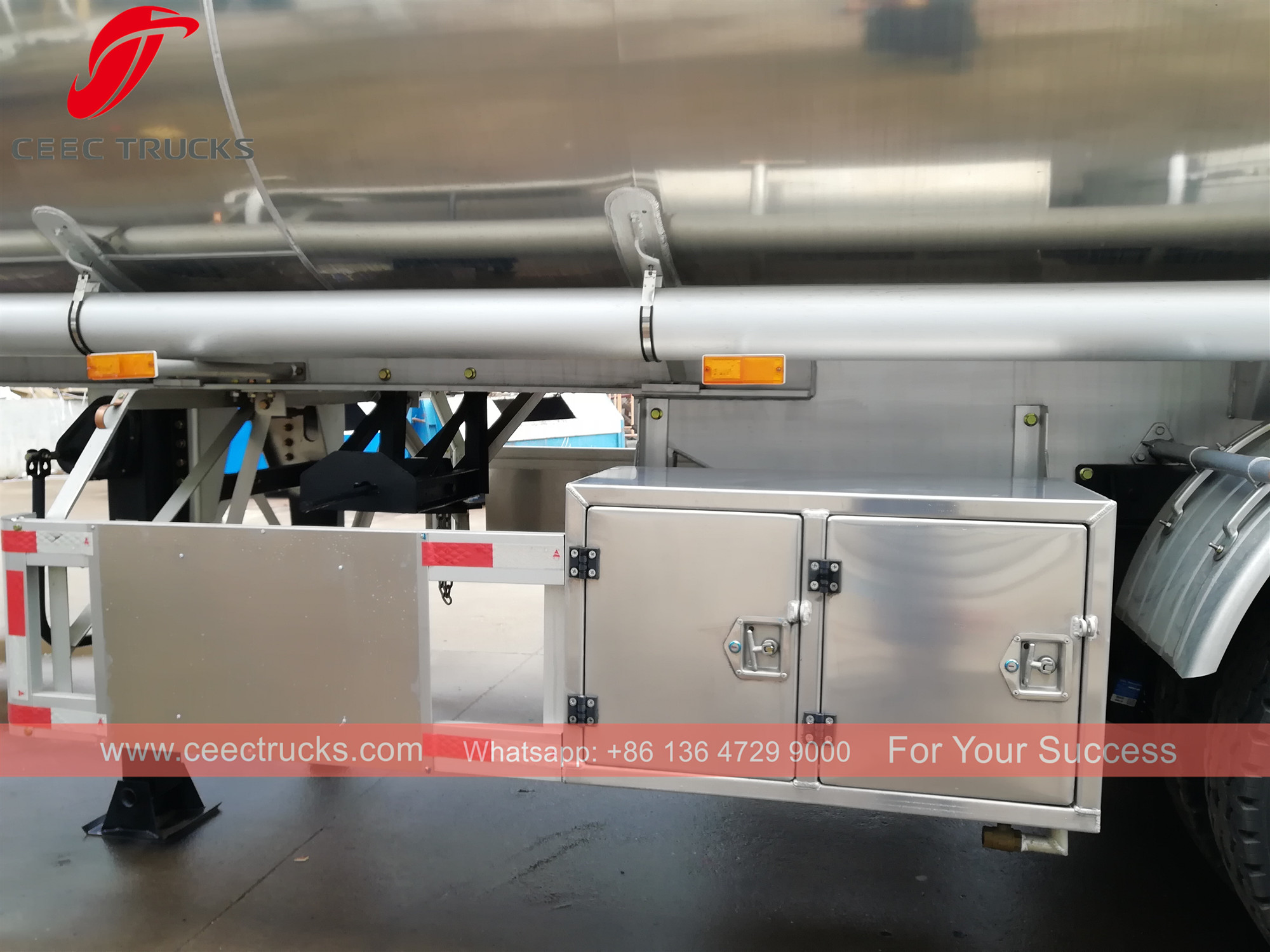

reflective strips, basic tool kit, English manual……
|
|
Optional
|
** Tank material
could be carbon steel, stainless steel, aluminum…
** It can be
divided into many compartments to load different types of fuels.
** BPW or FUWA

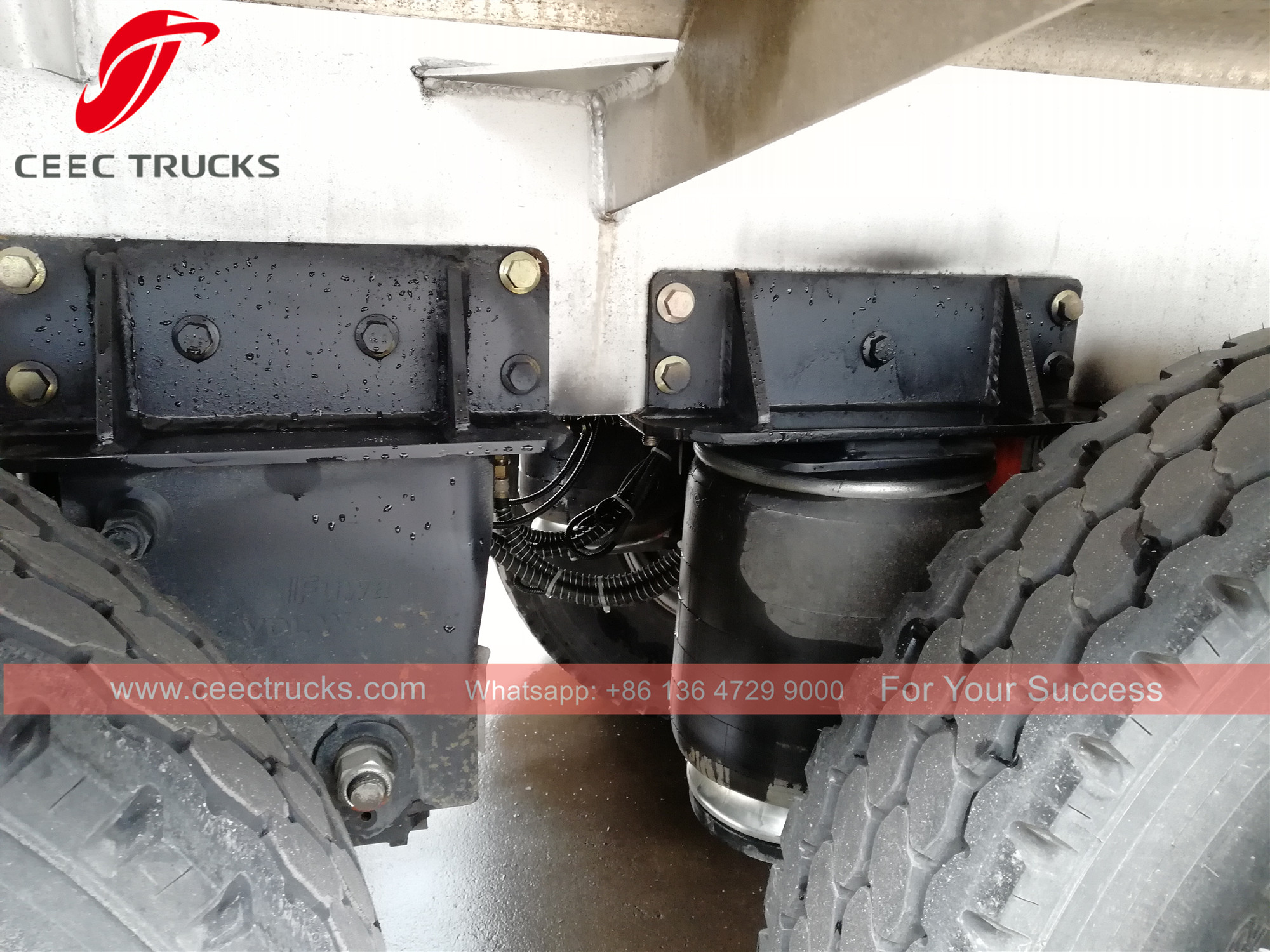

axles, JOST landing gears, JOST kingpin, air suspension, ABS.
** Heat
preservation of rock cotton or polyurethane foaming, heating system.
** Tube or
tubeless tires optional, off-road single tyre for bad roads.
|
