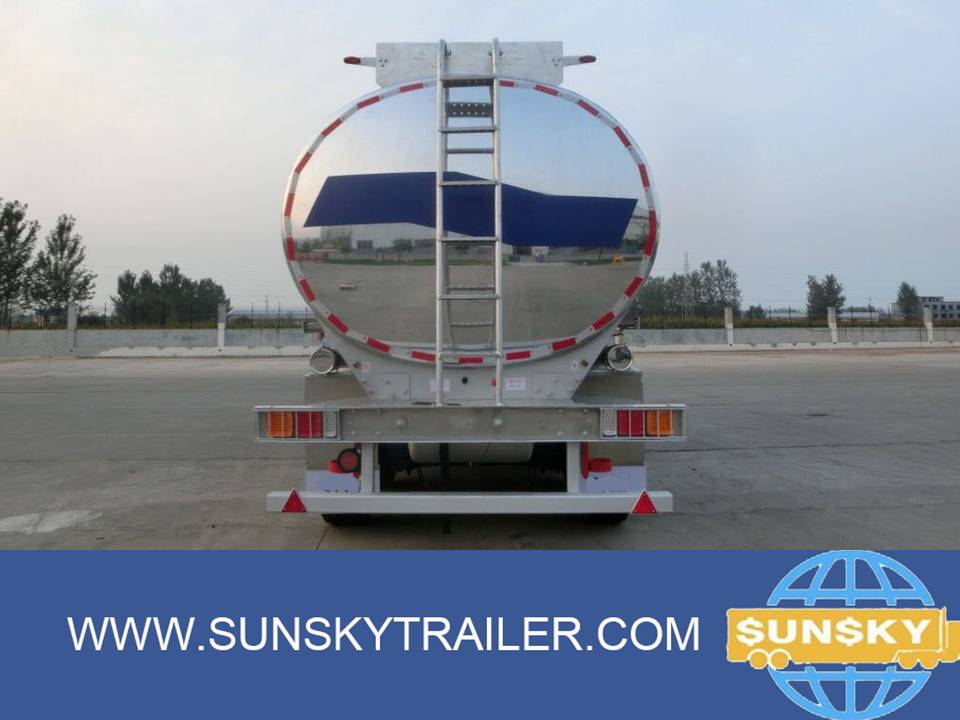

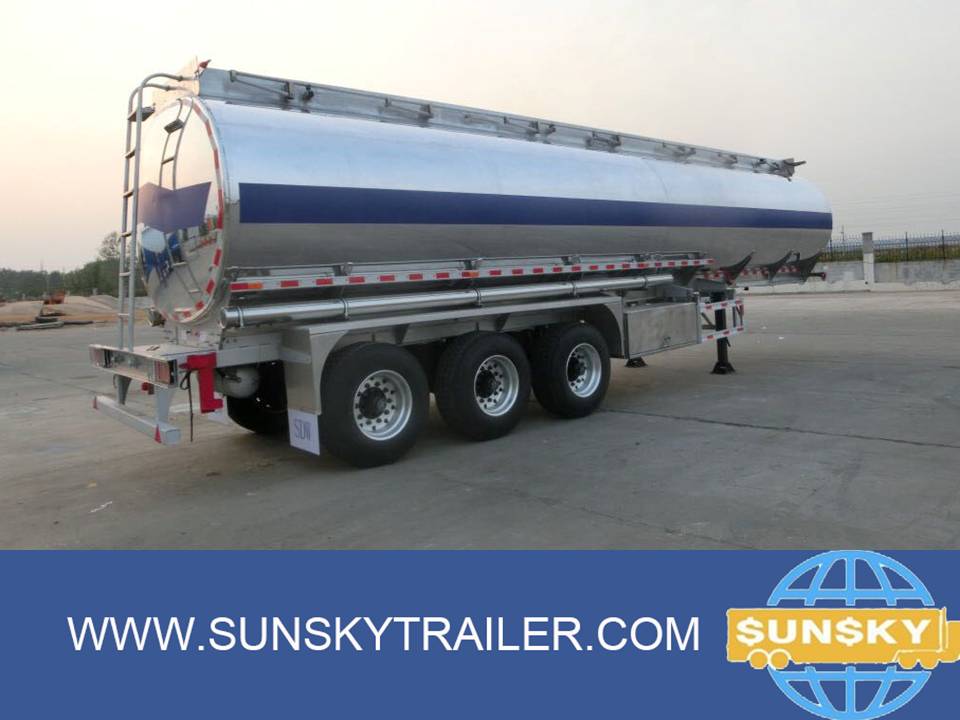

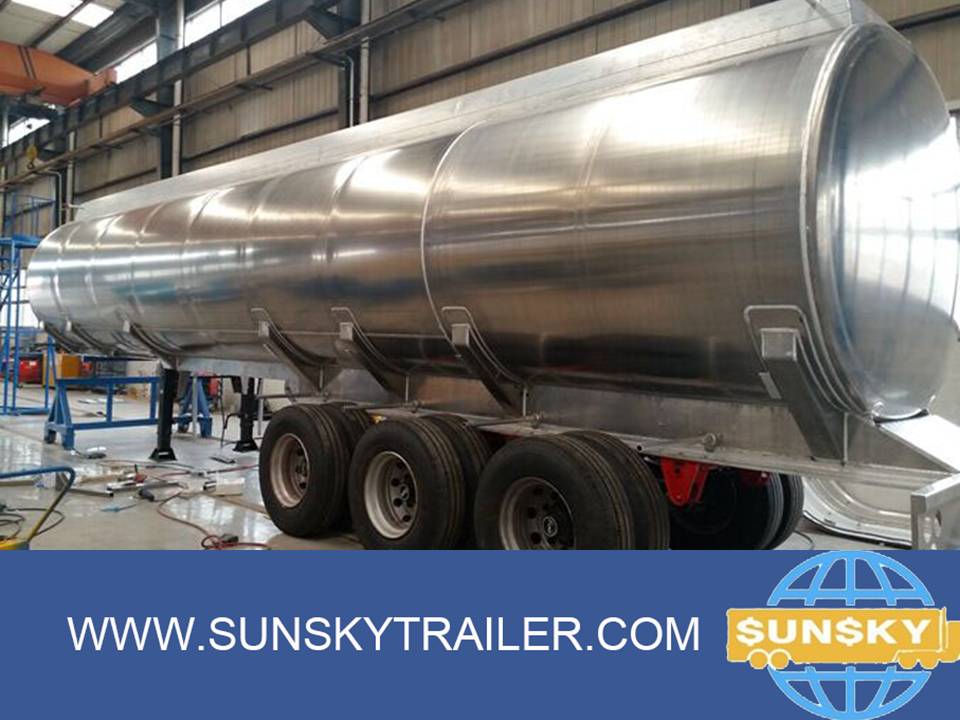

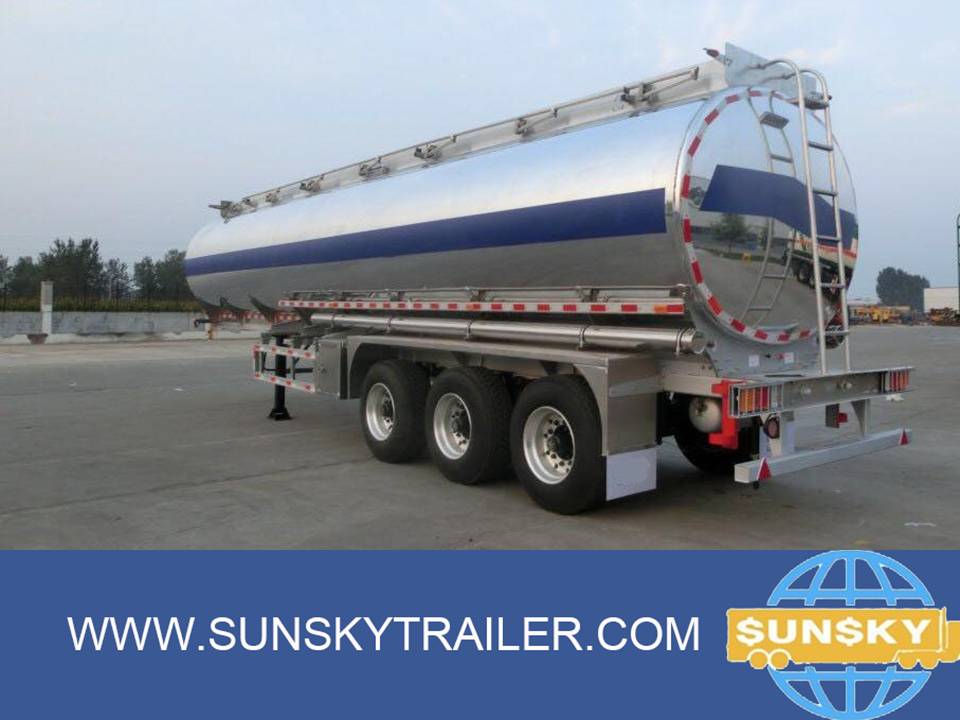

40CBM 3 AXLE STAINLESS STEEL TANKER SEMI TRAILER
l 10500mm long x 2490mm wide x 3696 mm high stainless steel tanker trailer (Suitable
to carry drink water)
l 40000L
valid volume with 3 chamber
l Body
steel material use stainless steel 304/4 mm, other plates inside use stainless
steel 304/5 mm.
l 3
sets stainless steel ø500mm(20”) manhole with stainless steel cover; with
3units breather valve; with 3units U-dipstick. 3” stainless steel
tube/SS304 for each chamber At Bottom of Tank
l 3 sets
DN80 stainless steel discharge valve with cover
l 3 sets
pneumatic control DN80 stainless steel foot valves
l Equip
1 set Pneumatic Control combined switch,1unit emergency switch and 1 unit
Oil-water Separator.
l One flat steps, folding and detachable ladder at the rear of
tank
l Bolted,
detachable walkway platform with anti-slip painting and quartz sand On the top
of tanker
l 2
sets aide guard, including one linked type .
l Each
side 1 unit Discharge Hose Box. Steel, cylinder tube with covers on both ends;
with guide wheel
l 2
units 3”×6M factory PVC hose with quick coupling on both ends
l 2
units Tire stopper
l Heavy
duty and extra durability designed; Opting for high tensile steel, “I” beam welded
by automatic Submerged-Arc processes.
l 3
Axles with heavy duty original BPW-13T
l Two
speed manual operation JOST 19” linked
landing gear
l 3.5”
bolt-in kingpin(14mm kingpin plate)
l German
design 3 axle suspension
l 13
units 9.00*22.5 rims & 315/80R22.5 tires, including 1 unit spare tire&
rim
l Semi
heat insulation cable, JAEGER POWAY 24V 7-pin ISO 1185 socket with 7-pin wire.
l LED lights
system(including: side lights, stop lights, reverse lights, turn lights, fog light, license plate light, multifunctional
lights and rear &high stop light) Built-in rear lamp with protector.
l WABCO
RE 4 relay valve; four units T30/30 spring brake chamber; two units T30 spring
brake chamber; two units reliable local brand 45L air tank; two units reliable
local brand standard coppery air-connector.
l One
box-type of spare tire carrier for 2 tires and one bumper at the end of tanker
l Reflective
sticker yellow, wide 5CM, on both side of the tanker;Square reflective sticker
5CM, red color, at rear of tanker;2units triangle reflective; 70km/h speed
sign;NO.3 flammable liquid danger warning sign
l One double
nuts bolted type tool box in the middle of tanker; with tire casing, handle and
reinforcing bar inside.
l Accessories
including 1unit Pickaxe; 1unit Plastic Hammer; 2unit small Mop; 1unit First-aid
kit; 3units conical roadblock; 1unit small shovel; 2units triangle warning
board; 1unit 10L Aluminum barrel.
