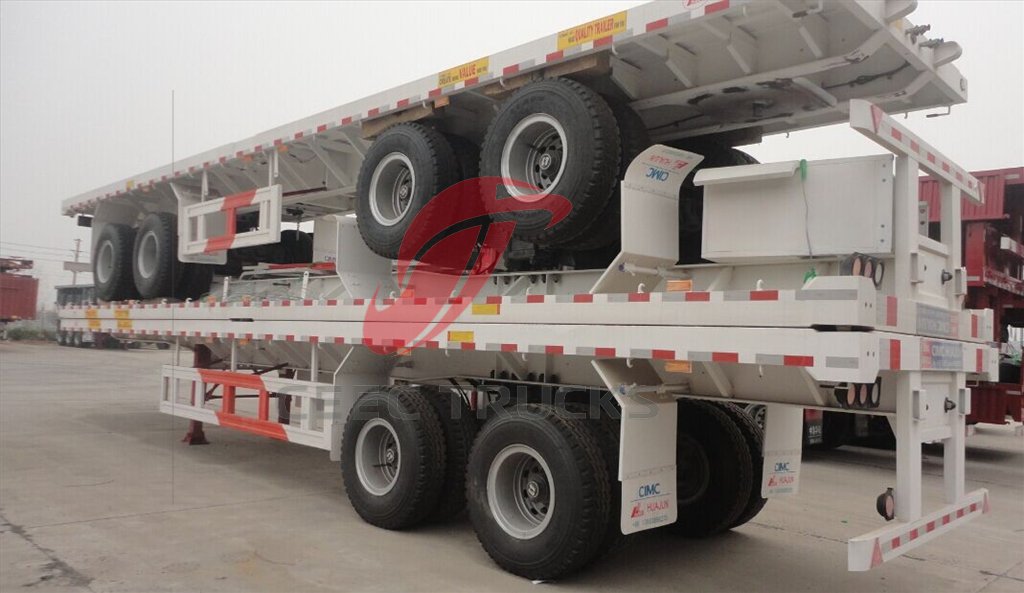

40 Ton 2 Axles Bogie suspension Container
Semi-trailer
CEEC trucks have more than 15 years on manufacturing 2 axle bogie suspension semitrailers. We have great experience in producing 50 T bogie suspension
semitrailer, 60 T bogie suspension semitrailer, and 80 T bogie suspension
semitrailer.
Our
bogie suspension semitrailer product include 2 axle bogie suspension container
semitrailer, 2 axle single point suspension cargo semitrailer, 2 axle bogie
suspension tipper semitrailer, 2 axle bogie suspension cement semitrailer.
As
the china best bogie suspension semi remorque manufacturer, we have exported
more than 2,000 units kinds of bogie suspension semitrailers to africa country,
such as CONGO, ALGERIA, NIGERIA, ANGOLA, GHANA, TANZANIA, KENYA , DUBAI , DOHA.
Chine beat quality bogie suspension container semitrailer, suitable equipped to Beiben 2538,2534 tractor trucks.

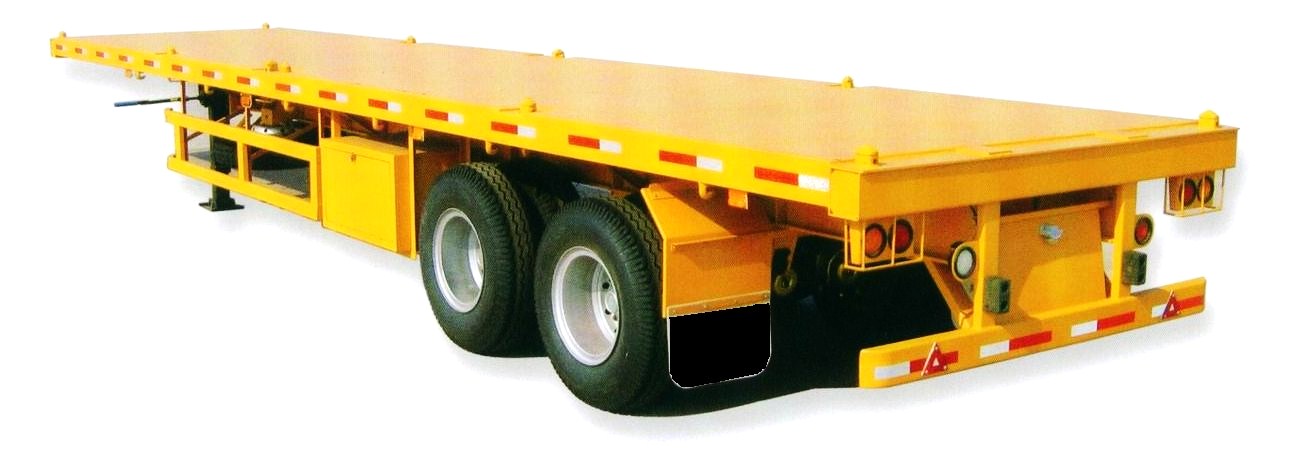

40Feet 2Axles Bogie suspension
Container Semi-trailer
|
|
|

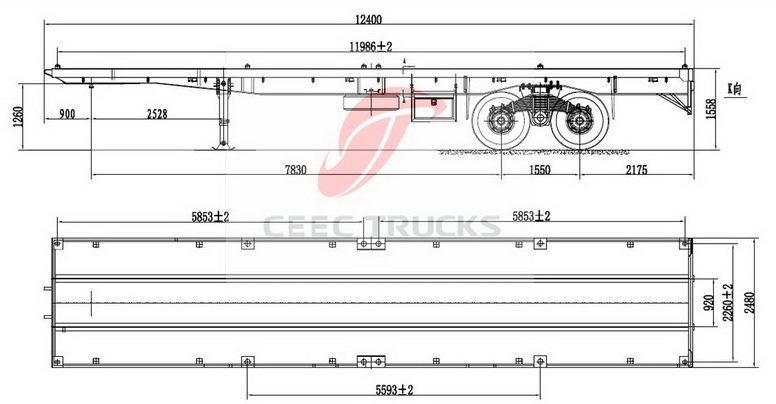

DIMENSIONS
|
|
|
Tare Weight
|
5000kg
|
|
|
Payload
|
35000kg
|
|
|
Total Weight
|
40000kg
|
|
|
Overall Length
|
12400mm
|
|
|
Overall Width
|
2480mm
|
|
|
Overall Height
|
1480mm
|
|
|
Wheel track
|
1840mm
|
|
|
Wheel base
|
8350mm+1300mm
|
|
|
STANDARD SPECIFICATION
|
|
|
Main Frame
|
Heavy duty and extra durability designed; Opting for high tensile steel
Q345B,welded by automatic Submerged-Arc processes
505mm Height, Top Flange 14mm,width 140mm; Middle Flange 6mm;Bottom Flange
16mm,width 140mm
|
|
|
|
Axle
|
Two Units of Germany BPW(brand) 13Ton axle,15T axle, 16Taxle
|
|
|

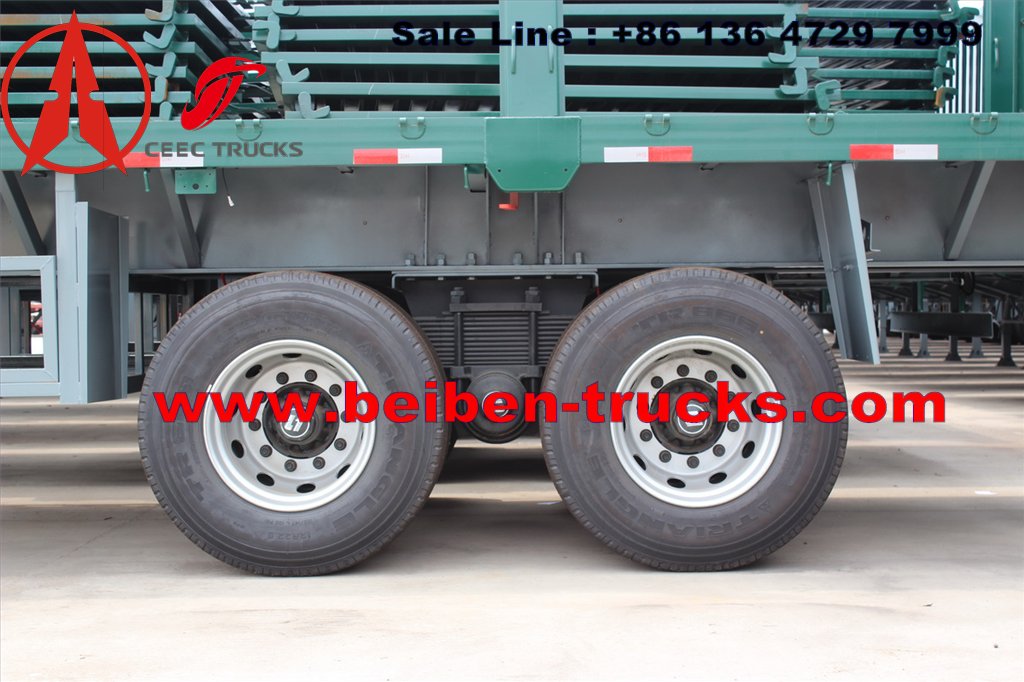

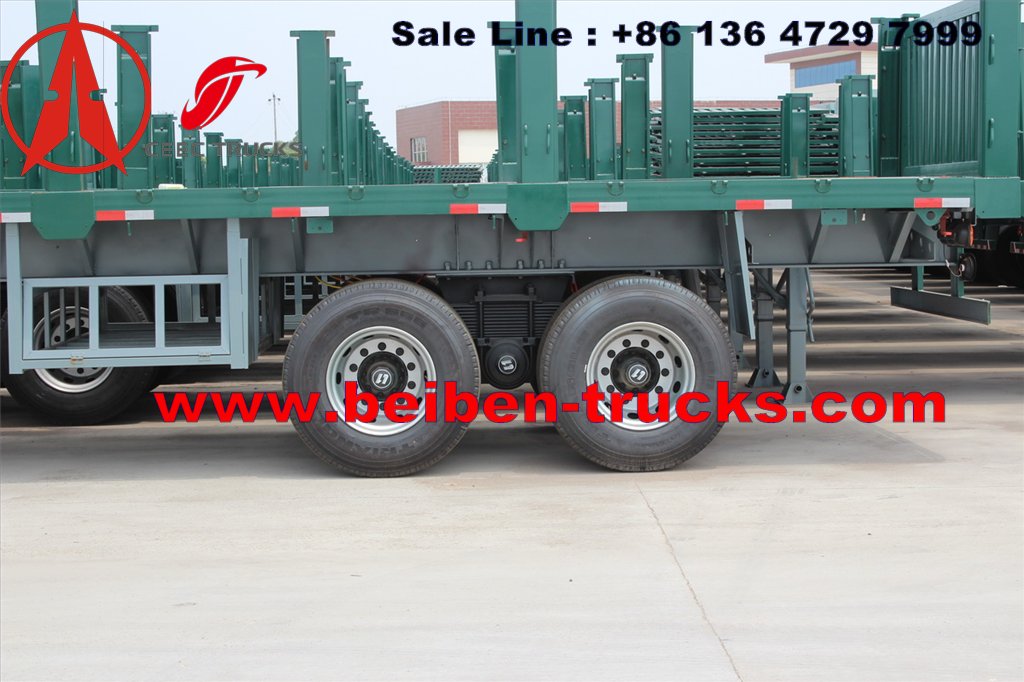

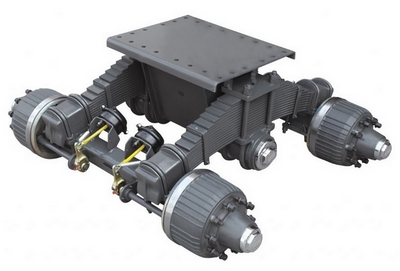

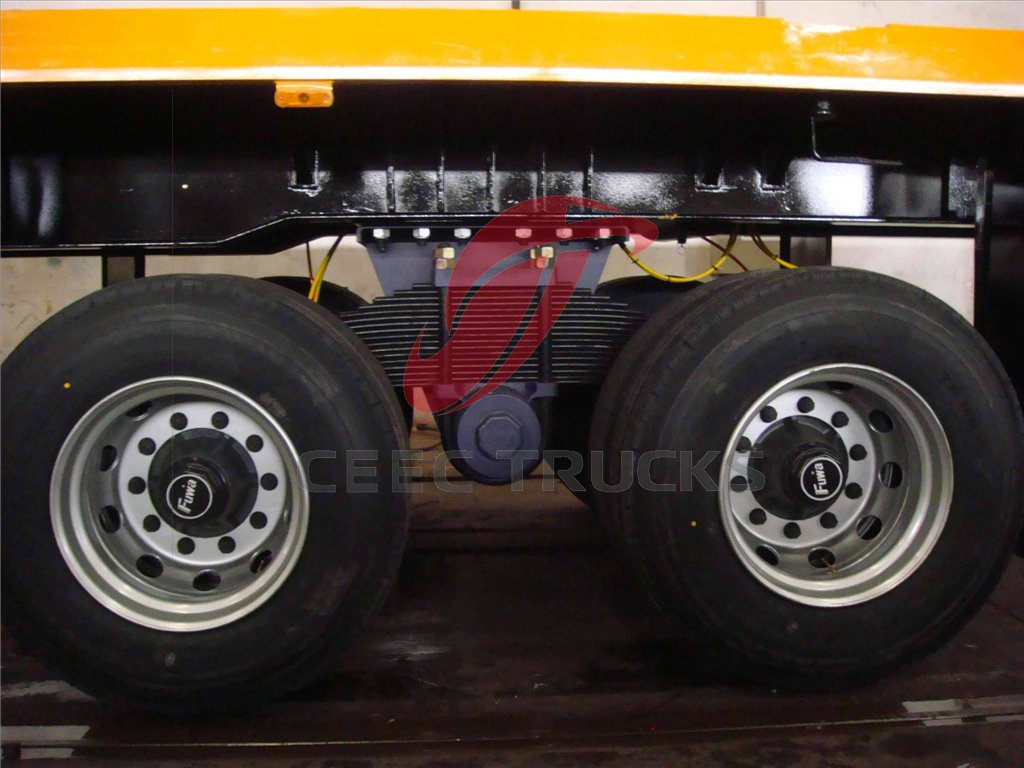

Suspension
|
Germany BPW (brand) mechanical 2-axle suspension
|
|
|
Leaf Spring
|
Four sets of reliable local brand, 7-piece leaf spring,16x90mm
|
|
|
King Pin
|
One unit
of 2`` SAE standard bolted-in kingpin
|
|
|

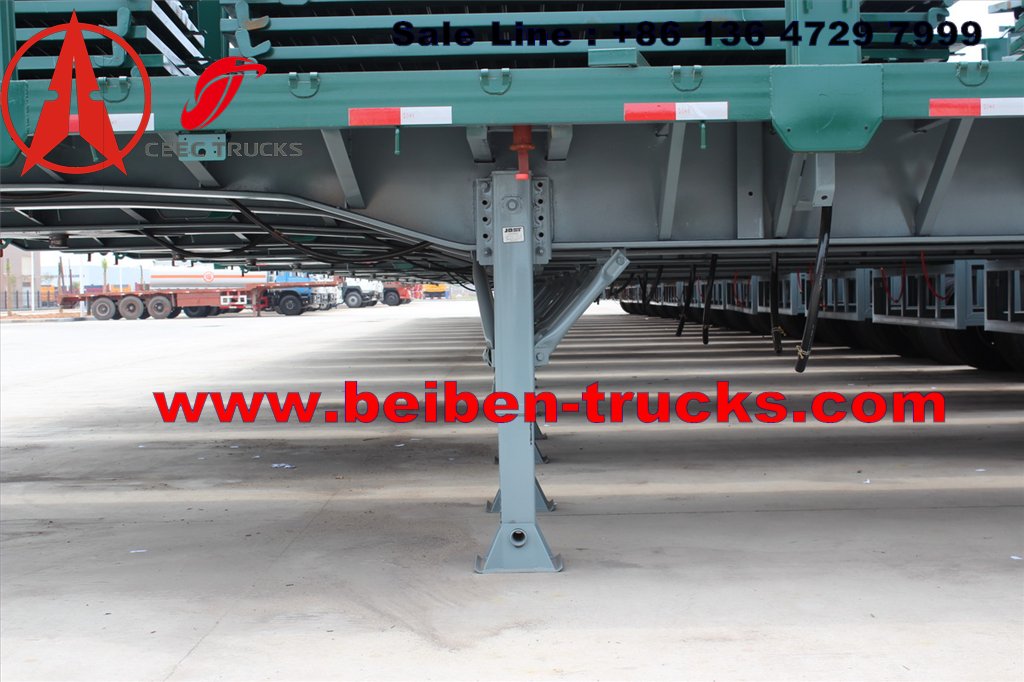

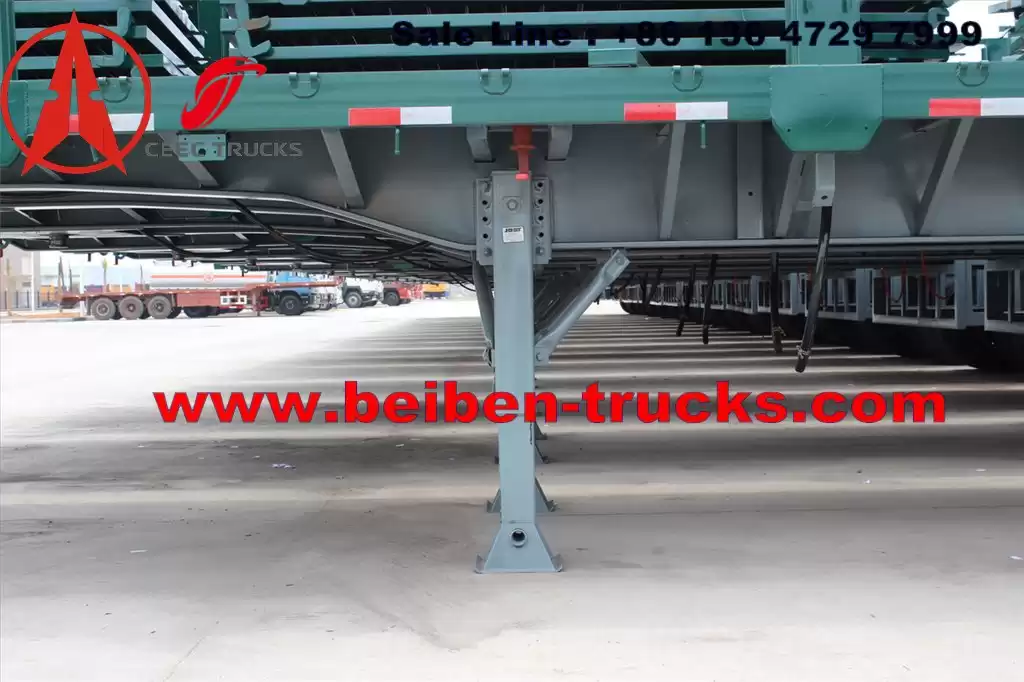

Landing Gear
|
JOST-D200,Two-speed manual operation, heavy duty landing gear
|
|
|
Wheel Rim
|
Eight
units of 8.0-20 rim
|
|
|
Tyre
|
Eight units of 12.00R20 nylon tyre
|
|
|
Twist Lock
|
12
pieces---four pieces are fasten mode, eight pieces are up-down mode, of ISO
twist lock for 2x20ft;1x40ft container, central locks can be laid down.
|
|
|
Spare Wheel Carrier
|
One set of spare wheel carrier including a riser.
|
|
|

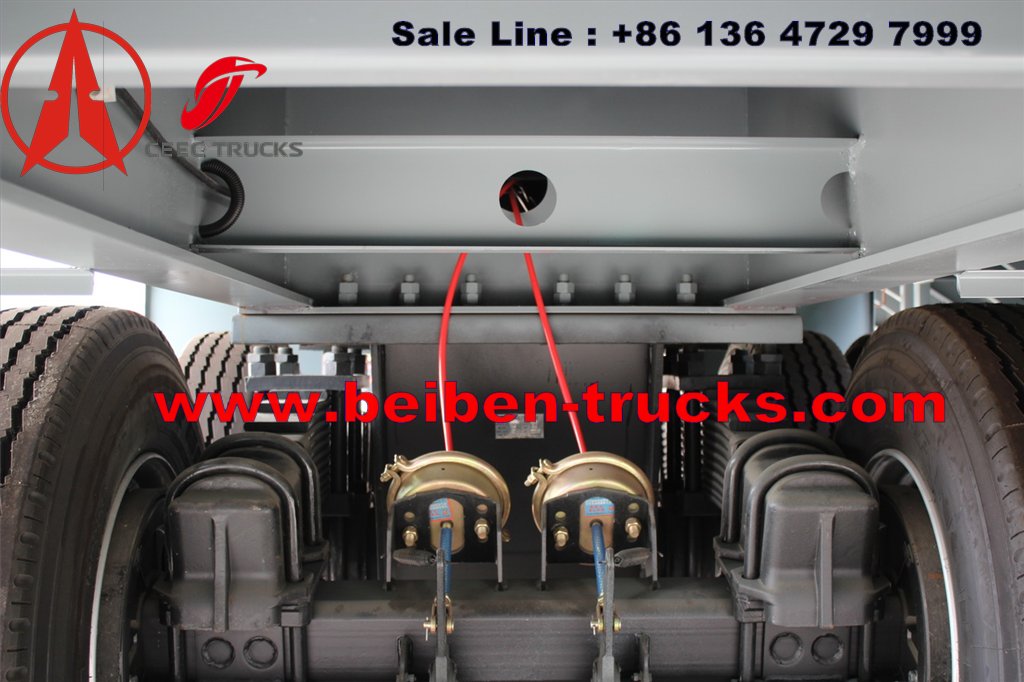

Pneumatic Braking System
|
One unit
of WABCO RE 6 relay valve; four units of T30/30 spring brake chamber; one
unit of reliable local brand 40L air tank ; two units of reliable local brand
standard coppery air-connector.
|
|
|
Electrical System
|
One unit of JAEGER POWAY ,24V 7-pin ISO 1185 socket; two sets of
reliable ,local brand standard rear light, turn light, rear reflector, side
light, side reflector etc.
One set of DAFA(brand ) 6-core standard Cable.
|
|
|
|
Painting
|
Sand blasting before painting;
|
|
|
two coats
of primer, anti corrosion;
|
|
|
one coat of finish painting;
|
|
|
Color
advised by client.
|
|
|
Accessory
|
One box with a set of standard trailer tool
|
|
|
For the specification above, we
reserve the right to make any changes without notice.
|
|

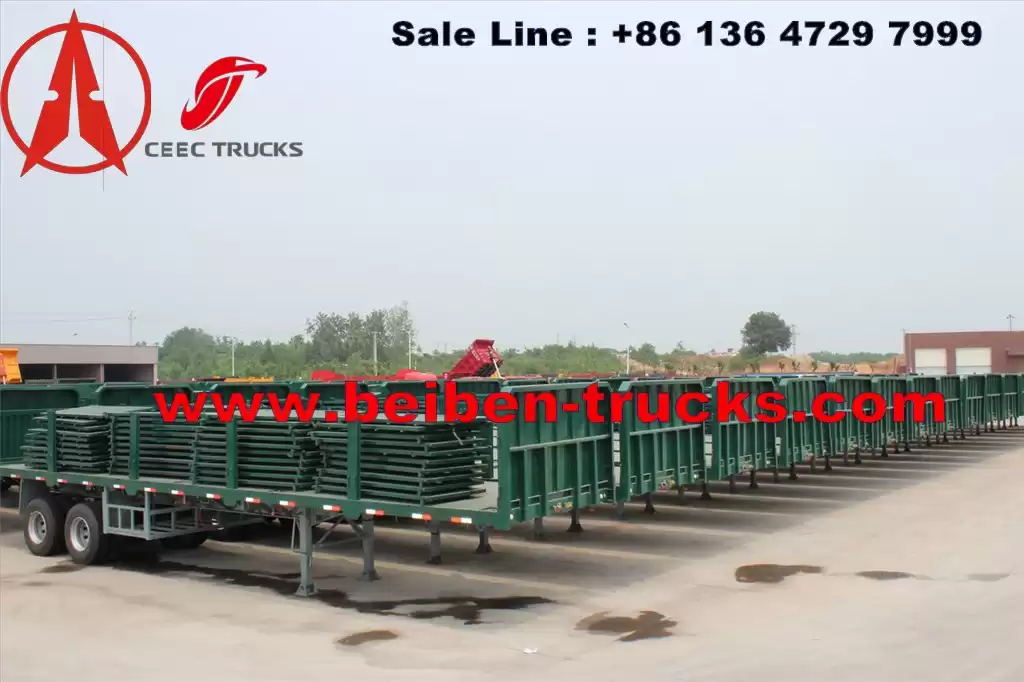

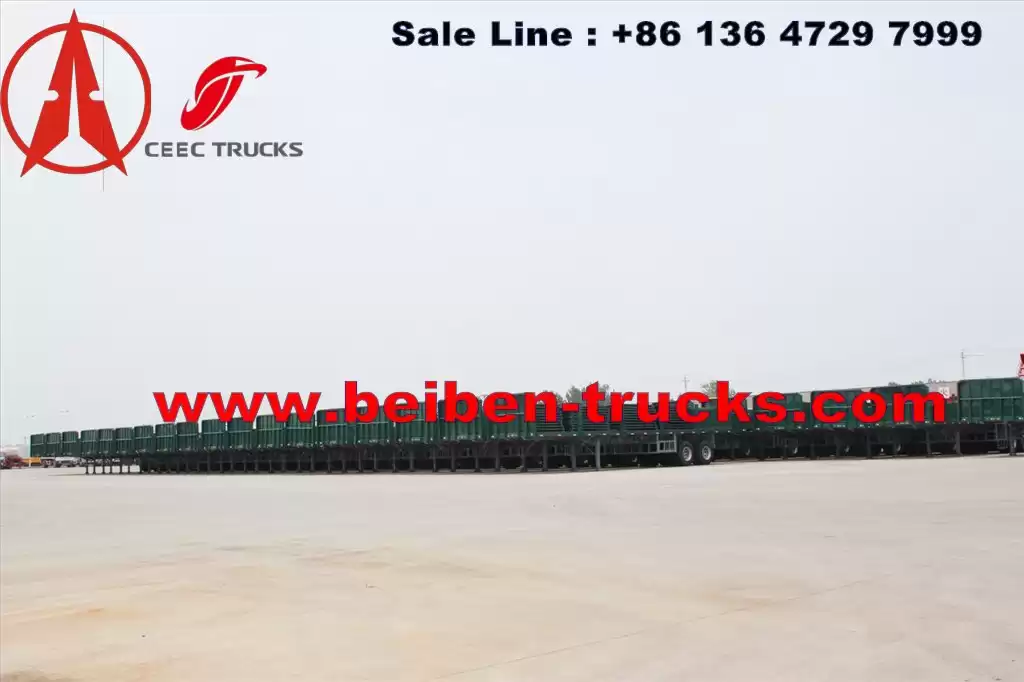

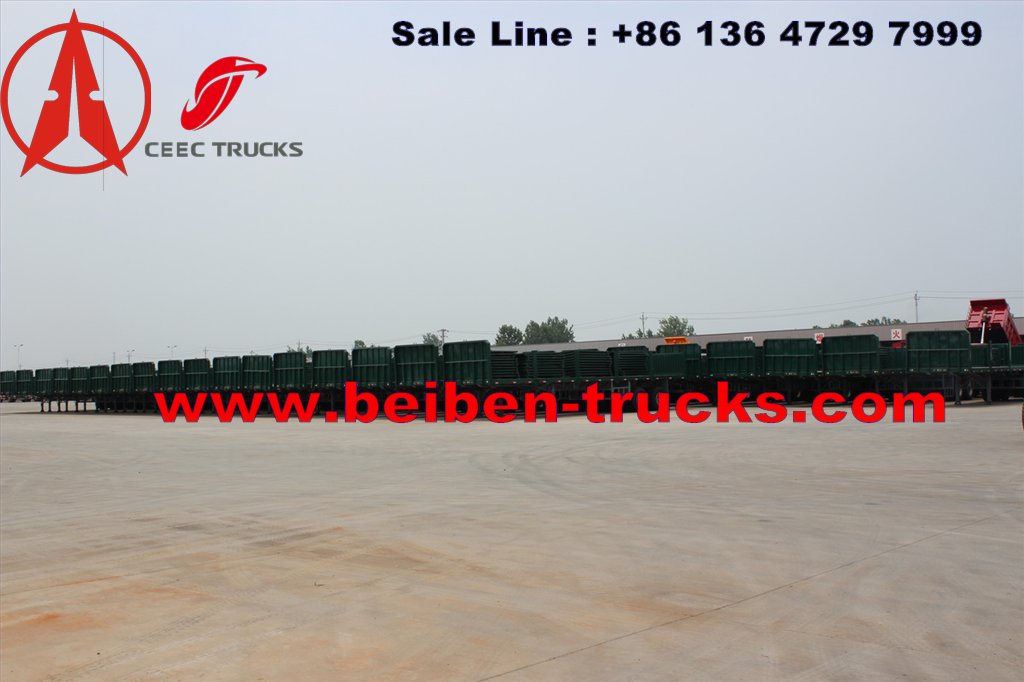

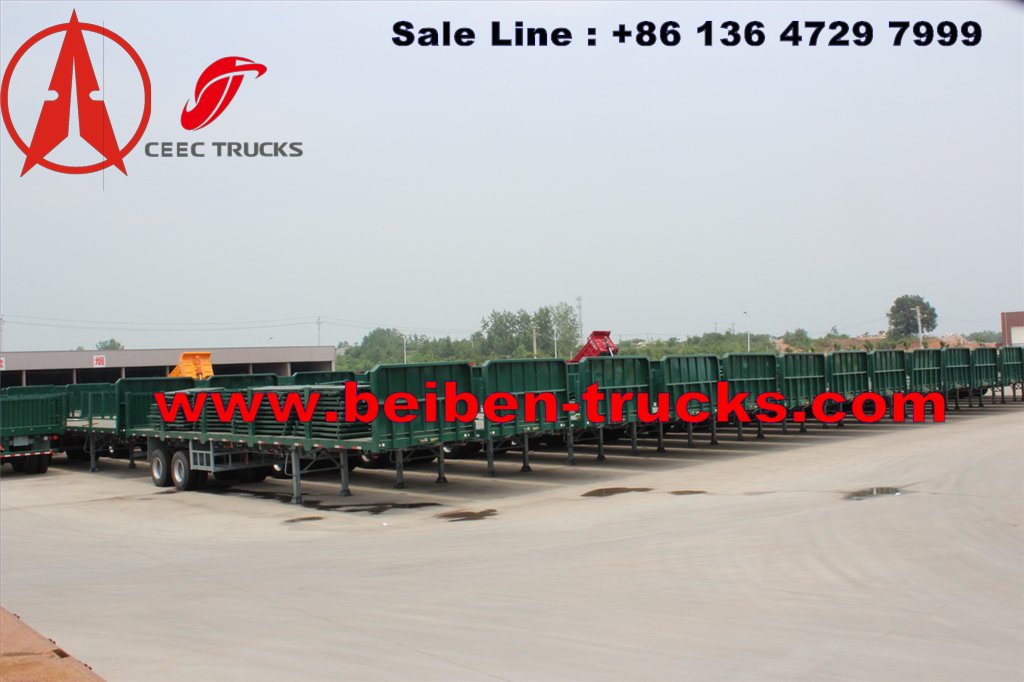

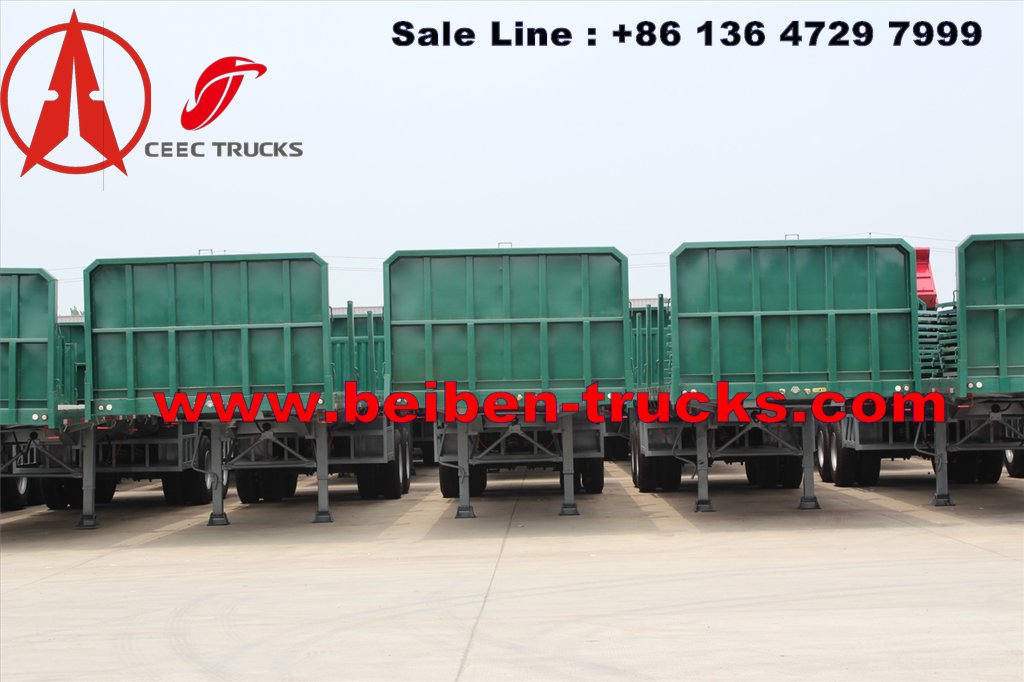

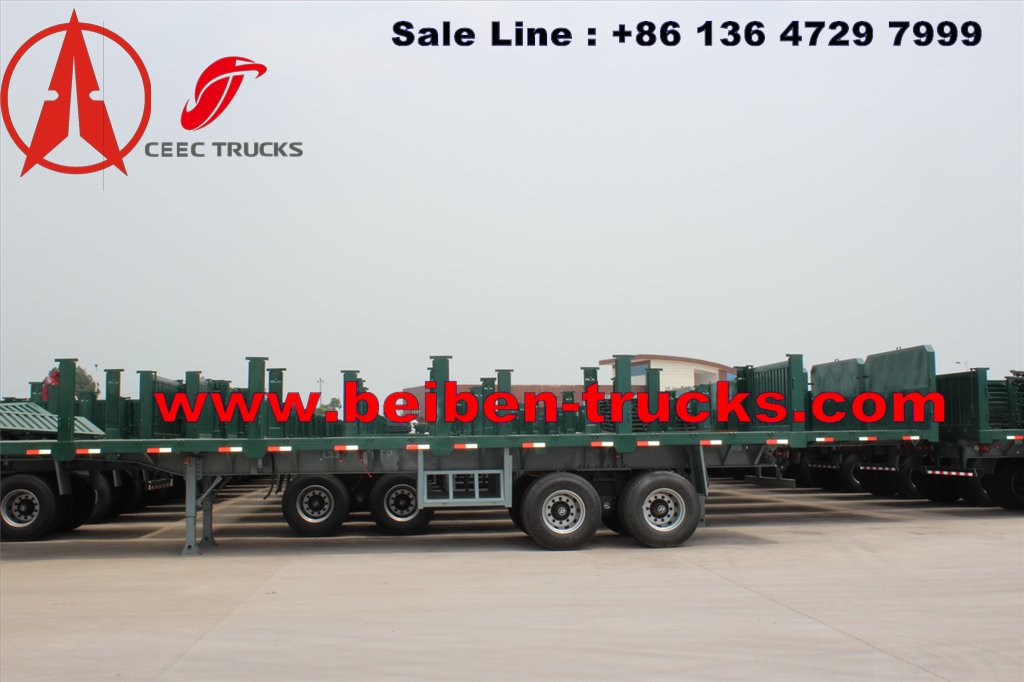

Great quanity bogie suspension that we export to congo, nigeria, kenya, tanzania
