40 ft bogie suspension skeleton trailer serves the needs of customers transporting special equipment or material that create loads which are wide, over length, over-sized, overweight, or any combination thereof but can still legally move on the road. A bogie suspension trailer service is ideal for construction sites or shipping points that have no available dock or require quick loading and unloading for projects on the move with time sensitive schedules.
40 feet bogie suspension trailer skeleton model supplier
Key features for CEEC produced bogie suspension trailers:
1. Axle up and down automatically
2. Loading platform keep balance automatically
3. Commonly used in transportation for military, vessel, spaceflight and extremity area
4. The contents of core technology creates countless possibilities and each individual component of the trailer construction kit can be used more frequently and accordingly be amortised faster. Total investment in the vehicle fleet is thus considerably reduced.
5. The maximum technical axle load of the different types of bogies was defined on the basis of a minimum speed of 30 km/h. This leads to a considerable optimisation of the dead weight compared to known modular axle lines.
6. Despite the weight optimisation, an enormous bending moment across all bogie variants is achieved by the use of high-strength fine-grained steels and a new frame design.
7. Particular importance was attached during the development to the simple operability of the overall concept.
8. The intuitive operator guidance significantly increases safety and reduces the risk of incorrect handling.
CONGO best semi remorque supplier for 40 T bogie suspension semi remorque, 60 T bogie suspension semi remorque, 70T bogie suspension semi remorque. We exported more than 100 unis bogie suspension semi remorque to CONGO, POINTE NOIRE.
Similar Key words: bogie suspension trailer, 2 axle bogie suspension semitrailer, skeleton bogie suspension trailer, container bogie suspension trailer, 50T bogis suspension semi trailer, Congo bogie suspension trailer
| Trailer Model
|

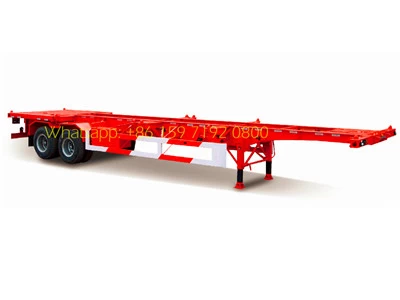

2 Axle skeleton bogie suspension Semi Trailer
|
| Function
|
Carry 40ft or 2*20ft container or other stuff
|

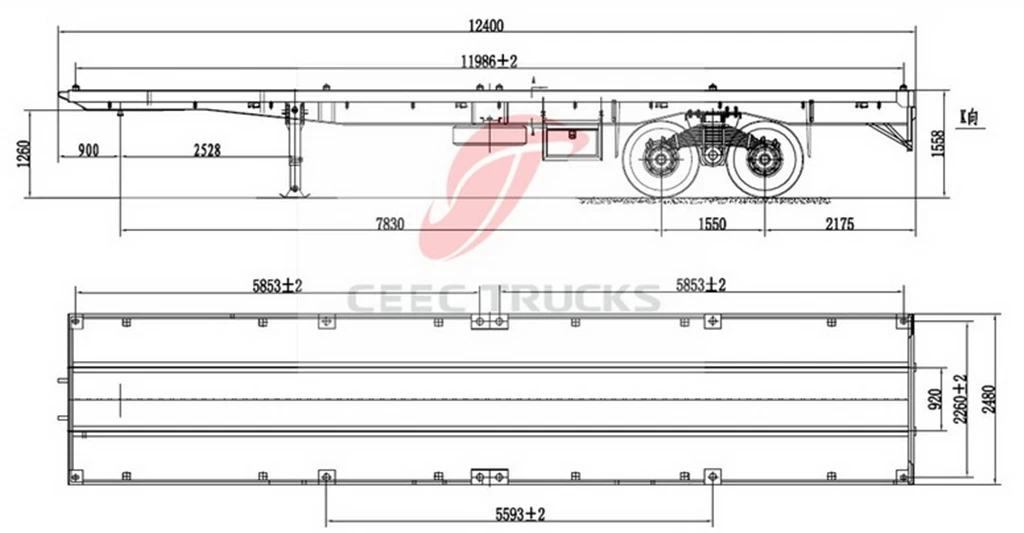

| Overall Dimension
(Lx W x H)(mm)
|
12500*2500*1650
|
| Tare Weight(KG)
|
6350
|
| Loading Weight( KG)
|
40000
|
| Total Weight(KG)
|
50000
|

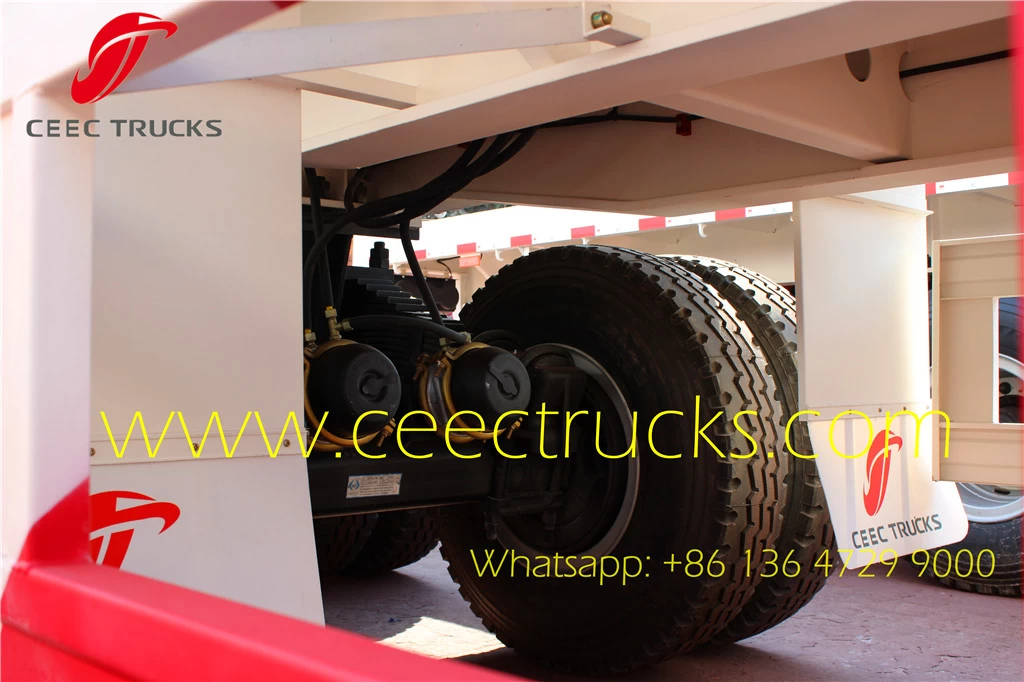

| Axle
|
13 TON Axle
|
| Axle Number
|
Two
|
| Wheelbase(mm)
|
7450+1310
|

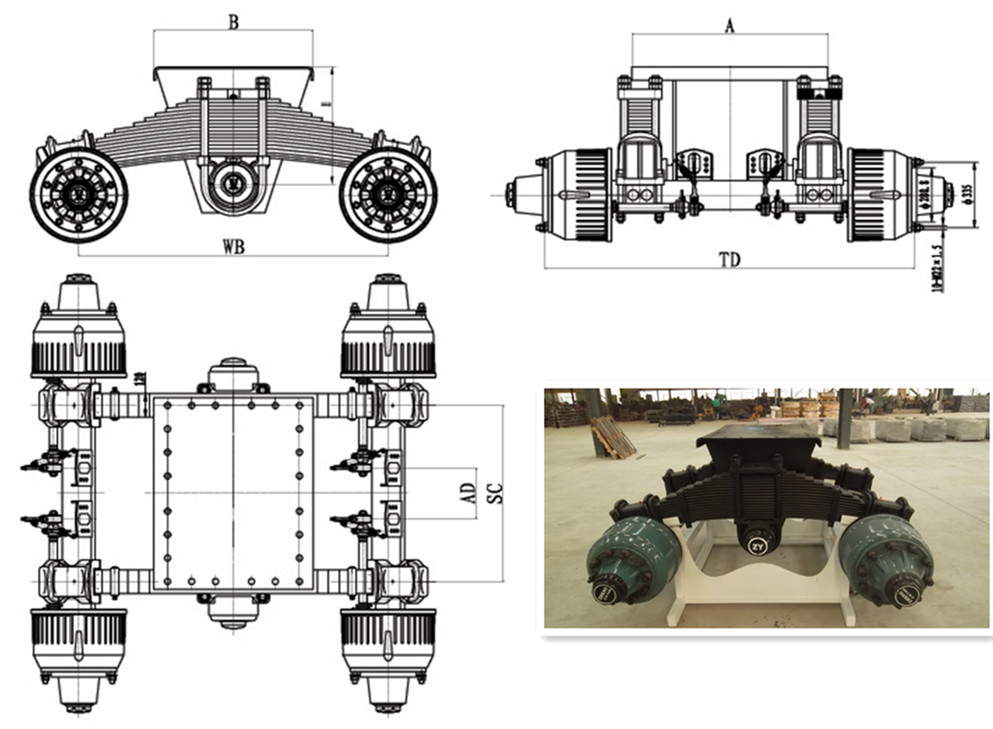

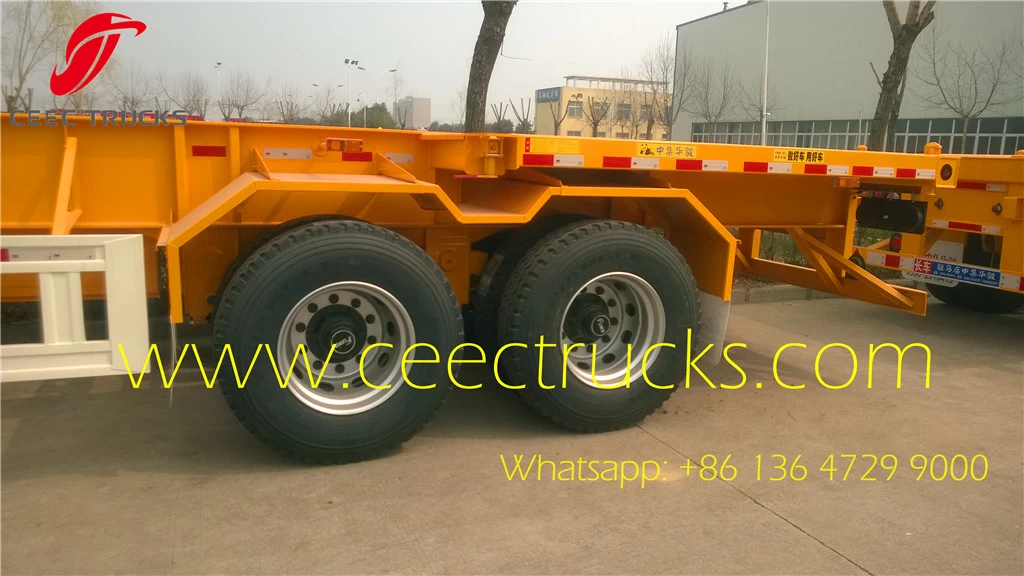

| Suspension system
|
Common Mechanical Suspension
|

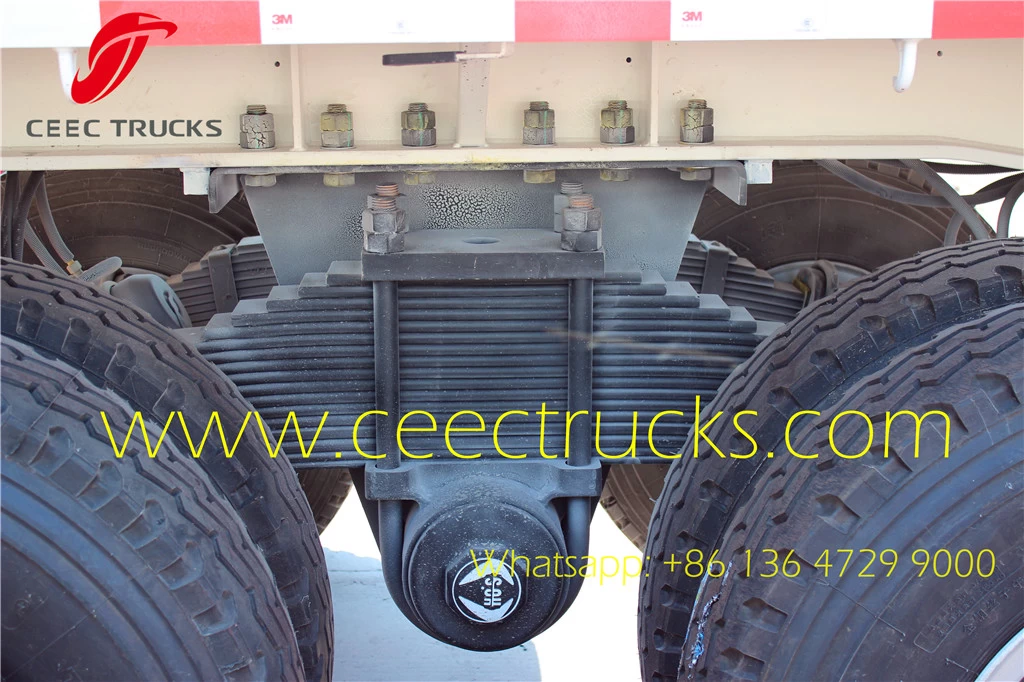

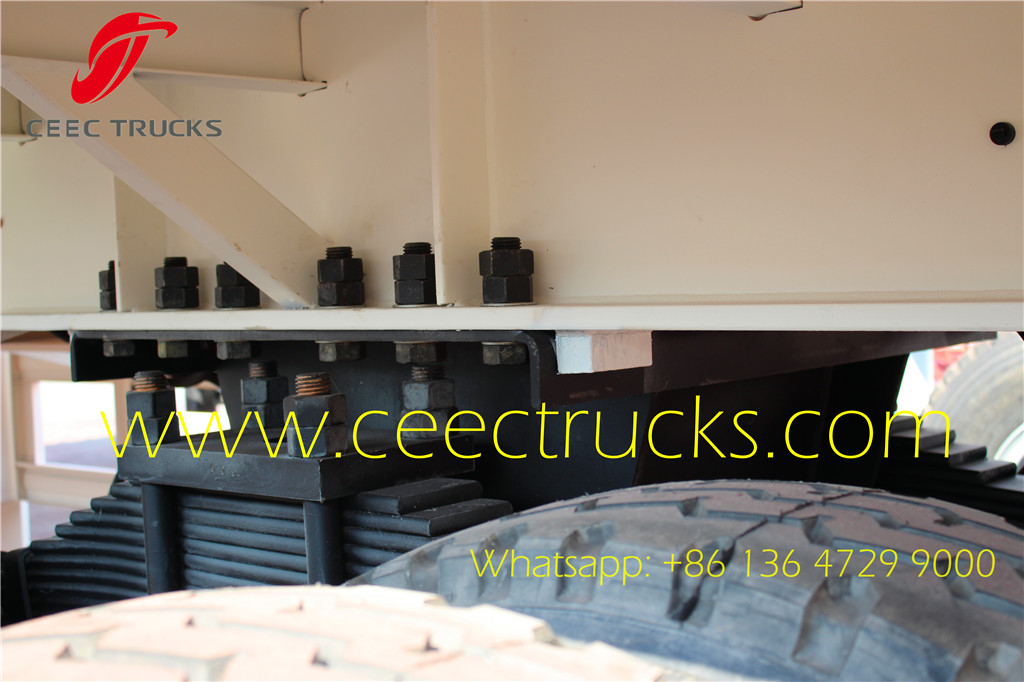

| Steel Spring
|
10/10/10 leaf spring suspension
|
| The material of Main beam
|
The height of the beam is 500 mm, upper plate is14mm,down plate is 16mm, middle plate is 8mm.
|
| Platform plate
|
3mm Diamond plate
|
| Container Twist Locker
|
12 pcs container lock
|
| Tire Type and quantity
|
12R22.5 8 units
|

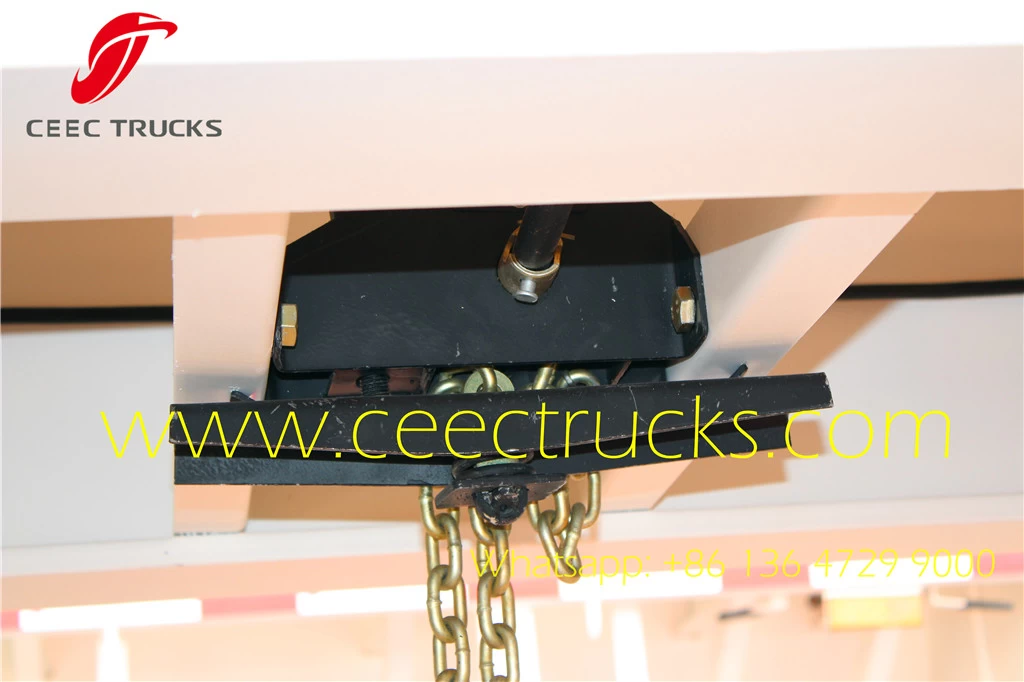

| Traction Pin
|
50MM or 90MM
|
| Spare Wheel Bracket
|
2 pieces
|
| Tool Box
|
1 Standard
|

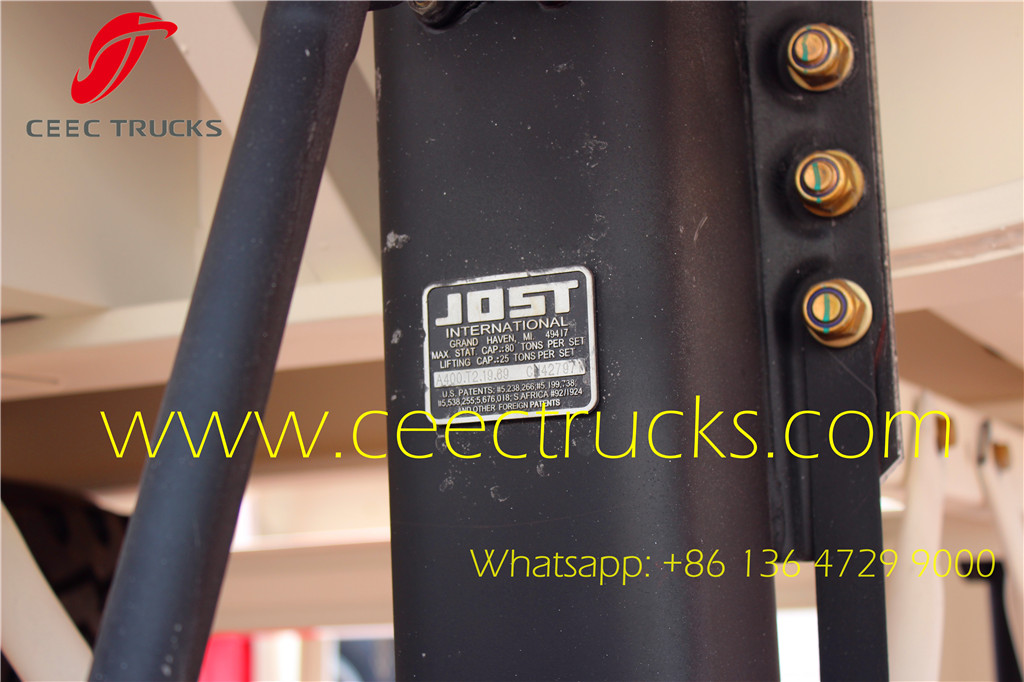

| Landing Gear
|
28 ton
|

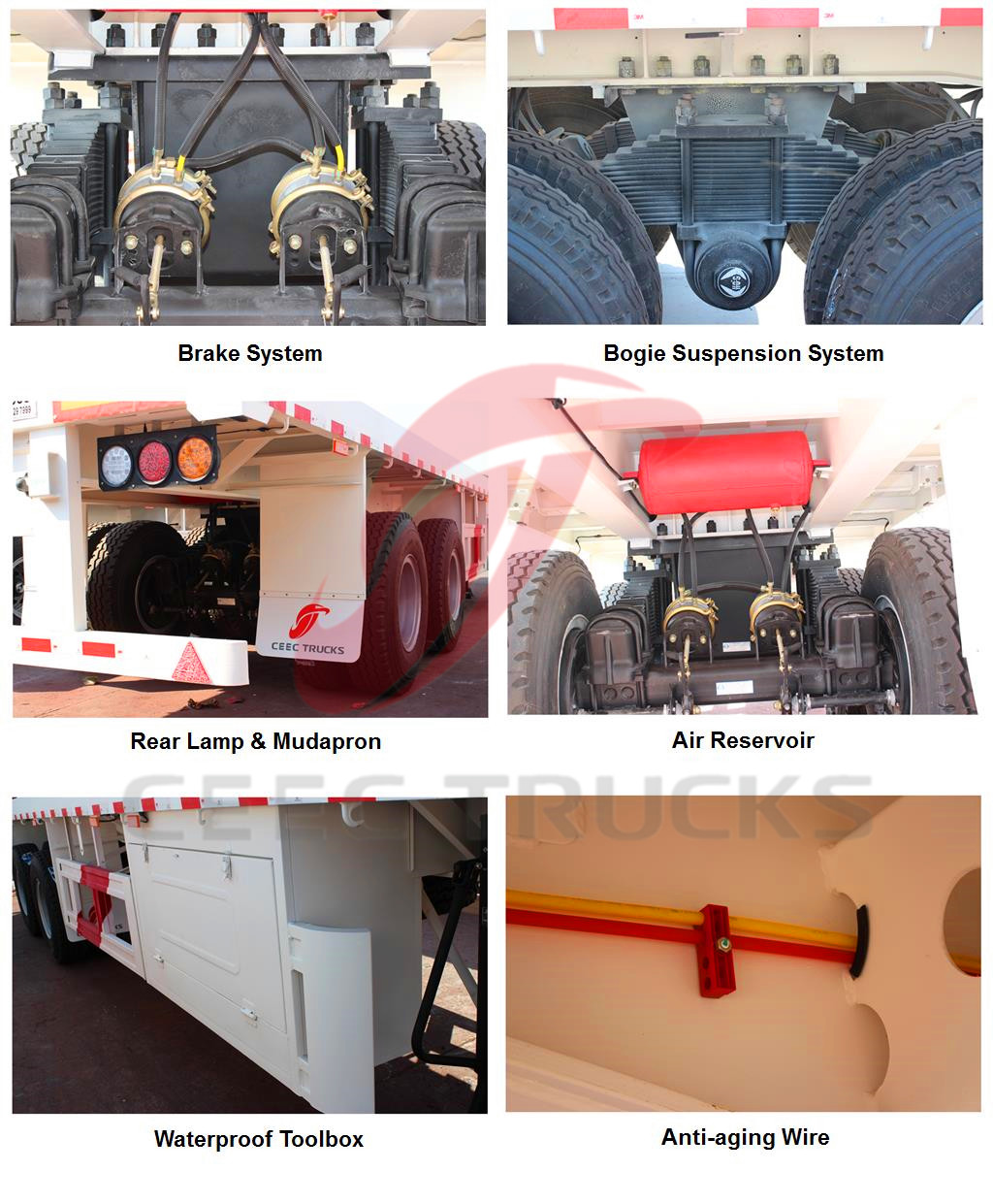

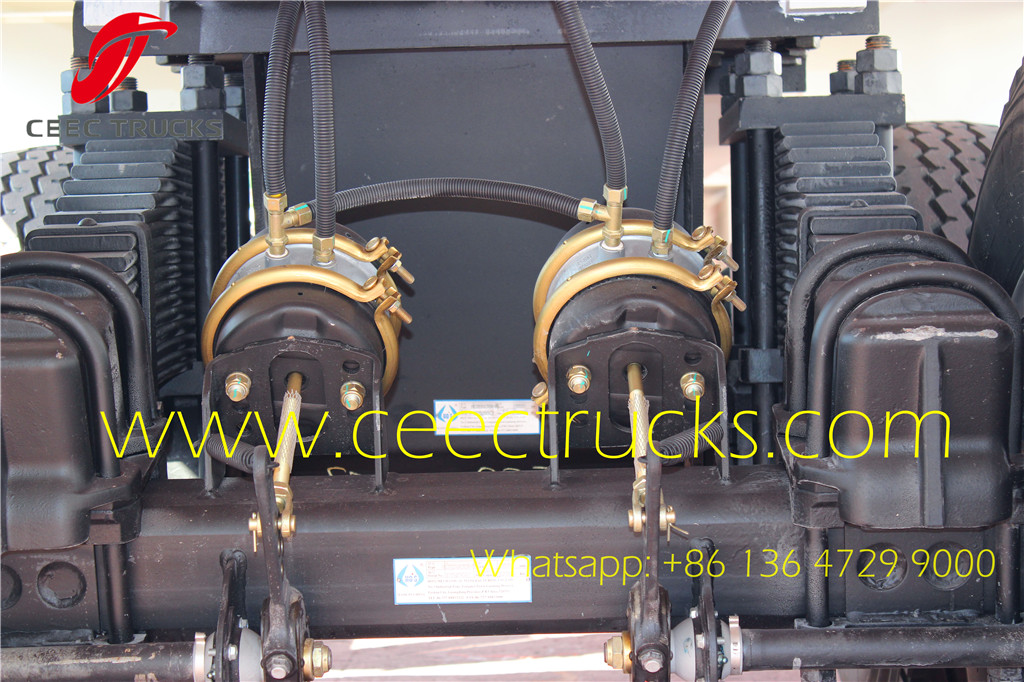

| Brake system
|
Dual Line braking system, none ABS
|

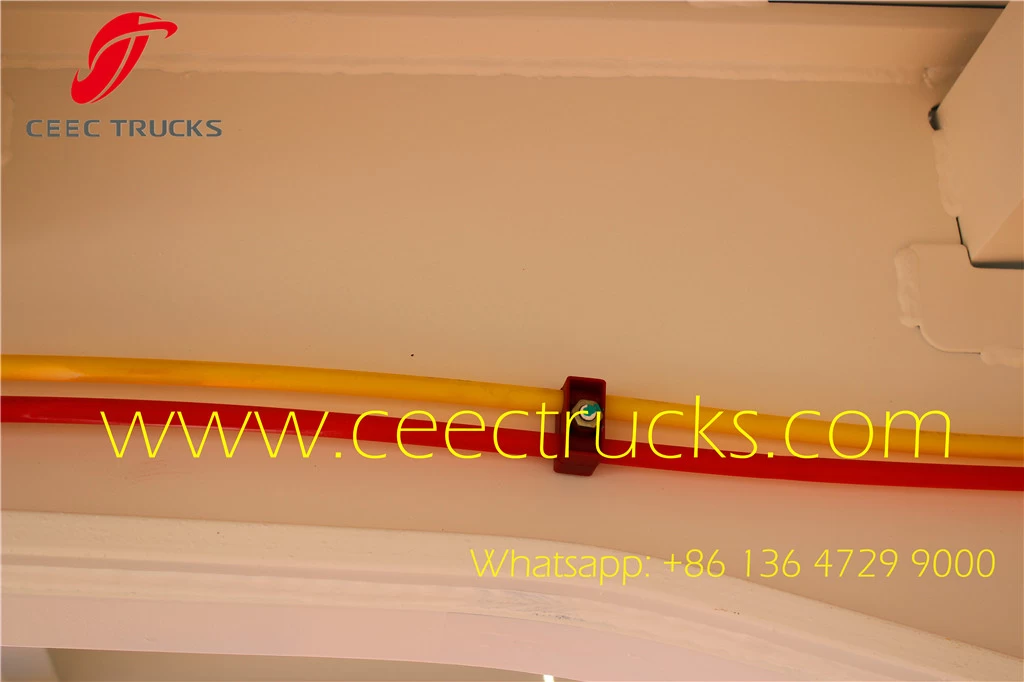

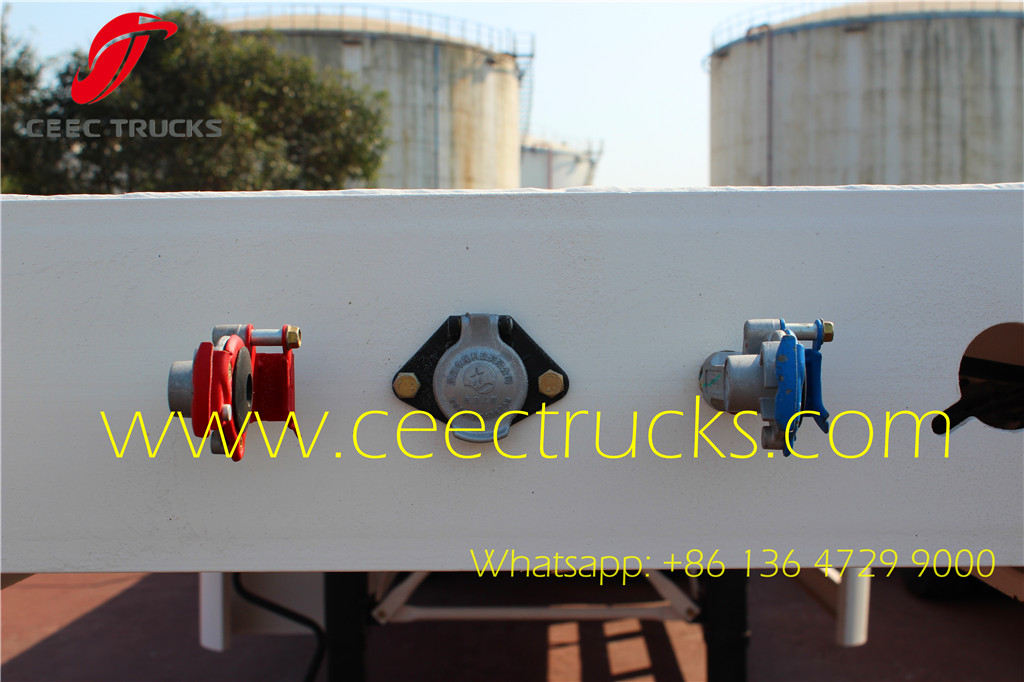

| Electrical system
|
1. Voltage: 24v 2. Receptacle: 7 ways (7 wire harness)
|

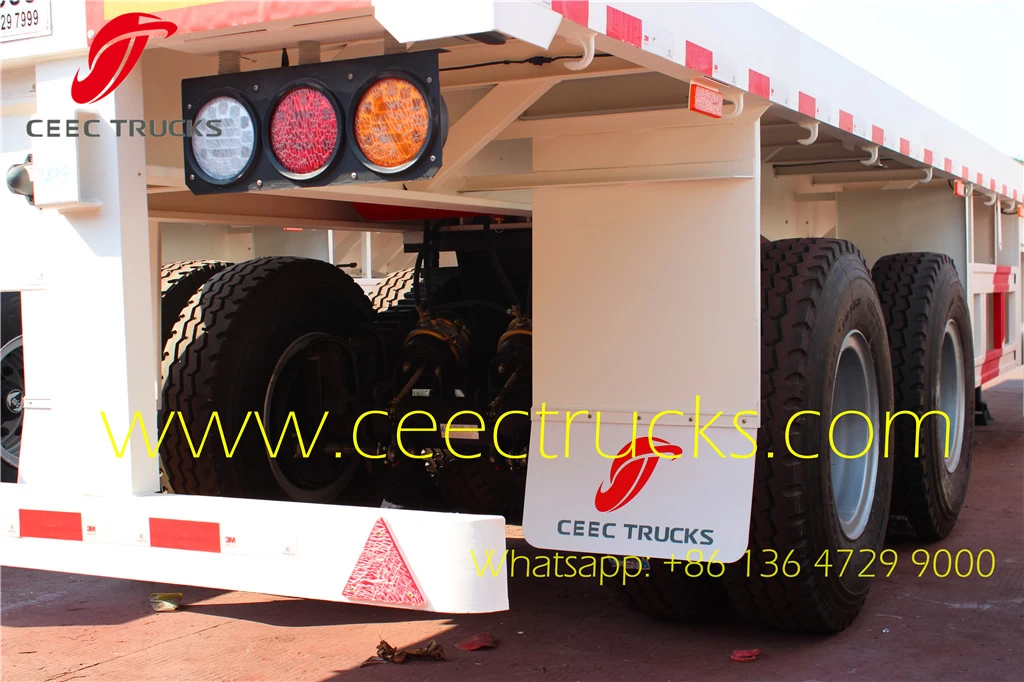

| Tail lamp with turn signal, brake light & reflector, side lamp etc.
|
| One set 6-core standard Cable.
|

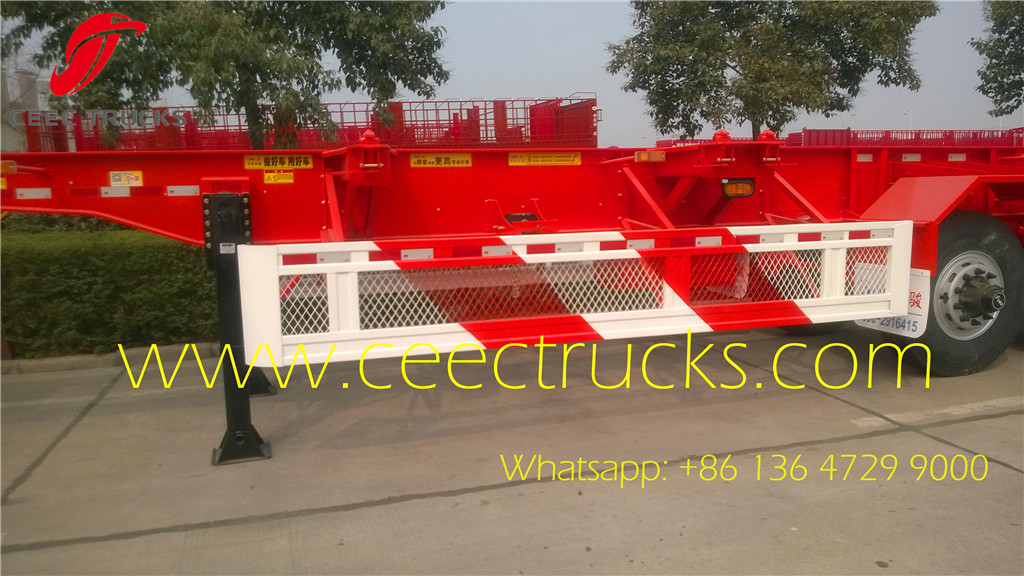

| Side Guard
|
According to customer’s requirement
|
| Painting
|
Color as customer’s requirement
|
| Package
|
NUDE, Polish with wax before shipping
|
| Delivery way
|
Transfer to Qingdao Port, and carry by ro-ro ship, the freight cost depends on the volume.
|
