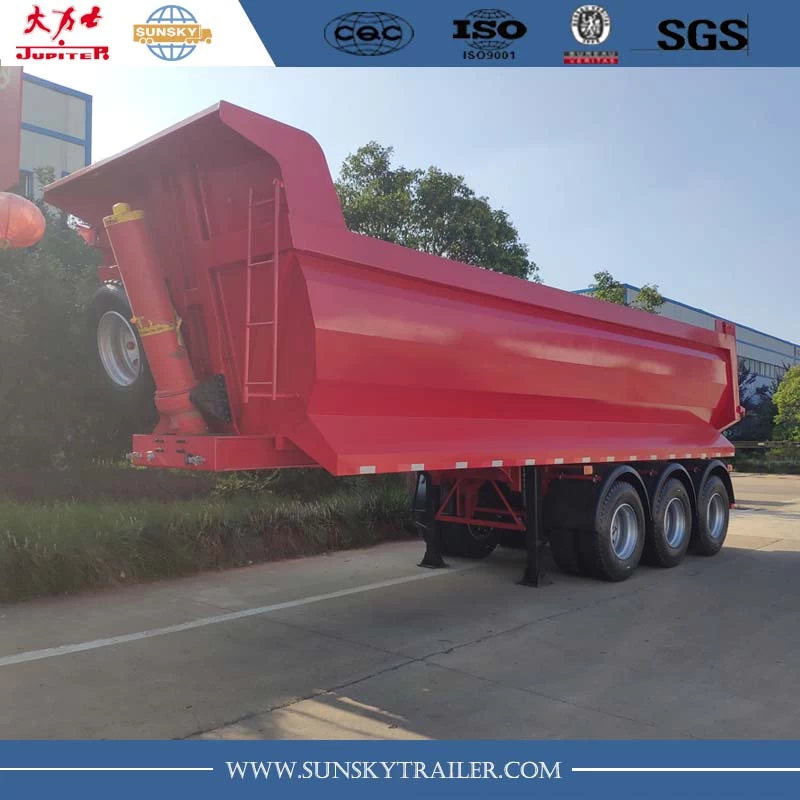

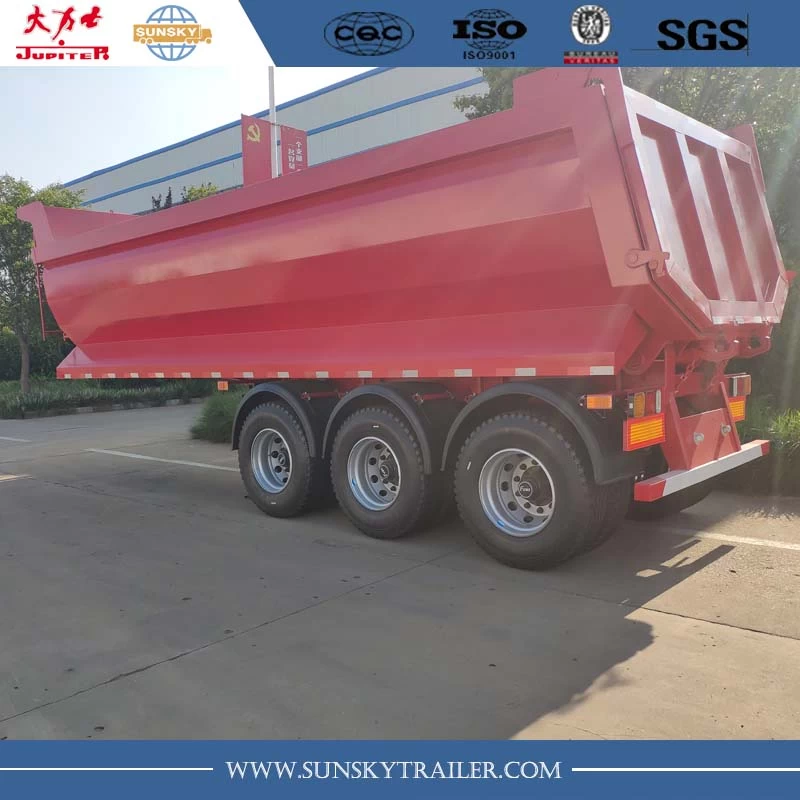

Item: 40 Tons Tipper Trailer For Coal Transport
40 Tons Tipper Trailers is used for carrying coal and loose material like sand, steel bars, gravel, dirt generally for construction. In Tipper Trailers there we use world famous Hvya brand hydraulic to lift the trailer. SUNSKY Trailer can offer its customers different kind of Tipper Trailers solutions for according to their loads.
Features:
‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑
1. Lighter tare weight . SUNSKY dump trailer adopts high-strength steel . It with a higher loading performance than the normal Q345 steel . In this case , the trailer's tare weight reduced by 20%~40%.
2. Less fuel . SUNSKY dump trailer can save 4~5L diesel for you within 100km .
3. HYVA hydraulic lifting cylinder with a strong lifting power and its performance is stable . It also with the global quality warranty .
4. Fast discharge and less residual . The inside of SUNSKY tipper trailer body is smooth and without corner pockets . So, the trailer's discharge can be faster .
Specification:
‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑
|
Style
|
27CBM 3-Axle U shaped Tipping Semi-trailer
|
|
Model
|
FTW9400ZZX
|
|
Dimension(L*W*H)mm:
|
9060*2600*3450
|
|
The material of body
|
BS700MC high tensible 4mm
|
|
Payload(kgs):
|
40000
|
|
Volume(CBM)
|
27 CBM
|
|
Tare weight(kgs):
|
9200
|
|
Kingpin
|
JOST 2” bolt-in
|
|
Landing gear
|
JOST19”
|
|
Tire and rim
|
12R22.5
|
|
Axle
|
3 Axle,13 Tons
|
|
Suspension
|
Germany type spring suspension with 8 pcs of leaf spring
|
|
Brake system
|
Wabco brand
|
|
Air Chamber
|
MBA T30/30
|
|
Hydraulic
system:
|
HYVA FE172-4-05390
|
Quality Guarantee:
‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑
1. More than 30 years experiences in trailer and truck industrial,exported to more than 30 countries in Africa,Southeast Asia.
2. Two years free warranty terms for the I beam,three to six month free warranty terms for the Axles,suspension etc.
3. Spare parts support services.
4. Able to custom-built design as your requirement,ensure to meet your local road regulation.
