Product Name
Directional Coupler also one of our hot sale passive components,especially 200w 400-430MHz Directional Coupler type
Product Features
◆ Bettr coupling
◆ Low VSWR
◆ Low Insertion Loss
◆ Indoor Application
Technical &Mechanical Specifications:
|
Modle
|
YF-DC-443-06/07-NF
|
YF-DC-443-10-NF
|
YF-DC-443-15/20-NF
|
YF-DC-443-30-NF
|
YF-DC-443-30-NF
|
|
Frequency(MHz)
|
400-430MHz
|
|
Coupling(dB)
|
6/7±0.3
|
10±0.4
|
15/20±0.4
|
30±0.5
|
40±0.6
|
|
Insertion Loss(dB)
|
1.85/1.6
|
0.8
|
0.4/0.3
|
0.3
|
0.2
|
|
VSWR
|
≦1.20:1
|
|
Power(W)
|
200
|
|
Directivity(dB)
|
≧20
|
|
RF Connector
|
N-Female
|
|
Inpedance(Ω)
|
50
|
|
Color
|
Black
|
|
Operating Temperature
|
-35~+80
|
|
Application
|
Indoor
|
Services:
1. Professional skills support for400-430MHz 200W Directional Coupler low Insertion Loss with NF Connector
2. OEM services is available.
3. 24 hours you can contact our salesman and engineer.
4. We will try our best to provide support whatever you need and we can do.
NOTE:All the specifications can be changed as customer's requirment. Our company has a variety of products to choose

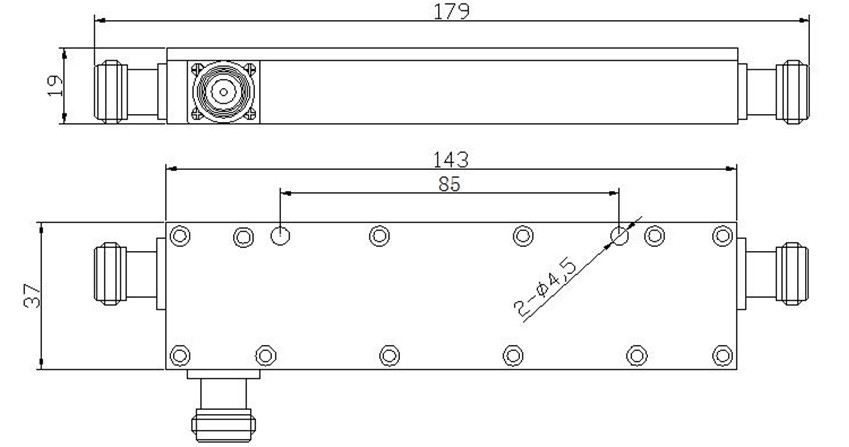

Outline Drawing:

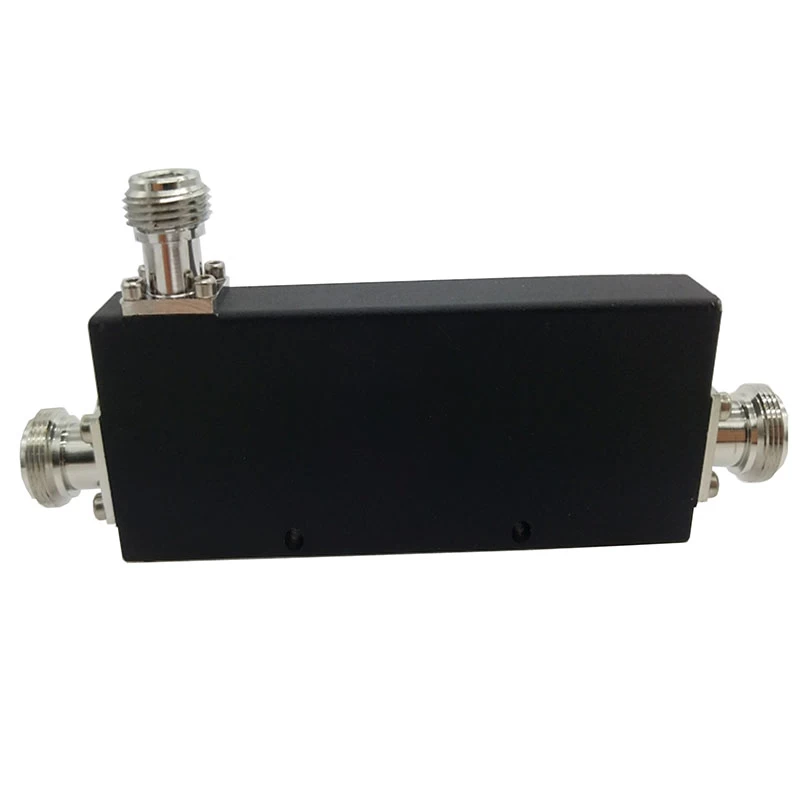

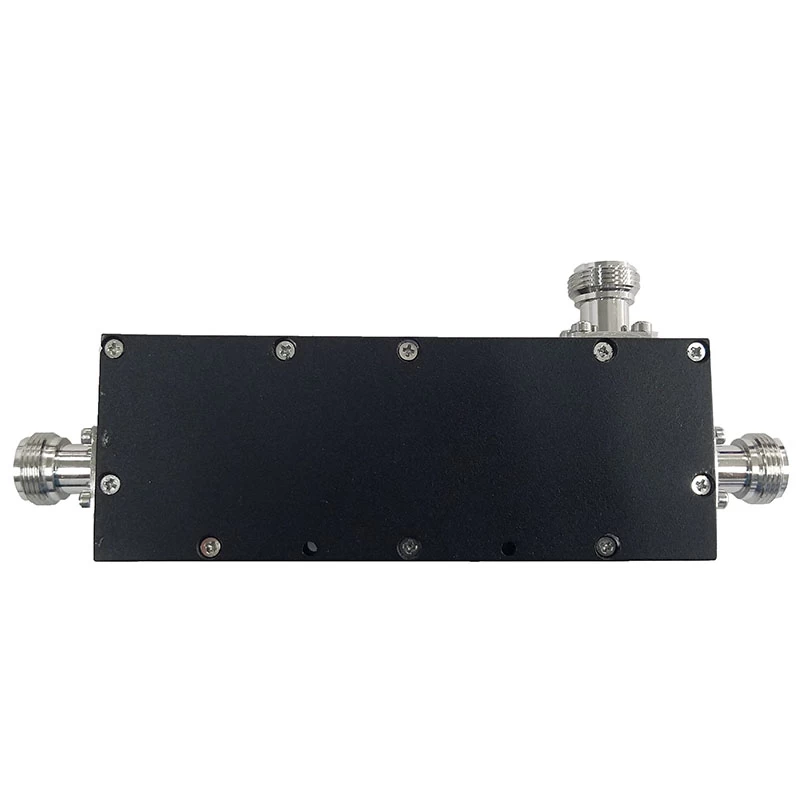

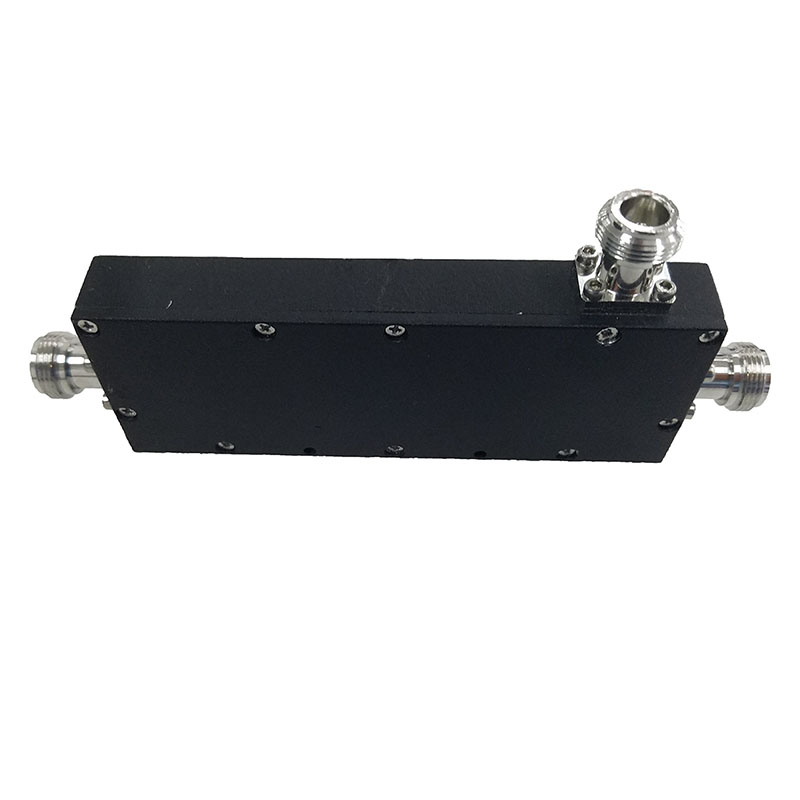

Detailed Picture:
