Product Name

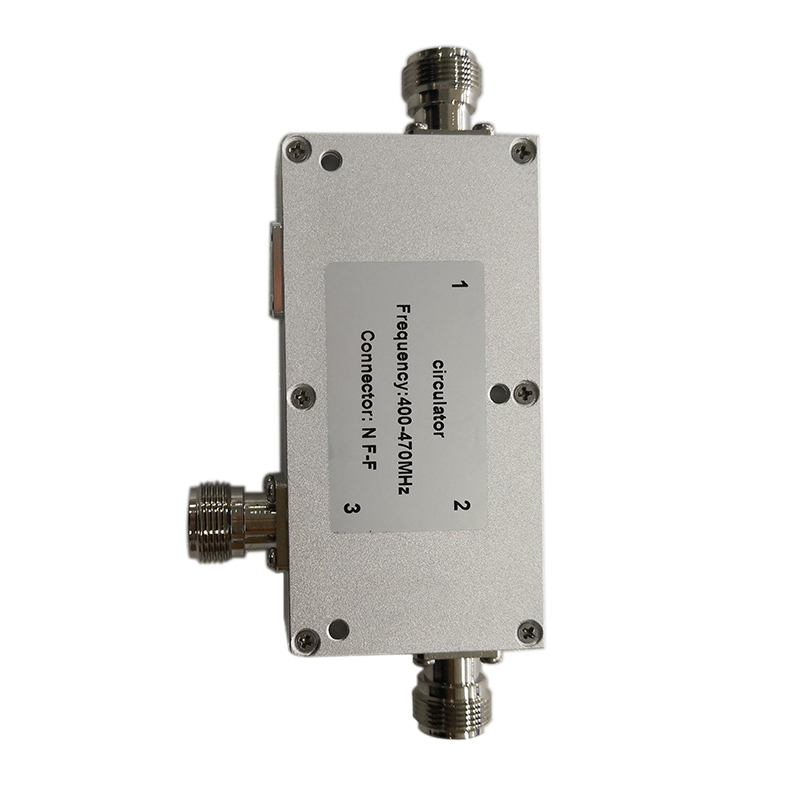

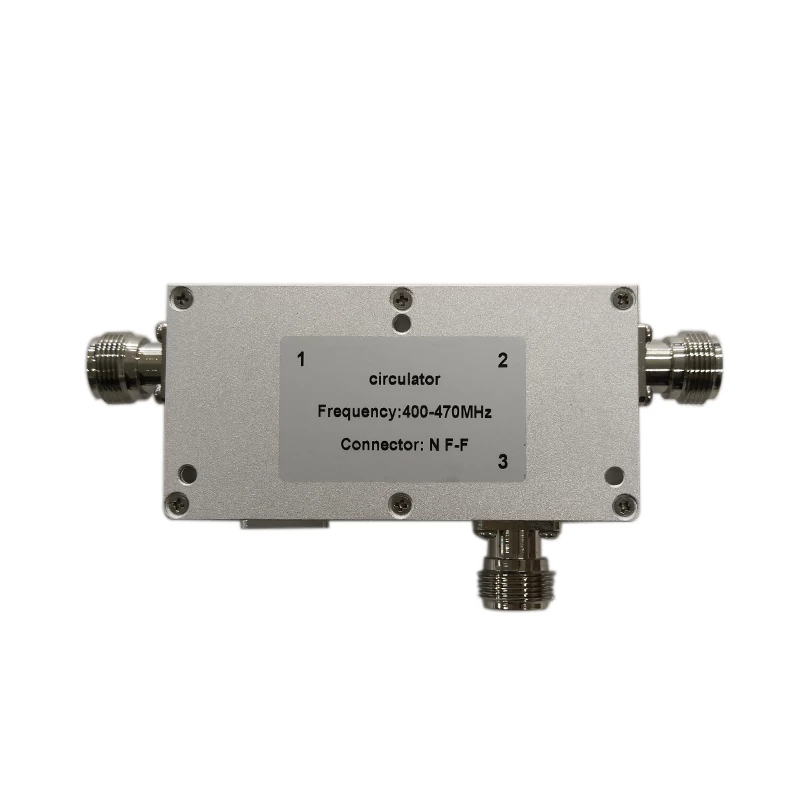

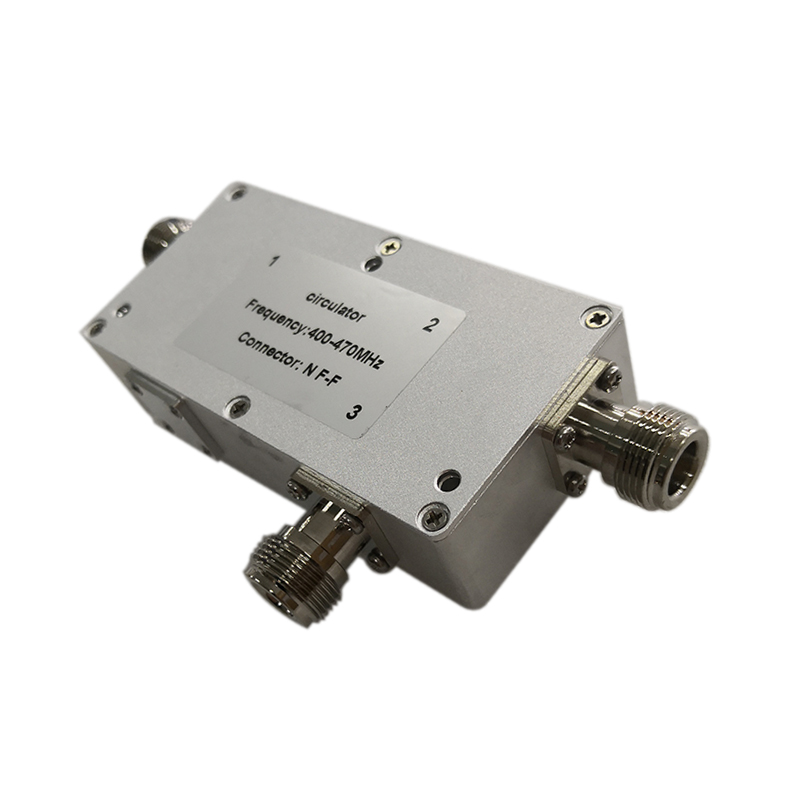

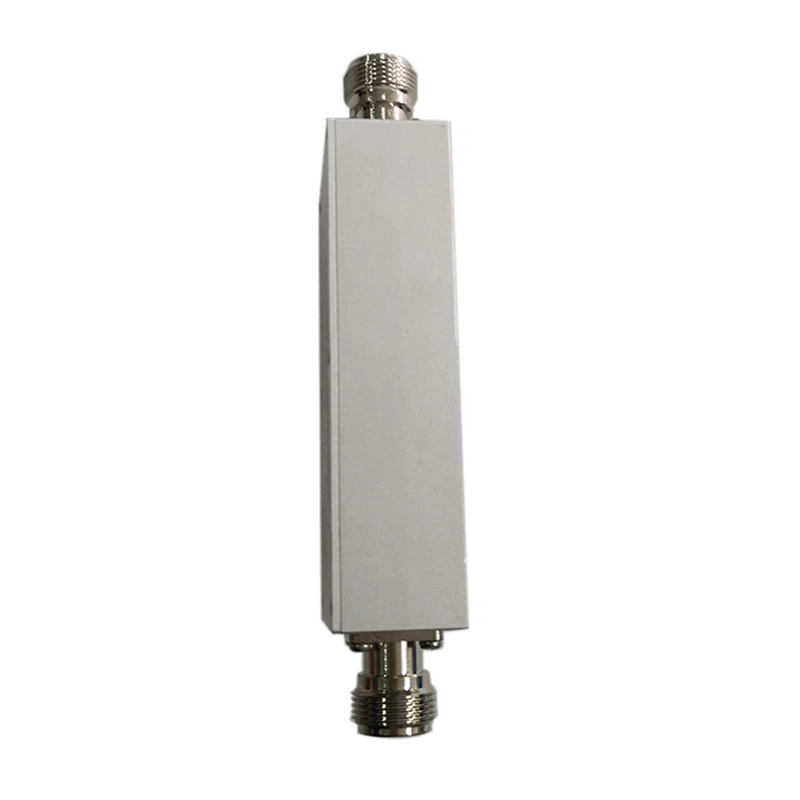

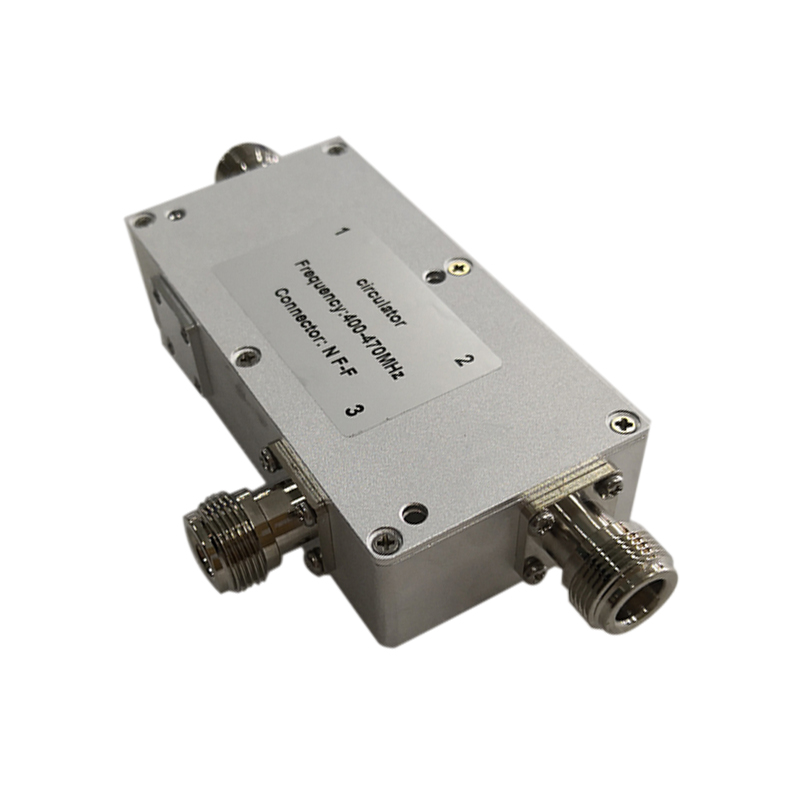

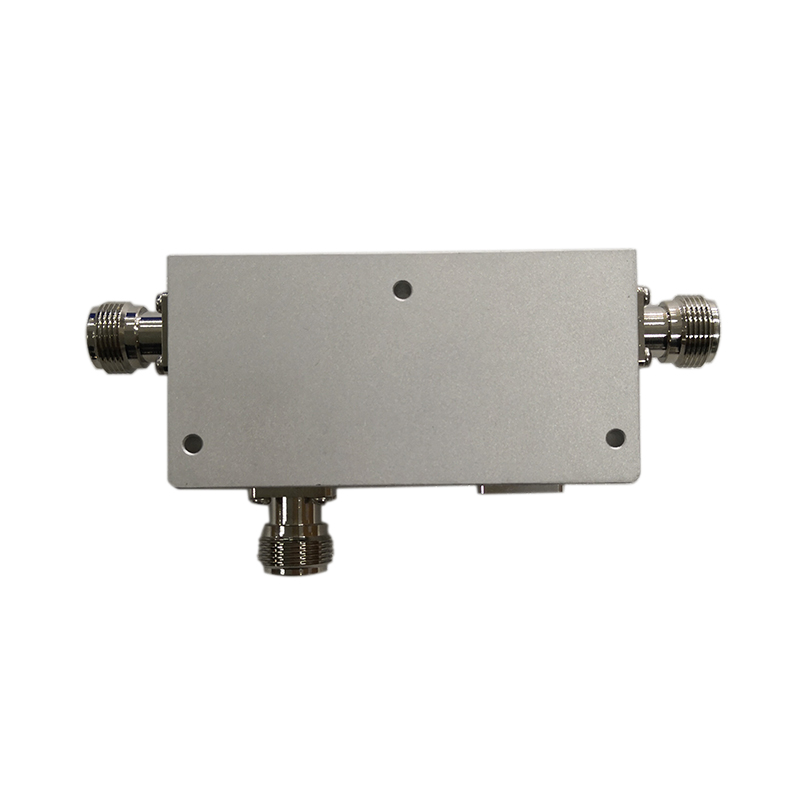

Coaxial Circulator frequency around 400-470MHz that with high isolation and low VSWR,widely used for different area.
Product Features
◆ Low VSWR
◆Low Insertion loss and High Isolation
◆ Widely used for Military,Space and Commercial Applications
Technical &Mechanical Specifications
|
Model No.
|
MNC-UHF-100-NF
|
|
Freq(MHz)
|
400-470MHz
|
|
Insertion Loss(dB)
|
≤0.8
|
|
VSWR
|
≤1.2
|
|
Isolation(dB)
|
45min
|
|
Power Rating(W)
|
100
|
|
Reverse Power(w)
|
100
|
|
Impedance(ohm)
|
50
|
|
Connector
|
N-Female
|

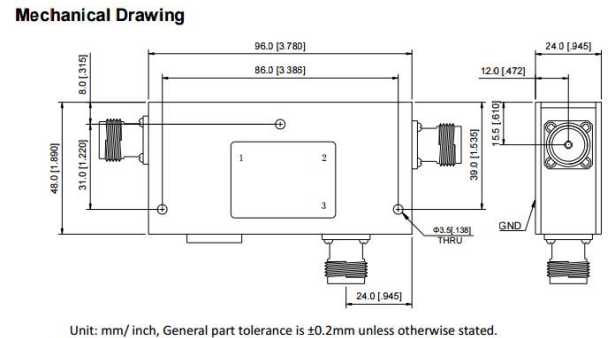

Mechanical Drawing (mm)
