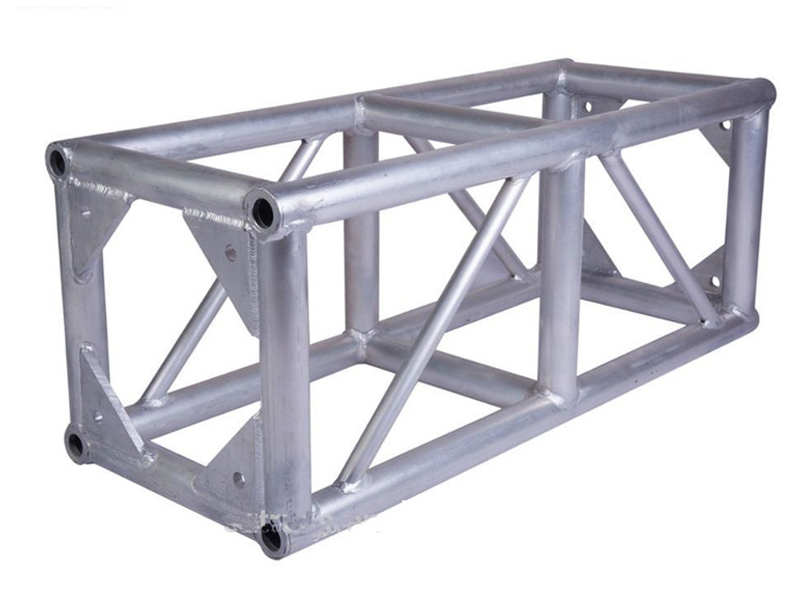

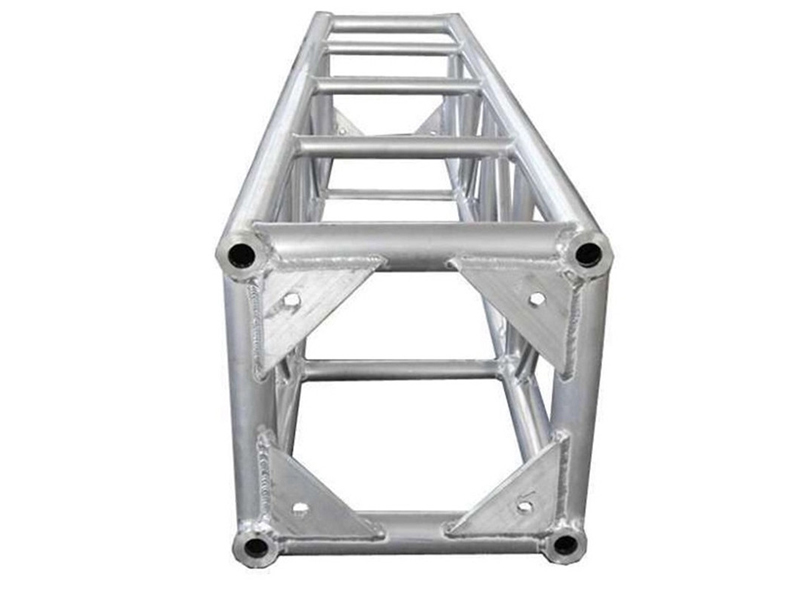

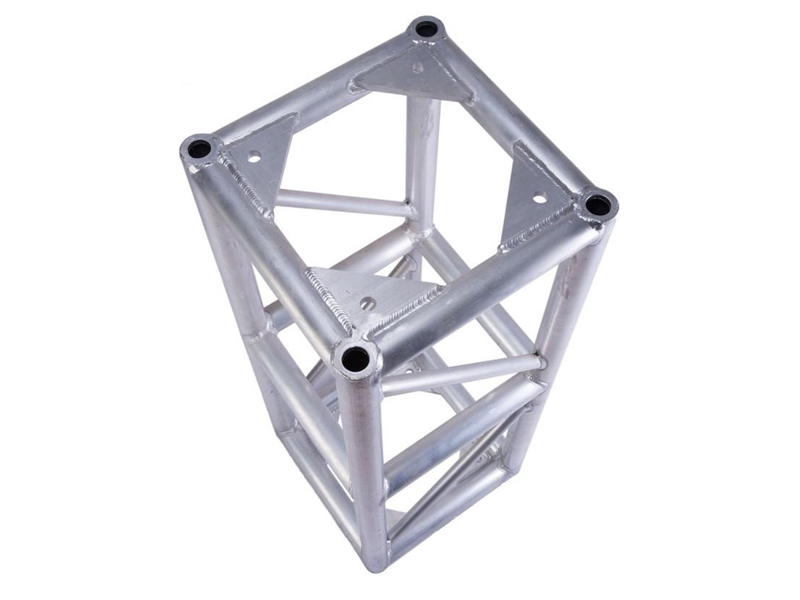

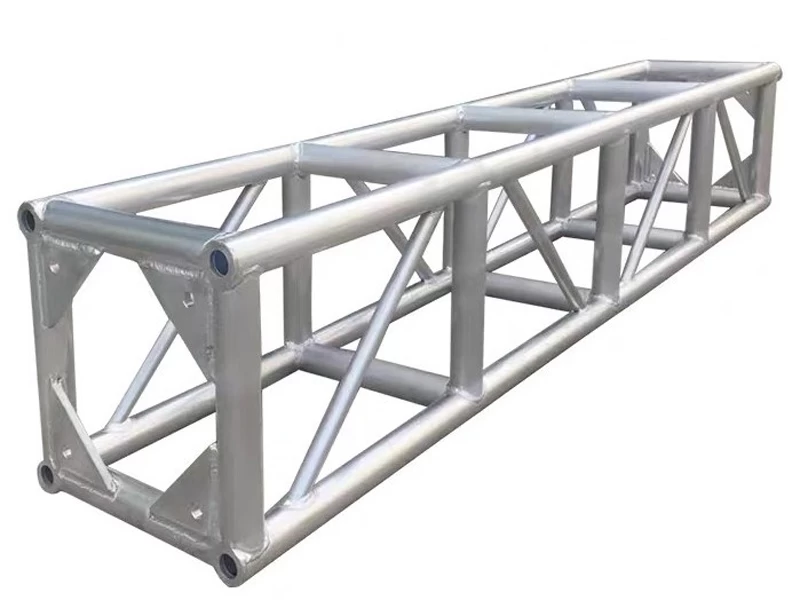

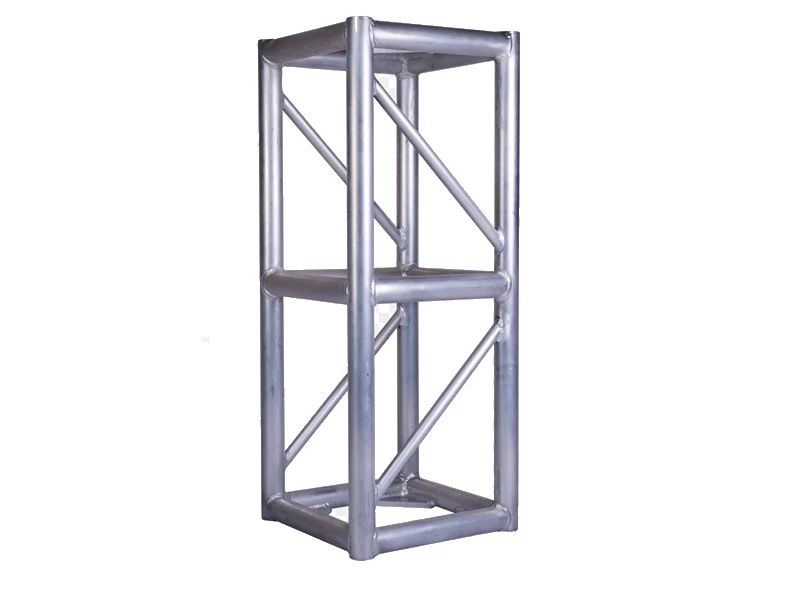

400 Medium duty bolt Square Truss Ladder:
ITSC-BS40 Square One Truss is medium-duty segment with Main-tube 50 x 3 mm, Sub-main tube 50 x 2 mm, Bracing 25 x 2 mm, andit offers an optimum lifting capacity and indicates the practical versatile in all kindsGround Support Truss Systemsfor concerts, exhibitions, tents, events, and other complex structures like displays or booths.
Features:
-
4- point nodding
-
TUV and SGS approved
-
Free design and technology support
-
O EM and ODM acceptable
-
Powder coating and anodizing to any color without any peeling
Specification:
|
Material
|
Aluminum Alloy 6061-T 6/ 6082-T 6
|
|
Types
|
Square
|
|
Main tubes
|
50 x 3 mm
|
|
Sub-main tubes
|
50 x 2 mm
|
|
Braces
|
25 x 2 mm
|
|
Connection type
|
Bolt
|
Length and Weight:
|
Length
|
Weight
|
|
50 cm
|
9.7 kg
|
|
100 cm
|
13.5 kg
|
|
150 cm
|
17.15 kg
|
|
200 cm
|
20.70 kg
|
|
250 cm
|
24.35kg
|
|
300 cm
|
28 kg
|
Other length can be custom on request.
Application:
Square Truss Bridge is widely used for hire, decorations, car shows, exhibitions booths, churches, world cup events, ect.
