400 x 600 Cheap Stage Bolt Rectangular Truss as Beam

6082 t6 Aluminum Rectangular Truss 400 x 600mm is usually applied as Truss Beam in Modular Truss Systems. It is Cheap Truss with bolt connection.

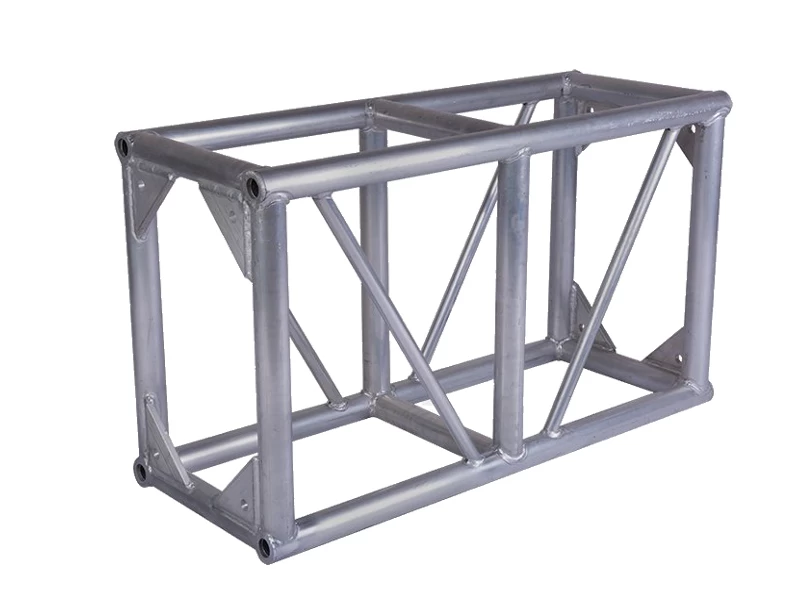

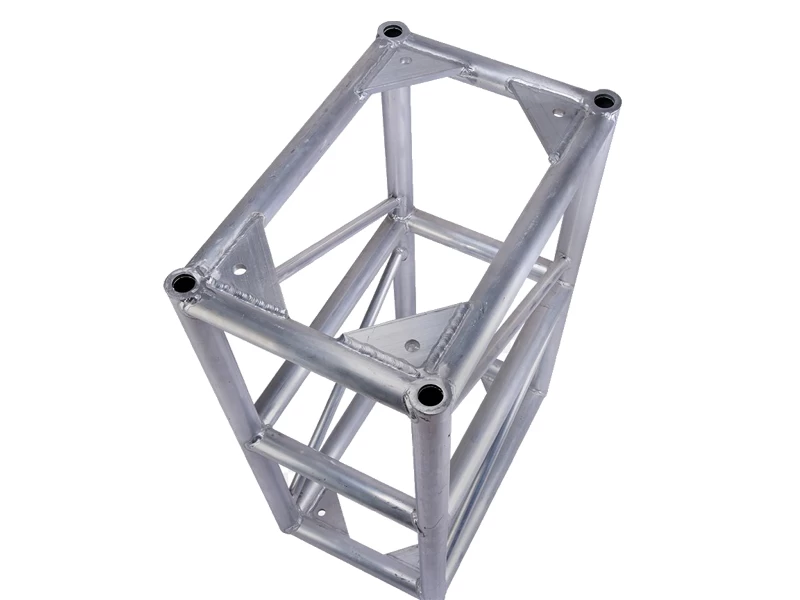

400 x 600 Cheap Stage Bolt Rectangular Truss:

The RectangularTruss 400 x 600mm offers  a longer span and stronger capacity compared with 400x400mm Squad Truss. And it can be extended to 20m span with 400kg capacity. So it is usually applied as Truss Beam in all medium Cheap Roof Trusses.

Features:

  1. 4- point nodding
  2. TUV and SGS approved
  3. Free design and technology support
  4. OEM and ODM acceptable
  5. Powder coating and anodizing to any color without any peeling

Specification:

Material Aluminum Alloy 6082-T 6
Types Rectangle
Main tubes 50 x 3 mm
Sub-Main tube 30 x 2 mm
Braces 25 x 2 mm
Connection type Bolt Connection

Length and Weight:

Length Weight
50 cm 5.5 kg
100 cm  9 kg
150 cm 14.25 kg
200 cm 15.25 kg
250 cm 16.5 kg
300 cm 22.5 kg

Other length can be custom on request.

Application:

The Aluminum Rectangle Truss  is widely used for Truss Beam, Roof Truss Support Beam, Truss Beam Bridge, I Beam Roof Trusses.
