Fourier Transform Infrared Spectrometer-(ft-ir spectrometer 4000-400cm-1/7800-375cm-1)
SPECIFICATIONS
TOB-FT IR-650 Fourier transform infrared spectrometer is with simple operation, stable function and lower maintain cost, it is widely used in pharmaceutical, chemical, petroleum, environmental protection, materials, semiconductor, optical, and other fields, is an integral analysis laboratory research and production testing tools.
|
Model
|
ft-ir Spectrometer TOB-FT IR-650
|
|
Voltage supply
|
AC 110V/220V 50HZ/60HZ±10%
|
|
Power
|
300W
|
|
Warranty
|
One year limited warranty with lifetime support
|
|
Instrument
characteristics
|
1 High stability of optical system,
2 High-performance electronic systems,
3 Super light weight design,
4 Humanization humidity protection design
|
|
Spectral range
|
4000-400cm-1/7800-375cm-1
|
|
Resolution
|
1.5cm-1/1cm-1
|
|
The detector
|
High sensitive DLATGS detector
|
|
Scanning speed
|
Choose the corresponding microcomputer control speed
|
|
Light source
|
Long life and high strength of air cooled infrared light source
|
|
Signal to noise ratio
|
15000:1/30000:1
|
|
Interface mode
|
USB2.0
|
|
Working system
|
Win 98, Win xp, Win 7, Vista
|
|

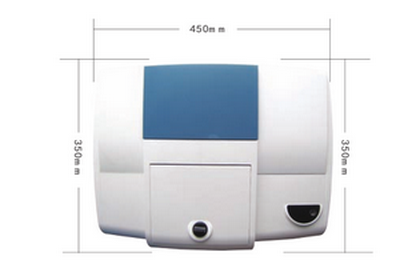

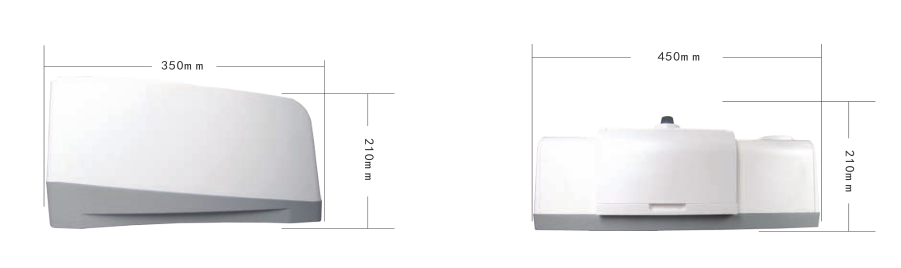

Dimension(L*W*H)
|
450*350*210mm
|
|
Net weight
|
About 20kg
|
PACKAGE AND SHIPPING
|
1 Standard exported package : Internal anticollision protection, external export wooden box package
2 Shipping by express, by air, by sea according to customer's requirements to suggest the most suitable shipping mode
3 Responsible for the damage during shipping process, change the damage part for free
4 Supply with suitable voltage input and power plug according to customer's country requirements.
|
SERVICES
|
1 We supply machines with battery technology support.
2 We can also supply a full set of materials for lithium battery including polymer battery, cylinder battery, mobile phone battery, EV battery.
3 We can also supply a full set of lithium battery equipment for lab research, pilot scale research and production line.
4 We can also supply a full set of battery technology for battery design, research and producing.
|
