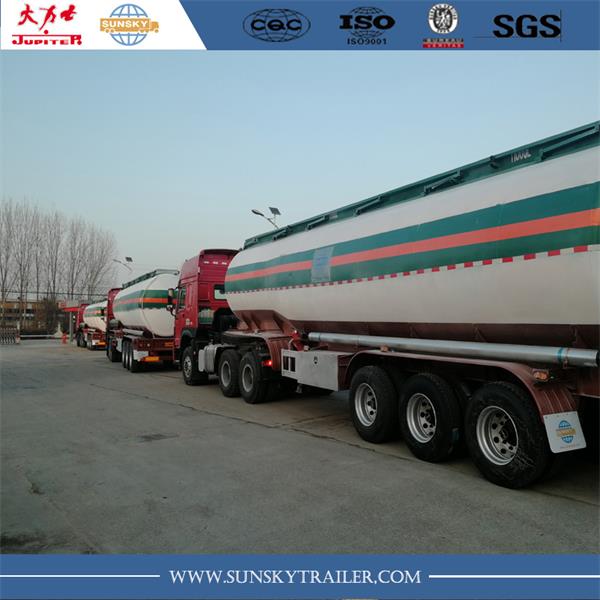

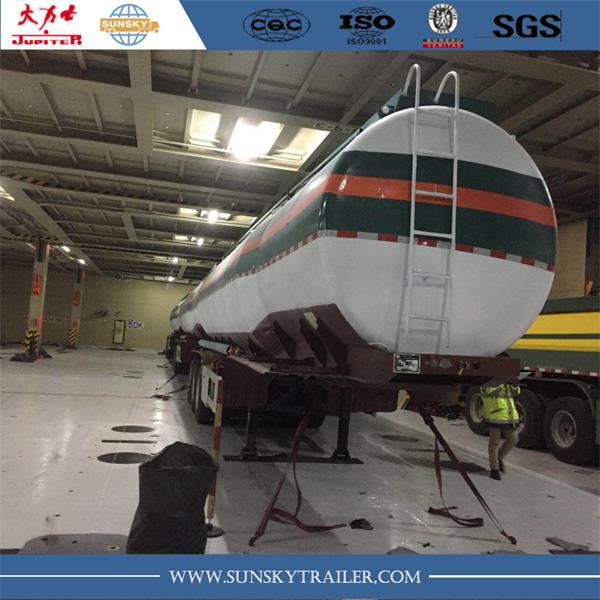

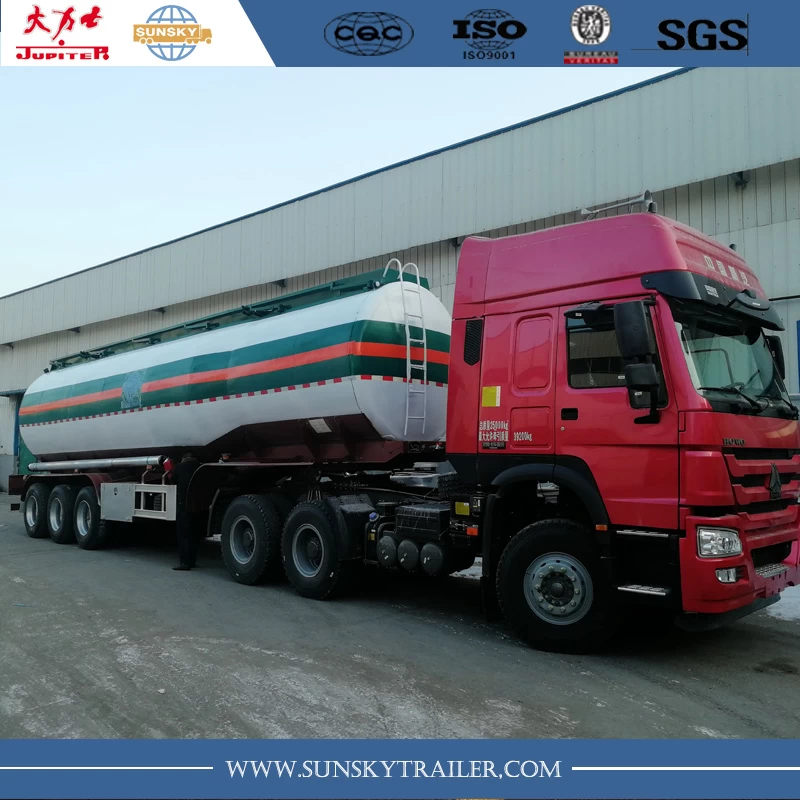

Factory Supply 40000 liters fuel tanker trailer for sale
1.SUNSKY FUEL TANKER TRAILER with heavy duty and extra durability design,opting for high tensible low carbon alloy Q345B steel.I beam welded by automotive arc-submerge process.
2.Equipped famous brand part in alxes,suspension，landing gear.Higher property for your transportation.More reliable and ensure the long life span of trailers.
3.Full braking and electrical systems at home and abroad in accordance with ISO standard, optional ABS system, braking, lighting is absolutely safe and reliable.
4.SUNSKY fuel tanker trailer have quality guarantee,some easily broken parts will be delivered with trailers.Spare parts like tires ,axles etc. can be supplied to you in cost price!
Features:
‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑
1) Manufacturer, 32 years professional experience.
2) Two years guarantee term provided freely.
3) Export more than 1000 units to Africa, Southeastern Asia, and South America.
4) Products can be custom-made according to your design.
Specification:
‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑
|
40,000L 3-axle Fuel Tanker Semi-trailer
|
|
Feature:
|
Carry Fuel,oil,petroleum
|
|
Dimension(L*W*H):
|
11600*2500*3250mm(40,000L)
|
|
Model
|
SS9400FTXA
|
|
Material:
|
Carbon Steel
|
|
Compartment:
|
3
|
|
Capacity(kgs):
|
40,000L
|
|
Tare weight(kgs):
|
10,000kgs
|
|
Kingpin
|
JOST brand bolt-in 3.5”
|
|
Landing gear
|
JOST brand two-speed manual operation 19”
|
|
Tire size
|
11R22.5（13 sets）
|
|
Rim size
|
9.00*22.5（13 sets）
|
|
Axle
|
FUWA 13 tons 3 Axles
|
|
Leafs spring
|
Germany type with 12pcs of leafs spring/ Fuwa brand with 8pcs of leafs spring/ Airbag suspension
|
|
Brake system
|
One unit WABCO RE 4 relay valve; four units T30/30 spring brake chamber; two units T30 spring brake chamber; two units reliable local brand 45L air tank; two units reliable local brand standard coppery air-connector.
|
|
Manhole:
|
Aluminum alloy ø500mm(20”) manhole with aluminum alloy cover; with breather valve;
|
|
Discharge Valve
|
Aluminum alloy discharge valve with cover
|
|
Foot Valve
|
Pneumatic control DN80 aluminum alloy foot valves
|
|
Pneumatic Control system
|
1set Pneumatic Control combined switch
1unit emergency switch
|
|
Discharge Hose
|
2 units 3”×6M factory PVC hose with quick coupling on both ends
|
|
Vapor Recovery & Overfill system
|
Optional
|
|
Fire Extinguisher Carrier
|
2 units at the left of rear of tanker, include 2 units 8kg dry powder type fire extinguisher inside
|
|
Electric system:
|
One unit of 24V 7-pin ISO standard socket; with brake light, turn light, reverse light, side light, reflector, fog light; one set of 6-pin standard cable
|
|
Prime & Topcoat painting
|
S.A.2.5standard sandblasting ;Zinc-rich & Polyurethane painting
|
|
We can build the trailers according to customer’s design and requirement
|

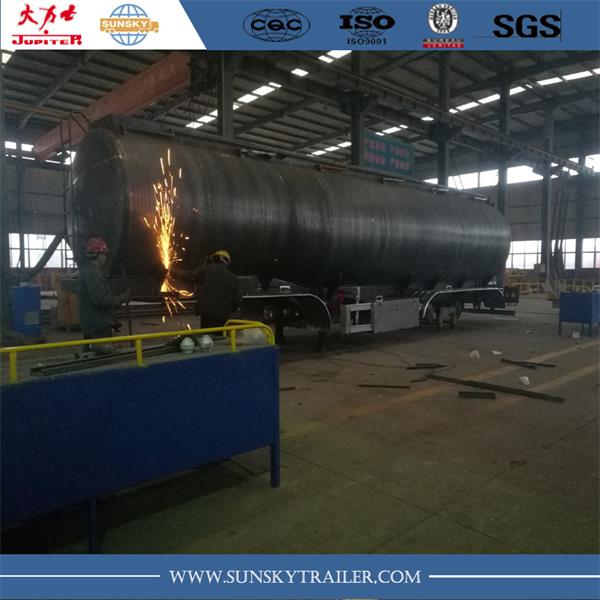

Production detail:
‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑
FAQ:
‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑
1. Who are we?
Answer: We are a group company; we have three semi-trailer factories in china, one trading company in china and one company inHong Kong. We are focus on semi-trailer, trucks and parts.
2. Why choose us
Answer: 1) We have more than 30years experience in the trailer manufacturing. Our brand”SUNSKY” and”JUPITER” had got high reputation in china and overseas countries.
2) We have more than 20 engineers to design the kinds of trailers according to the requirement from you.
3) We had exported thousands of trailers to Africa, Middle East, Asia,Australia,South America and so on since 2006.
4) We are one of the biggest dealers of SINOTRUK HOWO truck in china, we can supply kinds of HOWO brand truck with competitive price.
