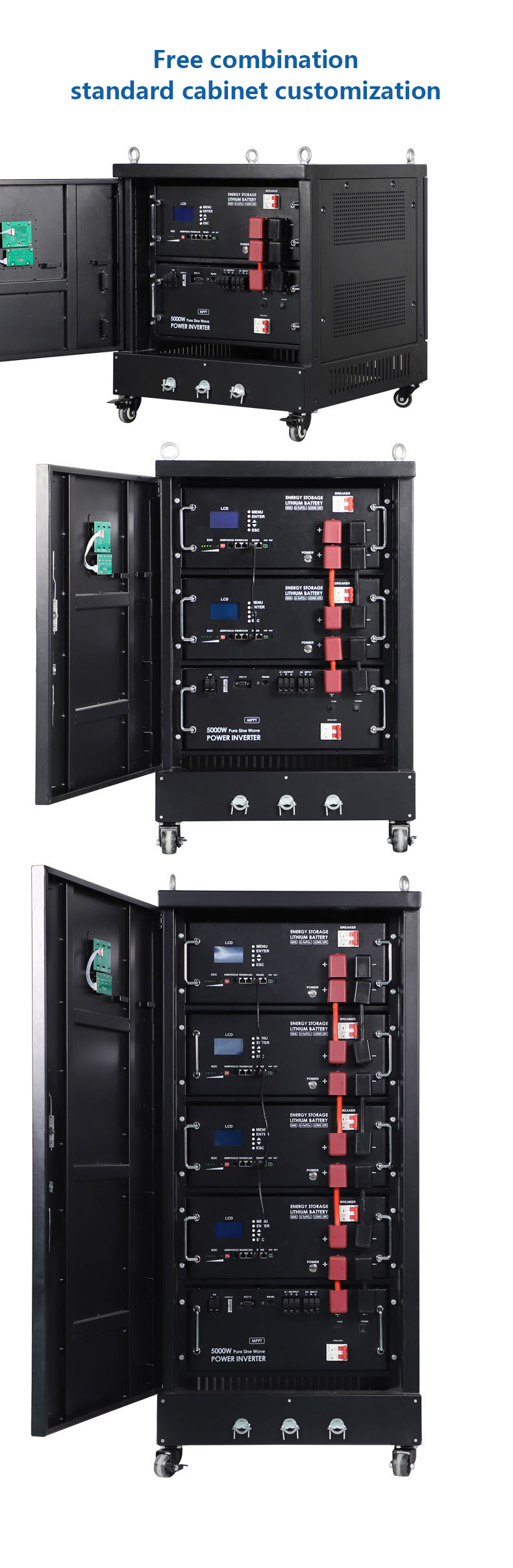

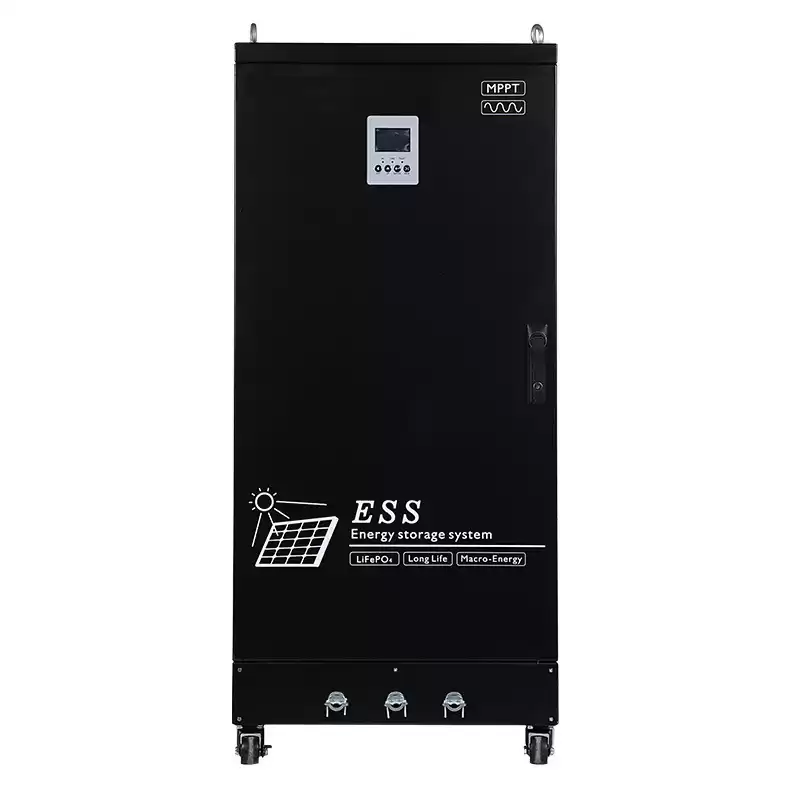

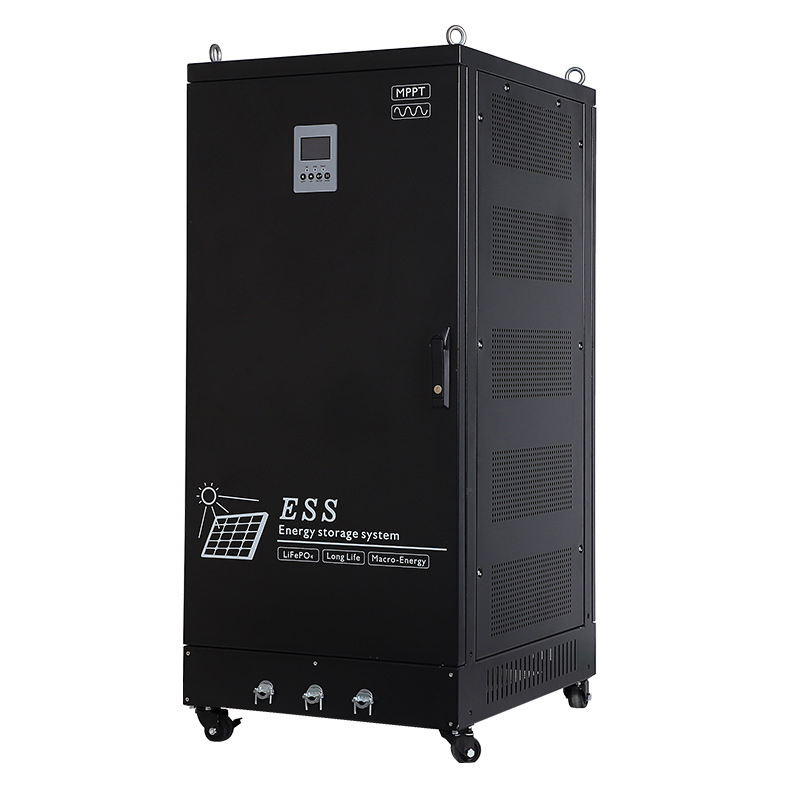

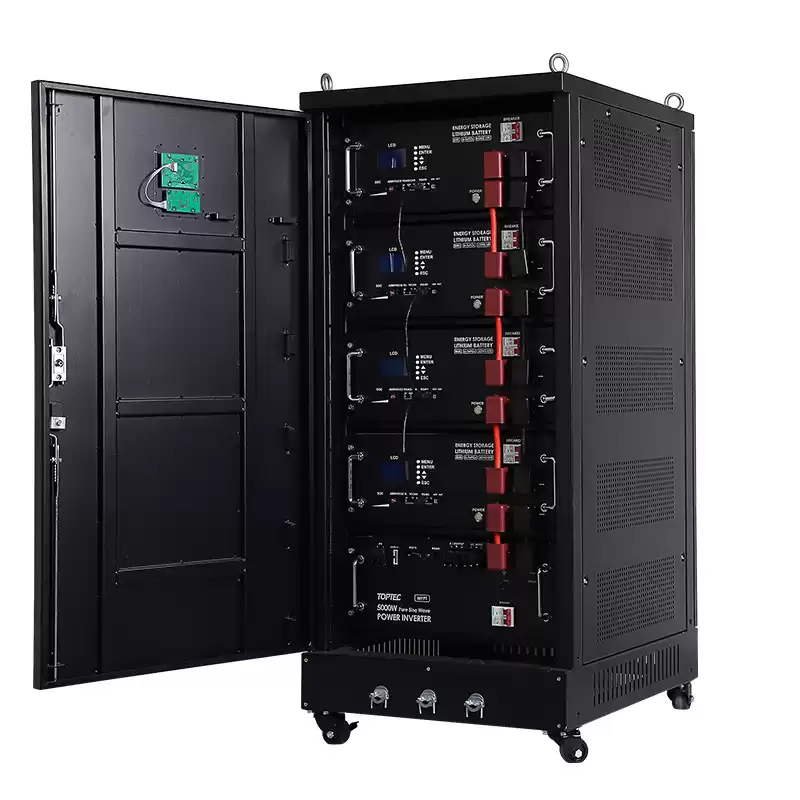

400ah Lithium Battery Solar Energy Storage System

Lithium ion battery have been deployed in varied places. From a small electronics battery to large energy storage and power driving batteries used in solar system, golf cart, medical equipment, electric mobility, power back up, ups and other application,lithium iron phosphate batteries are available in all shapes and sizes. And that renders them to be the perfect option for power needs irrespective of the size of the application devices.

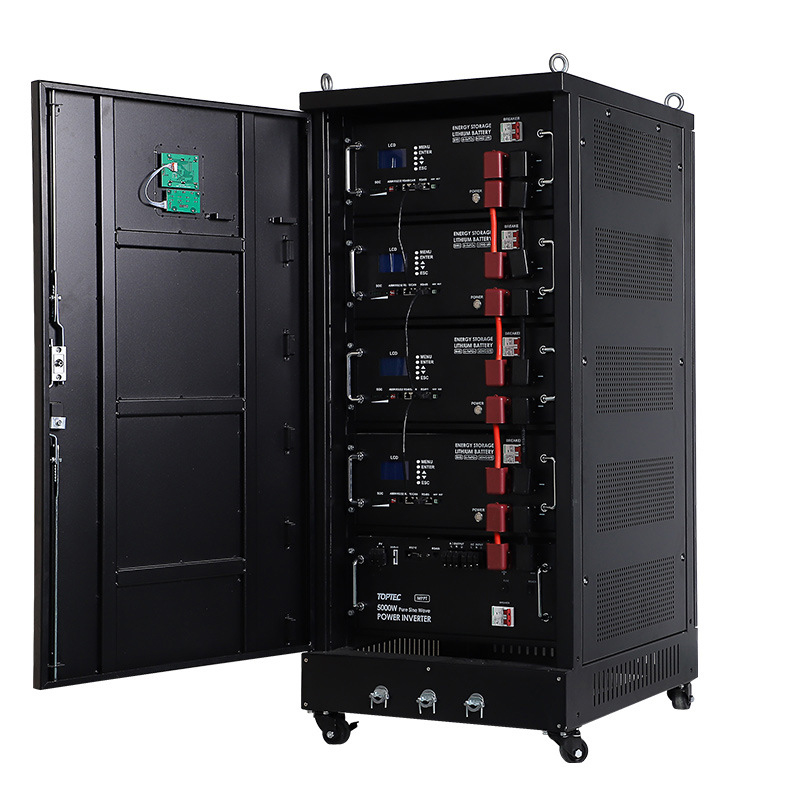

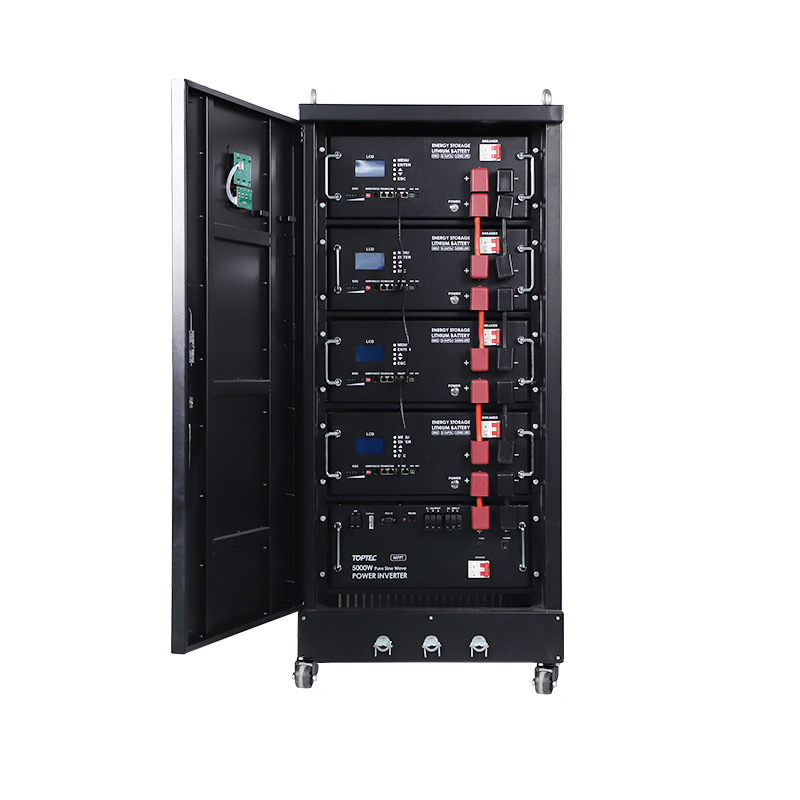

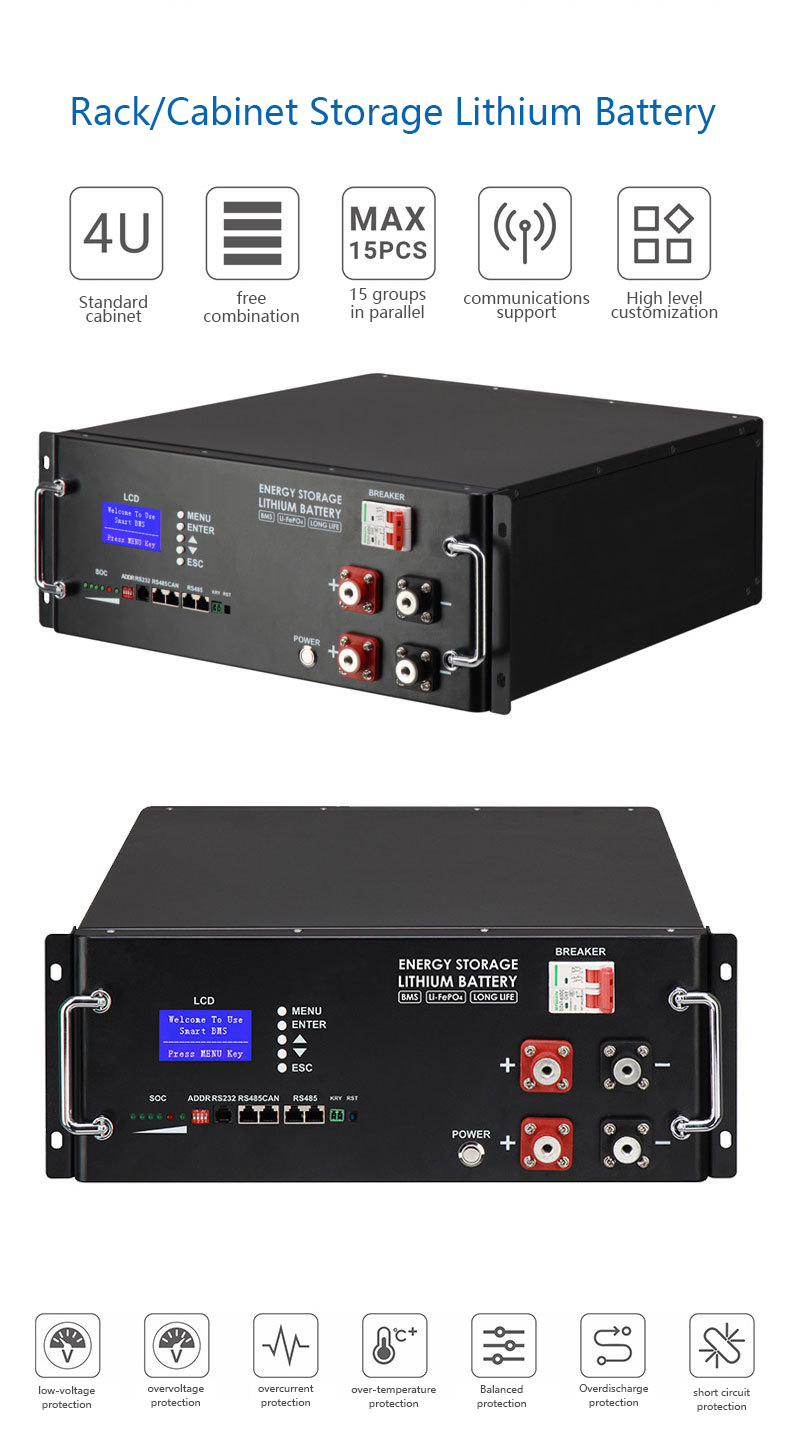

This battery cell cyclelife is 5000 times at 80%DOD what we use is a smart BMS with many function here ,In the front of the battery you could see it has ON/OFF buttons ,Running light ,alarm light,SOC light which could be show the battery capacity when you discharge and charge the battery.

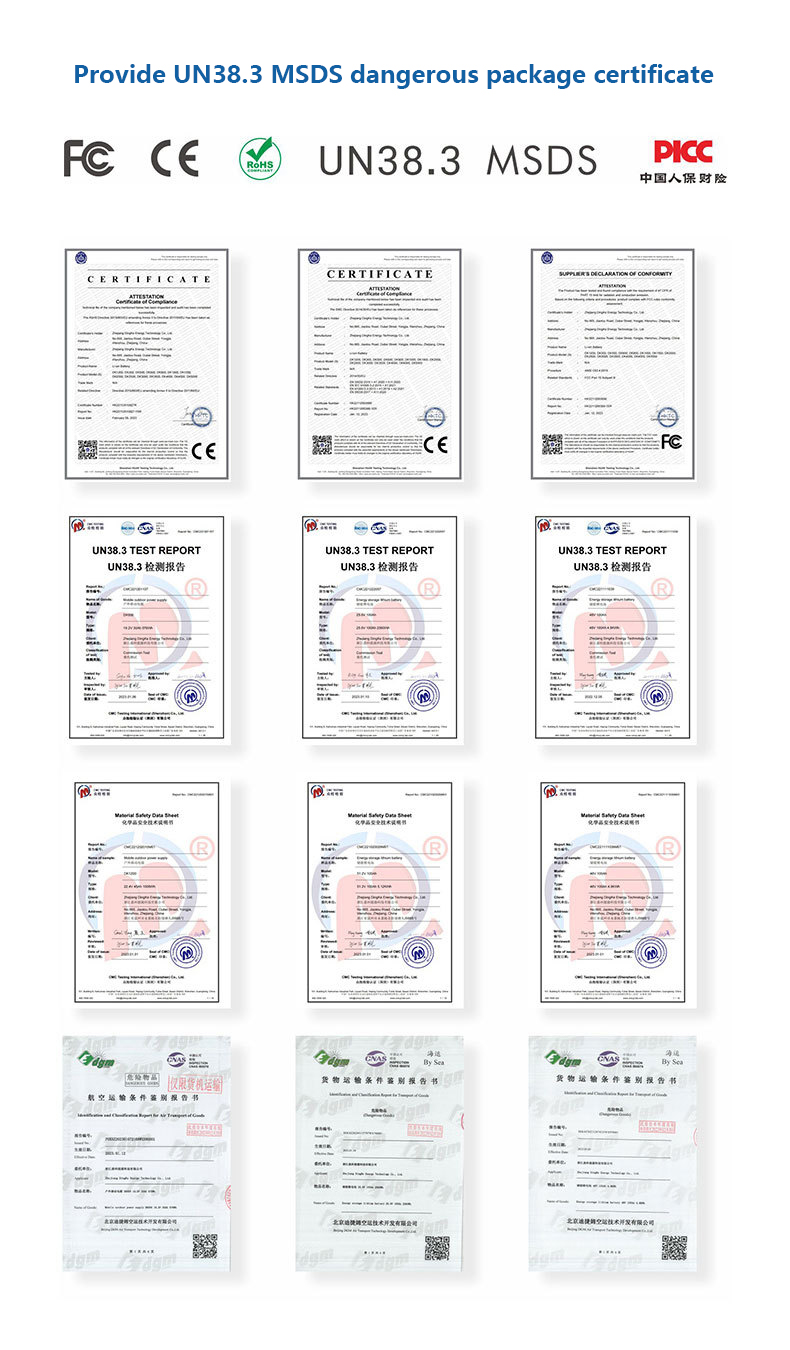

  • CertificateCE FCC ROHS ISO9001
  • Warranty10 years
Facebook Twitter Pinterest LinkedIn 分享

Model
ESS-5
ESS-10
ESS-15
ESS-20
Capacity
5.12KWh/5KW
10.24KWh/5KW
15.36KWh/5KW
20.48KWh/5KW
Standard discharge current
50A
50A
50A
50A
Max. discharge current
100A
100A
100A
100A
Working voltage range
43.2-57.6VDC
Standard Voltage
51.2VDC
Max. charging current
50A
50A
50A
50A
Max. charging voltage
57.6V
Rated PV input voltage
360VDC
MPPT tracking voltage range
120V-450V
Max input voltage (VOC)
at lowest temperature
500V
Max input power
6000W
Number of MPPT tracking paths
1Path
DC input voltage range
42-60VDC
Rated mains power input voltage
220VAC/230VAC/240VAC
Grid power input voltage range
170VAC~280VAC (UPS mode)/120VAC~280VAC (Inverter mode)
Grid input frequency range
45Hz~55Hz (50Hz); 55Hz~65Hz (60Hz)
Inverter output efficiency
94%(MAX)
Inverter output voltage
220VAC±2%/230VAC±2%/240VAC±2%(Inverter mode)
Inverter output frequency
50Hz±0.5 or 60Hz±0.5(Inverter mode)
Inverter output waveform
Pure sine wave
Grid output efficiency
>99%
Max mains charging current
60A
Max PV charging current
100A
Max charging current (Grid+PV)
100A
Optional mode
Grid priority/PV priority/Battery priority
Warranty
5~10Years
Communication
Optional：RS485/RS232/CAN WiFi/4G/Bluetooth


FAQ

Q1: How to choose a right system and products?

A1: Tell us your requirements, then our seller will recommend a suitable product and system to you.


Q2: The advantages of home photovoltaic system

A2: Solar photovoltaic power generation performance is stable and reliable, with a service life of more than 25 years; Small investment, big income;zero pollution;Low maintenance costs;



Q3: Why choose us?

A3: FOTOVO have been engaged in new energy power generation for more than 16 years. Our products and services cover more than 39 countries. Our R&D team is composed of top experts in various fields. We are committed to providing first-class solutions for PV power plants.


Q4: What is the warranty of solar system?
A4: 5 years for whole system,10 years for inverter,modules,frame.And we can make sure our products will through very strictly testing,and then send to you.



Q5: How to solve the technical problem?
A5: 24 hours after-service consultancy just for you and to make your problem to solve easily.And we have offices in many countries,if you have problems,we can arrange people to help you solve problem.


Q6: What about the package?
A6: Strict double-layer packaging design,Rigorous vibration testing.Ensure that the product is not damaged during transportation.
