Main Features:
1) Gas engine (corrugated tube, silencer, switch for battery, starter relay, alternator AVR, USA Baldwin filters, stainless steel heat-shield cover, high quality sensors, tool case, free spare parts, catalogue & manual)
2) Alterantor (air breaker, AVR, instruction manual)

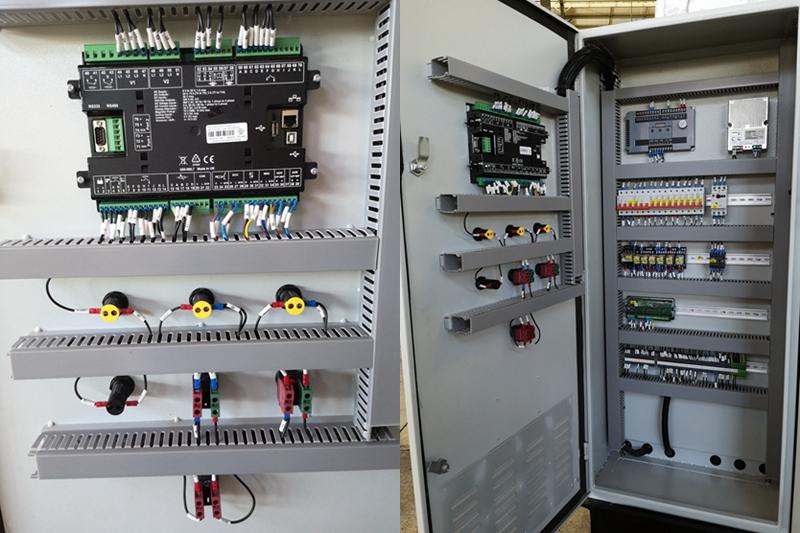

3) Small control cabinet( Smartgen controller, battery float charger, Schneider breaker, Omron relay)
4) Base steel frame ( industrial shock absorbers, forklift work hole)
5) Free-maintenance battery (connecting cables)(lead-acid)
6) Strong shipping packing.
Cummins generator ：Prime power range ：20-1800KW
This series adopt Cummins’ diesel engine with B, C & L series from Dongfeng Cummins Engine Co. Ltd., M, N & K series from Chongqing Cummins Engine Co. Ltd., and high power range with imported engines.The alternators adopt Leroy-somer, Stamford, Marathon, as well as Chinese brand alternator for option

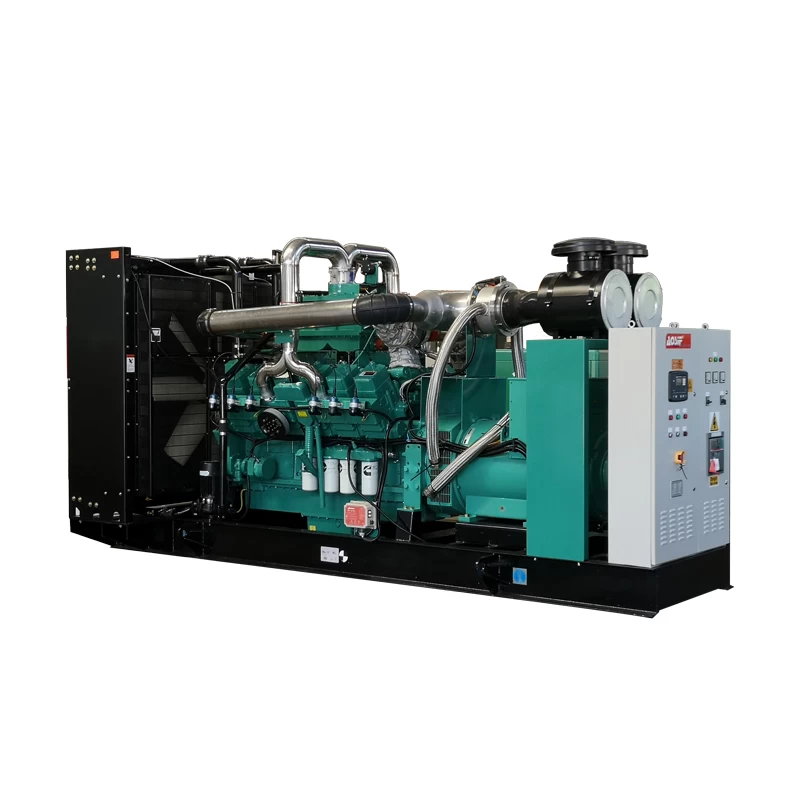

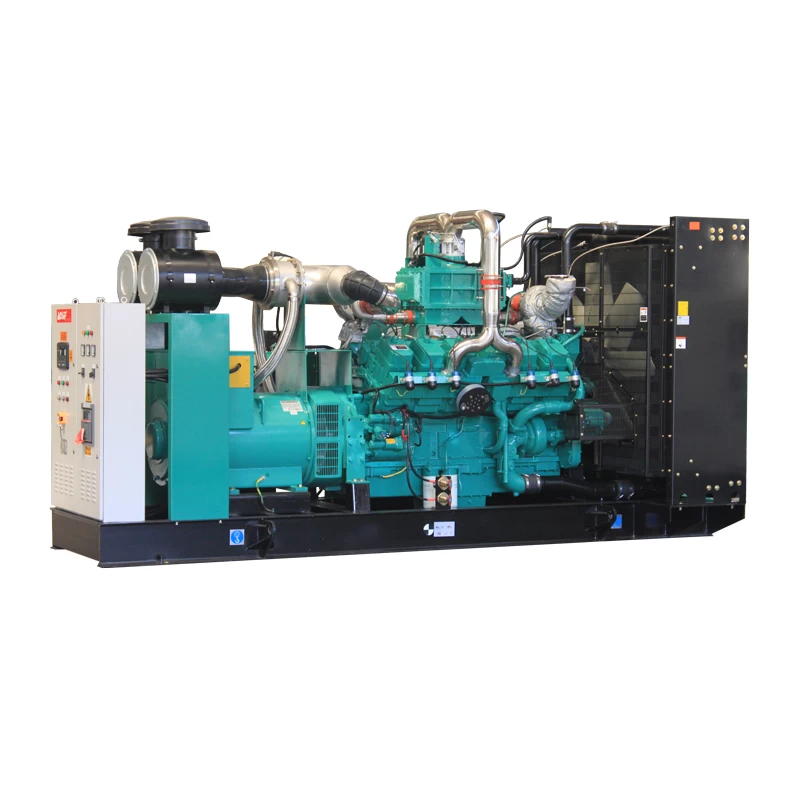

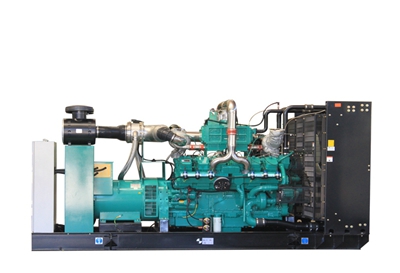

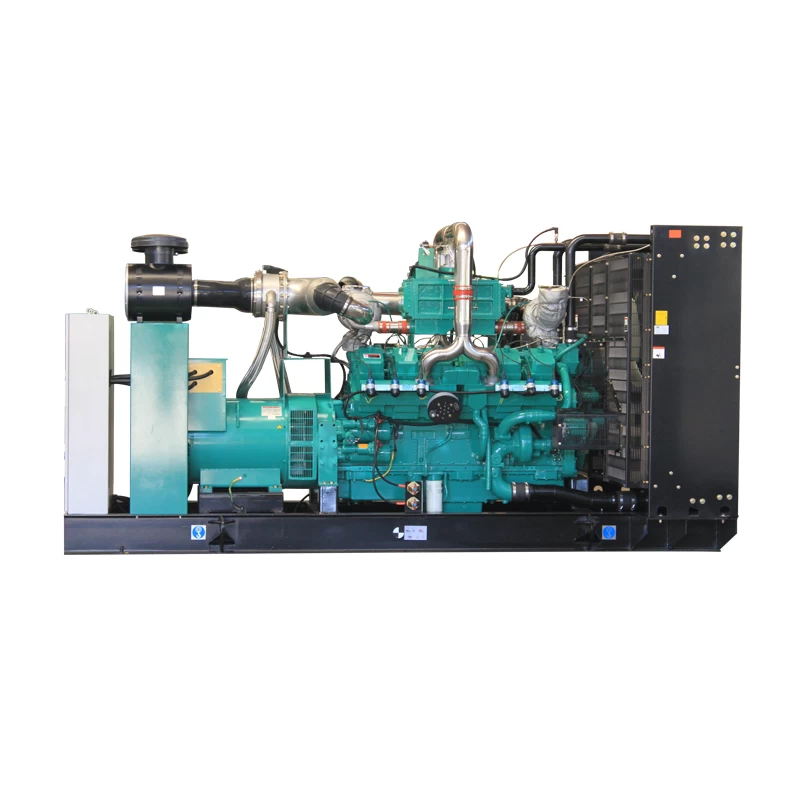

Genset Open Version Genset Soundproof Version
Open Type (Standard Configuration)
|
Soundproof Type
|
Overall Size: 4400*2010*2480mm(L*W*H)
|
Overall size: 6000*2438*2596(L*W*H)
|
Weight: 6080kg
|
Weight: 8700kg
|
Genset Main Technical Data:
|
Genset Model
|
HGKT38
|
|
Prime Power(50HZ)
|
400KW / 500KVA
|
|
Standby Power(50HZ)
|
440KW / 550KVA
|
|
Frequency/Speed
|
50Hz/1500rpm
|
|
Standard Voltage
|
220V/380V
|
|
Phases
|
Three phases, four wires
|
|
Manufacturer
|
Xiamen AOSIF Engineering LTD.
|
Cummins Engine Data:
|
No. of Cylinders
|
12 V Type
|
Engine power(KW)
|
570
|
|
Cycle
|
4 Stroke C
|
Cylinder Type
|
Wet
|
|
Bore * Stroke(mm)
|
159 * 159
|
Compression Ratio
|
11:1
|
|
Induction
|
Turbocharged & Aftercooled D
|
Displacement (L)
|
37.8
|
|
Cooling Method
|
Water cooled G
|
Governing Type
|
Electronic
|
|
Starting method
|
24V DC motor
|
Coolant capacity, including radiator (L)
|
304.8
|
|
Lubricant Oil
|
15W40-CF4 or above grade O
|
Oil pan capacity (L)
|
87
|
