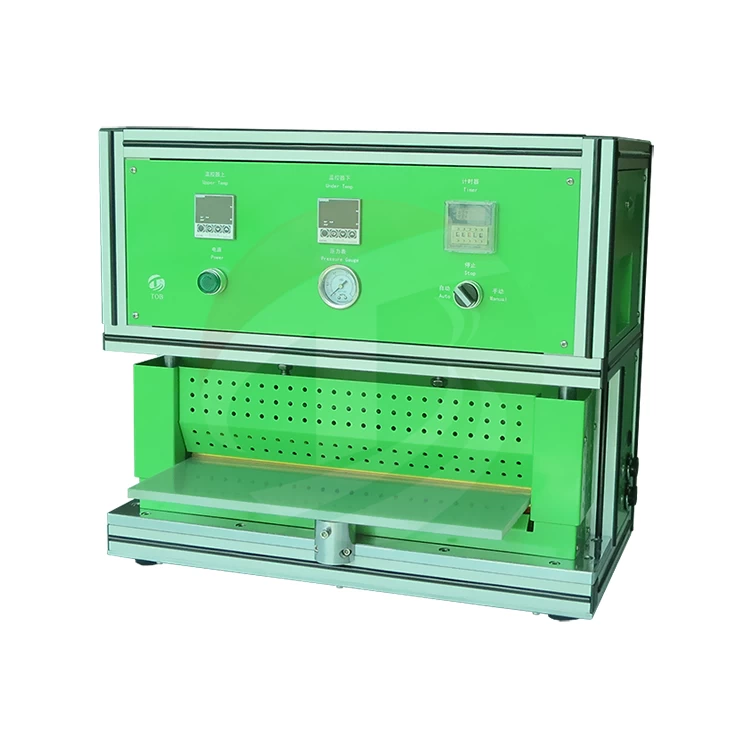

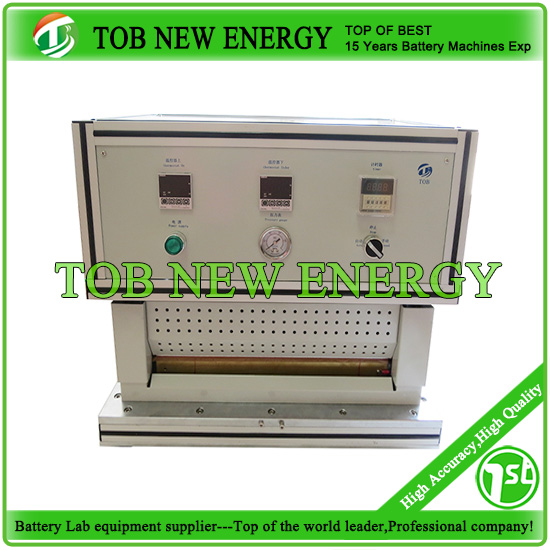

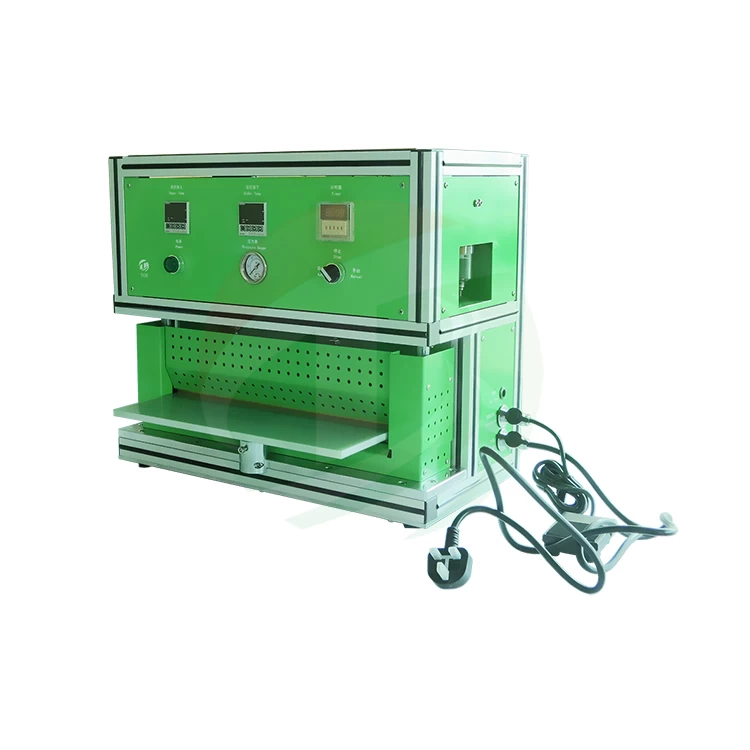

New Design Desk-top 400mm Length Compact Battery Heat Sealing Machine for Pouch Cell Top-side Sealing
SPECIFICATIONS
1 TOB-SFZ-400Battery heat sealing machineis a new designed compact heating sealer for sealing aluminum-laminated films during pouch cell (polymer Li-Ion cell) case preparation. It has the 400mm length sealing head which is suitable for more larger Pouch cell lab research.
2 Thebattery heat sealing machineadopts soft sealing bar, It has soft sealing in top sealing head. So it can be used for both top and side sealing for pouch cell.
3 It can prepare the pouch cell for the injection of electrolyte by sealing the side and top of the pouch cell with tab.
|
Model
|
Battery Heat Sealing Machine TOB-SFZ-400
|
|
Voltage supply
|
110/220V 50/60Hz Single Phase
|
|
Power
|
600W
|
|
Warranty
|
One Year limited warranty with lifetime support
|
|
Compressed air
|
≥ 6kg/cm2
|
|
Suitable battery size
|
Top sealing ≤400mm, Side sealing ≤400mm
|
|
Sealing head length
|
400mm, Customized
|
|
Sealing thickness
|
0.15-0.3mm
|
|
Sealing stamp width
|
6mm (Can be customized upon request without extra charger)
|
|
Sealing pressure
|
0.5- 0.7 MPa (0 - 99 psi) adjustable
|
|
Sealing temperature
|
RT-250℃, adjustable with controlling accuracy +/-2 °C
|
|
Sealing time
|
0-99s adjustable
|
|
Sealing blade type
|
Soft sealing blade
|
|
Dimension(L*W*H)
|
330*550*500mm
|
|
Weight
|
60kg
|
|
Package size (L*W*H)
|
390*650*700mm
|
|
Package weight
|
70kg
|
PRODUCT DISPLAY

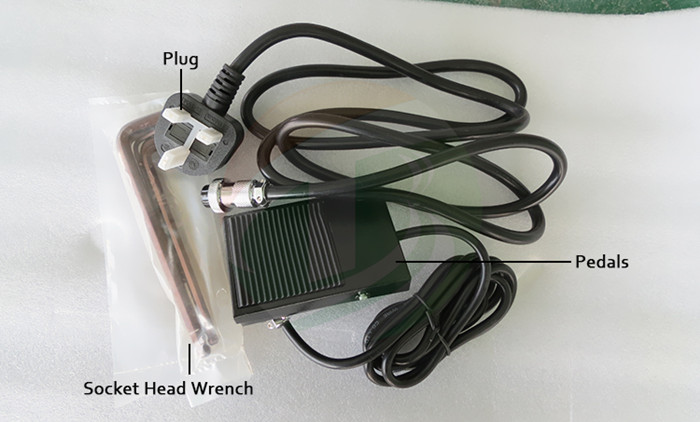

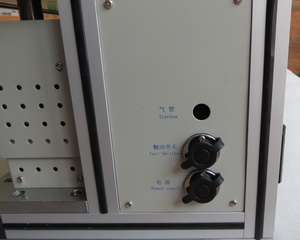

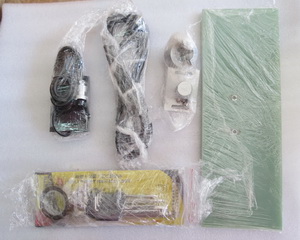

Battery sealing machine accessories Protection for power and air switch

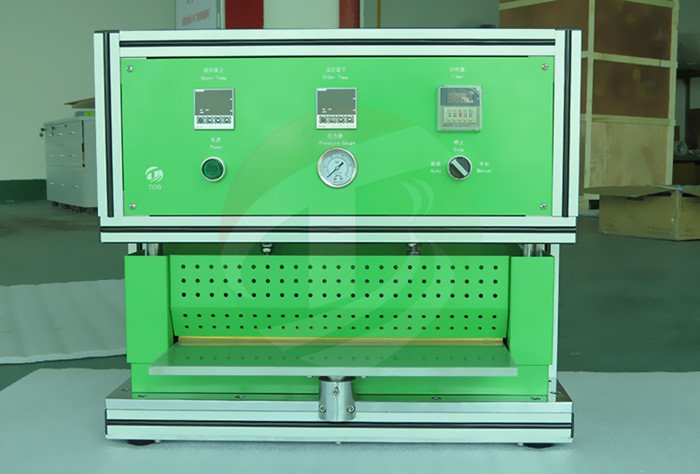

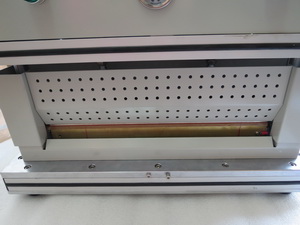

Battery sealing machine operating panel 400mm length sealing head
