400T Die Casting Machine For Making Telescope Shell
Purpose of the machine:
Long Hua die-casting machines are applicable to manufacture of automobile and motor cycle parts (engine cylinder block, cylinder head, crankcase, hinged door covers, oil pan, gearbox housing, gearbox end cap, dashboard, etc.), electric escalator handrail/steps, industrial/road/railway/air/agricultural machinery, streetlights shells,potlight shells, building material parts, furniture, aluminum arts, copper arts, magnesium alloy products, non-ferrous metal processed products and other die casting products.

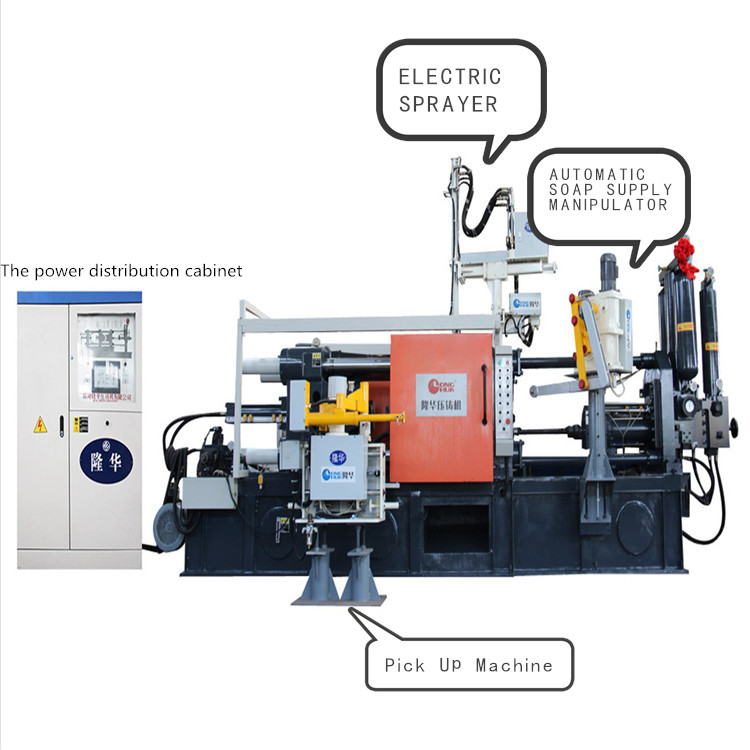

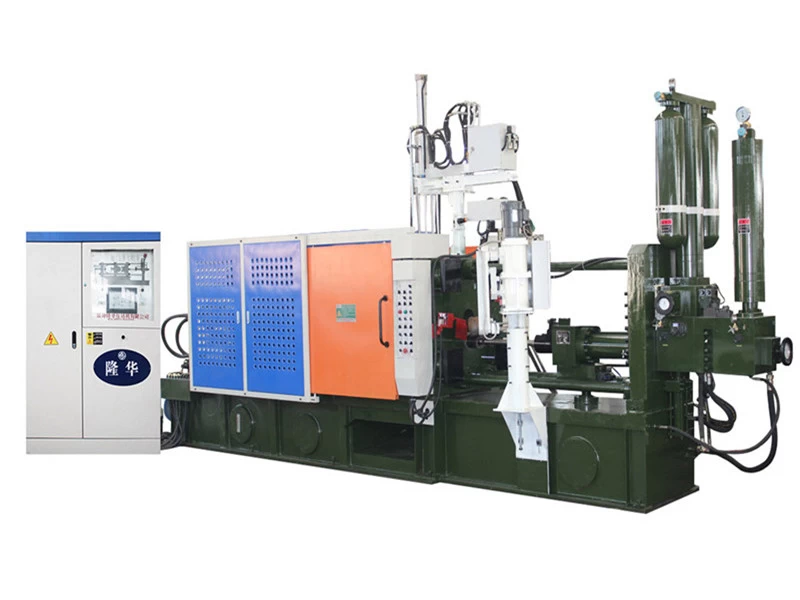

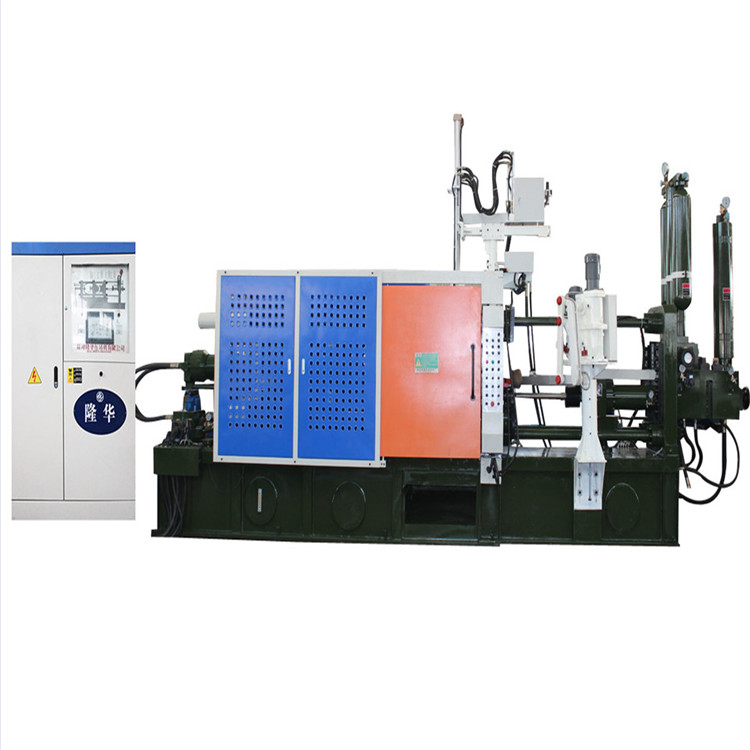

Longhua Automatic die casting machine
LH series of standard parameter table (400 t)
|
Items
|
Unit
|
Specification
|
|
Hydraulic Working Pressure
|
MPa
|
14
|
|
Clamping Force
|
KN
|
4000
|
|
Space Between Tie Bars
|
mm
|
620*620
|
|
Tie Bar Diameter
|
mm
|
￠125
|
|
Die Opening Stroke
|
mm
|
450
|
|
Injecction Force(intensify)
|
KN
|
415
|
|
Plunger launch distance
|
mm
|
200
|
|
Injection position
|
mm
|
0 -- 175
|
|
Plunger Diameter
|
mm
|
￠60----￠80
|
|
Injection Stroke
|
mm
|
500
|
|
Casting pressure (intensify)
|
MPa
|
141/104/80
|
|
Casting Fiange Protrusion
|
mm
|
12
|
|
Casting Fiange Diameter
|
mm
|
130
|
|
(40Mpa) Max Casting Area Under40Mpa
|
CM2
|
1008
|
|
lnjection Weight(Al)
|
Kg
|
5
|
|
Die Height(Min--Max)
|
mm
|
300～750
|
|
Ejector Force
|
KN
|
180
|
|
Ejector Steoke
|
mm
|
140
|
|
Motor Capacity
|
Kw
|
18.5
|
|
Machine Dimensions (L*W*H)
|
m
|
7.3*2*2.8
|
|
Referential Machine Weight For Uplifting
|
T
|
16.5
|
|
Oil Tank Capacity
|
L
|
1000
|
WE reserve the right to make any technical improvement without further notice

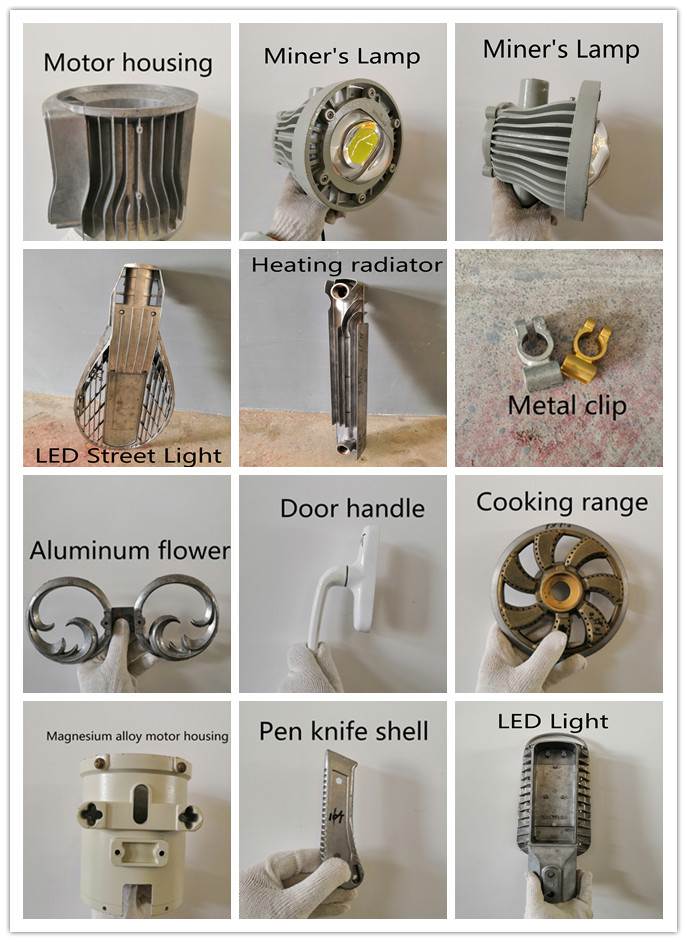

Die-castings made by our die casting machines
