Big Industrial Container 2000kva diesel generator with Perkins engine
Ai power UK Perkins series generator set adopts UK Perkins engine as the power
source. It’s one of the world’s leading diesel engine manufacturers since 1932,
produced nearly 400,000 units for one year and quickly occupied the world
market for the full specification, good structure, reliable performance, easy
maintenance, low exhaust and long period maintenance. Perkins service network is in more than 180 countries and regions.
Output Ratings
|
Generator set model
|
Voltage
|
Hz
|
Phase
|
P.F.
|
Prime Power
|
Standby Power
|
|
(V)
|
|
|
|
KVA
|
KW
|
KVA
|
KW
|
|
AP2200
|
230/400
|
50
|
3
|
0.8
|
2000
|
1600
|
2200
|
1760
|
Dimension & weight
|
Generator set model
|
Type
|
L*W*H(mm)
|
Weight(kg)
|
|
AP2200
|
Open
|
4630*2030*2400
|
8100
|
|
Silent
|
5700*2280*2500
|
10200
|
Diesel Engine Specification
|
Engine model
|
4016TAG2A
|
|
Engine speed (rpm)
|
1500
|
|
Engine output prime(kWm)
|
1766
|
|
Engine output standby(kWm)
|
1890
|
|
Engine Type
|
16-cylinder, 60° Vee
|
|
Aspiration
|
Turbocharged and Direct injection
|
|
Bore * Stroke (mm)
|
160-190
|
|
Displacment (litre)
|
61.123
|
|
Compression Ratio
|
13.9:1
|
Alternator Specs
|
Alternator
|
Famous brand
|
Leroy somer, Stamford, Marathon,Meccalte
|
|
China Brand
|
Ai Power, Kaijieli
|
|
Power Range
|
1600KW/2000KVA
|
|
Insulation class
|
H
|
|
Phase/Wire
|
3 phase/ 4 wire
|
|

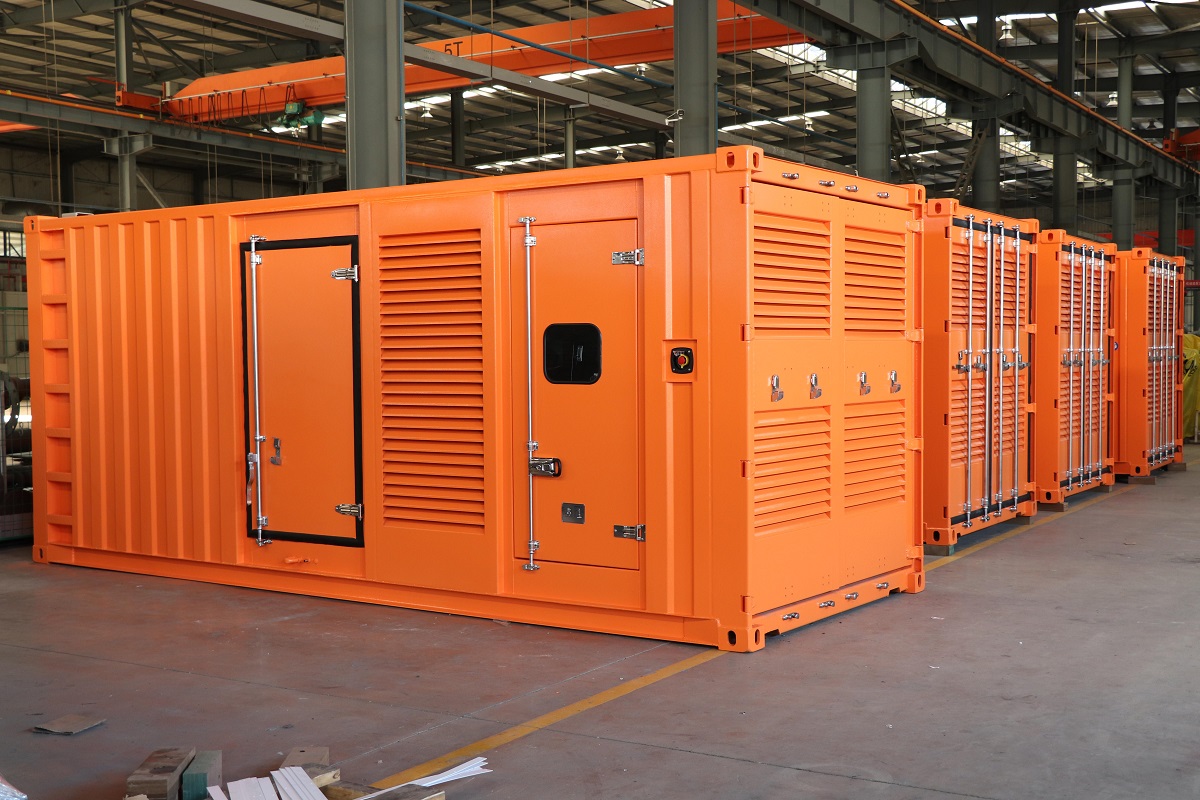

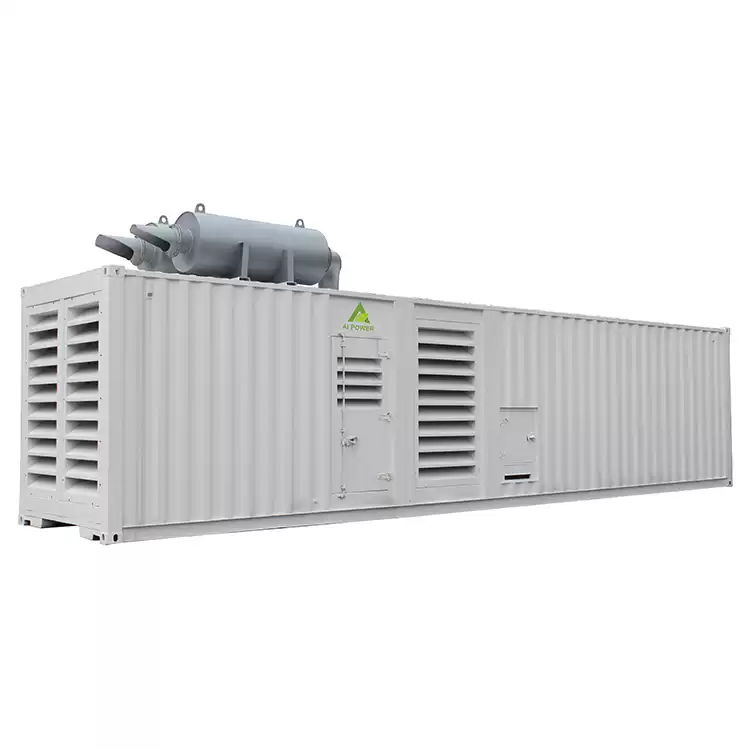

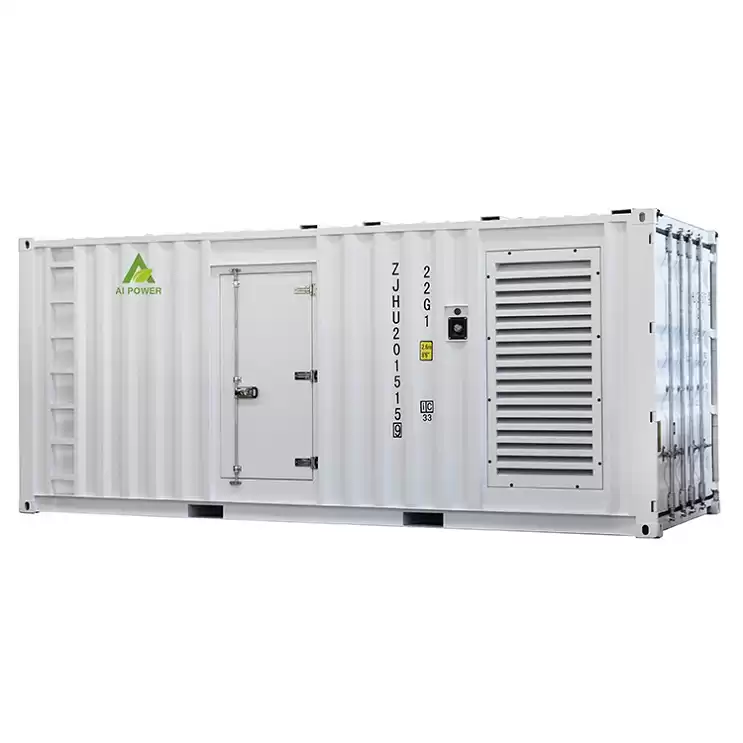

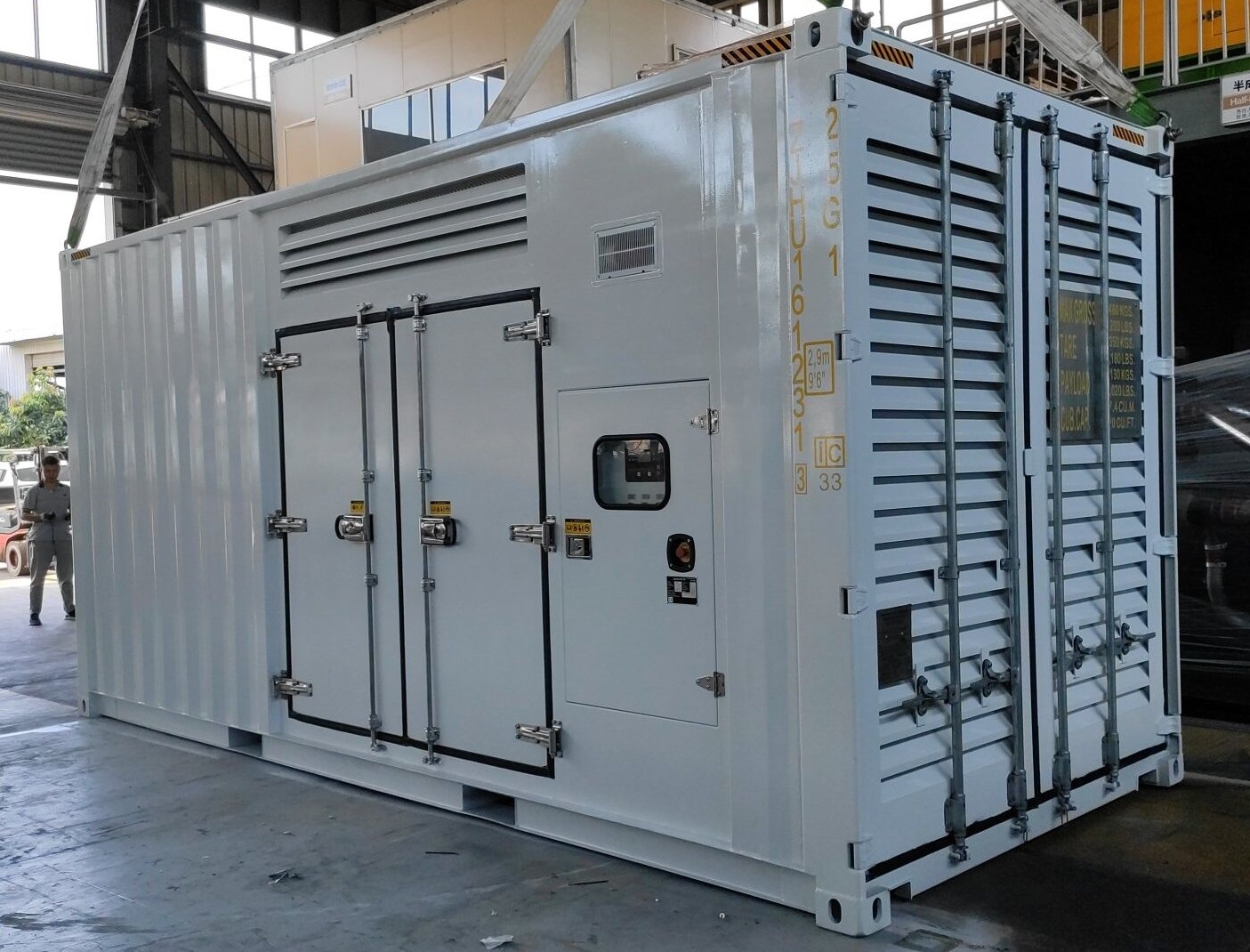

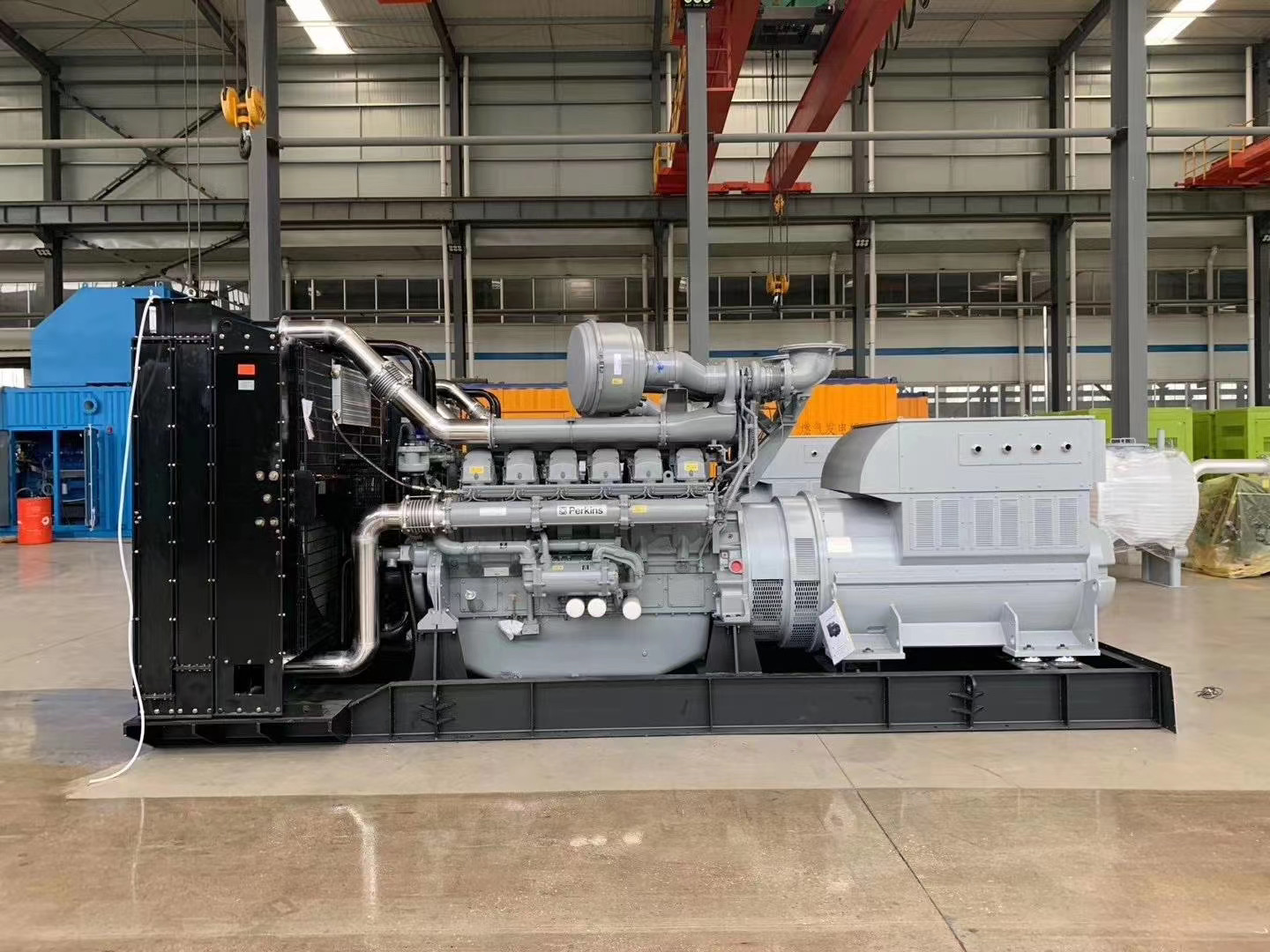

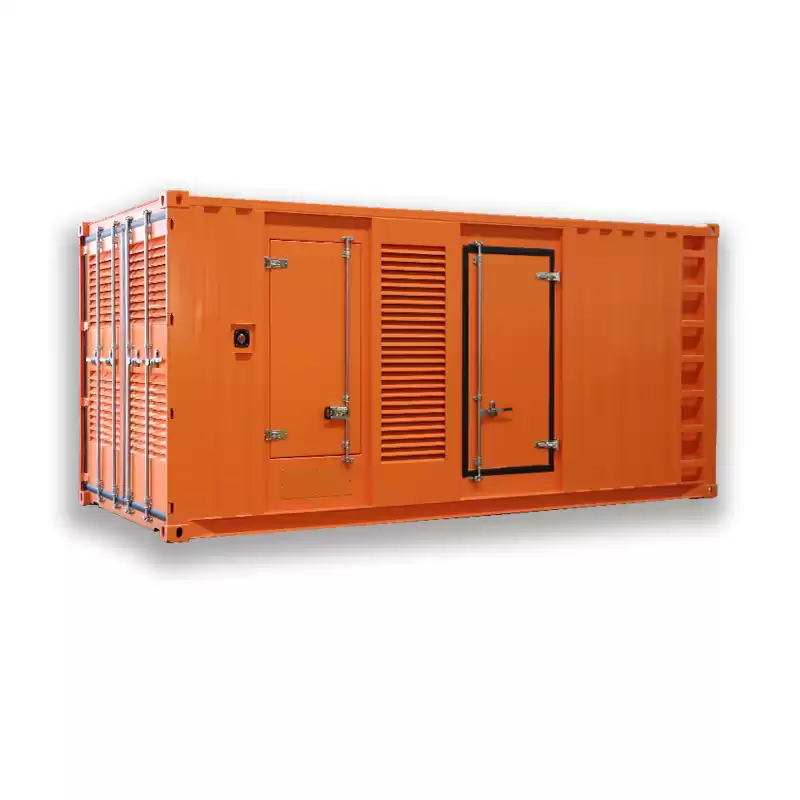

Generator Photos:
About US
Ai Power Factory Introduction
High quality, reliable and complete power unit
Compact design
Easy start and maintenance possibility
Every generating set is subject to a comprehensive test program which includes full load testing, checking and provision of all control and safety shut down functions testing
Fully engineered with a wide range of options and accessories: Canopy, sound proof canopy and on - road trailer
